2AA9B03BMD-200

BMD-200 V0.3 PRELIMINARY Page Page 1 of 12 Rigado LLC 2601 25 th ST SE Suite 200 Salem, Oregon 97302 866-6-RIGADO  (f) 971-208-9869 Blumod BMD-200 Module for Bluetooth 4.0 LE The blumod BMD-200 from Rigado is a powerful, highly flexible Bluetooth Smart module based on the nRF51822 SoC from Nordic Semiconductor. With a ARM® Cortex™ M0 CPU, embedded 2.4GHz transceiver, and on-module chip antenna, the BMD-200 provides a complete RF solution with no additional RF design, allowing faster time to market. The BMD-200 provides full use of the nRF51822’s on-chip peripherals, allowing for a wide range of applications without the need for an external host microcontroller; simplifying designs and reducing BOM costs. With an internal DC-DC converter and a voltage supply range of 2.1V to 3.6V, the BMD-200 can be powered directly from a coin cell or two AAA batteries with ultra-low power consumption. Features  Based on the Nordic nRF51822 SoC  Complete RF solution with integrated chip antenna  Integrated DC-DC converter  No external components required  ARM® Cortex™-M0 32-bit processor  Serial Wire Debug (SWD)  S100 series SoftDevice ready  256 kB embedded flash program memory  16 kB RAM  8/9/10 bit ADC - 8 configurable channels  15 General Purpose I/O Pins  FCC ID: 2AA9B03  One 32-bit and two 16-bit timers with counter mode  SPI Master/Slave (4 Mbps)  Low power comparator  Temperature sensor  Two-wire Master (I2C compatible)  UART (w/ CTS/RTS)  CPU independent Programmable Peripheral Interconnect (PPI)  Quadrature Decoder (QDEC)  AES HW encryption  Real Timer Counter (RTC)  IC: 12208A-01 Applications  App-cessories  iBeacons™  Low-Power Sensors  Connected Appliances  Lighting Products  Health/Fitness devices  Wearables BMD-200 V0.3 PRELIMINARY Page 2 of 12 Quick Specifications Bluetooth Version 4.0 (Bluetooth Smart) Security AES-128 LE connections up to 8 Radio Frequency 2.402GHz to 2480GHz Modulations GFSK at 250 kbps, 1 Mbps, 2 Mbps data rates Transmit power +4 dBm Receiver sensitivity -93 dBm Typical line-of-sight range 30 - 150 meters Antenna Integrated ceramic chip Current Consumption TX only @ +4 dBm, 0 dBm, -4 dBm 16 mA, 10.5 mA, 8 mA RX only @ 2 Mbps, 1 Mbps, 250 kbps 13.4 mA, 13 mA, 12.6 mA CPU @ 16MHz from flash, from RAM 4.4 mA, 2.4 mA System Off , w/ 16K RAM, 8K RAM, no RAM retention 1.8 uA, 1.2 uA, 0.6 uA Dimensions Length 17.00 mm Width 17.00 mm Height 2.89 mm Hardware Interface SPI Master/Slave, UART, Two-Wire Master, GPIO Power supply 2.1V to 3.6V Certifications FCC FCC part 15 modular qualification BMD-200 V0.3 PRELIMINARY Page 3 of 12 Absolution Maximum Ratings Symbol Parameter Min. Max. Unit V CC_MAX Voltage on supply pin -0.3 3.9 V V IO_MAX Voltage on GPIO pins -0.3 V CC + 0.3 V T S Storage Temperature Range -40 125 °C Operating Conditions Symbol Parameter Min. Typ. Max. Unit V CC Operating supply voltage 2.1 3.0 3.6 V T R_VCC Supply rise time (0V to 1.8V) - - 60 ms T A Operating Ambient Temperature Range -25 25 75 °C GPIO Specifications Symbol Parameter Min. Typ. Max. Unit V IH Input High Voltage 0.7 x V CC - V CC V V IL Input Low Voltage V SS - 0.3 x V CC V V OH Output High Voltage V CC – 0.3 - V CC V V OL Output Low Voltage V SS - 0.3 V R PU Pull-up Resistance 11 13 16 kΩ R PD Pull-down Resistance 11 13 16 kΩ Note: GPIO have a standard drive strength of 0.5 mA, and a high drive strength of 5 mA. Maximum number of high drive strength pins is 3. Clocks The BMD-200 module requires two clocks, a high frequency clock and a low frequency clock. The high frequency clock is provided internally by a high-accuracy 16-MHz crystal as required by the nRF51822 for radio operation. The low frequency clock can be provided internally by an RC oscillator or synthesized from the fast clock; or externally by a 32.768 kHz crystal. An external crystal provides the lowest power consumption. BMD-200 V0.3 CONFIDENTIAL Page 4 of 12 32.768 kHz Crystal Specification Requirements Symbol Parameter Typ. Max. Unit f nom Crystal frequency 32.768 - kHz F tol,BLE Frequency tolerance, Bluetooth low energy applications. ±250 - ppm C l Load Capacitance - 12.5 pF C o Shunt Capacitance - 2 pF R s Equivalent series resistance 50 80 kΩ C pin Input Capacitance on XTAL1 & XTAL2 5 - pF 32.768 kHz Oscillator Comparison Symbol Parameter Typ. Max. Unit I X32k Current for 32.768kHz Crystal Oscillator 0.4 1 uA I RC32k Current for 32.768kHz RC Oscillator 0.8 1.1 uA I SYNT32k Current for 32.768kHz Synthesized Oscillator 15 - uA F TOL,X32k Frequency Tolerance, 32.768kHz Crystal Oscillator - ±250 ppm F TOL,RC32k Frequency Tolerance, 32.768kHz RC Oscillator ±2 - % F TOL,SYNT32k Frequency Tolerance, 32.768kHz Synthesized Oscillator ±34 - ppm Note: F TOL,X32k is max tolerance allowed for BLE applications. Actual tolerance depends on the crystal used. BMD-200 V0.3 CONFIDENTIAL Page 5 of 12 Pinout Top View Pin description (PRELIMINARY) Name Pin Direction Description P0.24 5 In/Out GPIO P0.25 6 In/Out GPIO P0.26 8 In/Out GPIO/AIN1/XTAL2 (32.768kHz) P0.27 9 In/Out GPIO/AIN0/XTAL1(32.768kHz) P0.00 11 In/Out GPIO/AREF0 P0.01 12 In/Out GPIO/AIN2 P0.02 13 In/Out GPIO/AIN3 P0.03 14 In/Out GPIO/AIN4 P0.04 15 In/Out GPIO/AIN5 P0.05 16 In/Out GPIO/AIN6 P0.06 17 In/Out GPIO/AIN7/AREF1 P0.08 20 In/Out GPIO P0.09 21 In/Out GPIO P0.10 22 In/Out GPIO P0.11 23 In/Out GPIO SWDIO 24 In/Out SWD IO/ RESET ̅̅̅̅̅̅̅̅̅ SWDCLK 25 In SWD Clock VCC 18 Pwr +2.1 to +3.6VDC input 1 GND 1, 2, 3, 4, 7, 10, 19, 26, (27, 28 opt.) Pwr Electrical Ground Note 1: An external capacitor for V CC is not strictly required, however using a 1μF - 4.7μF ceramic capacitor is recommended. BMD-200 V0.3 CONFIDENTIAL Page 6 of 12 Mechanical Dimensions Recommended PCB Land Pad (Top view) (All dimensions are in mm) BMD-200 V0.3 CONFIDENTIAL Page 7 of 12 Recommended Copper Keepout The area under and extending out from the antenna portion of the module should be kept clear of copper and other metal. The module should be placed at the edge or, ideally, at the …

Text truncated - open the document above for the full version.

FCC Modular Approval Request Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Company name: Rigado, LLC FCC ID: 2AA9B03 FCC Part _15_Certification The table below contains the justification for modular approval of this equipment: Requirement per KDB 996369 Explanation form grantee 1, The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, it is fulfilled. The modular transmitter has own shielding. Shielding is show on external photos. 2, The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes, it is fulfilled. The modular have buffered modulation/data inputs. It is transmitted at 250kbps, 1 Mbps, or 2 Mbps using GFSK modulation 3, The module must contain power supply regulation on the module. Yes, it is fulfilled. The modular transmitter have its own power supply regulation.(DC 3.3V by Battery.) 4, The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Yes, it is fulfilled. The modular comply with antenna requirements.( chip antenna) 5, The module must demonstrate compliance in a stand-alone configuration; Yes, it is fulfilled. The modular was tested in a stand-alone configuration. Please see setup photos and test jig photo. 6, The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements). Yes, it is fulfilled. The label is shown on transmitter modular, please see the label view. 7, The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee. Yes, it is fulfilled. The operation description and user guides provide this detail. 8, The module must comply with RF exposure requirements. Yes, it is fulfilled. The modular is exempted due to its low field strength. Signature: Name: Cam Nichols Title: Engineer Company: Rigado, LLC

Rigado LLC 2601 25 th ST SE Suite 200 Salem, Oregon 97302 866-6-RIGADO  (f) 971-208-9869 Letter of Authorization Company: Rigado, LLC Address: 2601 25 th St SE, Suite 200, Salem, OR 97302 Product Name: BMD-200 Model Number: BMD-200 We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following:  Testing  Approval applications (includes complete product documentation package, including Confidential information) and procedures  Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Cam Nichols Date: 7/28/14 Title: Engineer Signature of applicant:

Rigado LLC 2601 25 th ST SE Suite 200 Salem, Oregon 97302 (o) 971-208-5236  (f) 503-405-7279 7/30/2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Rigado, LLC FCC ID: 2AA9B03 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 Rigado, LLC hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Block Diagram Block Diagram Operational Description Operational Description Schematics Schematics Parts / BOM Parts / BOM List Note: Any exhibit NOT granted Confidential status is viewable on the FCC website as soon as the Grant is issued. Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Rigado, LLC considers proprietary, confidential, and a custom design not otherwise available to the general public. State why the information is a “trade secret;” Since the design is a basis from which future products will evolve, Rigado, LLC considers that this information would be of significant benefit to its competitors and that disclosure would give competitors an unfair advantage in the marketplace. Trade secret” information is information which is not generally known or reasonably ascertainable, by which a business can obtain an economic advantage over competitors. The information is not normally released to any party or person outside the company. Sincerely, Signature: Name: Cam Nichols Company: Rigado, LLC Title: Engineer Date: 07/28/2014

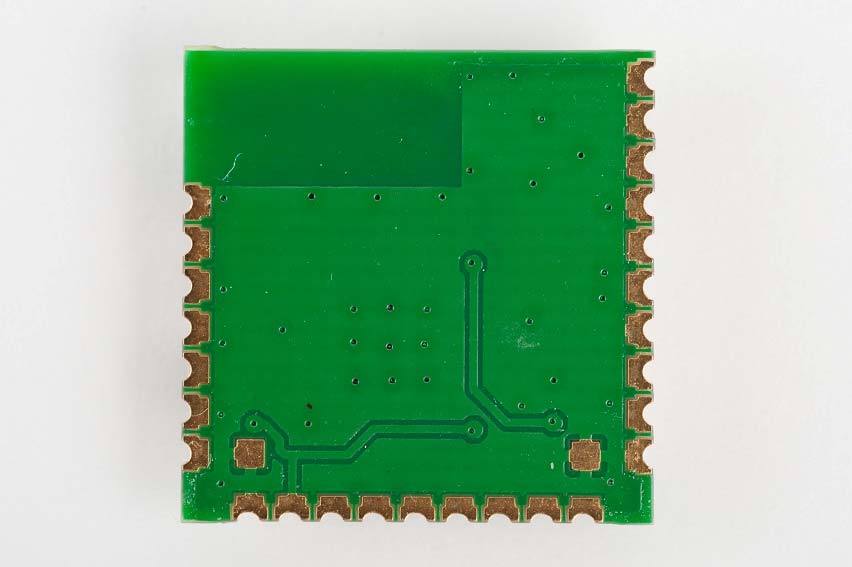

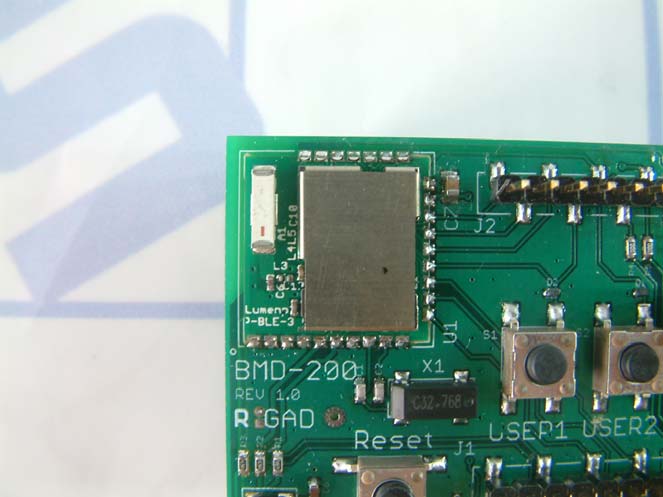

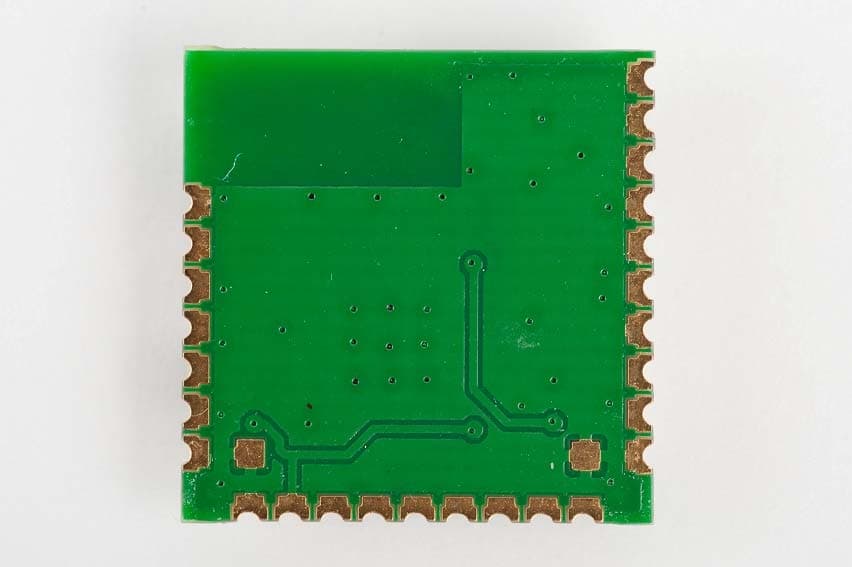

FCC ID:2AA9B03 IC :12208A-01 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140728-00824-EFI Page 1 of 3 1.External Photos of the EUT Module view Module view side 1 FCC ID:2AA9B03 IC :12208A-01 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140728-00824-EFI Page 2 of 3 Module view side 2 Jig side 1 view FCC ID:2AA9B03 IC :12208A-01 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140728-00824-EFI Page 3 of 3 Jig side 1 view

FCC ID:2AA9B03 IC:12208A-01 IC :12208A-01 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140728-00824-EFI Page 1 of 1 LABEL PHOTOGRAPHS LABEL LOCATION

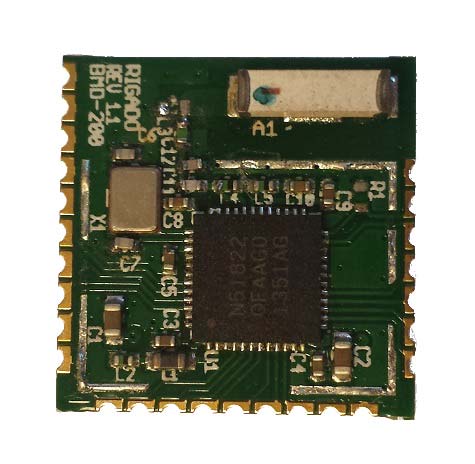

FCC ID:2AA9B03 IC :12208A-01 IC :12208A-01 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140728-00824-EFI Page 1 of 1 1. Internal Photos of the EUT PCB side 1 view PCB side 2 view

CENTRE OF TESTING SERVICE INTERNATIONAL OPERATE ACCORDING TO ISO/IEC 17025 FCC ID/IC TEST REPORT TEST REPORT NUMBER : CGZ3140728-00824-EFI CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China FCC ID:2AA9B03 IC :12208A-01 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140728-00824-EFI Page 1 of 36 TEST REPORT For FCC ID/IC RSS-210 Issue 8 47 CFR PART 15 OCT, 2013 Report Reference No. .................... CGZ3140728-00824-EFI Date of issue ..................................... 30 July 2014 Testing Laboratory Name .............. CENTRE OF TESTING SERVICE CO., LTD. Address............................................. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Testing location/ procedure .............. Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ............................Rigado LLC Address.............................................2601 25 th St SE, Suite 200, Salem, OR 97302 USA Test specification ........................... Standard ...........................................RSS-210 Issue 8,RSS-Gen Issue 3 47 CFR PART 15 OCT, 2013 Test Report Form No. ....................CTSEMC-1.0 TRF Originator.................................. CENTRE OF TESTING SERVICE CO., LTD. Master TRF .......................................Dated 2009-01 CENTRE OF TESTING SERVICE CO., LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the CENTRE OF TESTING SERVICE CO., LTD is acknowledged as copyright owner and source of the material. CENTRE OF TESTING SERVICE CO., LTD takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.....................:BMD-200 Trade Mark.......................................Rigado Manufacturer....................................Rigado, LLC Model/Type reference...................... BMD-200 Ratings.............................................DC 3.3V Operating Frequency ........................ 2402.0MHz ~2480.0MHz Result ............................................... Positive Compiled by: Supervised by: Approved by: Kate zhang / Fileadministrators Duke yang / Technique principal Vincent yao / Manager FCC ID:2AA9B03 IC :12208A-01 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140728-00824-EFI Page 2 of 36 FCC ID/IC -- T E S T R E P O R T Test Report No. : CGZ3140728-00824-EFI 30 July 2014 Date of issue Type / Model............................ BMD-200 EUT.......................................... BMD-200 Applicant........................... Rigado, LLC Address.................................... 2601 25 th St SE, Suite 200, Salem, OR 97302 USA Telephone................................ +001-971-208-9857 Fax........................................... +001-971-208-9869 Contact..................................... Cam Nichols Manufacturer...................... Rigado, LLC Address.................................... 2601 25 th St SE, Suite 200, Salem, OR 97302 USA Telephone................................ +001-971-208-9857 Fax........................................... +001-971-208-9869 Contact..................................... Cam Nichols Test report holder................ Rigado, LLC Address.................................... 2601 25 th St SE, Suite 200, Salem, OR 97302 USA Telephone................................ +001-971-208-9857 Fax........................................... +001-971-208-9869 Contact..................................... Cam Nichols Test Result according to the standards on page 1:PASSED The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC ID:2AA9B03 IC :12208A-01 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140728-00824-EFI Page 3 of 36 TABLE OF CONTENTS Description Page 1.TEST STANDARDS........................................................................................................................................5 2.SUMMARY......................................................................................................................................................5 2.1 GENERAL REMARKS .......................................................................................................................................5 2.2 FINAL ASSESSMENT........................................................................................................................................5 3.EQUIPMENT UNDER TEST ...........................................................................................................................5 3.1 POWER SUPPLY SYSTEM UTILISED..…

Text truncated - open the document above for the full version.

FCC ID: 2AA9B03 IC :12208A-01 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140728-00824-EI Page 1 of 2 TEST PHOTOGRAPHS 1. Photos of Radiated Emission Test (In Anechoic Chamber) 9KHz~30MHz 30MHz-1GHz FCC ID: 2AA9B03 IC :12208A-01 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3140728-00824-EI Page 2 of 2 Above 1GHz 2. Band Edge Compliance Test
