2AAB905447TDoctor Who 1/4 Scale Radio Control K9

RADIO CONTROLLED K9 MkII Ar t No: 05177-150714-V1B Doctor Who logo TM & © BBC 2004. TARDIS TM & © BBC 1963. K9 images © BBC 1963. BBC logo TM & © BBC 1996. Licensed by BBC Worldwide Limited. DOCTOR WHO and the DOCTOR WHO logo, K9 word, logo and device marks are trade marks of the British Broadcasting Corporation and are used under licence. K9 is a mobile computer in the shape of a dog constructed by Professor Marius of a medical foundation to be a companion for him whilst in deep space. K9 is both a huge database and has defensive capabilities being equipped with a retractable laser in his nose which can be set to stun or kill. He can integrate with virtually any computer system including the TARDIS and has been responsible for getting the Doctor out of many a tricky and dangerous situation. CONTENTS: 1 x RADIO CONTROLLED K9 MkII 1 X RC CONTROLLER 5+ Item: Doctor Who 1/4 Scale Radio Controlled K9 MkII Item Number: 05447 Age Grade: 5 years plus 2.4 GHz CONTROL FREQUENCY: X Character Options Ltd., hereby declares that this radio equipment is manufactured in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. A copy of the Declaration of Conformity can be obtained from Character Options Customer Services Department, OL4 5JL. IMPORTANT NOTE: Radio controlled devices using the same frequency will interfere with each other if run together. Item No: 05447 Radio Frequency: 2.4 GHz Not suitable for children under 36 months. Choking hazard (small parts). Please remove all packaging attachments before giving this product to a child. Please use discretion if making purchases for children younger than the age recommended on this package. At the end of the useful life of this product do not dispose in normal household waste. Check with your local authority or responsible disposal centre and submit to the collection point for the recovery and recycling of electrical and electronic equipment. Product specifications, colour and contents may vary from those illustrated. IMPORTANT: Please retain packaging/instructions and purchase details for future reference as they contain important information. WARNING! CHOKING HAZARD. RECYCLING OUR PRODUCTS All our product and packaging is designed with easy and safe recycling in mind. For information on the National Recycling Strategy and the recycling logo on this pack or product please visit – www.Recycle-More.co.uk – where you will find the answers to your UK recycling questions. • A lkaline batteries recommended. • Rechargeable batteries must only be re charged under adult supervision. • Rechargeable batteries must be removed from the toy before re charging. • Non-rechargeable batteries must not be re charged. • D iffere nt types of batteries, or new and used batteries must not be mixed. • Only batteries of the same or equivalent type as recommended should be used. • Batteries should be replaced by an adult. • Batteries must be inserted follo wing the correct polarity. • E xhausted batteries should be removed from the product. • The supply terminals must not be short-circuited. • Batteries should be remove d from the product when not in use. • Do not dispose of batteries in fire . • Batteries supplied are for demonstration purposes only and may require replacing within a short period of time. BATTERY RECYCLING INFORMATION Help the environment by disposing of batteries responsibly. The wheelie bin symbol indicates that batteries must not be disposed of in domestic waste as they contain substances which can be damaging to the environment and health. Please remove exhausted batteries from the product and use designated collection points or recycling facilities when disposing of batteries. Picture the scene, Tom Baker is invited to dinner at our house, by which time in the evening our seven-year-old son Guy was already in bed, though wide awake. Tom insisted on going up to see him in order to read him a bedtime story, so my wife Judy took Tom upstairs to his room and I dare say Guy heard the best bedtime story he’d ever had in his life! The following day after school Judy asked him if he’d told his school friends about ‘Doctor Who’ coming over for dinner? ‘No’, he said. ‘They think I’m silly and that I think my daddy is K9, and that Doctor Who comes to dinner”. I find it quite extraordinary that I have played K9 on and off since the last century... 1977 to be exact – in other words from when David Tennant was only six... and Matt Smith hadn’t yet been born! Let’s face it, the character had been written in for a single storyline only – The Invisible Enemy – and here I am today, still voicing K9 for Big Finish and other companies’ audio CDs, or making personal appearances all over the place – even worldwide. The air miles – the expense... the thought of it! So we’ve just had 50 years of Doctor Who which from its relatively flickering beginnings in black and white back in 1964 is now – arguably the biggest drama ‘property’ the BBC has got. I am told that the anniversary episode shown before Christmas 2013 went out to no fewer than 96 countries worldwide, with an audience overall of 77 million, and it is not hard to point to the factors that have led to the series’ phenomenal success: The premise that its central character the Doctor can regenerate, plus a host of imaginative and inventive scripts that have been wonderful trampolines for the series’ many actors to bounce on... and, don’t forget, everything you hear onscreen starts with the hugely important basis of a scripted storyline. The enforced gap of Doctor Who being off the air for fifteen years or so has been revelatory too – giving the series a new and vibrant impetus for the 21st century. Gone today, of course, are the homespun woolly-knitted monsters whose onscreen physicality used to keep us A Message from John Leeson all ‘behind the sofa’ – anyone remember Planet of the Spiders? Would you believe that only last week I was recording the voice of the evil prawn-like …

Text truncated - open the document above for the full version.

GTA2G4T GTA2G4TRM 2.4GHz RF Transceiver Module Ver. : 1.0 2014/06/18 Block Diagram of RF IC

Letter of Agency "I, an officer of (UNDERGROUND TOYS LLC) do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this __03___day_September_ of 2014_ By ______________ Signature __________Rita Lam____________ Printed Name _____Quality Control Manager____ Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

8685 Miralani Drive, Suite 300, San Diego, CA 92126, USA 26 October 2014 Attention: Application Examiner Re: Request for confidentiality Applicant: Underground Toys LLC FCC ID: 2AAB905447T To whom it may concern, Request is hereby submitted by Underground Toys LLC to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics (with components value) Rationale for request for confidentiality: Underground Toys LLC has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Faithfully, Rita Lam (Mrs) Quality Control Manager Underground Toys LLC 8685 Miralani Drive, Suite 300, San Diego, CA 92126, USA

INTERTEK TESTING SERVICE Report No.: HK14080673-1 Equipment Photographs Model : 05447 (External) FCC ID: 2AAB905447T

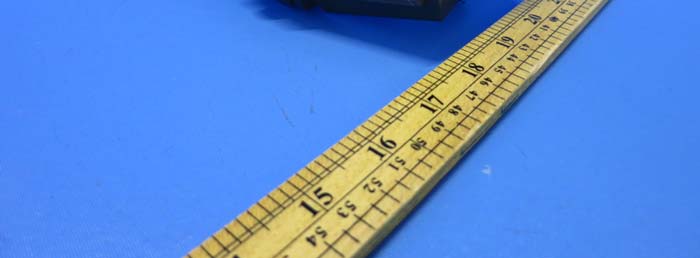

9cm 1cm

INTERTEK TESTING SERVICE Report No.: HK14080673-1 Equipment Photographs Model : 05447 (Internal) FCC ID: 2AAB905447T INTERTEK TESTING SERVICE Report No.: HK14080673-1 Equipment Photographs Model : 05447 (Internal) FCC ID: 2AAB905447T INTERTEK TESTING SERVICE Report No.: HK14080673-1 Equipment Photographs Model : 05447 (Internal) FCC ID: 2AAB905447T

FCC ID: 2AAB905447T Model : 05447 Technical Description of Transmitter The transmitter operates at 2478 MHz and controls corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprise of, 1) Control buttons Consisting:U1 2) An Encoding circuit Consisting: GTRF2G4TRM 3) A RF Oscillator (16.0MHz) Consisting: X1 4) A Filter Network Consisting : C3, C4, C10, C11, C12, L3 5) A RF Modulator and Amplifier Consisting : U1 6) A Power Supply Consisting : 9VDC (1 x “9V’ battery) Antenna Gain: 0dBi Nominal rated field strength: 95.0dBuV/m at 3m Maximum allowed field strength of production tolerance: +/-3dB The transmitter uses an external and telescope type antenna with unique antenna connector

Analysis Report Report No.: 14080673HKG-001 The Equipment Under Test (EUT) is a transmitter for a RC car, which is operating at 2478MHz. It is powered by a 9V alkaline battery. The EUT consists of five sound buttons and two directional keys. After switching ON the EUT and the corresponding car (Receiver), When you press the sound buttons, the corresponding receiver will send out different sounds and if you activating the directional keys on the EUT, you can control the car moving forward, backward, left and right. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 95.0 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 98.0dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 1.893mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 1.893mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.478) mW = 9.02mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 14080673HKG-001R1 Underground Toys LLC Application For Certification (Original Grant) (FCC ID: 2AAB905447T) Transmitter This report supersedes previous report with report number(s) 14080673HKG-001R1 dated September 03, 2014. Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Lead Engineer Chan Chi Hung, Terry Supervisor Date: October 16, 2014 INTERTEK TESTING SERVICES Report No.: 14080673HKG-001R1 i FCC ID: 2AAB905447T GENERAL INFORMATION Grantee: Underground Toys LLC Grantee Address: 8685 Miralani Drive, Suite 300 San Diego, CA 92126, USA Contact Person: Rita Lam Tel: +1-619-702-2023 Fax: +1-619-702-2021 e-mail: [email protected] Manufacturer: Toy Options (Far East) Ltd. Manufacturer Address: Room 1005-1007A, 10/F., Empire Centre, 68 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Brand Name: N/A Model: 05447 Type of EUT: Transmitter Description of EUT: Doctor Who: 1/4 Scale Radio Control K9 Serial Number: N/A FCC ID: 2AAB905447T Date of Sample Submitted: August 19, 2014 Date of Test: August 19, 2014 to August 29, 2014 Report No.: 14080673HKG-001R1 Report Date: October 16, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14080673HKG-001R1 ii FCC ID: 2AAB905447T SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandedge Requirement 15.249 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14080673HKG-001R1 iii FCC ID: 2AAB905447T Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling................................................................................................ 6 6.0 Technical Specifications..................................................................................... 6 7.0 Instruction Manual .............................................................................................. 6 8.0 Miscellaneous Information ................................................................................. 7 8.1 Measured Bandwidth / Radiated Emission on the Bandedge.............................. 7 8.2 Discussion of Pulse Desensitization ....................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14080673HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 05447 FCC ID: 2AAB905447T INTERTEK TESTING SERVICE Report No: 14080673HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 05447 FCC ID: 2AAB905447T
