2AAB9DW1549Doctor Who - Inflatable R/C Red Dalek with Sound

BATTERY INSTALLATION 4 x AA/LR6, DC 1.5V BATTERY ON/OFF To replace batteries, unscrew the battery door compartment and replace batteries adhering to the battery warnings below. REMOTE CONTROL INFLATABLE DALEK Inflatable Dalek Battery Compartment Handset Battery Compartment ON/OFF 2 x AA/LR6, DC 1.5V BATTERY Warning! Not suitable for children under 36 months. This product contains small parts which may be a choking hazard. Please retain all information relating to this product for future reference. Non -rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the toy before being charged. Rechargeable batteries are only to be charged under adult supervision. For best performance only the recommended batteries or their equivalent are to be used. Batteries must be inserted with the correct polarity. Exhausted batteries should be removed from the toy and disposed of in accordance with the maker’s recommendation. Do not mix new and used batteries. Do not mix different types of battery. Remove battery when toy is not in use. The supply terminals are not to be short-circuited. This product is not recommended for use on loose dirt or wet surfaces. Do not immerse in water. Sponge clean only. This product is covered by the Waste Electrical and Electronic Equipment (WEEE) Regulations. It should not be discarded with normal household waste, but taken to your local collection centre for recycling. For further information, please contact the local authority or approved disposal agency. Product Code: B00R1064 MADE IN CHINA Remote Control Inatable Dalek © Bluw (Hong Kong) Ltd. 2012 www.bluw.com 1. Inflate your Dalek Blow air or use a pump to inflate the five valves across the Dalek’s body. 2. Insert batteries Unscrew the battery compartment on the base plate and insert 4 x AA batteries. Unscrew the battery compartment on the control unit and insert 2 x AA batteries. 3. Attach plates Attach the base plates into the positions as shown on the diagram below: 4. Spread destruction across the universe! Turn the base plate and remote control settings to ‘on’ and use the remote control to move the Dalek and make Dalek sound effects. Remote Control Details • Remote control handset will function up to a distance of 10 metres away from the inflatable. • Fully charged batteries will allow the Dalek to function for approximately an hour (alkaline) or 30 minutes (heavy-duty zinc chloride). INSTRUCTIONS REMOTE CONTROL INFLATABLE DALEK Move Forwards Move Backwards Press Single Button To SpinPress For ‘Exterminate’ & Death Ray Sound Effects Velcro Velcro Velcro Velcro Base Plates RC Dalek Base (with velcro strips indicated) Front Back Imported by: Bluw Ltd. 4th Floor 220 Queenstown Road London SW8 4LP United Kingdom Remote Control Inflatable Dalek Instruction Manual UK ARTWORK 105mm x 140mm Spot Colour ‘Cutter Guide’ B00R1064 Product code: DW1549 Product Description: Doctor Who: Inatable R/C Red Dalek with sound Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. o Consult the dealer or an experienced radio/TV technician for help. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.

1234 A B C D 4321 D C B A U1 FORWARD BACKWARD LEFT RIGHT BATTERY CRYSTAL OSCILLATOR ANT RF FILTER L2,L3,C5,C6 GPRC205A-C TURBO 27.145MHZ 2*AA 3V UnRegistered

Appendix B Letter of Agency "I, an officer of (UNDERGROUND TOYS LLC) do hereby authorize Intertek Testing Services (Mr. Terry Chan/ Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this __20___day___May___ of 2013_ By ______________ Signature __________Rita Tam____________ Printed Name _____Quality Control Manager____ Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Nov 2011

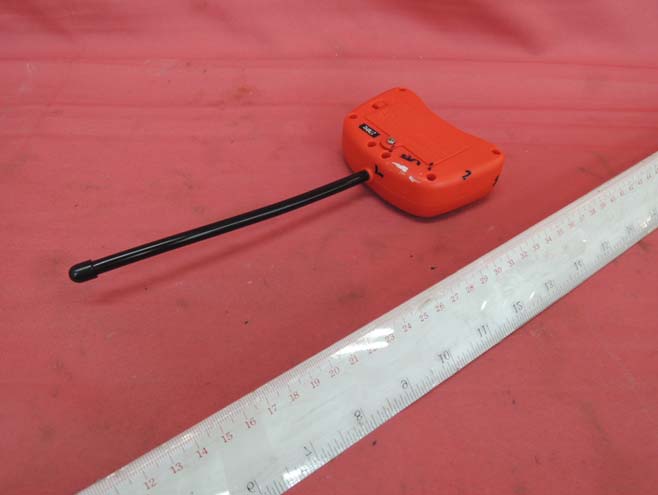

INTERTEK TESTING SERVICE Report No.: 13051177HKG-001 FCC ID: 2AAB9DW1549 Equipment Photographs Model: DW1549 (External)

label size: 43mm x 22mm

INTERTEK TESTING SERVICE Report No.: 13051177HKG-001 FCC ID: 2AAB9DW1549 Equipment Photographs Model: DW1549 (Internal) INTERTEK TESTING SERVICE Report No.: 13051177HKG-001 FCC ID: 2AAB9DW1549 Equipment Photographs Model: DW1549 (Internal) INTERTEK TESTING SERVICE Report No.: 13051177HKG-001 FCC ID: 2AAB9DW1549 Equipment Photographs Model: DW1549 (Internal)

FCC ID: 2AAB9DW1549 Model: DW1549 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz as dictated by crystal. It can control a receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: S1, S2, S3, S4, S5 2. An Crystal Oscillator Consisting: Y1 (27.145MHz) 3. RF Filter Consisting: L3, C6, L2, C5 4. An Encoder and RF Modulator/Amplifier Consisting: U1 (GPRC205A-C) 5. A Power Supply Consisting: two 1.5V AA batteries The transmitter uses an external, integral and non-detachable antenna. The nominal rated field strength is 76.9dBuV/m @ 3m Production tolerance of field strength is +/- 3dB Antenna gain is 0dBi

Analysis Report Report No.: 13051177HKG-001 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 3.0 V DC source (2 X “AA” batteries). The EUT has four control levers to control the left wheels and right wheel of the receiver of the RC Car After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 76.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 79.9dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.029mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.029mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 2 3 4 ABCD 4 3 2 1 D CBA Title: apellation: File: Number: Rev: Date: APPROVALS APPRD BY: CHKD BY: DRAWN BY: Sheet:_____of_____ 兴兴兴兴兴兴兴兴兴兴兴兴兴兴兴 E/ 开开开开 / 遥遥遥遥遥 / 设设兴设 0 2012.8.17 苏苏苏 1 1 遥遥遥遥遥 TX VDD 1 DIO 2 OSCI 3 OSCO 4 RFO 5 VSS 6 DOUT 7 D11 8 D12 9 ROSC 10 D12 11 D14 12 U1 GPRC205 S3 Forward R8270R C447p L21uH S1 Right S2 Turbo S4 Left S5 Backward Y127.145MHZ R12.2M C122pC247p C3104p L1 2.2uH OSCOOSCI OSCOOSCI BAT1DC3V R4200K L410uH C782pC982p C8224pC10224p C520p C668p L36.8uH E1ANTENNA R2 1K R5 1K R6 1K R7 1K R3 1K LED3mm C11 NC

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 13051177HKG-001 Underground Toys LLC Application For Certification (Original Grant) (FCC ID: 2AAB9DW1549) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: Jul 05, 2013 INTERTEK TESTING SERVICES Report No.: 13051177HKG-001 FCC ID: 2AAB9DW1549 i GENERAL INFORMATION Underground Toys LLC BRAND NAME: N/A, MODEL: DW1549 FCC ID: 2AAB9DW1549 Grantee: Underground Toys LLC Grantee Address: 2308 Kettner Blvd, Suite B, San Diego, CA 92101-1283, Califonia, USA Contact Person: Rita Lam Tel: +44-1708-375-975 Fax: N/A e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: DW1549 Type of EUT: Transmitter Description of EUT: Doctor Who: Inflatable R/C Red Dalek with Sound Serial Number: N/A FCC ID: 2AAB9DW1549 Date of Sample Submitted: May 22, 2013 Date of Test: May 30, 2013 Report No.: 13051177HKG-001 Report Date: Jul 05, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 13051177HKG-001 FCC ID: 2AAB9DW1549 ii SUMMARY OF TEST RESULT Underground Toys LLC BRAND NAME: N/A, MODEL: DW1549 FCC ID: 2AAB9DW1549 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength (for 27MHz) 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 13051177HKG-001 FCC ID: 2AAB9DW1549 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling................................................................................................ 6 6.0 Technical Specifications ..................................................................................... 6 7.0 Instruction Manual .............................................................................................. 6 8.0 Miscellaneous Information................................................................................. 7 8.1 Measured Bandwidth / RF Output Signal............................................................ 7 8.2 Discussion of Pulse Desensitization ................................................................... 7 8.3 Calculation of Average Factor ....................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.:13051177HKG-001 Sample No.: 1/1 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: 13051177HKG-001 FCC ID: 2AAB9DW1549 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: DW1549 INTERTEK TESTING SERVICE Report No: 13051177HKG-001 FCC ID: 2AAB9DW1549 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: DW1549
