DR263 Smartphone operated Dalek Red LED, Bluetooth Indicator Blue LED White LED ON/OFF button Page 1 Features: - Autonomous patrol - Interactive Dalek via Bluetooth® wireless technology - Mono output Speaker - Turnable Head response to the Dalek movement - Light up parts - Motorized Base Three modes are available on this Smartphone Operated Dalek. Mode 1 : Remote Control by smartphone. Mode 2 : Static Speaker. Mode 3 : Autonomous patrol / Movable Speaker (Should be connected via Bluetooth®). Battery Information and Warning: Battery require: 4 x 1.5V, AA battery (Not Included) - We recommend the battery replacement is done under adult supervision. - Non-rechargeable batteries are not to be recharged; - Rechargeable batteries are only to be charged under adult supervision; - Rechargeable batteries are to be removed from the product before being charged; - Batteries must be inserted with the correct polarity; Page 2 - Exhausted batteries are to be removed from the product; - The supply terminals are not to be short-circuited; - Dierent types of batteries or new and used batteries are not to be mixed; - Only batteries of the same or equivalent type as recommended are to be used. - For longer battery life, it is recommend to use alkaline batteries. - If the unit is not to be used for a prolonged period, such as a month of longer, remove the batteries to prevent possible leakage. Battery installation: 1. Use a Philips screwdriver to unscrew the battery compartment cover located on the base of the unit. 2. Insert 4 x 1.5V, AA new batteries, ensuring the correct polarity as indicated on the sketch. 3. Replace the cover and tighten the screws. SIZE AA 1.5VX4 + + Operating Instructions: Enjoy the Dalek with your Bluetooth® enabled smartphone. 1. To work with this product, please download our FREE application using the Google Play TM store app or App Store SM with searching the keywords “DR263”. 2. Press and hold the On/O button for 2 seconds. Once the device is activated, the head will returns to the middle position and the headlights light on. Attention: DO NOT rotate the head by hand as it will damage the mechanism. 1) The device will be in the Mode 1 2) Press once again will enter Mode 2 3) Press once again will enter Mode 3 4) Press once again will go back to Mode 1 and so on. Press and hold On/O Button for 2 seconds will turn o the Dalek. Note : Turn o the unit if not in use. Dalek will move forward, unless it hits a solid object with sucient force to activate the two sensors on the front end of the base. If the sensors are activated, it will retreat. DR263 battery replacement. SEARCH “DR263” Mode 1 : Remote Control by smartphone The Dalek should be connected with your Bluetooth® device. Once it is connected, the eye light will light on and stop ashing. Now you can drive the Dalek via our app. For more detail of the app operation, please read the “SUPPORT” page within the app. Mode 2 : Static Speaker The Gunstick (Blue LED) will ash at 0.5Hz. The Dalek should be connected with your Bluetooth® device. In this mode, the unit cannot be controlled by the apps and used as a speaker. Mode 3 : Autonomous patrol / Movable Speaker In this MODE, you cannot remote control the Dalek and the Dalek will autonomous patrol on its own. If the Dalek is being connected with Bluetooth® device, you can play your music during the Dalek’s patrolling. How to pair up Bluetooth® device 1. Place the Bluetooth® device within 1 meter and power on the Dalek 2. Red eye light is ashing. 3. Perform the pairing procedure on your smartphone to detect the Dalek. When the list of detected devices appears on the display of the Bluetooth® device, select “DALEK”. 4. Build “DALEK” Bluetooth® connection from your smartphone. When the connection is made, the eye (red indicator) lights up. Under the environment with electrostatic discharge, the product may malfunction. lt requires user to reset the unit by replacing the batteries. Technical Information Bluetooth Specication: V2.1 + EDR, Bluetooth Prole: A2DP Product Size : 100 mm x 165 mm x 208 mm Battery : 4 x AA Battery Trouble Shooting: Q1 : I cannot control the Dalek? A1 : Please check that the batteries are inserted in the correct polarity. Replace with new batteries if necessary. A2 : The volume of your smartphone may be set too low. Turn up the volume on your smartphone. A3 : Make sure the Bluetooth on your smartphone is ON and paired up. A4 : The Dalek should be in Mode 1 for remote control. Please follow Operating Instructions section. A5 : The Bluetooth® may be disconnected, follow the “How to pair up Bluetooth® device“. A6 : Restart both your smartphone and Dalek and follow the “How to pair up Bluetooth® device“. A7 : Keep the Dalek/device away from a microwave oven, wireless LAN etc. A8 : Make sure your smartphone and Dalek are within 10 meters of each other and no solid objects stand in-between. Page 3 Page 4 Q2 : The Dalek cannot be paired up via Bluetooth® wireless technology? A1 : The batteries power may be too low. Replace with new batteries if necessary. A2 : The Dalek may be connected with other device. Reactivate the Dalek and make sure the red light is ashing. A3 : Restart both your smartphone and Dalek and make sure the Bluetooth® on your smartphone is power on. Q3 : How do I listen to music via the Dalek? A1 : Dalek should be paired up with your smartphone. To listen to music, start the media player in your smartphone and choose to Via Bluetooth. Please keep this information for future reference. MADE IN CHINA The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Zeon is under license. Other trademarks and trade names are those of their respective owners. Google Play is a trademark of Google Inc. App Store SM is trademarks of Apple Inc., registered in the U.S. and other countries. The item inside this package may vary from the photographs and/or illustrations. For information on how to u…

Text truncated - open the document above for the full version.

BlueTooth Module UP5850 2.4GHz MCU 1MHz DTMF DECODER HT9172 3.579545MHz Audio O/P Digital Signal Motor Driver IC Control Signal Speaker Motor Driver IC Motor Driver IC Sound O/P Head Motor Le Motor Right Motor LED LED DR263 Block Diagram SENSOR POWER CONTROL Y1 26MHz U2 Y1 3.579454MHz U3 U4 U7 U6 U5 NY9M008A NY9M008A AT9P185A NY9M008A BT Module Block FlashBT Transceiver Chipset RDA5850 Antenna Matching Circuit C45, L2, L3 Crystal Oscillator 26MHz 2402–2480MHz             !" #$  % &'( #$! ' % ) '  '*+' ') '  ' ,*%'- ,% ' ( ' ( ' ( %  ."!/' 0 '  % '! 0%12 #3( .( ("( /' 0$ 0     ' 4 4 0$   0  4 5 .  4  4   '  ' 6     %       7'' " 7  " 7'' %187 7  %187 '9 :)0  :)0 ;<;'9:)  :) #'   #' $( % 0 #'  70  7 .  ;=;205 Y126MHz 2402-2480MHz

Letter of Agency "I, an officer of (UNDERGROUND TOYS LLC) do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this __03___day_September_ of 2014_ By ______________ Signature __________Rita Lam____________ Printed Name _____Quality Control Manager____ Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

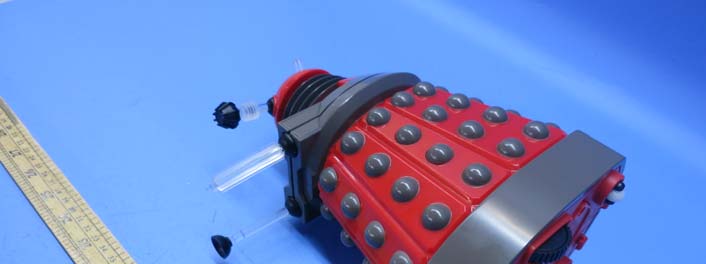

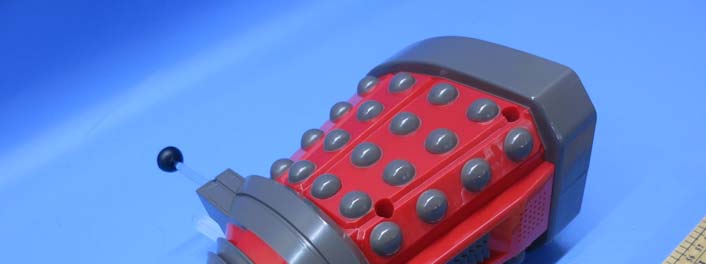

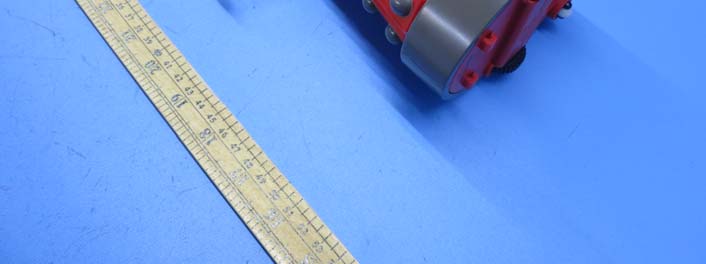

INTERTEK TESTING SERVICES External Photos FCC ID: 2AAB9DR263 external photos - 1 of 1

size: 25mm x 2mm

INTERTEK TESTING SERVICES Internal photos FCC ID: 2AAB9DR263 internal photos - 1 of 5 INTERTEK TESTING SERVICES Internal photos FCC ID: 2AAB9DR263 internal photos - 2 of 5 INTERTEK TESTING SERVICES Internal photos FCC ID: 2AAB9DR263 internal photos - 3 of 5 INTERTEK TESTING SERVICES Internal photos FCC ID: 2AAB9DR263 internal photos - 4 of 5 INTERTEK TESTING SERVICES Internal photos FCC ID: 2AAB9DR263 internal photos - 5 of 5

Technical description Model: DR263 Description: Smartphone Operated Dalek. Frequency: 2402MHz – 2480MHz Technical Description: The brief circuit description is listed as follows: The DR263 is a Smartphone Operated Dalek. It is BT version 2.1 + EDR. It can pair with a Bluetooth device as the audio source and control by Dalek’s control apps. It operates at frequency range of 2402MHz-2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by internal 6VDC 4 x AA battery. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 84.7 dBμV/m at 3m Maximum allowed field strength of production tolerance: +4 to ‐6dB U2 – RDA5850 RF IC U3 – HT9172 DTMF Decoder U4 - AT9P185A: MCU Y1- 26 MHz crystal Copyright © RDA Microelectronics Inc. 2012. All rights are reserved. The information contained herein is the exclusive property of RDA and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of RDA. RDA5850 B LUETOOTH SINGLE CHIP SOLUTION WITH MULTI - MEDIA Rev.2.1 General Description RDA5850 is a highly integrated single-chip turnkey Bluetooth radio transceiver and baseband processor with multi-media capability. Bluetooth feature is compliant with Bluetooth 2.1 + EDR specification and provides an optimal solution for data and music application. 1.1 Multi-media Feature z External SPI Flash interface z Multi-media Support ♦ SBC ♦ MP3 ♦ WMA ♦ WAV z Stereo audio line input z Supports Serial LCD interface/ LEDs z Power management ♦ Power on reset control ♦ Integrated Battery charger ♦ Integrated all internal voltage supply from VBAT z Audio ♦ Integrated 1W audio speaker driver z User Interface ♦ supports 3x3 keypad matrix detection ♦ Real-time clock ♦ I2C z FM Receiver Integrated z MMC/SD support z USB1.2 device only z IR decode z Voice record z Bluetooth profiles ♦ HFP/HSP ♦ OPP ♦ A2DP ♦ AVRCP 1.2 Bluetooth Feature z CMOS single-chip fully-integrated radio and baseband z Compliant with Bluetooth 2.1 + EDR specification z Bluetooth Piconet and Scatternet support z Meet class2 and class3 transmitting power requirement z Provides +7dbm transmitting power z NZIF receiver with -80dBm sensitivity z Support DCXO with internal oscillator circuit z Low power consumption z ECHO cancel for hands-free RDA Microelectronics, Inc. RDA5850 Datasheet V2.1 The information contained herein is the exclusive property of RDA and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of RDA. Page 2 of 15 2 Table of Contents General Description ......................................................................................................................................... 1 1.1 Multi-media Feature .......................................................................................................................... 1 1.2 Bluetooth Feature ............................................................................................................................... 1 2 Table of Contents ..................................................................................................................................... 2 3 Multi-Media SOC Features ..................................................................................................................... 3 3.1 Analog Module ................................................................................................................................... 3 3.2 PMU .................................................................................................................................................... 3 3.3 FM Tuner ............................................................................................................................................ 3 3.4 System CPU (XCPU) ......................................................................................................................... 4 3.5 Keypad ................................................................................................................................................ 4 3.6 SD/MMC Card Controller ................................................................................................................ 4 3.7 IR Controller ...................................................................................................................................... 4 3.8 LCD Controller .................................................................................................................................. 4 4 Bluetooth Section Features ................................................................................................................... 5 4.1 Radio ................................................................................................................................................... 5 4.2 Bluetooth Stack .................................................................................................................................. 5 5 Electrical Characteristics ....................................................................................................................... 6 6 Bluetooth Section Radio Characteristics .......................................................................................... 7 7 Pins Description ..................................................................................................................................... 10 8 Change List .............................................................................................................................................. 15 RDA Microelectronics, Inc. RDA5850 Datasheet V2.1 The information contained herein is the exclusive property of RDA and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of RDA. Page 3 of 15 3 Multi-Media SOC Features Integrating all essential electronic components, including power management, FM receiver onto a single system on…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 14091295HKG-001 The DR263 is a Smartphone Operated Dalek. It can pair with a Bluetooth device as the audio source and control by Dalek’s control apps. It operates at frequency range of 2402MHz-2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by internal 6VDC 4 x AA battery. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 84.7 dBμV/m at 3m Maximum allowed field strength of production tolerance: +4 to -6dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 88.7 dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.222mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.222mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.48) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 2 3 4 5 6 8 7 A BCD 8 7 6 5 4 3 2 1 D CB A Title n o i s i v e R r e b m u N Siz e A3 f o t e e h S : e t a DFile: E:\ 设计中产 品资料 \..\DR263 机械人线 路图 (9-15).sch DR263 机械人 线路 康怡工程部 REV:12 C10 0.1uF 蓝牙模块UP5850 (DALEK ) U2 AU- LSR-P GND GND B-LED GPI07 PWR-KEY 123 4 5 6 ANT 8 GND GND MCU AT9P185A PE3PE2PE1PE0PD3PD2 MOT OR-3 C27 0.1uF (L)MOTOR-2 C24 0.1uF C25 0.1uF (R)MOTOR -1 C23 0.1uF DC 6.0V Q4 9014 R61K R810K PC0PC1PC2PC3 DTMF HT9172 ON. OFF/ 自动 / 手动 / 睡眠叫醒 AA X 4 C260.1uF GND2 VDD 1 PD0PD1 VDD RD/G T EST DVOED0D1D2D3 VPVNGSVREF INFPWDNx1x2VSS 101112131415 161718 C12 0.1uF R15 100K R14 100K 123456789 Y1 3.58M HZ C15 20P C14 20P R13 100K C13 0.1uF GND3 GND4 C21 0.1uF VREG GD1 VDD2 VDD3 VCC C5 100uF PA1 PA2 PWM1/DAC SPK VDD U3 U4 蓝牙指示 灯 左 右中 PA3 PA0 C220.1uF PB3 PB0 R24 330R LED 4 PB1 PB2 C3 220uF C9 0.1uF C4220uF Q7 9014 D2 1N4148 PWM 2 R7750K R25 470K LED2 R18 330R LED1 R17 330R Q6 9014 C18 1uF R1910K Q5 9014 LED3 R20 330R R12 10K 头部两角 LED 有声时 跟声音 闪动 眼睛 LED LED 3 ：眼睛 LED ，蓝牙 无配对 时灯闪 ，配对 后灯长 亮，如 未配对 在自动 模式下 ，灯长 亮。 LED 4 ：手 LED ，按遥控 节 “ 6 ” 按钮时 LED 闪动。 注： LED 1 、 LED2 ：头部 两边角 LED 作 POWER 指示，当有声 音输出 时跟声 音输出闪动 。 C6 0.1uF R5680K Q2 KTC8550 R4 2K2 R3 100K R161K R9330R C11 100uF C200.1uF C19 0.1uF D27mm 32R C16 100uF C17 100uF 4.0V U1 C110uF 1 3 2 IN1IN2 Out1Out2 8 6 7 5 4 1 VDD VCC GND1 GNd 2 马达驱动NY9M008A IC U5 2 3 IN1IN2 Out1Out2 8 6 7 4 1 VCC GND1 GND2 U7 IN1IN2 Out1Out2 8 6 7 5 4 1 VDD VCC GND1 GNd 2 马达驱动NY9M008A IC U6 马达驱动NY9M008A IC 2323 5 VDD GPO- 0 AU-LSL-P AU-LSL-N 5152 53 54 50 GPIO1 V-BAT TES T 12 28 29 21 20 9 AU- LSR-N 蜂鸣片 D27m m Q3 9012 C280.1uFC290.1uF C300.1uF C310.1uF C320.1uF C330.1uF 17-Nov-2014 55 44 33 22 11 D D C C B B A A M_SPI_CSM_SPI_D1M_SPI_D2 M_SPI_D3M_SPI_CLKM_SPI_D0 M_SPI_CSM_SPI_CLKM_SPI_D0M_SPI_D1M_SPI_D2M_SPI_D3 I2C_SCLI2C_SDAHST_RXDHST_TXD SSD_CMDSSD_CLKSDAT0SDAT1SDAT2SDAT3GPIO7GPIO4GPIO1GPO5SPI_LCD_RSTSPI_LCD_CSSPI_LCD_CLKSPI_LCD_DIOSPI_LCD_SDCGDRVIS_CHGCHG_IN FM_LINEOUT_L FM_LINEOUT_R GPO0GPO3 AU_LSL_NAU_LSL_PAU_LSR_NAU_LSR_P FM_LINEOUT_LFM_LINEOUT_R AU_HPLAU_HPR GPIO3 BT_ANT HST_RXDHST_RXD PWRKEY_INT HST_TXD I2C_SCLI2C_SDA FM_IP LINE_IN_LLINE_IN_R V_SPIMEM V_SPIMEMV_MMCV_PAD V_BAT V_RTCV_USBV_LCD V_BAT V_CORE V_BUCK2_2V4AVDD_2V4 V_MMC V_RTC V_PAD V_MIC V_LCD V_USB AVDD_2V4 V_SPIMEM V_MIC V_CORE V_PAD V_CORE V_SPIMEM V_BAT V_BUCK2_2V4 V_PAD V_PAD I2C_SDAI2C_SCLKEYIN_0KEYIN_1KEYIN_2 KEYOUT_1KEYOUT_0KEYOUT_2 PWRKEY_INT AU_MIC_PAU_MIC_NUSB_DPUSB_DN SSD_CMDSSD_CLKSDAT0SDAT1SDAT2SDAT3 SPI_LCD_RSTSPI_LCD_CSSPI_LCD_CLKSPI_LCD_DIOSPI_LCD_SDC GPO0GPO3GPO5GPIO1GPIO3GPIO4GPIO7 AU_HPLAU_HPR AU_LSL_PAU_LSL_NAU_LSR_PAU_LSR_N FM_IP LINE_IN_LLINE_IN_R CHG_INIS_CHG GDRV HST_TXDHST_RXD BT_ANT LCD_LED- TitleSize Document Number Rev Date: Sheet of <Doc> V6.0 UP5850_V6.0 UPAI LINK Custom 23 Saturday, June 29, 2013 TitleSize Document Number Rev Date: Sheet of <Doc> V6.0 UP5850_V6.0 UPAI LINK Custom 23 Saturday, June 29, 2013 TitleSize Document Number Rev Date: Sheet of <Doc> V6.0 UP5850_V6.0 UPAI LINK Custom 23 Saturday, June 29, 2013 BT_ANT 䶐䎠㓯ᖒᡀ SPI_FLASH VSPIM_SEL=0:2.8V LCD I/F 60 mil L4&L5 ሱ㻵؞᭩Ѫ L0805 ˈᡆ㘵ᴤᦒ⢙ᯉʽ U17 ⭘✺ⴈᔿሱ㻵ʽ ᭩Ҷ؞ FM ཙ㓯 ࡐ䲔Ҷањ 10uF ⭥ᇩ ࡐ䲔ҶҼњ 33pF ⭥ᇩ C80 2.2uF/6.3V C80 2.2uF/6.3V C51 10uF/6.3VC51 10uF/6.3V C452.7pFC452.7pF C540.1uF/16VC540.1uF/16V C18 10uF/6.3V C18 10uF/6.3V Y1X1E000021008300Y1X1E000021008300 R50 20K/5% R50 20K/5% BT&FM CHARGER LEDFLASHTCARD LCD GPIOKEYHOST DIGITAL RF GND USBAUDIOXVRLDODCDCVBAT RDA5850 U18A CPU_RDA5850 BT&FM CHARGER LEDFLASHTCARD LCD GPIOKEYHOST DIGITAL RF GND USBAUDIOXVRLDODCDCVBAT RDA5850 U18A CPU_RDA5850 ANT_TEST_EN F12 TST_H H11 KP_LED_OUT B4 AC_R F10 IS_CHG C7 VBAT_SENSE E10 GDRV C8 TS C9 LED1 C2 LED2 C3 M_SPI_CS C12 M_SPI_CLK A12 M_SPI_D<0> B12 M_SPI_D<1> A11 M_SPI_D<2> B11 M_SPI_D<3> B13 VSPIM_SEL C13 SSD_CMD M8 SSD_CLK K10 SDAT<0> K9 SDAT<1> J9 SDAT<2> J10 SDAT<3> H10 LCD_CS1 G5 LCD_RD K5 LCD_RS J5 LCD_DATA<0> K1 LCD_DATA<1> J4 GPO<0> P12 GPO<3> J2 GPO<5> M1 0 GPIO<1> N12 GPIO<3> N11 GPIO<4> B10 GPIO<7> H5 SPI1_CS_1 M1 4 SPI1_DI M1 2 KEYOUT<0> D4 KEYOUT<1> E5 KEYOUT<2> F4 KEYOUT<3> D5 KEYOUT<4> F3 KEYIN<3> E4 KEYIN<2> G4 KEYIN<1> F5 KEYIN<0> F2 I2C2_SCL N17 I2C2_SDA P16 HST_RXD K12 HST_TXD J11 XVR_XTAL1 P15 XVR_XTAL2 P14 IP G12 QN_RXTXDATA E13 QP_RXTXEN E12 IN_STORBE G11 CORE_GND0 G7 CORE_GND1 G8 CORE_GND2 G9 CORE_GND3 H7 CORE_GND4 H8 CORE_GND5 H9 CORE_GND6 J7 CORE_GND7 J8 CORE_GND8 K7 CORE_GND9 K8 CORE_GND10 M5 CORE_GND11 M6 CORE_GND12 M7 SW_GND0 B5 SW_GND1 B6 USB_DP M2 USB_DN M3 POWER_KEY C10 BBTEL_TEST L3 PROG_EFUSE E11 VBAT_PMU1 A1 VBAT_PMU2 A2 SW_BUCK A9 V_CORE B9 SW_BUCK2 A8 VBUCK2_2V4 B8 AVDD_2V4 A10 V_BAT_RTC E2 V_SPIMEM A13 V_RTC E1 V_USB M1 V_LCD J1 V_ANA L1 V_MIC P2 V_ MMC M9 V_PAD P10 XVR_GND0 A16 XVR_GND1 B15 XVR_GND2 C15 XVR_GND3 D15 XVR_GND4 E15 XVR_GND5 F15 XVR_GND6 G15 XVR_GND7 G16 XVR_GND8 G17 XVR_GND9 H16 XVR_GND10 H17 XVR_AUXCLK_OUT L16 VCOM_BAT P1 AUD_COM N2 AU_LSL_P P7 AU_LSL_N N8 AU_LSR_P P6 AU_LSR_N N7 LINE_IN_L N9 LINE_IN_R P8 AU_HPL N3 AU_HPR P3 AU_MIC_P N6 AU_MIC_N P5 AU_AUXMIC_P N5 AU_AUXMIC_N P4 FM_RFIP N15 FM_RFIN M16 FM_LINEOUT_L H1 FM_LINEOUT_R G2 BT_DVDD L15 BT_VOUT18 M15 BT_RF P17 VBAT_ABB N1 C500.1uF/16VC500.1uF/16V C19 22uF/NC C19 22uF/NC R23 10K/5% R23 10K/5% C44 1uF/NCC44 1uF/NC R25 0R/5% R25 0R/5% C431uF/6.3VC431uF/6.3V U4 GD25Q32/16/80 U4 GD25Q32/16/80 CS# 1 DO(IO1) 2 WP(IO2)# 3 GND 4 DI(IO0) 5 CLK 6 HOLD(IO3)# 7 VCC 8 L33nHL33nH C53 10uF/6.3V C53 10uF/6.3V R28 20K/5% R28 20K/5% C41 1uF/6.3V C41 1uF/6.3V C40 2.2uF/6.3V C40 2.2uF/6.3V R31 2.2K/5%/NC R31 2.2K/5%/NC TP_V_BATTP_V_BAT 1 C34 1uF/6.3V C34 1uF/6.3V C46 0.1uF/16V C46 0.1uF/16V C66 1uF/6.3V C66 1uF/6.3V L10 120nH L10 120nH C52 10uF/6.3V C52 10uF/6.3V SPI PWL INTERFACE GPIO UART HOST INTERFACE TCOCAMER INTERFACE SPI RDA5850 U18B CPU_RDA5850 SPI PWL INTERFACE GPIO UART HOST INTERFACE TCOCAMER INTERFACE SPI RDA5850 U18B CPU_RDA5850 KEYIN_4 G1 KEYIN_5/PWT/GPIO_10 D3 KEYOUT_5/LPG/GPIO_9 E3 GPO_4 J3 PWL_1/GPO_6/CLK_32K F13 SPI1_CLK /GPIO_12/SSD2_CLK M1 1 SPI1_DIO/GPIO_15/SSD2_DATA1 N13 SPI1_CS_0/GPIO_13/KEYIN_7 N14 UART2_RXD/GPIO_8 H4 UAR…
