2AABT-LUMALIGHT-CLuma Light Pool

SUMMER WAVES ™ LUMA LIGHT POOL FOR ABOVE GROUND SWIMMING POOLS Should you encounter a problem with your Polygroup ® Product, please do not return the product to the place or purchase. All Warranty claims must be made directly to Polygroup ® . Prior to contacting Customer Service, please first review the Troubleshooting Guide in the Installation Manual, or review the FAQ at www.Polygroup.com. Please review setup instruction videos on www.Polygroup.com/video. If you are still unable to correct the problem, please contact Polygroup ® customer service at (888) 919-0070. Have the product type and your purchase receipt ready. Our Customer Service Representative will assist you in resolving the problem. You may be asked to return all or part of the product for inspection and/or repair. Do not return any product to Polygroup ® without a Return Authorization number. Polygroup ® Limited (Macao Commercial Offshore), (hereinafter “Polygroup ® ”) warrants to the original purchaser only, the Luma Light Pool against defects in material and workmanship for 180 days from the date of purchase. Original Purchaser must retain proof of such purchase in the form of an original store sales receipt and must produce such upon request by Polygroup ® or its designated agents. Warranty claims cannot be processed without a valid proof of purchase. This Limited Warranty applies only to the original purchaser of the product and is limited solely to the repair or replacement of the product, to be decided in Polygroup ® ’s sole discretion. Consequential damages, including claims for loss of water, pool chemicals, damage, or labor are not covered under this Limited Warranty. This Warranty will be declared invalid should the Purchaser modify or repair the product themselves or by unauthorized persons; use non-Polygroup ® parts or accessories with the product; use the product in contravention of the manufacturer’s Instructions; use improper voltage; abuse the product in any way; or through accident or negligence. Normal wear-and-tear is not covered under this Warranty, nor are acts of God outside the control of Polygroup ® . IN NO EVENT SHALL Polygroup ® , THEIR AUTHORIZED AGENTS, RELATED ENTITIES, OR EMPLOYEES BE LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR CONSEQUENTIAL DAMAGES. Some states or countries, or others jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. LIMITED WARRANTY DO NOT RETURN PRODUCT TO STORE For any set up and troubleshooting issues, please visit www.Polygroup.zendesk.com. Customer Service: (888)919-0070 To order parts and accessories, please visit www.Polygroupstore.com READ AND, KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE OWNER′S MANUALOWNER′S MANUAL Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri. EST. Extended operating days and hours during peak season requirements. 12 DISTRIBUTED BY: Polygroup ® LIMITED (MACAO COMMERCIAL OFFSHORE) Unit J, 10 th Floor, Macau Square, Av do Infante D.Henrique, No.43-53A, Macau PGIM Luma Light Pool_2015 Aug_V01 POOL STORAGE & WINTERIZING POOL SAFETY SIGN NO DIVING OR JUMPING SHALLOW WATER DIVING MAY RESULT IN PERMANENT INJURY OR DEATH • Be Safe. Swim with a friend. • Children must be accompanied by an adult. • Don’t swim when using alcohol or drugs. • Be familiar with the pool before swimming. • No running, jumping, or horseplay in or around pool. • No glass in pool area. TO AVOID SERIOUS INJURY ALL POOL USERS MUST KNOW AND FOLLOW THESE SAFETY RULES. WARNING ! POST THIS WARNING NEAR YOUR POOL Winterizing Your Above Ground Pool After usage, you can easily empty and store away your pool in a safe place. Some pool owners, however, choose to leave their pool up all year round. In cold areas, where freezing temperatures occur, there can be a risk of ice damage to your pool. We therefore recommend you drain, disassemble and properly store the pool, when the temperature drops below 32 degrees Fahrenheit (0 degrees Celsius). Clean the pool water thoroughly. If the type is Quick Set pool, make sure that the top ring is properly inflated: 1. Clean the pool water thoroughly. If the type is an Easy Set Pool or an Oval Frame Pool, make sure that the top ring is properly inflated. 2. Remove the skimmer (if applicable) or any accessories attached to the threaded strainer connector. Replace strainer grid if necessary. Be sure all accessories parts are clean and completely dry before storage. 3. Plug the Inlet and Outlet fitting from the inside of the pool with the plug provided (sizes 16' and below). Close the Inlet and Outlet Plunger Valve (sizes 17' and above). 4. Remove the ladder (if applicable) and store in a safe place. Be sure the ladder is completely dry before storage. 5. Remove the hoses that connect the pump and filter to the pool. 6. Add the appropriate chemicals for the winter period. Consult your local pool dealer as to which chemicals you should use and how to use them. This can vary greatly by region. 7. Cover pool with Intex Pool Cover. IMPORTANT NOTE: Polygroup® POOL COVER IS NOT A SAFETY COVER. 8. Clean and drain the pump, filter housing and hoses. Remove and discard the old filter cartridge. Keep a spare cartridge for the next season. 9. Bring pump and filter parts indoors and store in a safe and dry area, preferably between 32 degrees Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius). IMPORTANT SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be followed, including the following : READ AND FOLLOW ALL INSTRUCTIONS Keep for Future Reference. Failure to follow these warnings and instructions can result in serious injury or death to users, especially children NOTICE: CUSTOMERS THAT PURCHASE POOLS MAY BE REQUIRED BY LOCAL OR STATE LAW TO INCUR ADDITIONAL EXPENSES WHEN INSTALLING A POOL, IN ORDER TO COMPLY…

Text truncated - open the document above for the full version.

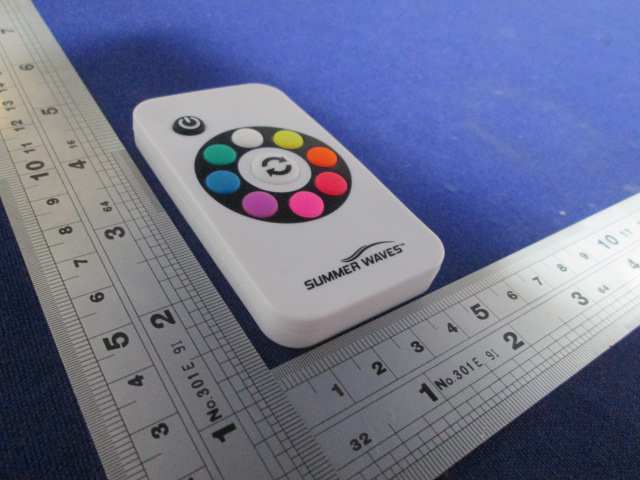

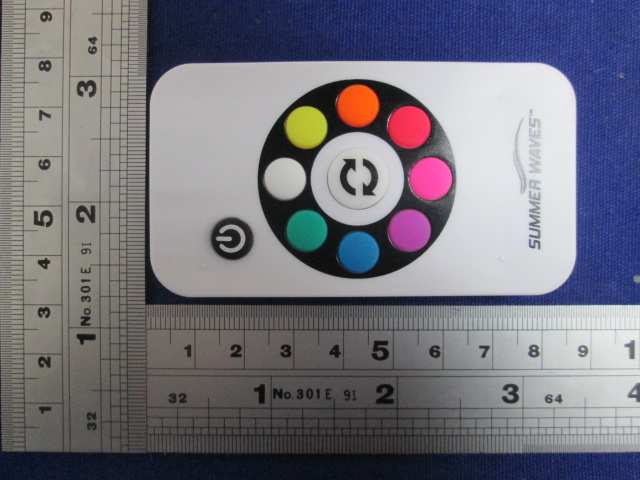

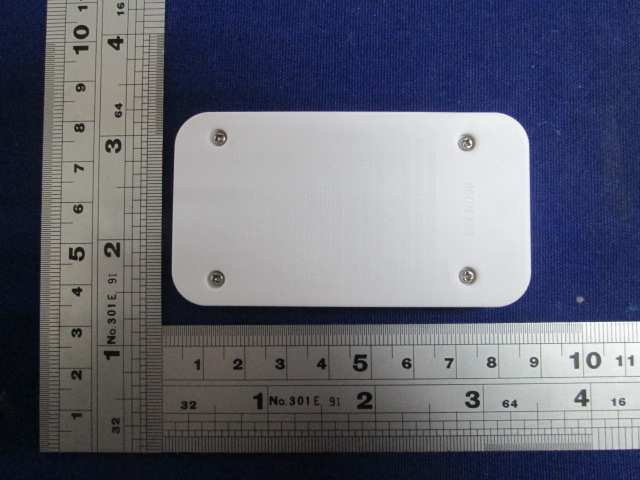

External Photos

Label Artwork and Location Size: 80mm (W) x 44mm (H)

Internal photos

1 Analysis Report The equipment under test (EUT) is a transmitter for Luma Light Pool operating at 315MHz which is operated by a SAW resonator oscillator. The EUT is powered by one 3.0V Size CR 2025 battery. For more detailed features description, please refer to the user’s manual. Type of the antenna: Integral Antenna Modulation Type: Pulse modulation Antenn a Gain: 0dBi The no minal conducted output power specified: -16.00dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -18.15dBm (+/- 3dB) According to the KDB 447498: The w orst-case peak radiated emission for the EUT is 80.2 dBμV/m at 3m in the frequency 315MHz The EIRP = [(FS*D) ^2 / 30] mW= -15.03dBm The ERP = EIRP – 2.15 = -17.18 dBm wh ich is within the production variation. The maximun conducted output power specified is -13.0dBm = 0.05mW The source- based time-averaging conducted output power = 0.05 * Duty Cycle mW < 0.05 mW (Duty Cycle < 100%) Th e SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.315) mW = 26.7 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duty cycle is simply the on-time divided by the period: The duration of one cycle = 73.333ms Effective period of the cycle = 4.5652ms+391.3μs x33=17.4781ms DC = 17.4781ms / 73.333ms = 0.2383 or 23.83 % FCC ID: 2AABT-LUMALIGHT-C

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF no.: FCC 15C_TX_b FCC ID: 2AABT-LUMALIGHT-C Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Polygroup Limited (Macao Commercial Offshore) Application For Certification FCC ID: 2AABT-LUMALIGHT-C Transmitter Sample Description: Luma Light Pool Model: REMOTE CONTROLLER FOR SUMMER WAVES LUMA LIGHT POOL Report No.: SZHH01000991-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-14] Prepared and Checked by: Approved by: Sign on file Terry Tang Engineer Andy Yan Senior Project Engineer Date: November 10, 2015 TRF no.: FCC 15C_TX_b FCC ID: 2AABT-LUMALIGHT-C i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List TRF no.: FCC 15C_TX_b FCC ID: 2AABT-LUMALIGHT-C ii MEASUREMENT/TECHNICAL REPORT Polygroup Limited (Macao Commercial Offshore) FCC ID: 2AABT-LUMALIGHT-C This report concerns (check one:) Original Grant X Class II Change Equipment Type: DSC - Part 15 Security/Remote Control Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-14 Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6/F, Block D, HuaHan Building, Longshan Road, Nanshan District, Shenzhen, China. Development Zone, Guangzhou, P. R.China. Phone: (86 755) 8601 0629 Fax: (86 755) 8601 6751 TRF no.: FCC 15C_TX_b FCC ID: 2AABT-LUMALIGHT-C iii Table of Contents 1.0 General Description ................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants ................................................................................. 2 1.3 Test Methodology ................................................................................................ 2 1.4 Test Facility ......................................................................................................... 2 2.0 System Test Configuration ..................................................................................... 4 2.1 Justification.......................................................................................................... 4 2.2 EUT Exercising Software ..................................................................................... 4 2.3 Special Accessories ............................................................................................ 4 2.4 Equipment Modification ....................................................................................... 5 2.5 Measurement Uncertainty .................................................................................... 5 2.6 Support Equipment List and Descripition ............................................................ 5 3.0 Emission Results .................................................................................................... 7 3.1 Field Strength Calculation .................................................................................... 8 3.1 Field Strength Calculation (cont’d) ....................................................................... 8 3.2 Radiated Emission Configuration Photograph .................................................... 10 3.3 Radiated Emission Data .................................................................................... 11 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications ....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information ..........…

Text truncated - open the document above for the full version.

Radiated Photos
