2AACA-GECKOOpenHour Gecko

Company Background  Formerly known as Syabas Technology Inc.  Founded in 2001  Provider and developer of applications and app store solutions for OTT, IPTV and Connected TV  Produce Hardware platforms for Consumer and Businesses What is... Open Hour Gecko is a 4K Android Player with optimized KODI 15 that supports HD Audio Passthrough, Framerate Sync, 3D BDISO, 4K H.264 / H.265 and SAMBA / NFS. HD Audio Passthrough DTS-MA, Dolby True HD HDMI Bitstream Open Hour Gecko embraces sounds that matches the clear and vivid images of high-definition video. Framerate Sync Open Hour Gecko automatically changes HDMI Output to sync with video framerate SAMBA / NFS Stream content over SAMBA and NFS from Network-Attached Storage (NAS) 3D BDISO Watch your remarkable favorite show with remarkable picture quality in 3D 4K H.264 / 265 More detail, more sharpness, better image depth and better color handling! Watch ‘real life’ where films come alive with sounds as lifelike as the picture. ONE CLICK to install KODI that is optimized for GECKO! Setup and connect the Open Hour Gecko to the TV Step 1: Connect Open Hour Gecko to the TV Step 2: Power Open Hour Gecko with the AC Adapter Step 3: Insert batteries into remote Use different Network Connections: Step 1: Go to Media Center Step 2: Select Samba or NFS Step 3: Select “Auto Search” > select the users OR Step 3: Select “Add Share” > Key in all the details requested then click ok OR Step 1: Go to KODI Step 2: Select Video>Files Step 3: Choose “Add Videos” > Browse Step 4: Select either SAMBA or NFS > Click on the user you would like to share > Click OK How to Setup the Wi-Fi: Step 1: Go to Settings > General > Advanced Settings Step 2： Click on the user name that you are likely to connect Step 3: Enter Password, then click Connect Open Hour Gecko is a 4K Android Player with custom KODI 15 that supports HD Audio Passthrough, framerate sync, 3D BDISO, 4K H.264 / H.265 and SAMBA / NFS. It is equipped with a Hisilicon 3798M, builds in 1GB DDR3 RAM, 10/100Mbps Ethernet and 8GB NAND Flash. It braces HDMI resolutions up to 2160P30Hz; along with a USB 2.0, a USB 3.0 and TF Card interface. Besides, it comprises composite output (require AV breakout cable) and optical S/PDIF output. It is furnished with a built-in 802.11 b/g/n Wifi with external antenna. Open Hour Gecko is an elegant and sleek design with intense content

FCC Sub j Dea Our The The uni n “De If y o Your Sign Clie n Clien Cont ID: 2AACA-GECKO ject: Attestati r Sirs, products wi t transmitter i device is als o ntentional rad eclaration of ou have any q rs sincerely, atory nt ’ s si gnatu r e : nt’s name / title act information Date: 2015‐10-11 ion Letter “D th the above s authorized o defined as “ diators, where Conformity” uestions, pl e e : / address: D eclaration of FCC ID are d e under the “C “PC Periphery e we hereby procedure. ease feel free DOC ATTESTAT Conformity” efined as com Certification” y” acc to §15 declare, tha t The Test lab: Quietek Corporation (Linkou Laboratory) to contact m TION LETTER mposite devic procedure. .101 Equipm e t we apply an me at the addr e. ent authoriza d follow the ress shown b ation of below. Syabas Technology Hong Kong, Limited Dony Li /Manager Syabas Technology Hong Kong, Limited FLAT/RM 316A 3/F, ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT, HONG KONG Address:No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. Test Report Number:150981R-ITUVD11V02 Date of issue:2015-09-28

Syabas Technology Hong Kong, Limited FLAT/RM 316A 3/F, ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT, HONG KONG FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Syabas Technology Hong Kong, Limited Address FLAT/RM 316A 3/F, ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT, City HONG KONG Country China declare that the following representative (agent): Name (person) KAIT CHEN Company name WST Certification & Testing (HK) Limited Address 12/F., San Toi Building,137-139 Connaught Road Central, City Hong Kong, Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description OpenHour Gecko Type or Model(s) Gecko Tradename or Brand(s) OpenHour We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) HONG KONG, China Oct.13, 2015Dony LiManager

Syabas Technology Hong Kong, Limited FLAT/RM 316A 3/F, ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT, HONG KONG FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameSyabas Technology Hong Kong, Limited AddressFLAT/RM 316A 3/F, ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT CityHONG KONG CountryChina request for this certification filing under: Grantee CodeProduct Number FCC ID:2AACA-GECKO to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription XOperational Descriptionexplaining the functioning of the block diagram XBlock Diagramsshowing the systematic building blocks of the EUT XSchematics Diagramsshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Enschede, The Netherlands 2015-10-14M. Koop (authorized) Manager

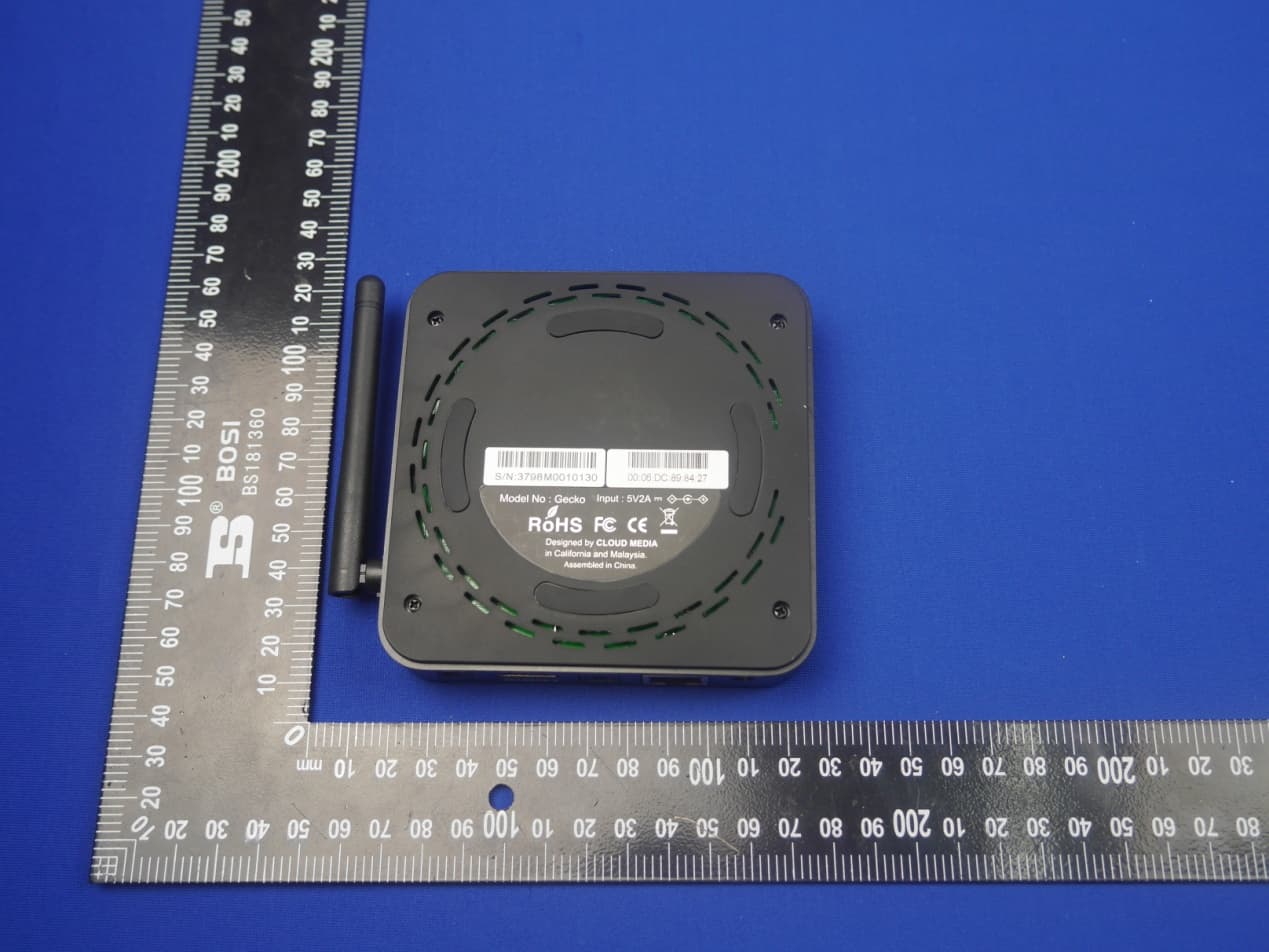

FCC ID LABEL: Label Location FCC ID:ϮͲ'<K WƌŽĚƵĐƚŶĂŵĞ͗KƉĞŶ,ŽƵƌ'ĞĐŬŽ DŽĚĞůEŽ͗͘'ĞĐŬŽ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

FCC RF Exposure EUT Description: OpenHour Gecko Model No.: Gecko FCC ID: 2AACA-GECKO 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) F = frequency in MHz Formula: Pd = (P out*G)/(4*π*r 2 ) Where : Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, π= 3.14; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Test Result of RF Exposure Evaluation Output power （dBm/W） Antenna Gain(dBi) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 9.67/0.0092 2 0.0036 1.0 Pass 802.11g 8.87/0.0077 2 0.0030 1.0 Pass 802.11n(20MHz) 6.55/0.0045 2 0.0018 1.0 Pass 802.11n(40MHz) 5.15/0.0032 2 0.0012 1.0 Pass

Page 1 of 68 Report No.: WST15100803-E FCC TEST REPORT Test report On Behalf of Syabas Technology Hong Kong, Limited For OpenHour Gecko Model No.: Gecko FCC ID: 2AACA-GECKO Prepared for : Syabas Technology Hong Kong, Limited FLAT/RM 316A 3/F, ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT, HONG KONG Prepared By : WST Certification & Testing (HK) Limited 12/F., San Toi Building,137-139 Connaught Road Central,Hong Kong Date of Test: Otc. 8, 2015 ~ Otc. 13, 2015 Date of Report: Otc. 13, 2015 Report Number: WST15100803-E Page 2 of 68 Report No.: WST15100803-E TEST RESULT CERTIFICATION Applicant’s name ................. : Syabas Technology Hong Kong, Limited Address ................................. : FLAT/RM 316A 3/F, ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT, HONG KONG Manufacture's Name ............ : Syabas Technology Hong Kong, Limited Address ................................. : FLAT/RM 316A 3/F, ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT, HONG KONG Product description Trade Mark: OpenHour Product name ............................ : OpenHour Gecko Model and/or type reference : Gecko Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.4: 2009 This publication may be reproduced in whole or in part for non-commercial purposes as long as the WST Certification & Testing (HK) Limited is acknowledged as copyright owner and source of the material. WST Certification & Testing (HK) Limited takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : Otc. 8, 2015 ~ Otc. 13, 2015 Date of Issue .......................................... : Otc. 13, 2015 Test Result.............................................. : Pass Testing Engineer : (Eric Xie) Technical Manager : (Dora Qin) Authorized Signatory : （Kait Chen） Page 3 of 68 Report No.: WST15100803-E Table of Contents Page 1. . TEST SUMMARY 5 1.1. TEST FACILITY 6 1.2. MEASUREMENT UNCERTAINTY 6 2. . GENERAL INFORMATION 7 2.1. GENERAL DESCRIPTION OF EUT 7 2.2. Carrier Frequency of Channels 8 Operation of EUT during testing 8 2.3. DESCRIPTION OF TEST SETUP 9 OPERATION OF EUT DURING TESTING 9 2.4. MEASUREMENT INSTRUMENTS LIST 10 3. . 6DB BANDWIDTH MEASUREMENT 12 3.1. Block Diagram of Test Setup 12 4 Maximum Peak Output Power 20 4.2 Limits 20 2400-2483.5MHz, and 5725-5850MHz bands: 1 Watt. 20 4.3 Test Procedure 20 4.4 Test Result 21 6 Power Spectral Density Measurement 29 6.2 Limits 29 6.3 Test Procedure 29 6.4 Test Result 30 7 Band Edge Compliance Test 37 7.2 Limits 37 7.3 Test Procedure 37 7.4 Test Result 38 8 Radiated Spurious Emission Test 51 8.2 Limits 52 8.3 Restricted bands of operation 52 8.3 Test Procedure 53 8.4 Test Result 54 9 Conducted Spurious Emission Compliance Test 56 9.2 Limits 56 9.3 Test Procedure 56 Page 4 of 68 Report No.: WST15100803-E Table of Contents Page 9.4 Test Result 56 10 AC Power Line Conducted Emission For Part 15 Section 15.207(A) 64 10.2 Limits 64 10.3 Test Procedure 64 10.4 Test Result 64 11 Antenna Requirement 66 12 Photograph of Test 67 Page 5 of 68 Report No.: WST15100803-E 1. TEST SUMMARY FCC Rules Description of Test Result Section 15.247(a)2) 6dB Bandwidth Test Compliant Section 15.247(e) Power Spectral Density Test Compliant Section 15.247(b)(3) Maximum Peak Output Power Test Compliant Section 15.247(d) Band Edge Compliance Tes Compliant Section 15.247(d) Section 15.209) Radiated Spurious Emission Test Compliant Section 15.247(d) Conducted Spurious Emission Test Compliant Section 15.207 AC Power Line Conducted Emission Test Compliant Section 15.203 Antenna Requirement Compliant Page 6 of 68 Report No.: WST15100803-E 1.1 TEST FACILITY Test Firm : Shenzhen WST Testing Technology Co., Ltd. Certificated by FCC, Registration No.: 939433 Address : 1F,No.9 Building,TGK Science & Technology Park,Yangtian Rd., NO.72 Bao'an Dist., Shenzhen,Guangdong,China. 518101 Tel : (86)755-33916437 Fax : (86)755-27822175 1.2 MEASUREMENT UNCERTAINTY Measurement Uncertainty Conducted Emission Expanded Uncertainty = 2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz) = 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 7 of 68 Report No.: WST15100803-E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment OpenHour Gecko Model Name Gecko Serial No N.A FCC ID 2AACA-GECKO Model Difference N/A Modulation Type WIFI:DBPSK,DQPSK,CCK,BPSK,QPSK,16QAM,64QAM Antenna Type External Antenna Antenna Gain 2dBi WLAN Operation frequency 802.11b: 2412-2462MHz 802.11g: 2412-2462MHz 802.11n HT20: 2412-2462MHz 802.11n HT40: 2462-2452MHz Number of Channels 802.11b/g/n (20MHz):11 802.11n (40MHz): 7 Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: up to 150Mbps Modulation Type CCK, OFDM Power Source DC Voltage Power Rating DC5V, 2A with adapter Input 100-240VAC, 50/60Hz,0.5A Output DC 5V, 2A Adapter Model JK050200-S04USA Page 8 of 68 Report No.: WST15100803-E 2.2 Carrier Frequency of Channels Operation of EUT during testing Operating Mode The mode is used: 802.11b Transmitting mode Low Channel: 2412MHz Middle Channel: 2437MHz High Channel: 2462MHz 802.11g Transmitting mode Low Channel: 2412MHz Middle Channel: 2437MHz High Channel: 2462MHz 802.11n (HT20) Transmitting mode Low Channel: 2412MHz Middle Channel: 2437MHz High Channel: 2462MHz 802.11n (HT40) Transmitting mode Low Channel: 2422MHz Middle Channel: 2437MHz High Channel: 2452MHz Page 9 of 68 Report No.: WST15100803-E 2.3 DESCRIPTION OF TEST SETUP OPERATION OF EUT DURING TESTING Adapter EUT AC 120V/60Hz Page 10 of 68 Report No.: WST15100803-E 2.4 MEASUREMENT INSTRUMENTS LIST Item Equipment Man…

Text truncated - open the document above for the full version.

Radiated Emission AC Power Line Conducted Emission
