2AACA1OTTOTT

2 nd Screen Video Share your iOS or Android devices by mirroring the screen to your TV. Step 1. Install miracast from apps market. Step 2. On your Miracast capable device, search for and connect to the 1OTT. This is done different ways depending on your device's software. When the device starts to establish a connection, you should see the following screen. Step 3. Some devices may require you to enter a personal identification number (PIN). If that's the case, a PIN will be displayed on the screen like so. If your device does not require a PIN, you should see your screen mirrored on the TV now. Please refer to http://support.cloudmedia.com/article.aspx?ID=1160 for a more detail guide. The product shall only be connected to a USB interface of version USB2.0 Adapter shall be installed near the equipment and shall be easily accessible. The plug considered as disconnect device of adapter Adapter: DC 5V /1A Input: AC 100-240V 50/60Hz 0.2A Output: DC 5.0 V 1A Warning： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. NOTE: This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter RF Exposure Statement To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance of 20cm the radiator your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter

55 44 33 22 11 D D C C B B A A Date 1 Rev Preliminary Release Description Revision History: 2012/09/19 Approved Layout Notes:1. Discrete (especially resistors) should be placed close toLarge components which are on the same schematic page1. RESISTANCE VALUES IN OHMS. C. PLANE LAYERS - 0.5 OZ CU 2. CAPACITANCE VALUES IN MICROFARADS. E. LAYER STACKUP: 5. BOARD PROPERTIES:4. ALL 0.1 uF CAPACITORS ARE DECOUPLING CAPS UNLESS OTHERWISE NOTED. THEY ARE SHOWN ON THE PAGE WITH THE INTEGRATED CIRCUITS THEY SHOULD BE PLACED NEAR. B. ALL SIGNAL LAYERS - 0.5 OZ CU NOTES, UNLESS OTHERWISE SPECIFIED: A. FR-4 RoHS COMPLIANT MATERIAL PER IPC-4101/129 OR BETTERD. IMPEDENCE CONTROL: 50 OHMS +/- 10% SINGLE ENDED TRACES 60 OHMS +/- 10% SINGLE ENDED TRACES 90 OHMS +/- 10% SINGLE ENDED TRACES 100 OHMS +/- 10% DIFFERENTIAL TRACES 3. REFERENCE DESIGNATORS USED. Hi-Tech Garden,Futian District,ShenZhen,China.Room 718,7th Floor,Builiding 202,Tairan T-flash card SDIO Pg.9 Push Botton SW Pg.7 GPIO micro USB 5V Input 3.3V1.2V for code1.5V for DDR Pg 7 Pg.10Pg.10Pg.10 Reset Pg.3 System Reset LED White Power Block 3.3V for USB dongle HDMI output HeaderHeaderHeader NAND Flash256Mx8 EJTAGUART0 Single-Chip Backend System HDMI VIDEO CNC1800L EBI Pg.7 16-bit DDR3 1066 SDRAM Pg.5 I2C GPIO USB 2.0 Port1 1OTT Block Diagram DDR2Interface DDR-SDRAM 128Mx16 Pg.4 Pg.7Pg.7 Pg 6 AV & System Clk ETHERNET ANT 40.00Mhz RT8188CUS USB wifi dongle 25.00Mhz 27.00Mhz48.00Mhz ClockRecovery TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 29 Friday, June 21, 2013 TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 29 Friday, June 21, 2013 TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 29 Friday, June 21, 2013

Realtek confidential files The document authorized to RF-LINK 2010-11-02 15:40:52 RTL8188CUS Datasheet Single-Chip IEEE 802.11b/g/n 1T1R WLAN Controller with USB2.0 Interface (QFN-46) 4 Track ID: JATR-2265-11 Rev. 1.0 3. Application Diagram 3.1. Single-Band 11n (1x1) Solution (11n 1x1 MAC/BB/RF+PA) Antenna 2.4GHz PA Tx/ Rx Matching Circuit 2.4 GHz Transceiver TX I/Q NV Memory ADC DAC SPS / LDO Regulators 40MHz Crystal MAC Configuration Control and Memory Ext Interface Baseband (PHY) USB 2.0 Host Interface 3.3V RX I/Q LED WPS Push Button Figure 1. Single-Band 11n (1x1) Solution (11n 1x1 MAC/BB/RF+PA)

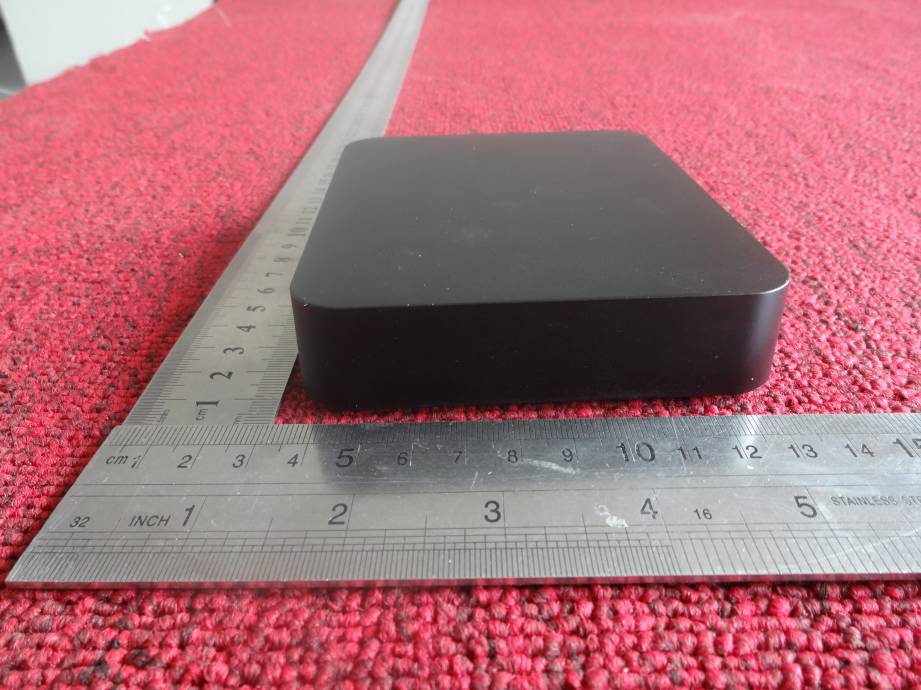

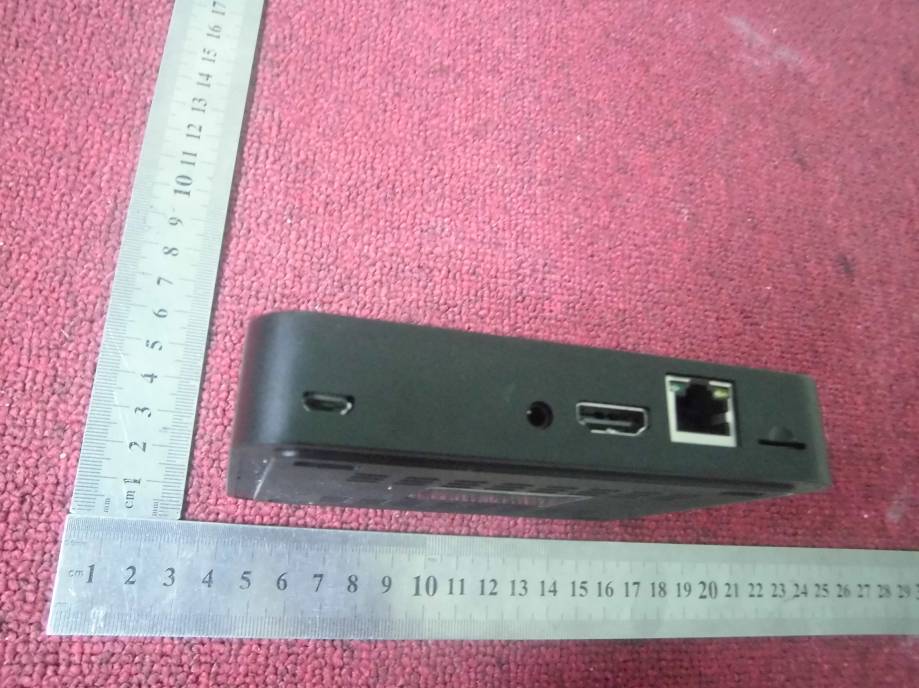

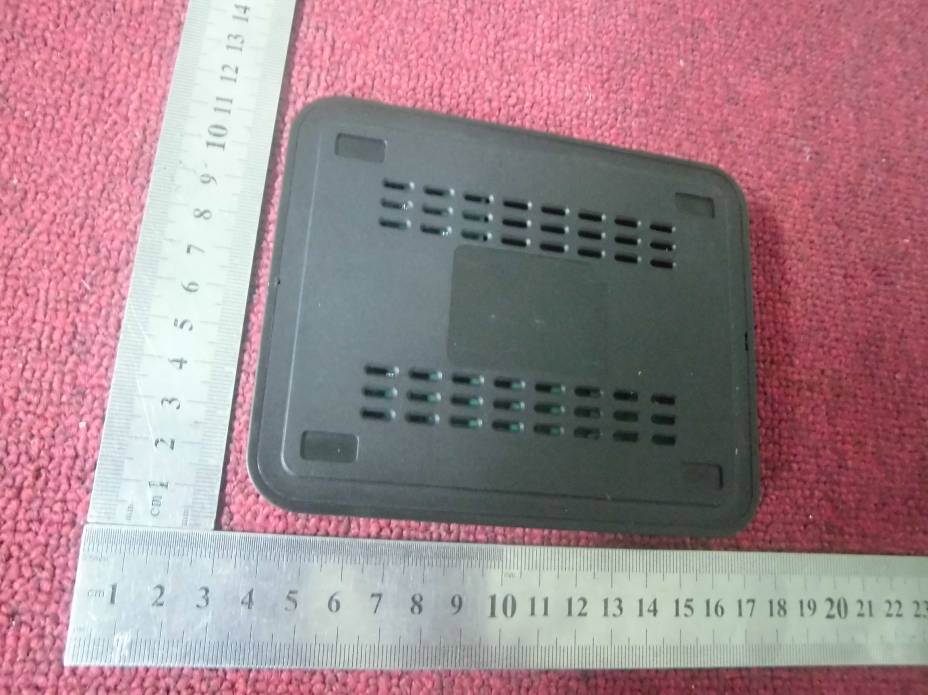

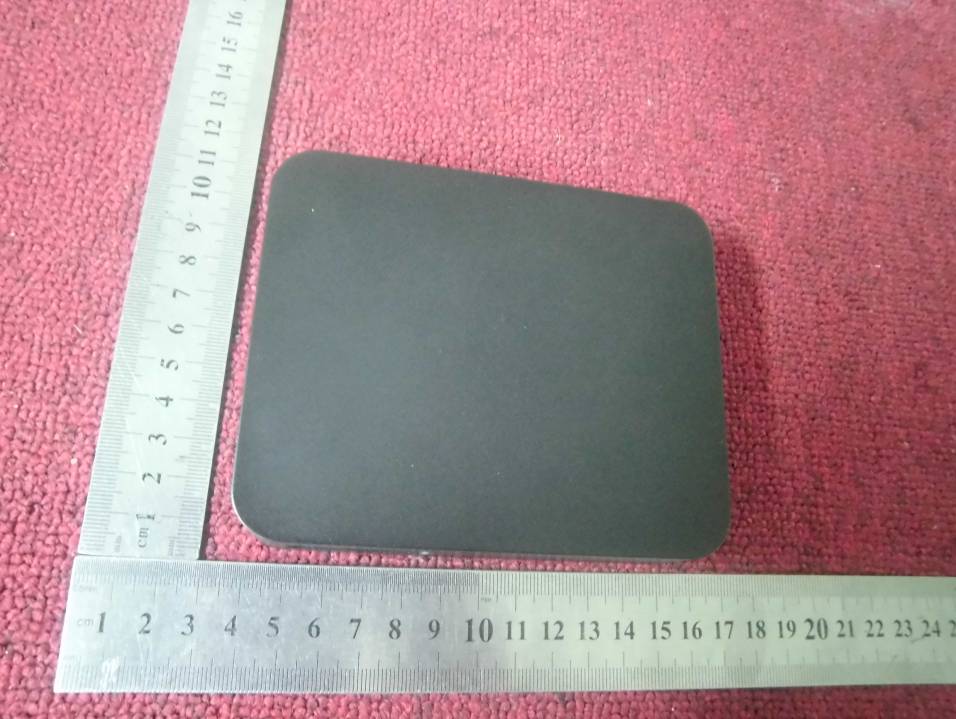

Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT

FCC ID: 2AACA1OTT Label Location on EUT FCC ID Label: Size: 40mm * 30 mm OTT M/N: 1OTT FCC ID: 2AACA1OTT Syabas Technology Hong Kong, Limited Made in China

Internal photograph of EUT Internal photograph of EUT PCB photograph of EUT PCB photograph of EUT WiFi antenna PCB photograph of EUT

OPERATIONAL DESCRIPTION This product is a OTT device, it present a bridge to connect the network to the terminal, the wireless function is WIFI.. Operation Frequency 2.412 GHz～2.462GHz Main RF Chipset RTL8188CUS Oscillator 40MHz Output Power 802.11b: 16.78dBm(max), 802.11g: 16.75dBm(max) 802.11n HT20: 16.08dBm(max) Work Distance ≥20cm Modulation DSSS(BPSK/QPSK/CCK);OFDM(BPSK/QPSK/16QAM/64QAM) Number Of Channels 11 Antenna Designation Integrated Antenna Antenna Gain 1dbi Power Supply DC 5V by adapter Hot Spot Mode Yes NO z

Page 1 of 6 FCC ID TEST REPORT for OTT MODEL: 1OTT Trade Mark: N/A FCC ID: 2AACA1OTT Test Report Number: 1306001498F2 Issued Date: Dec. 21, 2013 Issued for: Syabas Technology Hong Kong, Limited FLAT/RM 316A 3/F , ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT HONG KONG Issued By: SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO., LTD. 5/F,Block 4, Anhua Industrial Zone., No.8 Tairan Rd. Chegongmiao, Futian District Shenzhen, China TEL: +86-755-83448688 FAX: +86-755-83442996 Page 2 of 6 TABLE OF CONTENTS 1 TEST CERTIFICATION .......................................................................................................................3 2 EUT DESCRIPTION ..............................................................................................................................4 3. MAXIMUM PERMISSIBLE EXPOSURE ..........................................................................................5 3.1 APPLICABLE STANDARD .....................................................................................................................5 3.2 MPE CALCULATION METHOD ..........................................................................................................6 3.3 CALCULATED RESULT AND LIMIT ....................................................................................................6 Page 3 of 6 1 TEST CERTIFICATION Product: OTT Model: 1OTT Trade Mark N/A Applicant: Syabas Technology Hong Kong, Limited FLAT/RM 316A 3/F , ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT HONG KONG Manufacturer: Syabas Technology Hong Kong, Limited FLAT/RM 316A 3/F , ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT HONG KONG Tested: Dec. 5, 2013 ~ Dec. 18, 2013 Test Voltage: DC 5V (Adapter Input AC 120V/60Hz) Applicable Standards: OET Bulletin 65 ANSI C63.4:2003 The above equipment has been tested by SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO., LTD. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: 2013-12-21 (Brown Lu) Check By: Date: 2013-12-21 (Terry Tang) Approved By: Date: 2013-12-21 (Jack Chung) Page 4 of 6 2 EUT DESCRIPTION Product OTT Trade Mark N/A Model 1OTT Applicant Syabas Technology Hong Kong, Limited EUT Type Engineering Sample. Product Sample, Mass Product Sample. Serial Number N/A Antenna Type PCB Antenna Antenna Gain 1dBi EUT Power Rating DC 5V Adapter: RG05U-CE Input: AC 100-240V 50/60Hz 0.2A Output: DC 5.0V 1A Temperature Range(Operating) -10~50°C Operating Frequency (WIFI) 802.11b/g/n-HT20: 2412MHz - 2462MHz Type of Modulation CCK, DQPSK, DBPSK for DSSS BPSK, QPSK, 16QAM and 64QAM for OFDM Number of Channels 802.11b/g/n-HT20: 11 channels Data rate 802.11b: 1-11Mbps 802.11g: 6-54Mbps 802.11n-20M: 6.5-72.2Mbps Note: N/A stand for no applicable. Page 5 of 6 3. Maximum permissible exposure 3.1 applicable standard Systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy levels in excess limit for manximun permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J,section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (A)Limits for Occupational/Controlled Exposure Page 6 of 6 3.2 MPE Calculation Method 3.3 Calculated Result and Limit Antenna Type: PCB Antenna Antenna Gain: 1dBi Max conducted output power: 16.78dBm (refer to Page 45 of Report: 1306001498F2F1) Antenna Gain (numeric) Peak Output Power(dBm) Peak Output Power（mW） Power Density(s) (mW/cm 2 ) Limit of Power Density(s) (mW/cm 2 ) Test Result 1.26 16.78 47.64 0.012 1.0 Compliance

55 44 33 22 11 D D C C B B A A 2 DDR3 InterfaceHDMI & USB Interface PAGE 1 Peripheral:I2c,JTAG,UART,LED,PBSW 65 DESCRIPTION 4987 10 WiFi Notes & Block DiagramTitle & ContentsSystem Config&EthetnetNAND Flash 3 1312111415 PowerDecoupling&AV out Room 718,7th Floor,Builiding 202,Tairan Hi-Tech Garden,Futian District,ShenZhen,China. S C H E M A T I C Version 1.01OTT TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 19 Monday, June 03, 2013 TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 19 Monday, June 03, 2013 TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 19 Monday, June 03, 2013 55 44 33 22 11 D D C C B B A A Date 1 Rev Preliminary Release Description Revision History: 2012/09/19 Approved Layout Notes:1. Discrete (especially resistors) should be placed close toLarge components which are on the same schematic page1. RESISTANCE VALUES IN OHMS. C. PLANE LAYERS - 0.5 OZ CU 2. CAPACITANCE VALUES IN MICROFARADS. E. LAYER STACKUP: 5. BOARD PROPERTIES:4. ALL 0.1 uF CAPACITORS ARE DECOUPLING CAPS UNLESS OTHERWISE NOTED. THEY ARE SHOWN ON THE PAGE WITH THE INTEGRATED CIRCUITS THEY SHOULD BE PLACED NEAR. B. ALL SIGNAL LAYERS - 0.5 OZ CU NOTES, UNLESS OTHERWISE SPECIFIED: A. FR-4 RoHS COMPLIANT MATERIAL PER IPC-4101/129 OR BETTERD. IMPEDENCE CONTROL: 50 OHMS +/- 10% SINGLE ENDED TRACES 60 OHMS +/- 10% SINGLE ENDED TRACES 90 OHMS +/- 10% SINGLE ENDED TRACES 100 OHMS +/- 10% DIFFERENTIAL TRACES 3. REFERENCE DESIGNATORS USED. Hi-Tech Garden,Futian District,ShenZhen,China.Room 718,7th Floor,Builiding 202,Tairan T-flash card SDIO Pg.9 Push Botton SW Pg.7 GPIO micro USB 5V Input 3.3V1.2V for code1.5V for DDR Pg 7 Pg.10Pg.10Pg.10 Reset Pg.3 System Reset LED White Power Block 3.3V for USB dongle HDMI output HeaderHeaderHeader NAND Flash256Mx8 EJTAGUART0 Single-Chip Backend System HDMI VIDEO CNC1800L EBI Pg.7 16-bit DDR3 1066 SDRAM Pg.5 I2C GPIO USB 2.0 Port1 1OTT Block Diagram DDR2Interface DDR-SDRAM 128Mx16 Pg.4 Pg.7Pg.7 Pg 6 AV & System Clk ETHERNET ANT 40.00Mhz RT8188CUS USB wifi dongle 25.00Mhz 27.00Mhz48.00Mhz ClockRecovery TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 29 Friday, June 21, 2013 TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 29 Friday, June 21, 2013 TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 29 Friday, June 21, 2013 55 44 33 22 11 D D C C B B A A disp_c[4] MAC_TXD3 0 2'b01: 16bit address,for SPI flash less than or equal to 64KB MAC_TXD0 disp_c[1]MAC_TXD1 disp_c[2] disp_c[4] NAND block size1=large0=small MAC_TXD3 disp_c[2] MAC_TXD1 SPI speed mode0:Low , 1.0MHz1:High, 11.8MHz disp_c[3] MAC_TXD2 1=16bit I/O0=8bit I/O disp_c[3] MAC_TXD2MAC_TXD0 disp_c[1]Boot PinBoot Pin Reg Bit 0 SPI Flash Booting NAND Flash Booting 2'b10: 24bit address, for SPI flash in128KB - 16MB Reg Bit Default Value 0 Boot Configuration BOOT_CFG[3:2] 11 NAND row address1=2 cycle0=3 cycle 1 RESET 2'b00: reserved2'b11: reserved 0 JTAG_CPU_SEL 1 Flash/GPIO Local BUS 0 1 JTAG Multi-ICE TEST_MODEJTAG_CPU_SELDEBUG_ENVPD_PCSystem Pin 0 Default Value 1 System Configuration 00 Ethernet Interface DEBUG_EN Hi-Tech Garden,Futian District,ShenZhen,China.Room 718,7th Floor,Builiding 202,Tairan KDS3*8 PHY address 00001b Disable isolate modeDisable Repeat modeAuto-negotiation modefull duplex mode100M modeMII modeLDPS mode Ethernet Phy Interface Boot strapping MAC_TXD0MAC_TXD1MAC_TXD2 SYS_RESET# SYS_RESET#TEST_MODE MAC_TXD2MAC_TXD3MAC_TXD0MAC_TXD1 VPD_PCDEBUG_ENJTAG_CPU_SEL SYS_CLK27_XO nSRSTTRSTTDITCKTMS MAC_TXD3 MAC_COLMAC_CRSMAC_TXENMAC_TXCLKMAC_RXERMAC_RXDVMAC_RXD0MAC_RXD1MAC_RXD2MAC_RXD3MAC_RXCLKMAC_MDIOMAC_MDC MAC_MDCMAC_TXENMAC_TXCLKMAC_TXD3MAC_MDIO SYS_RESET# MAC_TXD2 LED0/PHYAD0 MAC_COLMAC_RXD2MAC_RXD1MAC_RXD0MAC_RXDV LED4/PHYAD4 MAC_RXCLKMAC_RXD3MAC_TXD1MAC_CRS LED1/PHYAD1LED2/PHYAD2 MAC_TXD0MAC_RXER LED3/PHYAD3 RX-RX+TX-TX+ PWFBINPWFBOUT TX+TX-RX+RX- LED3/PHYAD3LED0/PHYAD0PWFBOUT PWFBOUT PWFBIN VCC3V3 VCC3V3 VCC3V3 VCC3V3 VCC3V3 VCC3V3 VCC3V3 VCC3V3 VCC3V3 VCC3V3 TDI 7 TCK 7nSRST 7TRST 7TMS 7 TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 39 Monday, June 03, 2013 TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 39 Monday, June 03, 2013 TitleSize Document Number Rev Date: Sheet of 1.0 Syabas Technology Inc. B 39 Monday, June 03, 2013 R124 5K1 C716100n R707 5K1 R72051 C144100n C14922p 18PU100FCNC1800L MAC_COL Y23 MAC_CRS Y22 MAC_TXD0 T22 MAC_TXD1 T21 MAC_TXD2 T20 MAC_TXD3 R20 MAC_TXER T23 MAC_TXEN U23 MAC_TXCLK U22 MAC_RXER V22 MAC_RXDV V21 MAC_RXD0 W21 MAC_RXD1 V20 MAC_RXD2 U20 MAC_RXD3 U21 MAC_RXCLK Y21 MAC_MDIO W23 MAC_MDC W22 R715 5K1 R133 5K1 C702100n U701 RTL8201CL/IP101A TXD0 6 TXD1 5 TXD2 4 TXD3 3 TXCLK 7 TXEN 2 RXD0 21 RXD1 20 RXD2 19 RXD3 18 RXCLK 16 COL 1 CRS 23 RXDV 22 ISOLATE 43 RPTR 40 SPEED 39 DUPLEX 38 ANE 37 RESETB# 42 RXER/FXEN 24 RTSET 28 LDPS 41 PWFBIN 8 PWFBOUT 32 MDIO 26 MDC 25 MII/SNIB# 44 LED0/PHYAD0 9 LED1/PHYAD1 10 LED2/PHYAD2 12 LED3/PHYAD3 13 LED4/PHYAD4 15 TPRX+ 31 TPRX- 30 TPTX+ 34 TPTX- 33 NC 27 X2 47 X1 46 DGND 11 DGND 17 DGND 45 AGND 29 AGND 35 DVDD 14 DVDD 48 AVDD 36 RJ-45 YG J69 ST_J1026U2NL nc 4 CHS GND 5 RD+ 7 RCT 6 RD- 8 TCT 3 TD- 2 14 14 13 13 TD+ 1 G- 10 G+ 9 Y+ 12 Y- 11 16 16 15 15 R706 5K1 C71022p R718 5K1 R106 5K1 R72251 R120 5K1 C712 100n R127 5K1 C705100n C70922p R704 5K1 C717100n R716 5K1 R7351M/DNI R109 5K1 R708 5K1 C715100n R710 5K1 R705 5K1 R71951 C145100n R118 5K1 R712 5K1 14P U100B CNC1800L SYS_CLK27_XI G21 SYS_CLK27_XO G23 PLX_CLK27 AA7 TEST_MODE Y5 RESET# AA8 DEBUG_EN Y8 JTAG_CPU_SEL Y7 VPD_PC Y6 DBGRST# J20 JTAG_TRST K20 JTAG_TMS J21 JTAG_TDO K21 JTAG_TDI L20 JTAG_TCLK M20 R702 5K1 R711 220 R123 5K1 C706 10uF R13610K R703 5K1 Y103 25MHz 1 32 C713100n R714 5K1 R21M R713 0 R709 2K/ 6.19K%1 for IP101A C714 10uF R138 0 U101 APX809 VCC 3 GND 1 RESET# 2 R717 5K1 Y10127MHz 1 3 2 C14822p R72151 R701 5K1 FB809 2K/100MHz 55 44 33 22 11 D D C C B B A A Hi-Tech Garden,Futian Di…

Text truncated - open the document above for the full version.

Page 1 of 71 FCC ID TEST REPORT for OTT MODEL: 1OTT Trade Mark: N/A FCC ID: 2AACA1OTT Test Report Number: 1306001498F2 Issued Date: Dec.20, 2013 Issued for Syabas Technology Hong Kong, Limited FLAT/RM 316A 3/F , ENTERPRISE PLACE PHASE ONE HONG KONG SCIENCE PARK PAK SHEK KOK TAI PO NT HONG KONG Issued By: SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO., LTD. 5/F,Block 4, Anhua Industrial Zone., No.8 Tairan Rd. Chegongmiao, Futian District Shenzhen, China TEL: +86-755-83448688 FAX: +86-755-83442996 Report No.: 1306001498F2 Issued: Dec. 20, 2013 Revised: None FCC ID: 2AACA1OTT Page 2 of 70. TABLE OF CONTENTS 1 TEST CERTIFICATION ....................................................................................................................... 3 2 TEST RESULT SUMMARY ............................................................................................................ 4 3 EUT DESCRIPTION ............................................................................................................................ 5 4 SETUP OF EQUIPMENT UNDER TEST AND TEST EQUIPMENTS USED ................................. 6 4.1. DESCRIPTION OF SUPPORT UNITS ................................................................................................. 7 4.2. Description of Test Configuration .......................................................................................................... 7 4.3. CONFIGURATION OF SYSTEM UNDER TEST .................................................................................. 8 4.4. Justification .......................................................................................................................................... 8 5 FACILITIES AND ACCREDITATIONS .......................................................................................... 9 5.1. FACILITIES ........................................................................................................................................... 9 5.2. MEASUREMENT UNCERTAINTY ...................................................................................................... 10 §15.203 - ANTENNA REQUIREMENT ................................................................................................ 11 Standard Applicable ................................................................................................................................... 11 Antenna Connector Construction ............................................................................................................... 11 §15.207 - CONDUCTED EMISSIONS ................................................................................................. 12 Applicable Standard ................................................................................................................................... 12 Test Procedure ........................................................................................................................................... 12 Environmental Conditions .......................................................................................................................... 12 Plot(s) of Test Data .................................................................................................................................... 12 §15.209, §15.205, §15.247(D) - SPURIOUS EMISSIONS ................................................................... 15 Test Equipment .......................................................................................................................................... 15 Test Procedure ........................................................................................................................................... 15 Environmental Conditions .......................................................................................................................... 15 Radiated Test Setup ................................................................................................................................... 15 Radiated Emission Limit ............................................................................................................................. 16 §15.247(A) (2) – 6DB BANDWIDTH TESTING ................................................................................... 37 Test Equipment .......................................................................................................................................... 37 Test Procedure ........................................................................................................................................... 37 Environmental Conditions .......................................................................................................................... 37 Applicable Standard ................................................................................................................................... 37 Test Result: Pass. ...................................................................................................................................... 38 §15.247(B) (3) - MAXIMUM PEAK OUTPUT POWER ........................................................................ 44 Test Equipment .......................................................................................................................................... 44 Test Procedure ........................................................................................................................................... 44 Environmental Conditions .......................................................................................................................... 44 Applicable Standard ................................................................................................................................... 44 Test Result ................................................................................................................................................. 45 §15.247(D)…

Text truncated - open the document above for the full version.

CONDUCTED EMISSION TEST RADIATED EMISSION TEST
