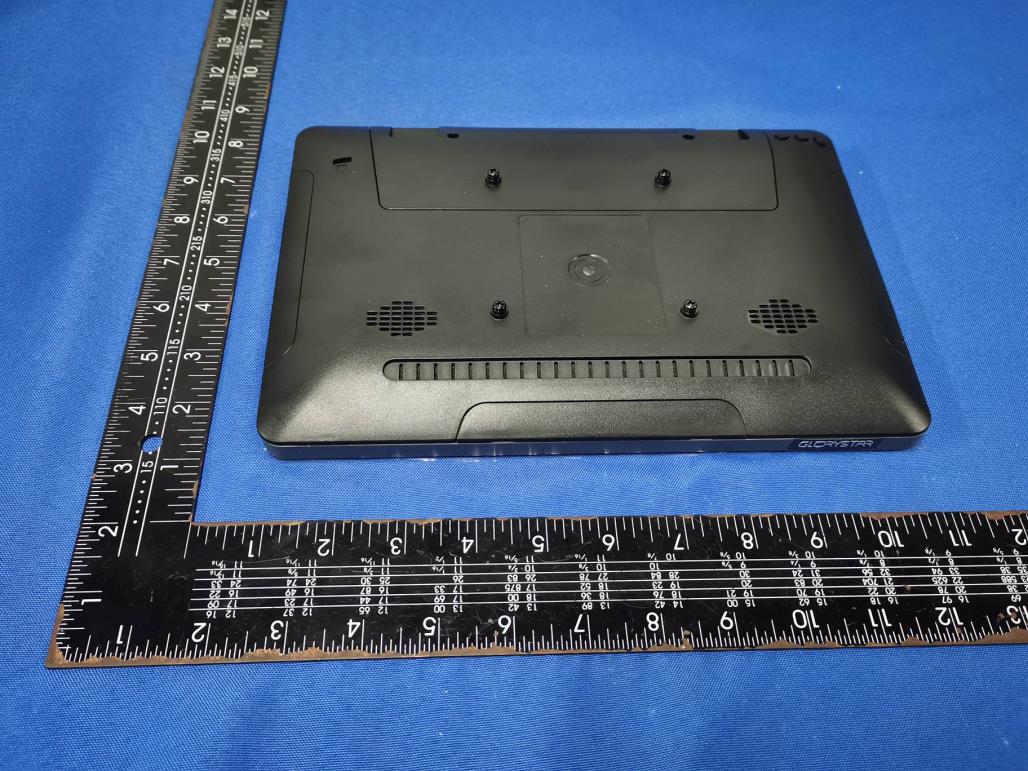

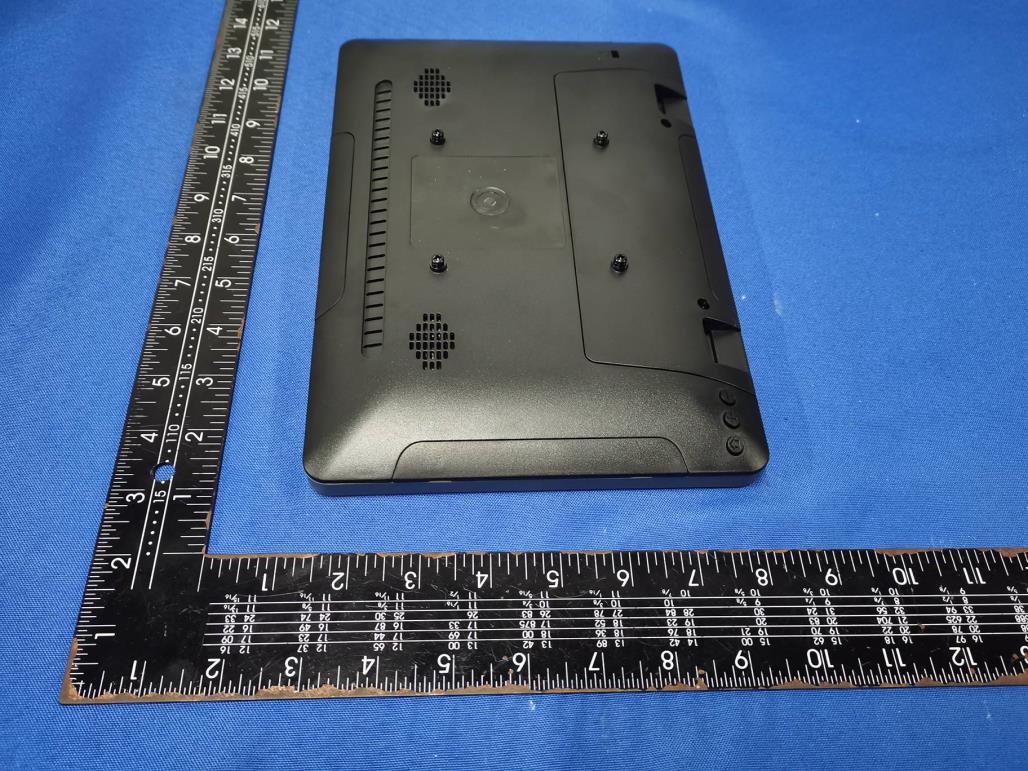

2AACS-ALU100-150Commercial Kiosk Tablet

Android Advertising Displayer ALU100/150/210 User Manual Please read this instruction before This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the device and receiver. --Connect the device into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation dista nce of at least 20 cm from all persons and must not be co-located for operating in conjunction with any other antenna or transmitter. Importation Safety Instructions Read this user manual All safety and operating instructions in this user manual should be read before operating the product Keep this user manual This user manual should be retained for future references. Head Warnings Be cautious about warning signals on the product. Follow Instructions Please follow instructions in this user manual Attachments To avoid danger, please do not use attachments not recommended by the product manufacturer. Mounting Do not place the product on any unstable cart, stand, tripod or table to avoid injury on children and adult. Please only use attachments indicated by product manufacturer. Temperature Please use this product within operating temperature 32°F ~ 100°F (0°C ~ 45°C), relative humidity 20%-80%. The product should be situated away from any heat source such as radiators, heat registers, stoves or other products (including amplifier) to product heat. Avoid Liquid Invasion Avoid the invasion of any liquid. Avoid placing it near bathtub, sink, kitchen, wet basement or swimming pool. Do not place product on any uneven surfaces and keep a distance of at least 6 inches from wall. Do not place heavy objects on top of the unit and at sealed areas to avoid heat ventilation problems. Product Protection Please do not place any attachment or parts inside the product to avoid contacts with voltage points that could result an electric shock or fire. Heat Ventilation There is no heat ventilation on the upper and lower part of the product, therefore to avoid overheating, please do not block any ventilation openings with objects (e.g. carpet). Please allow the opening to have 10cm distance for ventilation. Grounding or Polarization This product could be equipped with an alternate plug. Power –Cord Protection Power supply cords should be routed so that they are unlikely to be walked on or pitched by items placed upon them. Pay attention to the connection of plugs. Power Sources This product should be operated only from the typeof power source indicated on the rear panel. If you are unsure of the type of power supply to your home, consult your product purchaser or local power company. Lighting and storms Unplug the outlet during lighting, storms or long unused periods. This will prevent damages and power-line surges to the product. Overloading Do not overload wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or electric shock. Damage Handling Unplug this product from the outlet of wall and request qualified service personnel under the following conditions: • when the power supply cord or plug is damaged • when the picture display gets dimmer • when liquid has been spilled or objects have fallen on to the product • when the product has been exposed to rain or water. • Adjust only those controls that are in the instruction manual. For improper adjustments may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. • When the product exhibits a distinct change in performance-this indicates a need for repair service. Replacement parts When replacement parts are required, be sure that the technician uses replacement parts specified by the manufacturer or parts with same features. Unauthorized substitution may result in fire, electric shock or other hazards. Safety Check Upon completion of any service or repair to this product, ensure technician for proper operating condition performs safety checks. Warnings If the battery of remote control is incorrectly replaced, there will be a danger of explosion. Storage Keep the product at dim areas, room temperature and low humidity to maintain original condition. This will avoid danger. Transportation Since the product consists of glass and delicate electronic components, excessive shock or drop will result damages. Please handle the product carefully to minimize shock during transportation. Recycling The product utilizes tin-lead solder, and has a fluorescent lamp containing a small amount of mercury. For environmental considerations, disposal of these materials may be regulated in your community. For disposal or recycling information, please contact your local authorities, or Electronics Industries Alliance: http://www.eiae.org/ Cleaning Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use damp cloth for cleani…

Text truncated - open the document above for the full version.

Glory Star Technics (Shen Zhen) Co., Ltd. Covered Equipment Certification Attestation Letter 4/16/2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AACS-ALU100-150 Glory Star Technics (Shen Zhen) Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Glory Star Technics (Shen Zhen) Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Hei Man Cheung Title: Manager Company Name: Glory Star Technics (Shen Zhen) Co., Ltd. Date: 4/16/2024

April 15, 2024 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Timeway Testing Laboratories/ Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Glory Star Technics(Shen Zhen)Co.,Ltd. / Bldg., 9, 4/F., ZongYuntai Technology Industrial Park, Songbai Road, Shiyan Street, Boan, Shenzhen, China <Signature>： Name：Hei Man Cheung Title：Manager Applicant Company：Glory Star Technics(Shen Zhen)Co.,Ltd.

April 16, 2024 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AACS-ALU100-150 Product Name: Commercial Kiosk Tablet Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>： Name：Hei Man Cheung Title：Manager Applicant Company：Glory Star Technics (Shen Zhen) Co.,Ltd.

Model Difference Statement We Glory Star Technics (Shen Zhen) Co., Ltd. Hereby that The product Commercial Kiosk Tablet with models no. ALU150, ALU100, are all identical in main board, RF Modular and Antenna. The size and schematics of panels are different. ALU100 use 10 size panels; ALU150 use 15 size panels; Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Company Name: Glory Star Technics (Shen Zhen) Co., Ltd.

Model: ALU150 Model: ALU100

www.glorystargroup.com Made In China Model Input Rating : ALU150 : DC 12V 1.2A : 17W(MAX) Caution! Risk of electric shock. Do not remove cover. Screw lengths inside the cover should not be longer than 6mm. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 64mm 54mm FCC ID: 2AACS-ALU100-150 NEB101 www.glorystargroup.com Made In China Model Input Rating : ALU100 : DC 12V 1.2A : 14.4W(MAX) 64mm 54mm Caution! Risk of electric shock. Do not remove cover. Screw lengths inside the cover should not be longer than 6mm. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AACS-ALU100-150

Label Location

Model: ALU150

SAR evaluation FCC ID: 2AACS-ALU100-150 MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated WIFI Result and Limit (WORSE CASE IS AS BELOW) Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 4.63 （2.904dBi） 88.64 （19.48dBm） 0.0512 1 Compiles Note: Antenna Gain: 1.62dBi (2.4G Band) Assembly Antenna Gain: 4.63dBi Assembly Antenna Gain (Numeric): 2.904dBi ERP=19.48+4.63-2.15=21.96dBm(157.04mW) WIFI 2.4G band and 5G band cannot transmit Simultaneously Calculated Bluetooth Result and Limit (WORSE CASE IS AS BELOW) eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /(30 x gt) Ant gain =1.48dBi so Ant numeric gain= 1.406 Field strength =85.71dBμV/m @3m@2402MHz So Pt={[10 (85.71/20) /10 6 x3] 2 /(30x1.406)}x1000 mW = 0.07946mW Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 1.48（1.406dBi） 0.07946 （-11.00dBm） 0.000022 1 Compiles Note: Antenna Gain: 1.48dBi (2.4G Band) Assembly Antenna Gain (Numeric): 1.406dBi ERP=-11.00-2.15=-13.15dBm(0.05mW) BT BDR/EDR and BLE cannot transmit Simultaneously =88.64/3060 +0.07946/3060=0.0289 = (157.04+0.05)/3060 =0.05134 =（ 0.0512+0.000022）/1=0.051222 0.0289+0.05134+0.051222=0.131462<1

Report No.: TW2403090-04E Applicant: GLORY STAR TECHNICS (SHENZHEN) CO., LTD. Product: Commercial Kiosk Tablet Model No.: ALU150, ALU100 Trademark: Glory Star Test Standards: FCC Part 15 Subpart E, Paragraph 15.407 Test Result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10, FCC Part 15 Subpart C, Paragraph 15.247 for the evaluation of electromagnetic compatibility Approved By Terry Tang Manager Dated: April 09, 2024 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Zone C, 1st Floor, Block B, Jun Xiang Da Building, Zhongshan Park Road West, Tong Le Village, Nanshan District, Shenzhen, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No.: TW2403090-04E Page 2 of 96 Date: 2024-04-09 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： FCC-Registration No.: 744189 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 744189. Industry Canada (IC) —Registration No.:5205A The EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 5205A. A2LA (Certification Number:5013.01) The EMC Laboratory has been accredited by the American Association for Laboratory Accreditation (A2LA). Certification Number:5013.01 CAB identifier: CN0033 Report No.: TW2403090-04E Page 3 of 96 Date: 2024-04-09 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT ........................................................................................... 4 1.4 Submitted Sample.............................................................................................. 5 1.5 Test Duration................................................................................................... 5 1.6 Test Uncertainty............................................................................................... 5 1.7 Test By.......................................................................................................... 6 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition.................................................................................... 9 5.5 Conducted Emission Limit................................................................................... 9 5.6 Test Result...................................................................................................... 9 6.0 Undesirable Emission and Restrict band................................................................... 12 7.0 Bandwidth Measurement.................................................................................... 31 …

Text truncated - open the document above for the full version.

R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] ShenzhenSKYLinkTechnologyCo.,Ltd AntennaSpecificationforApproval CustomerName： ProductName：WIFIAntenna PartNO.:WF80H.C113.380B.1 WriteBy：ZhengfengFang IssuedDate:2024-04-12 Customer R&DDeptBusinessDeptApprovedBy SKYLink R&DDeptEngineerDeptApproval R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected]  SpecificationSummary A.ElectricalCharacteristics Frequency2400MHz~2500MHz 5150MHz~5850MHz LogMag<-5dB Efficiency>45% PeakGain2.7dbi Impedance50Ohm PolarizationLine B.Material&MechanicalCharacteristics MaterialofRadiator FPC CableType 1.13mmBlack ConnectorType 1 DimensionAtAttachment Heat-durability 280±5 ̊C，10sec. C.EnvironmentalCharacteristics OperationTemperature -20 ̊C~+80 ̊C StorageTemperature -30 ̊C~+85 ̊C A 0 . 0 3 0 . 0 2 0 . 0 4 0 ～ 1 0 ± 0 . 0 5 1 0 ～ 1 8 ± 0 . 1 0 1 8 ～ 3 0 ± 0 . 1 2 ∅ 0 . 0 2 3 0 ～ 4 0 ± 0 . 1 5 R e m a r k R e v D a t e T h i r d A n g l e N e w d r a w i n g D e s c r i p t i o n 4 0 ～ ± 0 . 2 0 1 2 3 4 A p p r o v e d b y DCB 5 6 7 8 A 1 2 3 4 5 6 7 8 P a r t N o . D a t e D e s i g n e d b y C h e c k e d b y S c a l e R e v m m L o c a t i o n P r o j e c t M a t e r i a l P a r t N a m e U n i t R F M D A A n g l e ± 0 . 5 ° 1 : 1 DCBA S H E N Z H E N S K Y L i n k C O . , L T D R o H S P G C o m p l i a n t D W G N o . W F 8 0 H . C 1 1 3 . 3 8 0 B . 1 2 0 2 4 - 0 4 - 1 1 W F 8 0 H R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] TestEquipment&Conditions 1．NetworkAnalyzers: Agilent8753D5071B CommunicationsTestSet: AgilentE5515CCMW500 2．3DChamberTestSystem R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] ReturnLoss R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] Gain&Efficiency Freq （MHz） Effi (%) Gain (dBi） 2400 47.481.09 2410 40.481.62 2420 41.771.01 2430 43.471.45 2440 43.621.01 2450 44.290.51 2460 41.340.85 2470 40.840.75 2480 40.60.78 2490 40.60.96 2500 49.020.84 Freq （MHz） Effi （%） Gain （dB) 5150 39.882.28 5200 45.262.29 5250 43.052.17 5300 41.582.47 5350 47.172.66 5400 46.482.56 5450 42.622.25 5500 40.412.04 5550 36.682.67 5600 34.972.34 5650 34.021.9 5700 31.731.47 5750 31.491.41 5800 30.931.27 5850 33.81.43 R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] RadiationPattern R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] ReliabilityTest TestItemTestconditionEquipmentSpecificationResult 1 LowTemp.Storage Test Temperature:-30°C，Time:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°C andhumidityis65%foronehour,thenstep-down thetemp.to-30°Cinonehour,storeantennafor 44hours;step-uptempto25°C,testantennaafter 2hours. Temp.&Humi. Tester Nomaterial deformationis allowed. ElectronicPerformance isok. PASS 2 HighTemp./High Humid StorageTest Temperature:85°CHumidity:85%RHTime:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°C andhumidityis65%foronehour,thenstep-upthe temp.to80°Candthehumidityupto85%inone hour,storeantennafor44hours;step-downtemp to25°C,testantennaafter2hours. Temp.&Humi. Tester Nomaterial deformationis allowed. ElectronicPerformance isok. PASS 3Salt-Spray6prayTest PlacingantennaintheSalt-SprayTester,setthe testcondition，Temp:35±2°CHumidity:85% NaClsaltspray:5±1%.PHvalue:6.5~7.2Test time:24hours Salt-SprayTester Nocolorchange Noappearrusting PASS

Conducted Emission Test Setup: Radiated Emission Test Setup:
