2AACS-TAD185-215Advertising Displayer

      Android Advertising Displayer TAD185-A4, TAD215-A4 User Manual Please read this instruction before      Importation Safety Instructions Read this user manual All safety and operating instructions in this user manual should be read before operating the product Keep this user manual This user manual should be retained for future references. Head Warnings Be cautious about warning signals on the product. Follow Instructions Please follow instructions in this user manual Attachments To avoid danger, please do not use attachments not recommended by the product manufacturer. Mounting Do not place the product on any unstable cart, stand, tripod or table to avoid injury on children and adult. Please only use attachments indicated by product manufacturer. Temperature Please use this product within operating temperature 32°F ~ 100°F (0°C ~ 45°C), relative humidity 20%-80%. The product should be situated away from any heat source such as radiators, heat registers, stoves or other products (including amplifier) to product heat. Avoid Liquid Invasion Avoid the invasion of any liquid. Avoid placing it near bathtub, sink, kitchen, wet basement or swimming pool. Do not place product on any uneven surfaces and keep a distance of at least 6 inches from wall. Do not place heavy objects on top of the unit and at sealed areas to avoid heat ventilation problems. Product Protection Please do not place any attachment or parts inside the product to avoid contacts with voltage points that could result an electric shock or fire.     Heat Ventilation There is no heat ventilation on the upper and lower part of the product, therefore to avoid overheating, please do not block any ventilation openings with objects (e.g. carpet). Please allow the opening to have 10cm distance for ventilation. Grounding or Polarization This product could be equipped with an alternate plug. Power –Cord Protection Power supply cords should be routed so that they are unlikely to be walked on or pitched by items placed upon them. Pay attention to the connection of plugs. Power Sources This product should be operated only from the type pf power source indicated on the rear panel. If you are unsure of the type of power supply to your home, consult your product purchaser or local power company. Lighting and storms Unplug the outlet during lighting, storms or long unused periods. This will prevent damages and power-line surges to the product. Overloading Do not overload wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or electric shock. Damage Handling Unplug this product from the outlet of wall and request qualified service personnel under the following conditions: • when the power supply cord or plug is damaged • when the picture display gets dimmer • when liquid has been spilled or objects have fallen on to the product • when the product has been exposed to rain or water. • Adjust only those controls that are in the instruction manual. For improper adjustments may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. • When the product exhibits a distinct change in performance-this indicates a need for repair service.     Replacement parts When replacement parts are required, be sure that the technician uses replacement parts specified by the manufacturer or parts with same features. Unauthorized substitution may result in fire, electric shock or other hazards. Safety Check Upon completion of any service or repair to this product, ensure technician for proper operating condition performs safety checks. Warnings If the battery of remote control is incorrectly replaced, there will be a danger of explosion. Storage Keep the product at dim areas, room temperature and low humidity to maintain original condition. This will avoid danger. Transportation Since the product consists of glass and delicate electronic components, excessive shock or drop will result damages. Please handle the product carefully to minimize shock during transportation. Recycling The product utilizes tin-lead solder, and has a fluorescent lamp containing a small amount of mercury. For environmental considerations, disposal of these materials may be regulated in your community. For disposal or recycling information, please contact your local authorities, or Electronics Industries Alliance: http://www.eiae.org/ Cleaning Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use damp cloth for cleaning.     Spec. & Package Package included: -Please confirm all the items is included before the setup start.      ModelTAD185A4,TAD215A4 Sizes18.5”,21.5” Resolution(pixles)1366x768,1920x1080 Brightness250cd/m2 AspectRatio16:9 CPUARMCortexA9at1.6GhzProcessorwithMali400GPU Processor RAM2GBDDR3 OperatingSystemAndroid4.4  HardwareSupport ControlButtons,Earphone,RJ45,WiFi(802.11b/g),USB, microUSB Speaker2x2W,2x3W(MAX) MemorySupportSDCard       Introduction of Android 1. Start up and shut down To start your device, switch on the “Power button” to light up the screen. To shut down your device, switch off the “Power Button” until the following dialog popup appears. 2. The App Drawer – right top corner Press the icon in the bottom middle of the screen to open the App Drawer. The “Apps” tab displays all applications that are available on the tablet.         To place a app shortcut on the desktop, touch and hold the icon until the App Drawer fades and the desktop appears. Move your finger to the location where you want to place the icon and release your touch to place the icon. When using apps or other parts of the operating system you often will see the “Extra Options” icon. Pressing this icon will open a secondary menu with more options. Functions like opening an advanced setting menu, switching to a different acco…

Text truncated - open the document above for the full version.

DATE : June 15, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AACS-TAD185-215 Product Name: Advertising Displayer Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this June 15, 2015 By: Hei Man Cheung Signature Printed Title: Manager On behalf of : Glory Star Technics(Shen Zhen)Co.,Ltd. Telephone: 0755-26001808-336

Statement We Glory Star Technics(Shen Zhen)Co.,Ltd. Are applying for FCC DOC for Advertising Displayer with model number: TAD185-A4, TAD215-A4 FCC DOC is doing at FCC Authorized and Recognized lab. The FCC DOC application will be completed before sell. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Company Name: Glory Star Technics(Shen Zhen)Co., Ltd.  FCC DOC is doing at FCC Authorized and Recognized MRA lab.

Model Difference Statement We Glory Star Technics(Shen Zhen)Co., Ltd. Hereby that The product Advertising Displayer with models no. TAD185-A4, TAD215-A4 are all identical in main board, RF Modular and antenna. The size and schematics of panels are different. TAD185-A4 uses 18.5 size panel TAD215-A4 uses 21.5 size panel Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Company Name: Glory Star Technics(Shen Zhen)Co., Ltd.  Only size and schematics of panels are different.

Mark Location: FCC Label Location

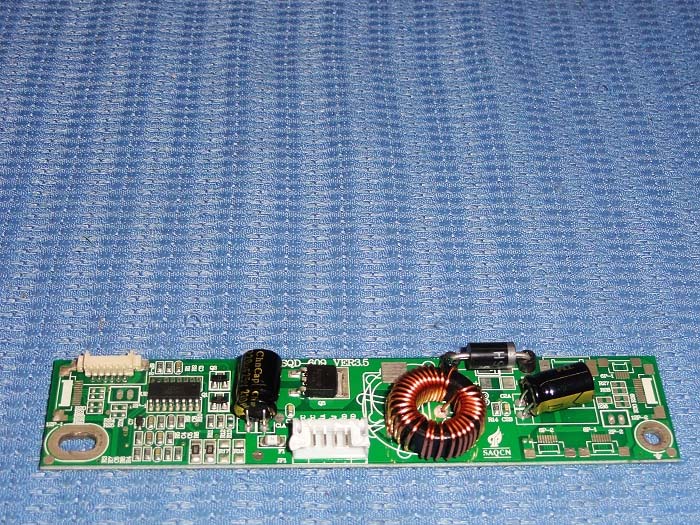

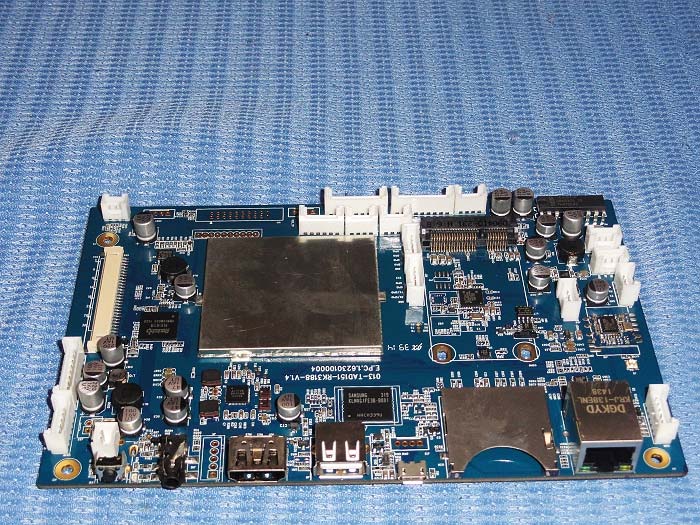

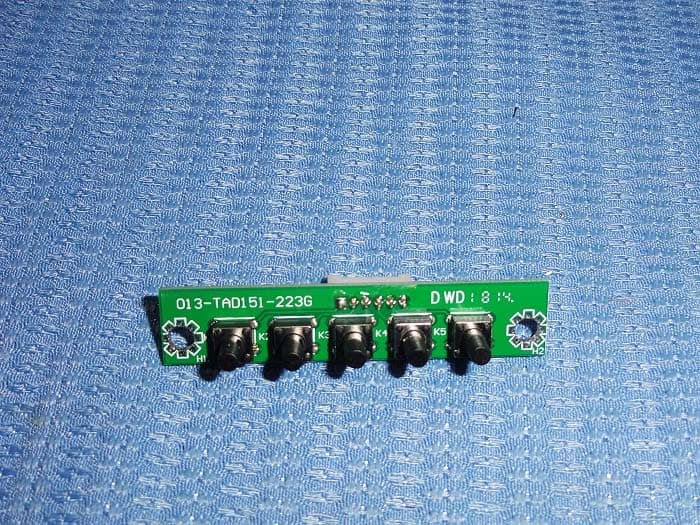

Photos of EUT Inside view of 18.5' Advertising Displayer (TAD185-A4) Photos of EUT Inside view of 18.5' Advertising Displayer (TAD185-A4) Photos of EUT Inside view of 18.5' Advertising Displayer (TAD185-A4) Photos of EUT Inside view of 18.5' Advertising Displayer (TAD185-A4) Photos of EUT Inside view of 18.5' Advertising Displayer (TAD185-A4) Photos of EUT Inside view of 18.5' Advertising Displayer (TAD185-A4) Photos of EUT Inside view of 18.5' Advertising Displayer (TAD185-A4) Photos of EUT Inside view of 21.5' Advertising Displayer (TAD215-A4) Photos of EUT Inside view of 21.5' Advertising Displayer (TAD215-A4) Photos of EUT Inside view of 21.5' Advertising Displayer (TAD215-A4) Photos of EUT Inside view of 21.5' Advertising Displayer (TAD215-A4) Photos of EUT Inside view of 21.5' Advertising Displayer (TAD215-A4) Photos of EUT Inside view of 21.5' Advertising Displayer (TAD215-A4) Photos of EUT Inside view of 21.5' Advertising Displayer (TAD215-A4) Photos of EUT Inside view of 21.5' Advertising Displayer (TAD215-A4)

Maximum Permissible Exposure FCC ID: 2AACS-TAD185-215 Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m 2 ) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit Antenna Gain: 3.0dBi Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.995 22.89 194.5 0.077 1 Compiles Note: the worse case was recorded.

ISO/IEC17025Accredited Lab. Report No: FCC 1504163 File reference No: 2015-04-27 Applicant: GLORY STAR TECHNICS (SHENZHEN) CO., LTD. Product: Advertising Displayer Model No: TAD185-A4, TAD215-A4 Trademark: N/A Test Standards: FCC Part 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10, FCC Part 15.247 for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: April 27, 2015 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Room 512-519, 5/F., East Tower, Building 4, Anhua Industrial Zone, Futian District, Shenzhen, Guangdong, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No: FCC1504163 Page 2 of 121 Date: 2015-04-27 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with “Quality Law of People’s Republic of China” Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAL. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAL-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-02. Report No: FCC1504163 Page 3 of 121 Date: 2015-04-27 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details............................................................................................... 4 1.3 Description of EUT ........................................................................................... 4 1.4 Submitted Sample.............................................................................................. 5 1.5 Test Duration................................................................................................... 5 1.6 Test Uncertainty............................................................................................... 5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 8 3.1 Summary of Test Results..................................................................................... 8 3.2 Test Standards.................................................................................................. 8 4.0 EUT Modification.............................................................................................8 5.0 Power Line Conducted Emission Test...................................................................... 9 5.1 Schematics of the Test........................................................................................ 9 5.2 Test Method and Test Procedure............................................................................ 9 5.3 Configuration of the EUT.................................................................................... 9 5.4 EUT Operating Condition....................................................................................10 5.5 Conducted Emission Limit........…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
