2AACW-K19KMMGScooter Dashboard with Imobilyzer System

User Manual K19 km/mph Page 1 of 1 MTA customer information product (Questo documento é di proprietà MTA S.p.a. E’ vietata la riproduzione anche parziale ogni forma o mezzo senza autorizzazione / This document is the property MTA S.p.a. the partial reproduction also is forbidden any form by any means without permission) The user manual is that of the vehicle. In addition will be inserted as below: Certification BMW K19 km/mph FCC ID: 2AACW-K19KMMG IC: 11117A-K19KMMG This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

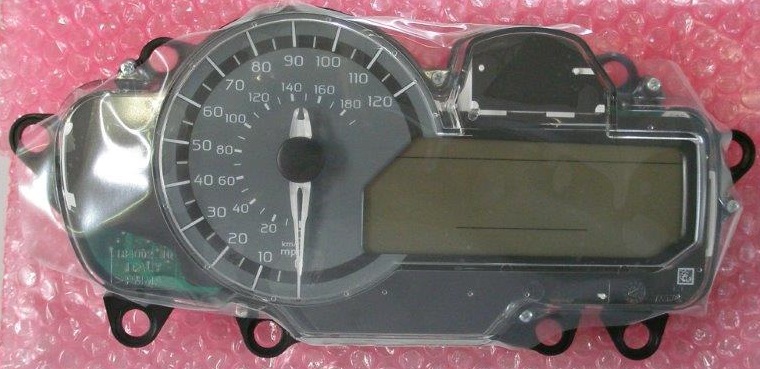

Technical specification cluster BMW K19 – external photos Page 1 of 2 MTA customer information product (Questo documento é di proprietà MTA S.p.a. E’ vietata la riproduzione anche parziale ogni forma o mezzo senza autorizzazione / This document is the property MTA S.p.a. the partial reproduction also is forbidden any form by any means without permission) Cluster BMW K19 km: View TOP View BOT Technical specification cluster BMW K19 – external photos Page 2 of 2 MTA customer information product (Questo documento é di proprietà MTA S.p.a. E’ vietata la riproduzione anche parziale ogni forma o mezzo senza autorizzazione / This document is the property MTA S.p.a. the partial reproduction also is forbidden any form by any means without permission) Cluster BMW K19 mph: View TOP View BOT

Technical specification cluster BMW K19 – label picture Page 1 of 1 MTA customer information product (Questo documento é di proprietà MTA S.p.a. E’ vietata la riproduzione anche parziale ogni forma o mezzo senza autorizzazione / This document is the property MTA S.p.a. the partial reproduction also is forbidden any form by any means without permission) Description label fields: - Customer project  identification product name K19; - Change index  identify minor changes that do not create breakpoint inside the part number; - Customer data matrix  matrix identification code; - Sw version  software version; - Serial number  identifying serial number; - FCC number  FCC certification number; - ICL number  ICL certification number; - HW index  hardware index; - CE mark  CE certification mark; - Production date  production date of the product; - Supplier part number  supplier part number of the product; - Supplier code  identify the BMW supplier; - Codier index  identify the coding map; - Work group  working group of the product; - CE mark; - FCC number; - IC number; - E24 – ECE ONU reg.10.

Technical specification cluster BMW K19 – internal photos Page 1 of 1 MTA customer information product (Questo documento é di proprietà MTA S.p.a. E’ vietata la riproduzione anche parziale ogni forma o mezzo senza autorizzazione / This document is the property MTA S.p.a. the partial reproduction also is forbidden any form by any means without permission) Cluster BMW K19 km / mph PCB TOP: Cluster BMW K19 km / mph BOT:

Page 1 of 29 Report Ref. No. 13-01132 TRF No. Emilab MD-23 rev.2 Emilab Srl – Amaro (UD) - Italy TEST REPORT Secondo i seguenti Standard / According to following Standards Test specification Test Plan : TP-13LA00054130409_K18_K19 FCC Rules: Code of Federal Regulations (CFR) no. 47 Part 15 Subpart C Section 15.209: 2012 RSS-210 Issue 8: 2010-12 RSS-Gen Issue 3: 2010-12 Pulse train measurement for pulsed operational, FCC section 15.35 (c) Pulsed Operation, RSS Gen par. 4.5 Measured Conducted Emission, section FCC 15.207 (a) AC Power Line Conducted Emissions Limits, RSS Gen par. 7.2.4 N/A Restricted band of operation, FCC section 15.205 (a) (b) Emissions Falling Within Restricted Frequency Bands, RSS Gen par.7.2.2 Radiated Emissions, FCC section 15.209 Transmitter Spurious Emission Limits,RSS Gen par. 7.2.5 Conforme/Compliant Occupied bandwidth, FCC section 2.202 (a) Occupied bandwidth, RSS Gen par. 4.6.1 Measured Bandwidth of emission (20dB Bandwidth), FCC section 2.215 (c) -20 dB Emission Bandwidth, RSS Gen par. 4.6.3 Conforme/Compliant Frequency Stability, FCC section 2.1055 (a)(1) Transmitter Frequency Stability, RSS Gen par. 4.7 Conforme/Compliant RF exposure evaluation, FCC section 1.1307 (b)(1) Exposure of Humans to RF Fields, RSS-Gen par. 5.6 Conforme/Compliant Richiedente / Applicant’s name .... : MTA S.p.A. Indirizzo / Address ............................ : Viale dell'Industria, 12 - 26845 Codogno (LO) - Italy Produttore / Manufacturer ............. : MTA S.p.A. Indirizzo / Address ............................ : Viale dell'Industria, 12 - 26845 Codogno (LO) - Italy Dispositivo sottoposto ai test/ Device Under Test .......................... : BMW K19 km/mph Data di emissione/ Date of issue 27 th May 2013 Validità/ Validity Vedi sezione 1.1 / See section 1.1 Test report redatto da/ Author of Test report ...................... Loris Fruch Tecnico/i di prova Engineer/s ....................................... Loris Fruch Test manager: Giovanni Solari Approvato da (+ firma) Approved by (+ signature) .............. Silvano Chialina Responsabile del laboratorio/ Head of the Laboratory ..................................................... Laboratorio / Testing Laboratory .. : Emilab Srl Indirizzo / Address ............................ : Via F.lli Solari 5/A – 33020 Amaro (UD) - Italy Page 2 of 29 Report Ref. No. 13-01132 TRF No. Emilab MD-23 rev.2 Emilab Srl – Amaro (UD) - Italy Index 1. INFORMAZIONI GENERALI / GENERAL INFORMATION 4 1.0 Laboratorio / Testing Laboratory 4 1.1 Campionamento e Documentazione / Sampling and Documentation 4 1.2 Specifiche del test / Test specifications 4 1.3 Svolgimento dei test e condizioni generali / Test scheduling and general condition 5 1.4 Espressione dei risultati finali / Test case of final verdicts 5 1.5 Incertezza / Uncertainty 5 1.6 Termini, Definizioni e Acronimi/ Terms, definitions and abbreviations 6 2.0 APPARECCHIATURA SOTTOPOSTA A TEST/ DEVICE UNDER TEST 7 3.0 PULSE TRAIN MEASUREMENT FOR PULSED OPERATION - CONDIZIONI DI PROVA / TEST CONDITIONS 8 3.1 Apparecchiature utilizzate / Test Equipment Used – Pulse train measurement for pulsed operation 8 3.2 RISULTATI DEL TEST / TEST RESULTS - PULSE TRAIN MEASUREMENT FOR PULSED OPERATION 9 3.2.1 Grafici dei dati di prova / Graphical representation data - Pulse train measurement for pulsed operation 9 4.0 CONDUCTED EMISSION - CONDIZIONI DI PROVA / TEST CONDITIONS 10 5.0 RADIATED EMISSIONS - CONDIZIONI DI PROVA / TEST CONDITIONS 11 5.1 Apparecchiature utilizzate / Test Equipment Used – Radiated Emissions 11 5.2 Setup di Prova / Test setup – Radiated Emissions 12 5.3 RISULTATI / RESULTS – RADIATED EMISSIONS 13 5.3.1 Grafici dei risultati / Graphical representation data – Radiated Emissions 14 6.0 OCCUPIED BANDWIDTH - CONDIZIONI DI PROVA / TEST CONDITIONS 20 6.1 Apparecchiature utilizzate / Test Equipment Used – Occupied Bandwidth 20 6.2 Risultati del test / Test Results - Occupied Bandwidth 20 6.3 Grafici dei dati di prova / Graphical representation data - Occupied Bandwidth 21 Page 3 of 29 Report Ref. No. 13-01132 TRF No. Emilab MD-23 rev.2 Emilab Srl – Amaro (UD) - Italy 7.0 BANDWIDTH OF EMISSION (20DB BANDWIDTH) - CONDIZIONI DI PROVA / TEST CONDITIONS 22 7.1 Apparecchiature utilizzate / Test Equipment Used – Bandwidth of emission (20dB Bandwidth) 22 7.2 Risultati del test / Test Results - Bandwidth of emission (20dB Bandwidth) 23 7.3 Grafici dei dati di prova / Graphical representation data - Bandwidth of emission (20dB Bandwidth) 23 8.0 FREQUENCY STABILITY - CONDIZIONI DI PROVA / TEST CONDITIONS 24 8.1 Apparecchiature utilizzate / Test Equipment Used – Frequency Stability 24 8.2 Setup di Prova / Test setup - Frequency Stability 25 8.3 Risultati del test / Test Results - Frequency Stability 25 8.4 Grafici dei dati di prova / Graphical representation data - Frequency Stability 26 9.0 RF EXPOSURE EVALUATION - CONDIZIONI DI PROVA / TEST CONDITIONS 28 9.1 Apparecchiature utilizzate / Test Equipment Used – RF exposure evaluation 28 9.2 Risultati del test / Test Results - RF exposure evaluation 29 Page 4 of 29 Report Ref. No. 13-01132 TRF No. Emilab MD-23 rev.2 Emilab Srl – Amaro (UD) - Italy 1. Informazioni Generali / General Information 1.0 Laboratorio / Testing Laboratory Luogo di Prova e partecipanti/ Testing location and participants: Testing Laboratory: Testing location/ address ...................... : Emilab Srl Via F.lli Solari 5/A – 33020 Amaro (UD) – Italy Tel +39 0433 468625 Fax +39 0433 494739 Email: [email protected] Partecipanti / Participants: Loris Fruch 1.1 Campionamento e Documentazione / Sampling and Documentation I campioni sono stati consegnati dal Cliente. I risultati dei test contenuti in questo documento si riferiscono esclusivamente al modello e numero di serie provato. E’ responsabilità del costruttore assicurare che la produzione dei modelli in serie rispetti i requisiti del presente documento. Questo documento non può essere riprodotto in parte senza il consenso scritto del responsab…

Text truncated - open the document above for the full version.

Page 1 of 2 Ref.to report No. 13-01132 Foto dei Setup di Prova / Photo of the test setup Emissions Measure from 9KHz to 30MHz Measure from 30MHz to 200MHz EUT Power supplì lines Main Relè Key lock with Immobilizer antenna Page 2 of 2 Ref.to report No. 13-01132 Frequency Stability EUT Key lock with Immobilizer antenna Close-Field Probe
