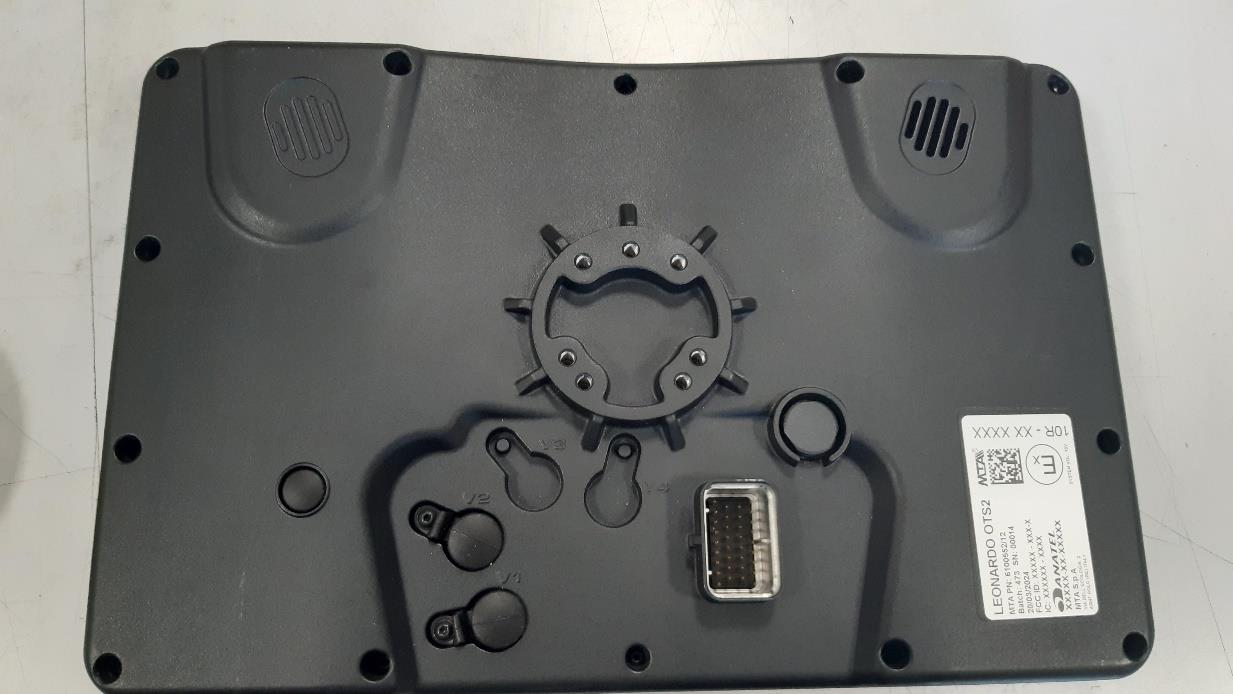

2AACW-LOTS2Touch Screen Instrument Panel

LEONARDO OTS2 Technical Data Sheet – Version 3.0 Page: 1 TECHNICAL DATA SHEET LEONARDO OTS2 Department and Function Name Date Written by: R&D Hardware Engineer Massimo Bertinelli 15/05/2024 Reviewed by: R&D Project Leader Massimo Melloni Cristian Panessa 09/09/2024 Approved by R&D Manager Michele Gilli 09/09/2024 Document ID: LEONARDO-2200164_TECHNICAL_DATA_SHEET Version: 3.0 Revision: 3 Issue date: 09/09/2024 Document History Log DISCLAIMER: Notice to Receiver Products, information, drawings, specifications and reference numbers (hereafter “Contents”) discussed herein are for reference purposes only. All Contents herein are provided on an “AS IS” basis, without warranties of any kind. The Contents discussed herein remain the sole and exclusive property of MTA S.p.A. and shall not be copied, translated in whole or in part without MTA S.p.A prior written consent. No license of any patent, copyright, mask work, trademark or any other intellectual property right is granted under this document, by implication, estoppel or other-wise. Contents may be modified by MTA S.p.A without prior notice. For updates or additional information about MTA products, please contact your nearest MTA office. All brand names, trademarks and registered trademarks belong to their respective owners. LEONARDO OTS2 Technical Data Sheet – Version 3.0 Page: 2 Version Release date Update description 1.0 05/07/2024 First Release 2.0 09/08/2024 Second Release, introduced dedicated paragraph, tables: TX-RX frequencies and powers, Bluetooth and WiFi. 3.0 09/09/2024 RF exposure declaration added and 5G Rlan frequencies removed. Please, check on MTA website the latest version of this Technical Data Sheet: http://www.mta.it/technical-data-sheet Document Change Log Version Originator Paragraph/ Page Update description DOCUMENT REFERENCES ID Doc. Rev. Note [1] TS50_16 6 Environmental – Electrical EMC Test Specification [2] LEONARDO_OTS2-R4_2200164_SYSREQ 1.2 LEONARDO Display Technical Specification (MTA reserved document) LEONARDO OTS2 Technical Data Sheet – Version 3.0 Page: 3 LEONARDO DISPLAY PRODUCT VERSION This technical data sheet targets the version of DISPLAY LEONARDO listed hereafter ID P/N Product DISPLAY LEONARDO 12” Standard Contents Certific. 2 CAN BUS 1 LIN 2 USB 1 Ethernet-BR 2 Analog Video Inputs 4 Digital Inputs 2 Analog Inputs 2 High Side Driver Outputs 1 VSS (Vref) 1 Light Sensor 1 Speaker 1 Audio Out RTC 1 Bicolor led 1 Microphone Input (remove Column) 1 Wi-Fi 1 Bluetooth Type Approval (R10) Additional Certifications 1 6100552/1x OTS2 X X X X X X X X X X X X X X - X X X X GENERAL DESCRIPTION LEONARDO OTS2 is a display designed for agricultural or off-highway vehicles, on wheels or tracks. This state-of-the-art device features a number of high speed interfaces towards typical automotive communication channels such as CAN, Broad-R-Reach & LIN. In addition to a high resolution TFT display with capacitive touch screen and best-in-class brightness and contrast ratio, Leonardo delivers Linux Operating System and QT® cross-platform application development framework. The hardware is designed according to the most robust automotive industry standards. LEONARDO main hardware features: • Extended power supply range from 8 to 32Vdc • 12.1” TFT LCD 1280 x 800 pixel: • Capacitive touch screen, with light glove operability; • 4 digital high side or low side inputs, two with wake capabilities • 2 analog inputs (16 or 32v user definable dynamic range); • 2 x 350mA high side outputs, with current sense and diagnostics; • Stereo audio output (needs external amplifier); • 1 Voltage output for sensor supply (5V, 400mA); • 1 Real time clock; • 1 Mono speaker; • 1 Ambient light sensor; • 1 Dual color status LED; • 2 analog video inputs on 2 dedicated Mini-BNC connectors; • 1 LIN 2.2 Master bus; • 1 RS232; LEONARDO OTS2 Technical Data Sheet – Version 3.0 Page: 4 • 2 CAN bus; • 1 Broad-R-Reach Ethernet; • 1 WiFi 2.4GHz Module • 1 Bluetooth and BLE v5.0 Module: o Protocols: SDP, L2CAP, RFCOMM , SPP, OBEX o Profiles: HFP 1.7.1, PBAP 1.2.1, MAP 1.4, PAN/BNEP, A2DP 1.3.1, AVRCP 1.6.1, AVDTP 1.3, AVCTP 1.4 with SBC CODEC, ATT/GATT • 2 USB: o 1 USB accessible on a type ‘A’ side connector; o 1 USB available on the rear Tyco Super seal connector; Memory: • DDR3 RAM 2GB; • Flash EMMC 16GB; • SERIAL FLASH 16MB; • EEPROM 32kB. Software options: • Linux Op. Sys. + QT® Framework. LEONARDO OTS2 Technical Data Sheet – Version 3.0 Page: 5 BLOCK DIAGRAM LEONARDO OTS2 Technical Data Sheet – Version 3.0 Page: 6 DETAILED SPECIFICATIONS CHARACTERISTIC DESCRIPTION Operating voltage Nominal 12Vdc Supply voltage, permissible range 8÷16Vdc Power requirement Average power draw 24W @12V Peak power draw (all loads) 54W @12V No load (inputs/outputs floating, Vref floating) < 2,0A at key on (12Vdc) With load (inputs/outputs active, Vref active) < 4,5A at key on (12Vdc) + 2 x 350 mA (high side current) for 12 Vdc + 400mA on sensor output +2 x 1,5A on USB Standby current < 2mA at key off (12Vdc) Power output Power source for external sensors 5Vdc ± 5% max 400mA / 2W (max) Thermal and IP characteristics Operating ambient temperature -30 to +70°C (-22 to 158°F) Storage temperature -40 to +85°C (-40 to 185°F) Ingress Protection rate IP66 Weight Total mass 2250g (4.96lbs) Mounting location Suggested Cab interior Status LED High efficiency dual color LED Red or green, software configurable TFT Size 12.1’’ Normally white Form factor 16:10 Brightness 1000 cd/m² typical; 800 cd/m² minimum (@20°C) Contrast ratio 600:1 minimum (@20°C) Color depth 24 bits (3 x 8 bits per color) Resolution 1280 x 800 Viewing area 262 x 164 mm Viewing angles 88/88/88/88 Backlight With automatic and user programmable dimming function Protective glass features Optically bonded (OCA)  LEONARDO OTS2 Technical Data Sheet – Version 3.0 Page: 7 Anti reflection finish  Anti fingerprint finish  Touch screen Touch screen Capacitive with multi-touch capability (up to 10 points). Detection compatible wit…

Text truncated - open the document above for the full version.

US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent: Company Name: QPS America, Inc. FRN: 0033412354 Contact Name: John Gulino Address: 5005 Rockside Road, Suite 600, Independence, Ohio 44131-6827 Telephone No: 216-377-3191 Email: [email protected] This letter is to confirm that the US Agent accepts responsibility to act as a local representative on behalf of MTA S.p.A. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Applicant: Company name: MTA S.p.A. Product Description: Touch Screen Instrument Panel Grantee code: 2AACW FRN: 0022705693 FCC ID: 2AACW-LOTS2 Contact Name: Valter Zuccari Address: Viale dell'Industria, 12 - 26845 Codogno (LO) - Italy Telephone No: +39 0377418407 Email: [email protected] The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2024/07/29 Applicant’s Name: Valter Zuccari US Agent’s Name: John Gulino Title: Test Leader – Electronic Laboratory Title: President SignatureSignature
