2AADC-INS001Digital Wireless Video Scope TX

This product is covered by U.S. Patents: 7,384,308; 7,431,619 B2; 7,581,988 B2; 7,584,534; Chinese Patents: ZL200620147826.1; ZL200620147827.6; ZL2007200004596.8; and other patents pending. Canada USA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. This equipment has been tested and found to comply with the limits for Class A digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip-ment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: NOTE: Changes or modifications not expressively approved by the party responsible for compliance could void the user‘s authority to operate the equipment. Le présent appareil est conforme aux CNR d‘Industrie Canada applicables aux appareils radio exempts de licence. L‘exploitation est autorisée aux deux conditions suivantes : (1) l‘appareil ne doit pas produire de brouillage, et (2) l‘utilisateur de l‘appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d‘en compromettre le fonctionnement. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. • Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver . •Consult the dealer for help. Use of shielded cable is required to comply with Class A limits in Subpart B of Part 15 of the FCC rules

39625 L e wisDrive, Su i t e 900 I Novi, M148377 I +1248702-6600 On behalf of: Inspectron Inc. (Company Name) Telephone: + 1 (248) 702 - 6600 Fax: + 1 (248) 702-6605 Title : Senior Project Manager email: [email protected] By: Andrew Donaldson L ~ -,- , ...!.>:!a-l-Y ---" 2013 .7 Dated this (Print name) (Signature) To Whom It May Concern:Joseph D. Brunett on behalf of Willow RunTest Labs, LLCis authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCCbenefits, pu r suant to Section 5301 of the Anti-Drug AbuseAct of 1988, 21 U.S.c. 862. Further, no party, as defined in 47 CFR1.2002 (b), to the application is subject to denial of federal benefits, that includes FCCbenefits . American Certification Body, Inc.6731 Whittier AvenueSuite Cll0 McLean,VA 22101 FederalCommunicationsCommission Applications ProcessingBranch7435 Oakland Mills RoadColombia, MD 21046 May 20, 2013 INSPECTR $ N

Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, MI 48111 Phone: (734) 252-9785, Fax (734) 926-9785 e-mail:[email protected] REQUEST FOR CONFIDENTIALITY Type of Confidentiality RequestedExhibit If there are any questions regarding this request, please contact me at the above address or call 734- 252-9785, fax 734-926-9785 or e-mail [email protected] Sincerely, Joseph D. Brunett, Ph.D. Willow Run Test Labs, LLC Check Box Check Box Check Box Check Box Check Box Check Box Check Box Check Box Check Box Check Box Check Box Check Box Check Box Check Box Check Box Check Box Check Box Check Box Re:Certification for Inspectron Boroscope Camera FCC ID:2AADC-INS001 IC:11124A-INS001 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Inspectron requests that a part of the subject application be held confidential. Ins has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Short Term Permanent(1)ID Label & Location Short Term Permanent(3)External Photos Short Term Permanent 1 (4)Block Diagram Short Term Permanent(5)Schematics Short Term Permanent(7)Test Setup Photos Short Term Permanent(8)User’s Manual Short Term Permanent(9)Internal Photos Short Term Permanent(10)Parts List & Placement Short Term Permanent(11)RF Exposure Short Term Permanent(12)Description of Operation 1.Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality:Inspectron requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only):Inspectron requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing.

Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Attn.:Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re:Certification for Inspectron, Inc. i2000 IC: 11124A-INS001 Please find enclosed application materials for certification of Inspectron, Inc. i2000. We tested it and found it to comply with IC RSS-210/GENe. There are two electrically identical variants of the EUT manufactured for two different tool suppliers, model ”ROSCOPE i2000” and model ”Mini VISIOVAL”. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run Test Labs, LLC 9 Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Inspectron, Inc. i2000 FCC ID: 2AADC-INS001 Please find enclosed application materials for certification of Inspectron, Inc. i2000. We tested it and found it to comply with CFR Title 47, Part 15.247. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 252-9785, or e-mail [email protected]. Sincerely, Joseph D. Brunett Willow Run Test Labs, LLC 8

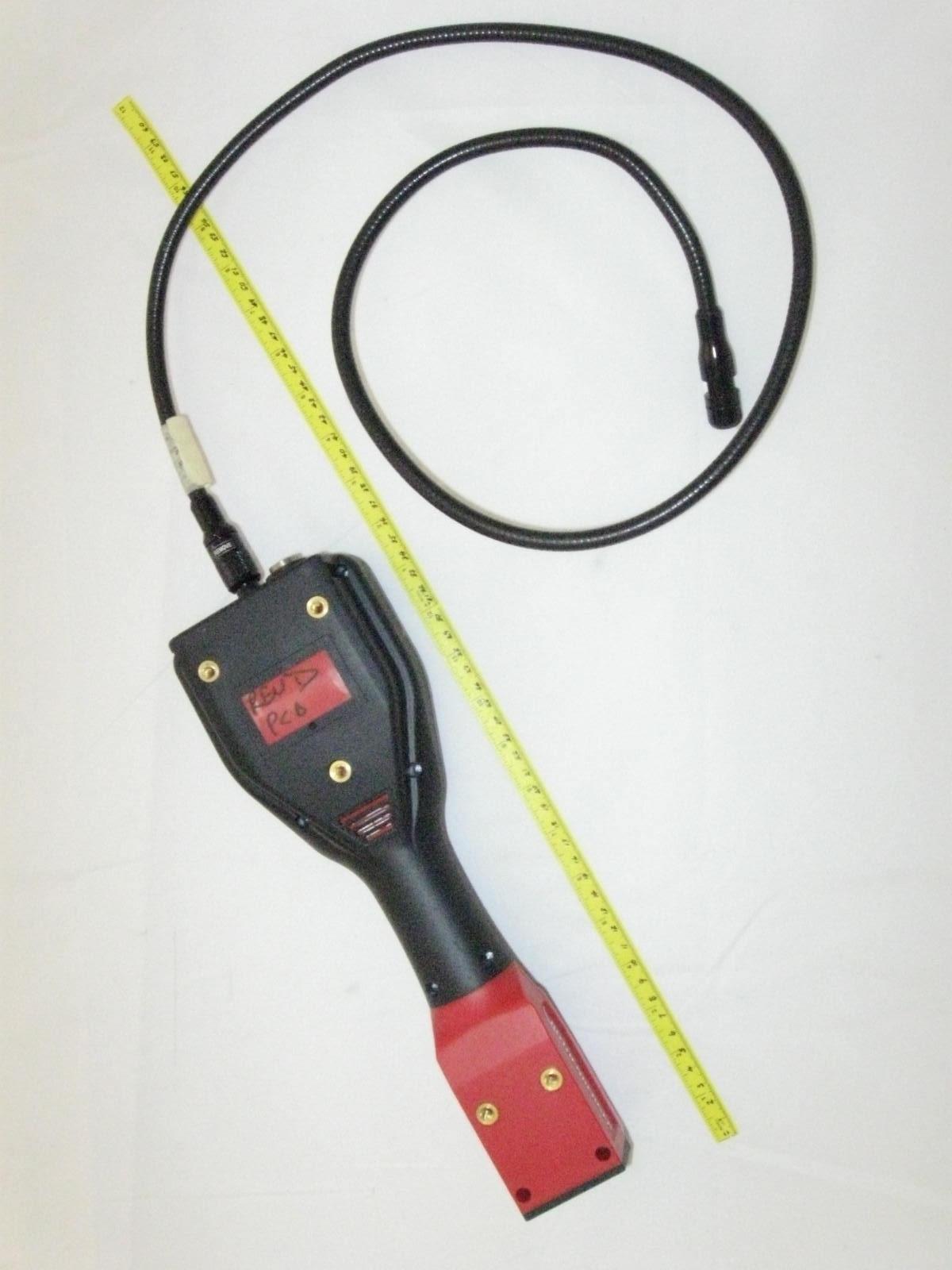

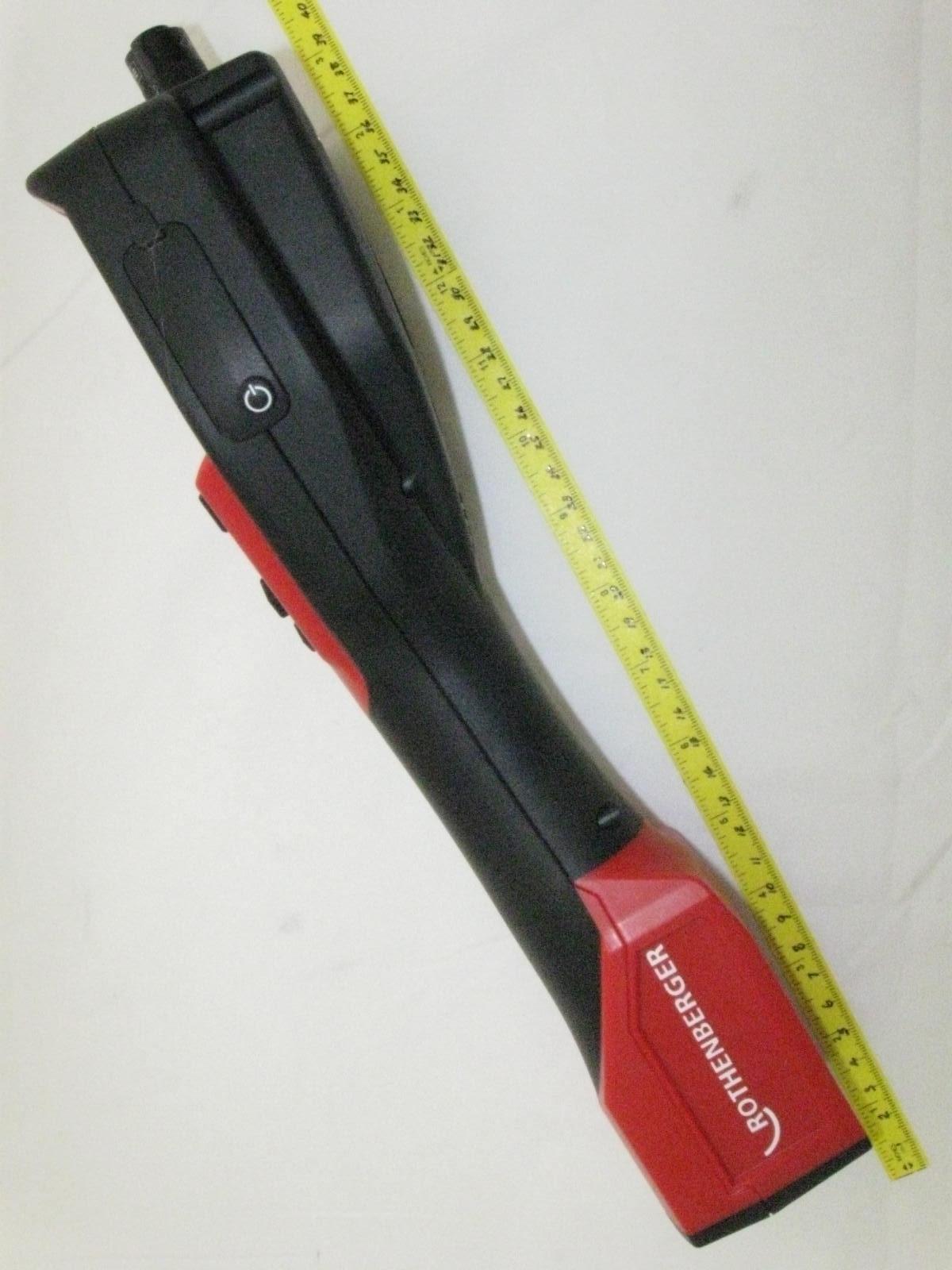

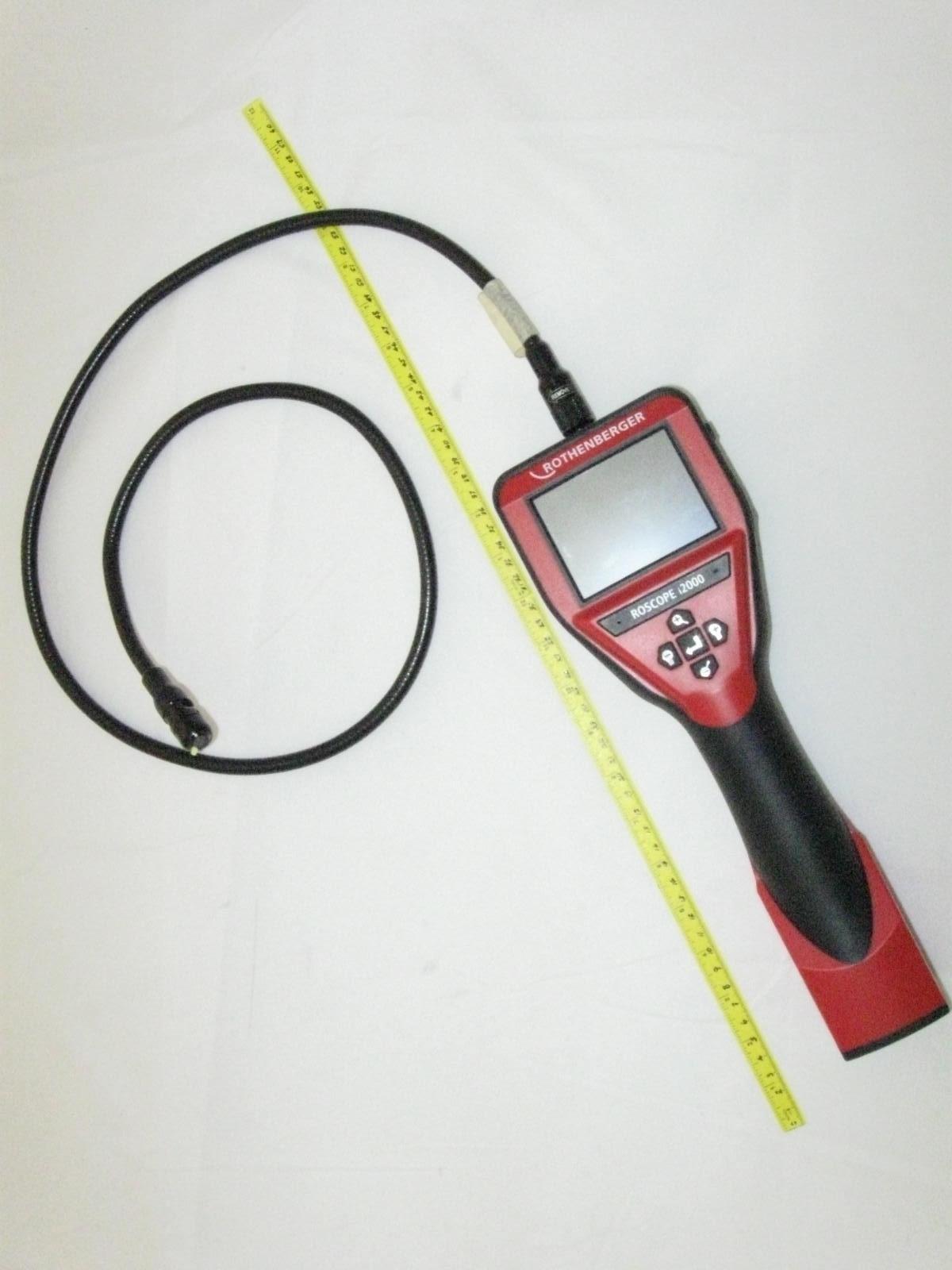

3 Function of the unit 3.1 Description The ROSCOPE i2000, a handheld inspection device, displays live color video from an imaging source. This device is designed as a remote inspection tool to look into hard to reach areas such as home inspection, cable routing and plumbing inspections. It allows the user to capture still- images and full-motion video, along with audio. This device is equipped with an imaging and lighting source that features self-leveling, image rotation (with respect to gravity), zoom and LED light adjustment. These features ensure a detailed and accurate visual inspection. This unit is also equipped with the capability to wirelessly transmit either images or video to a secondary (local) handheld device. Accessories (mirror, hook, magnet, sold separately – see Figure No. 8 / Figure No. 9).

RF Exposure / SAR / Health Hazard Statement Requirement: According to USA CFR 15 §1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. For Canada, RSS-102 Tsets out the requirements and measurement techniques used to evaluate radio frequency (RF) exposure compliance of radiocommunication apparatus designed to be used within the vicinity of the human body. SAR Testing Exclusion: Per FCC 447498 General RF Exposure Guidance v05, Section 4.3.1, the 1-g (body) and 10-g (extremity) SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by the following formula SAR= P C d √ f GHz where d = minimum test distance and Pc is the source-based time-averaged maximum conducted output power, or EIRP for a device without a removable antenna. For IC RSS-102, the SAR threshold is based on conducted output power of the radio device. The SAR threshold at a minimum test distance of 5 mm is thus computed to be: SAR Threshold Freq. (GHz ) EIRP/Po Avg (dBm) EIRP/Po Avg (mW) IC Po Threshold (mW) dmin (mm) Computed FCC SAR Threshold (Avg) 1-g SAR Body Threshold (Avg) 10-g SAR Extremity Threshold (Avg) 2.41212.216.62055.237.5 2.43212.216.62055.237.5 2.47211.714.82054.737.5 Thus the EUT meets the test exclusion thresholds for Industry Canada and the FCC 10-g Extremity SAR evaluation threshold.Note that the EUT is not a body-worn device and is not subject to the 1-g SAR Body-worn device threshold.

Date of Issue: July 19, 2013Prepared For: Inspectron, Inc.Test Report No.: 20130713-01r1 Willow Run Test Labs, LLC 8501 Beck Road, Building 2227 Belleville, Michigan 48111 USA Tel: (734) 252-9785 Fax: (734) 926-9785 e-mail: [email protected] Testing of Electromagnetic Emissions per USA: CFR Title 47, Part 15.247 Canada: IC RSS-210/GENe are herein reported for Inspectron, Inc. i2000 Test Report No.: 20130713-01r1 Copyright c ©2013 Applicant/Provider: Inspectron, Inc. 39625 Lewis Drive, Suite 900, Novi Michigan 48377 USA Phone: +1 (248) 978-9943, Fax: +1 (248) 978-9943 Contact Person: Andrew Donaldson; [email protected] Measured by: Report Approved by: Dr. Joseph Brunett, EMC-002790-NEDr. Joseph Brunett, EMC-002790-NE Report by:Report Date of Issue:July 19, 2013 Dr. Joseph Brunett, EMC-002790-NE Results of testing the equipment under test (EUT) as completed on July 19, 2013 are as follows. Emissions:The transmitter fundamental emission meets the regulatory limit(s) by no less than 17.8 dB. Trans- mit chain spurious harmonic emissions comply by no less than 0.2 dB. Radiated spurious emissions associated with the receive chain of this device meet the regulatory limit(s) by no less than 4.4 dB. Unintentional spurious emissions from digital circuitry comply with the radiated emission limit(s) by more than 4.0 dB. AC Power Line conducted emissions comply by more than 3.8 dB. Willow Run Test Labs, LLC, 8501 Beck Road, Building 2227, Belleville, Michigan 48111 USAPage 1 of 23 Date of Issue: July 19, 2013Prepared For: Inspectron, Inc.Test Report No.: 20130713-01r1 Contents 1 Test Specifications, General Procedures, and Location4 1.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.2 Test Location and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Configuration and Identification of the Equipment Under Test6 2.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .8 3 Emissions9 3.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.4Thermal Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.2.1Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.2.2Effective Isotropic Radiated Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.2.3Power Spectral Density . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.3.2Radiated Receiver Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.3.3Radiated Digital Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 3.3.4Conducted Transmitter Spurious . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3.3.5Conducted Emissions Test Results - AC Power Port(s) . . . . . . . . . . . . . . . . . . . . . . . 23 List of Tables 1Willow Run Test Labs, LLC Equipment List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 4Radiated Power Results.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 5Power Spectral Density Results. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 6Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 7Receiver Chain Spurious Emissions≥30 MHz.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 8Radiated Digital Spurious Emissions.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 9AC Mains Power Conducted Emissions Results.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2EUT Test Configuration Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3Radiated Emissions Diagram of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 4Radiated Emissio…
