2AADKYW3000-XQAVL GNNS Terminal

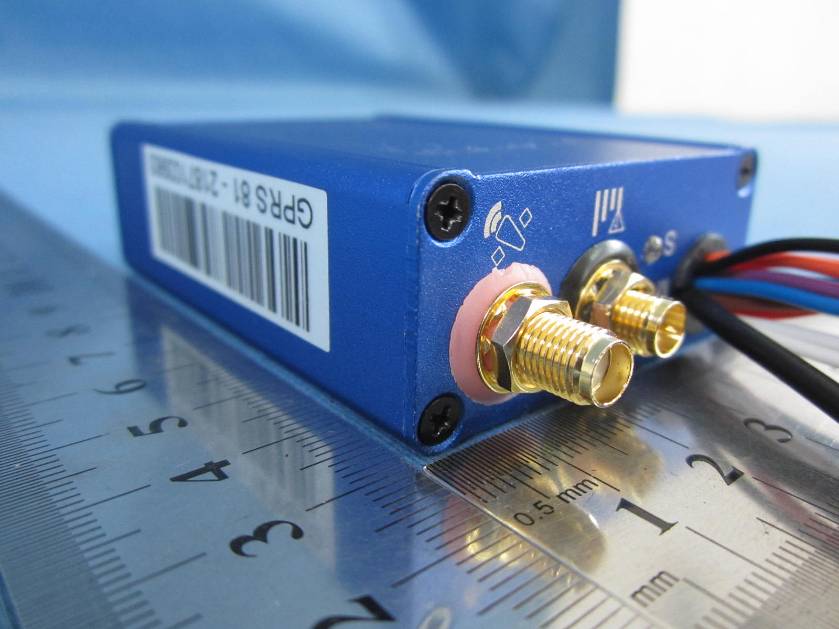

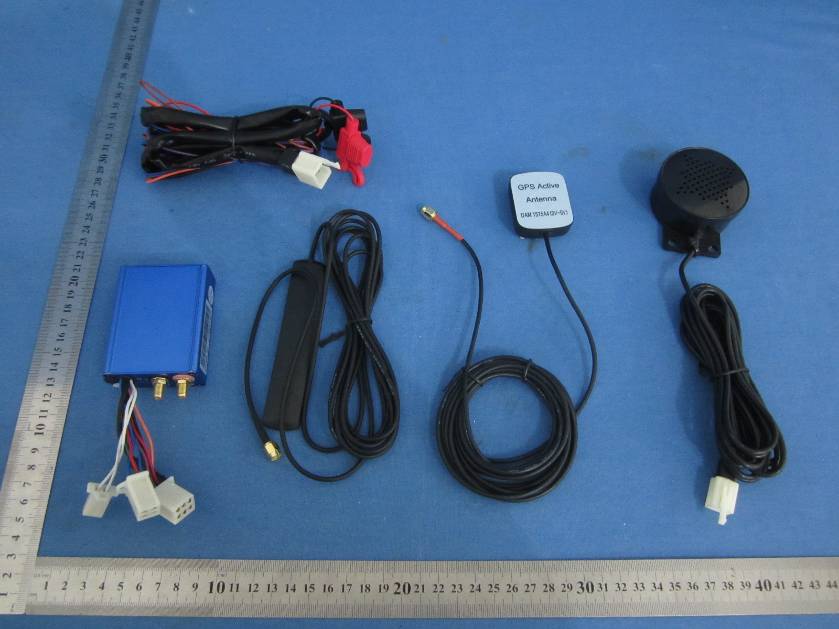

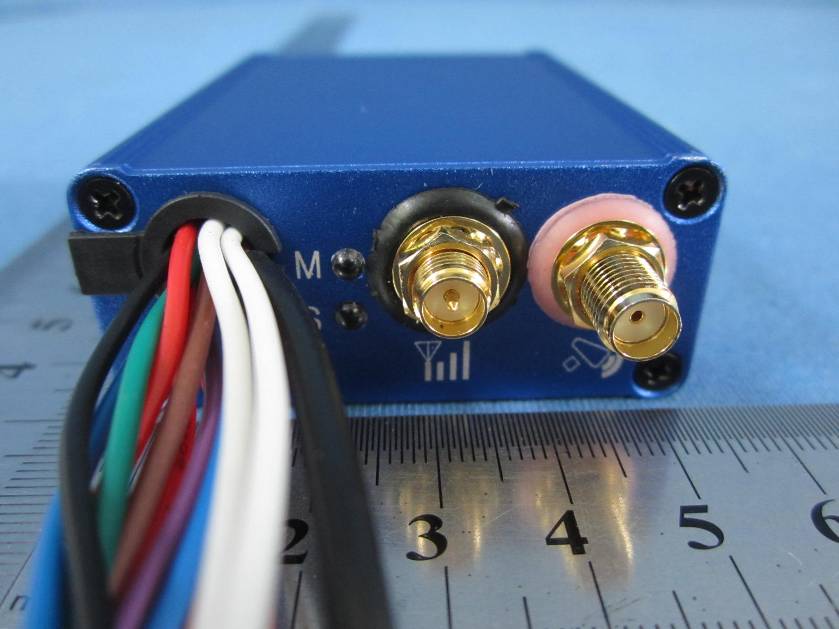

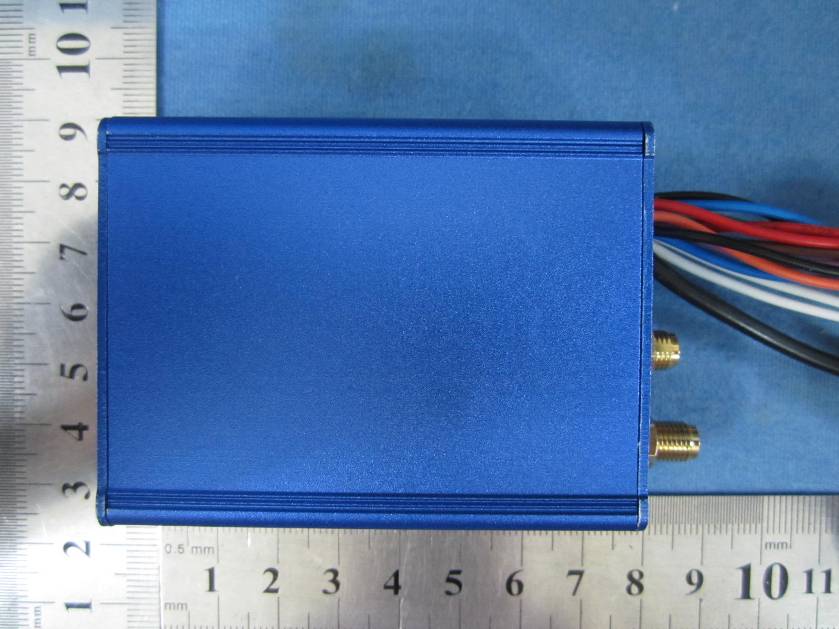

Mini Blue GPS Tracker YW3000-XQ The most compact GPS AVL suitable for all kinds of vehicles. Highlights: ◆ Based on the latest international industrial-class chip, dual-core structure. ◆ Anti-corrosion and shock resistant PCB design. ◆ GSM auxiliary positioning, reduce blind spots. ◆ Low power consumption, power save status<15mA, build-in back-up battery. ◆ Compact small size (72×55×24mm L×W×H), easy hide and installation inside the vehicle. Features: ◆ Real-time GPS tracking ◆ Real-time vehicle status monitoring ◆ Vehicle Immobilization Control ◆ GPS mileage report ◆ Blind area data storage, up to 50,000 data log capacity ◆ Geo-Fence with 108 rectangle area ◆ Fleet management,8 routes of vehicle tracking ◆ Anti-theft and emergency alarm ◆ Overspeed alerts ◆ Remote control via mobile phone ◆ Smart power protection ◆ Back-Up Battery Capacity for More Than 3 Day ◆ Remote firmware upgrade via GPRS ◆ Dual data communication capability through GPRS and SMS ◆ TCP/UDP dual mode communication Specifications GSM/GPS module performance Dual-Band 850Mhz,1900Mhz 2 watts EGSM(GSM850 class 4) 1 watts GSM1800(DCS1900 class 1) GPRS class 10 GPS Chipset U-Blox GPS Sensitivity -159dB Channels 20/50 channel all-in-view tracking Dimension 72x55x24mm Weight 160g Working Voltage DC 10V~60V Normal power consumption 65mA (Power Saving Mode<15mA) Working Temperature -20°C ~+60°C Working Humidity 5%~95% RH GPS Antenna GPS SMA connection Interface 1 ignition input 7~60VDC 1 positive input 7~60VDC 1 relay output 500mA 12VDC 1 RS232 COM port GSM Antenna information Manufacturer TOPPOINT TECHNOLOGY Model DDA-T800 Antenna Gain: GSM850: 2.15dBi PCS1900: 2.15dBi Antenna Type: Unique antenna(Revised SMA connector) Main device and standard accessories： -YW2211 main unit -GPS antenna -GSM antenna - I/O/power combined cable Optional accessories： - Immobilization relay - Emergency button - Large capacity back-up battery FCC RF Exposure Warning: The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not transmit simultaneously with any other antenna or transmitter. FCC Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

• Schematics • Block diagram • Operational Description • Tune up Procedure

Size: 15mm*40mm Product Name: AVL GNNS Terminal FCC ID: 2AADKYW3000-XQ

Label location

No.ItemModelSpecificationQuantity Place 1Chip ResistorRC0603JR-07 0RL0Ω ±5% 06032 R61,PAD1-M1_pin6 2Chip ResistorRC0805JR-07 0RL0Ω ±5% 08051 Q1(2_3) 3Chip ResistorRC0805FR-07 9R1L 9.1Ω±1% 08051 R58 4Chip ResistorRC0603FR-07 56RL 56Ω±1% 06031 R59 5Chip ResistorRC0603JR-07 100RL 100Ω±5% 06033 R40,R79,R85 6Chip ResistorRC0603JR-07 430RL 430Ω±5% 06031 R4 7Chip ResistorRC0603FR-07 1KL1K±1% 06031 R23 8Chip ResistorRC0603JR-07 1KL1K±5% 06036 R14,R64,R65,R67,R94,R107 9Chip ResistorRC0603FR-07 121RL121Ω/±1%/ 06031 R27 10Chip ResistorRC0603JR-07 2K4L 2.4K±5% 06031 R82 11Chip ResistorRC0603FR-07 249RL249Ω/±1%/ 06031 R31 12Chip ResistorRC0603FR-07 3K6L 3.6K±1% 06031 R25 13Chip ResistorRC0603JR-07 4K7L 4.7KΩ±5% 06032 R15,R75 14Chip ResistorRC0603JR-07 5K1L 5.1K±5% 06034 R43,R53,R63,R98 15Chip ResistorRC0603JR-07 5K6L 5.6K±5% 06031 R49 16Chip ResistorRC0603FR-07 8K2L 8.2K±1% 06031 R60 17Chip ResistorRC0603JR-07 10KL 10KΩ±5% 060318 R1,R10,R11,R18,R41,R42, R54,R57,R71,R86,R87,R88,R89,R90,R91,R92,R105,R1 06 18Chip ResistorRC0603FR-07 10KL 10KΩ±1% 06034 R12,R13,R19,R35 19Chip ResistorRC0805JR-07 15KL 15KΩ±5% 08051 R36 20Chip ResistorRC0603FR-07 15KL 15KΩ±1% 06031 R32 21Chip ResistorRC0603FR-07 17K4L 17.4KΩ±1% 06031 R9 22Chip ResistorRC0603JR-07 27KL 27KΩ±5% 06033 R46,R47,R51 23Chip ResistorRC0603JR-07 33KL 33KΩ±5% 06033 R100,R102,R108 24Chip ResistorRC0805JR-07 33KL33KΩ±5% 08051 R97 25Chip ResistorRC0603JR-07 36KL 36KΩ±5% 06031 R26 26Chip ResistorRC0603JR-07 47KL 47K±5% 06033 R29,R30,R55 P2202_V1.2-BOM-2013.05.15 P2202_V1.2-SMT-BOM 27Chip ResistorRC0603FR-07 60K4L60.4K±1% 06031 R22 28Chip ResistorRC0805JR-07 68KL 68K±5% 08051 R5 29Chip ResistorRC0603JR-07 100KL 100KΩ±5% 060324 R2,R3,R8,R20,R33,R34,R37, R38,R39,R44,R48,R52,R56,R74,R76,R77,R83,R84,R93 ,R95,R99,R101,R103,R104 30Chip ResistorRC0603FR-07 150KL 150KΩ±1% 06031 R28 31Chip ResistorRC0603FR-07 330KL 330KΩ±1% 06031 R24 32Chip ResistorRC0603FR-07 332KL 332KΩ±1% 06031 R7 33Chip ResistorRC0603JR-07 470KL470KΩ±5% 06031 R16 34Chip ResistorRC0603FR-07 470KL470K±1% 06031 R6 35Chip ResistorRC0603FR-07 1ML1M±1% 06032 R45,R50 36Chip ResistorRC0603JR-07 2ML2M±5% 06031 R17 37Chip Capacitor C0603JRNPO9BN100 10PF ±5% 50V 0603 3 C41,C44,C50 38Chip Capacitor C0603JRNPO8BN330 33PF ±5% 25V 0603 4 C39,C45,C49,C54 39Chip Capacitor C0603JRNPO9BN101 100PF ±5% 50V 06032 C46,C57 40Chip Capacitor C0603JRNPO9BN271 270PF ±5% 50V 06031 C5 41Chip Capacitor C0603KRX7R9BB332 3.3nF±10% 50V 06031 C10 42Chip Capacitor C0603X7R103K50V 0.01UF±20% 50V 0603 1 C43 43Chip Capacitor C0805MRX7R0BB103 0.01UF±20% 100V 08051 C2 44Chip Capacitor C0603KRX7R9BB104 0.1UF ±10% 50V 0603 21 C3,C4,C13,C14,C19,C26, C29,C30,C31,C32,C34,C37,C56,C58,C59,C61,C63,C66 C67 C68 C69 45Chip Capacitor C0603MRX7R8BB224 220nF ±20% 25V 0603 2 C52,C60 46Chip Capacitor C0603KRX5R8BB105 1UF ±10% 25V 0603 6 C17,C22,C23,C25,C64,C65 47Chip Capacitor C0603KRX5R7BB225 2.2UF ±10% 16V 0603 1 C36 48Chip Capacitor C0603MRX7R6BB475 4.7UF ±20% 10V 0603 1C6 49 Ceramic Capacitor C0805KKX5R6BB106 10UF/10V ±10% 08053 C7,C16,C71 50 Tantalum electrolytic Capacitor TAJA106K010RNJ10UF/10V ±10% A32164 C27,C33,C35,C55 51 Tantalum electrolytic Capacitor TAJA226K010R22UF/10V ±10% A32166 C8,C9,C12,C24,C28,C42 52 Tantalum electrolytic Capacitor TAJB476K010R47UF/10V ±10% B35281 C20 53 Tantalum electrolytic Capacitor TAJD687M010R680UF/10V ±20% 73431 C40 54Zener diode ZMM4.7HSB 4V7 ZMM4.7HSB (4.59- 4.77) 1206 3 DW3,DW7,D20 55Zener diodeZMM5.6HSB 5V6 ZMM5.6HSB (5.46-5.7V) 1206 2 DW5,DW6 56Zener diodeZMM11HSB 11V ZMM11HSB(10.5-10.95) 1206 1 DW4 57Zener diodeZMM20HSC 20V ZMM20HSC(19.52- 20.45) 1206 1 DW1 58Zener diode ZMM33HSD 33V ZMM33HSD(31.49- 33.11) 1206 1 DW2 59DiodeSS24SS24 DO-214AC6 D5,D6,D7,D9,D15,D17 60DiodeSD103AWS-GSD103AWS SOD-3236 D16,D18,D21,D22,D23,D24 61DiodeIN4148WS IN4148WS/SOD-323/Chip Diode 2 D2,D3 62DiodeS2MS2M SMB1 D1 63DiodeM7M7 DO-214AC3 D4,D8,D19 64Chip DiodeBAT54ABAT54A SOT-232 D10,D11 65Chip DiodeLL4148LL4148 12063 D12,D13,D14 66TriodeMBT5551MBT5551 SOT-239 N5,N6,N7,N9,N10,N11,N12, N13,N17 67TriodeMBT5401MBT5401 SOT-238 N2,N3,N4,N8,N14,N15,N19, N20 68TriodeMJD122 MJD122 TO-2521 N21 69MOSFETFQD12P10FQD12P10 TO-2521 N1 70MOSFETRPD15P05RPD15P05 TO-2521 Q2 71 Self-recovered safety SMD1206P150TFSMD1206P150TF 12061 F1 72 Self-recovered safety SMD1206P075TFSMD1206P075TF 12061 F2 73Chip InductorGZ1608D601GZ1608D601 06036 L3,L5,L7,L8,L9,L10 74Chip Inductor SPE32-10uH Chip Inductor CN1210 10uH CN12101 L4 75Power Inductor SPQ-680kSPQ-680k L120_1201 L2 76Chip InductorSDCL1608C27N 27nH SDCL1608C27N 0603 1L6 77 Battery connector 1.25-2A1.25 2pin1 CNT1 78ICGM7230-ATA5RGM7230-ATA5R TO-263S1 U3 79ICICM7555IBAZICM7555IBAZ SO-81 U9 80ICRT9701RT9701 SOT-23-51 U6 81ICCYT5026 CYT5026 SOT-23- 5 1U7 82ICX6209F332MR X6209F332MR SOT-23- 5 1U8 83ICMC14584BDMC14584BD SO-141 U12 84ICLM293DLM293D/SOP81 U1 85ICCYT431ACYT431A/SOT-231 U2 86ICAP1084D-ADJ-AAP1084D-ADJ-A/TO-2521 U4 87ICAAP6204A1AAP6204A1/QFN-81 U10 88ICSP3232EEYSP3232EEY/TSSOP16/RS2321 U11 89GSM ModuleP1621P16211 CON1 90GPS ModuleNEO-6MNEO-6M1 M1 91PCBP2202_V1.2PCBP2202_V1.2PCB1 92 Polyester capacitor 0.22 0.22UF±20% 100V&160V RAD0.2 0.22 0.22UF±20% 100V&160V RAD0.2 1 C70 93 Electrolytic Capacitor 22UF/100V +80% - 20% 6.3×11mm 22UF/100V +80% -20% 6.3× 11mm 1C1 94 Electrolytic Capacitor 100UF/50V +80-20% 8×12mm 100UF/50V +80-20% 8× 12mm 1 C11 95 Electrolytic Capacitor 1000UF/10V ±20% 8×12mm 1000UF/10V ±20% 8× 12mm 1 C15 96 Self-recovered safety JK60-025 JK60-0251 F3 97 Over voltage protection diode 1.5KE39CA1.5KE39CA DO37_11 DV1 98LED204-10SURD/S530-A3φ3×51 99LED204-10UYD/S530-A3φ3×51 100SocketSocketSocket1 LED1 101SMA connector SWA-KWE-11 90° SMA （SMA-KWE-11） 1 CZ1 102 YW2201-GSM patch cord SMA-KY-0.9-3 Length:7.9CM SMA-KY-0.9-3 Length:7.9CM1 ANT1 103PCBA YW2201_SIMBOARD_ V2.0 PCBA/2 YW2201_SIMBOARD_V2.0 PCBA/2 1X1 104YW2211 Cable 1SAN-6P 2.8-6Y1 CON2 105YW2211 Cable 2SAN-4P 2.8-4Y1 CON3 106YW2211 Cable 3SAN-4P 2.8-2Y1 CON4 1PCB YW2201_SIMBOARD_ V2 0 YW2201_SIMBOARD_V2.01 2SIM Socket26SIM 02…

Text truncated - open the document above for the full version.

Prediction of MPE limit at a given distance MW-CBDA-SMR-10W80-PS8, Uplink Outdoor Donar Antenna Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:32.89(dBm) Maximum peak output power at antenna input terminal:1945.360082(mW) Antenna gain(typical):2.15(dBi) Maximum antenna gain:1.640589773(numeric) Prediction distance:25(cm) Prediction frequency:849(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.566(mW/cm^2) Power density at prediction frequency:0.406359(mW/cm^2) Maximum allowable antenna gain:3.589063126(dBi) Margin of Compliance:1.439063126 2 4R PG S p =

Global United Technology Services Co., Ltd. Report No.: GTSE13050064401 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT Applicant: Shenzhen Yuwei Information And Technology Development Co., Ltd. Address of Applicant: 6F, Taike Bld., 2 Taike Rd., Futian, Shenzhen, P.R. China Equipment Under Test (EUT) Product Name: AVL GNNS Terminal Model No.: YW3000-XQ, YW3000-X, YW3000-Y, YW7201, YW6204, YW6201, P1621 FCC ID: 2AADKYW3000-XQ Applicable standards: FCC CFR Title 47 Part 2: 2012 FCC CFR Title 47 Part22 Subpart H: 2012 FCC CFR Title 47 Part24 Subpart E: 2012 Date of sample receipt: May 16, 2013 Date of Test: May 16-21, 2013 Date of report issued: May 21, 2013 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE13050064401 Global United Technology Services Co., Ltd. Project No.: GTSE130500644RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 44 2 Version Version No. Date Description 00 May 21, 2013 Original Prepared By: Date: May 21, 2013 Project Engineer Check By: Date: May 21, 2013 Reviewer Report No.: GTSE13050064401 Global United Technology Services Co., Ltd. Project No.: GTSE130500644RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 44 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE........................................................................................................................................ 7 5.4 RELATED SUBMITTAL(S) / GRANT (S)................................................................................................... 7 5.5 TEST METHODOLOGY......................................................................................................................... 7 5.6 TEST FACILITY.................................................................................................................................... 7 5.7 TEST LOCATION................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 SYSTEM TEST CONFIGURATION ......................................................................................................... 9 7.1 EUT CONFIGURATION......................................................................................................................... 9 7.2 EUT EXERCISE.................................................................................................................................. 9 7.3 CONFIGURATION OF TESTED SYSTEM.................................................................................................. 9 7.4 DESCRIPTION OF TEST MODES............................................................................................................. 9 7.5 CONDUCTED PEAK OUTPUT POWER.................................................................................................. 10 7.6 OCCUPY BANDWIDTH........................................................................................................................ 12 7.7 MODULATION CHARACTERISTIC......................................................................................................... 17 7.8 OUT OF BAND EMISSION AT ANTENNA TERMINALS............................................................................... 17 7.9 ERP, EIR…
