2AAEEBLE05Pedometer

User manual Page 1 User manual User manual Page 2 Thank you for buying the Wireless Pedometer BLE05. The Pedometer provides precise measurement of walking and running and collects the exercise data , which will be transmited to smartphones or Tablets by a free software App through bluetooth 4.0 or above version. The App provides a detailed record of Steps taken, Distance, Speed and calories burned during exercise. Regular daily exercise such as walking or running can improve general health, assist to lower blood pressure and reduce weight. Setup To begin using the Pedometer please download the free app for Apple iOS Devices : https://itunes.apple.com/gb/app/pedometer-bluetooth/id570940702?mt=8 Once you have installed the App continue with the setup.  Remove the battery insulation tab either by pulling the tab outwards or by opening the Pedometer Battery cover using a coin or small screwdriver.  Start the Pedometer App and Select Settings.  Select Scan Device and the App will automatically look for the Pedometer. The ID number of the Pedometer will be shown in the Choose Device Window.  Next Input your Step Width and then your Weight.  Note: To estimate Step Width measure the distance it takes to walk 10 Steps and divide the distance walked between 10.  Next select Register and input an account name and password  The Pedometer is now registered to your device.  The Pedometer can now be clipped to shoe laces, belts, clothing or simply be stored in a pocket while you exercise.  There is no need to have the mobile device with you during your exercise. All the data will be stored for up to 1 month on the Pedometer and can be transferred to the App at any time. User manual Page 3 Also, you check all you historic exercise data from main UI by History (Week, month, year) or in Graph User manual Page 4 Battery Usage The Pedometer uses a CR2032 Cell battery with an average lifetime of 4 months. When the Battery needs to be replaced please dispose of the used battery in accordance with local laws.\ Heath concerns The pedometer is to be used as a daily record of activities and fitness, Should you have any health concerns please consult a Doctor before starting a fitness regime. CAUTION  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.  This pedometer suport only bluetooth 4.0 or above.  Avoid placing this product near extreme temperatures or humidity.  Do not submerse or allow this product to come into contact with water. Use in dry locations only.  An adult should supervise young children when using this product.  Use of any attachment or accessory with this product not recommended or sold by White Label may result in risk of fire, electrical shock or injury to persons or product.  Do not clean any parts with alcohol, cleaning solutions containing alcohol or strong abrasives. Use a soft cloth and a little water to clean.  There are no user serviceable parts within this product. Tampering with this product will invalidate your White Label warranty.

Shenzhen Belter Health Measurement and Analysis Technology Co., Ltd Date (11/28/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Shenzhen Belter Health Measurement and Analysis Technology Co., Ltd. 702/704, Block C, Tsinghua Unis Science Park, No. 13 Langshan Rd, Hi-Tech Industrial Park(north) Nanshan District 518057 Shenzhen hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Culture Creative Park, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C 862 because of conviction for possession or distribution of controlled substance. This authorization is application to product: Type of equipment: Pedometer Model name: BLE05 FCC ID: 2AAEEBLE05 This authorization expires one year from the current date. Your Sincerely, Register engineer: MING PANG Telephone Number: 0769-89893000 Fax Number: 0769-89899380 E-mail: [email protected]

Shenzhen Belter Health Measurement and Analysis Technology Co., Ltd Date (11/28/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: 2AAEEBLE05 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, we “Shenzhen Belter Health Measurement and Analysis Technology Co., Ltd.” hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Parts List PCB Layout Block Diagrams Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Register engineer: MING PANG Telephone Number: 0769-89893000 Fax Number: 0769-89899380 E-mail: [email protected]

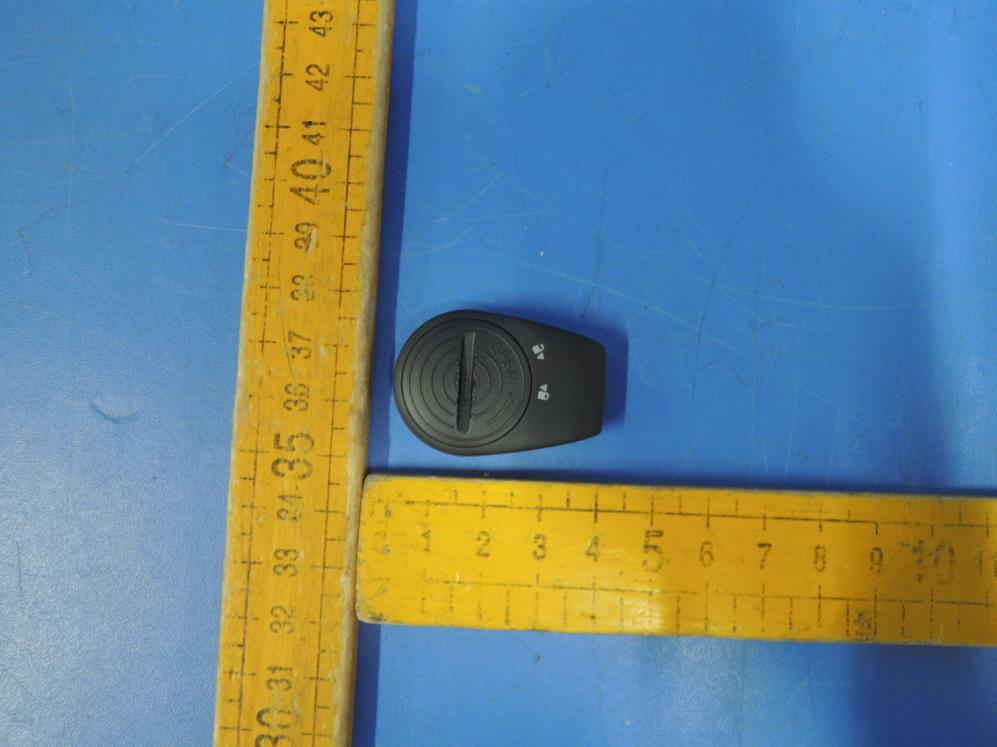

External Photos

Label location Label location

Made in P.R.C FCC ID:2AAEEBLE05

Internal Photos BT antenna

Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Culture Creative Park, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF exposure Estimation 1. Introduction BLE05 is a wireless pedometer, which contains Bluetooth 4.0 function inside. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r01, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance = -1.59dBm=0.69mW Distance = 5 mm f = 2.480 GHz [0.69/5] * SQRT (2.480) =0.105 ≤ 3.0 Therefore, The EUT excluded from SAR testing. Jiangsu TUV Product Service Ltd. Shenzhen Branch Reviewed by: Prepared By: Ken Li/EMC Project Manager Felix Li/EMC Project Engineer Date: 2013-12-09 Date: 2013-12-09

Report Number: 68.710.13.408.01 Page 1 of 24 Jiangsu TÜV Product Service Ltd. Shenzhen Branch 6 floor, H Hall, Culture Creative Park, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 FCC- TEST REPORT Report Number : 68.710.13.408.01 Date of Issue: 09 December 2013 Model : BLE05 Product Type : Pedometer Applicant : Shenzhen Belter Health Measurement and Analysis Technology Co., Ltd. Address : 702/704, Block C, Tsinghua Unis Science Park, No. 13 Langshan Rd, Hi-Tech Industrial Park(north), Nanshan District 518057 Shenzhen Production Facility : Dongguan Simple Industrial Co., Ltd. Address : No, 192, Shaxin Road, Science Message Park, Tangxia Town, Dongguan, Guangdong, China Test Result :  Positive  Negative Total pages including Appendices : 24 Jiangsu TÜV Product Service Ltd. – Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. Jiangsu TÜV Product Service Ltd. – Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Jiangsu TÜV Product Service Ltd. – Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.710.13.408.01 Page 2 of 24 Jiangsu TÜV Product Service Ltd. Shenzhen Branch 6 floor, H Hall, Culture Creative Park, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 1 Table of Contents 1 Table of Contents ................................................................................................................................................................ 2 2 Details about the Test Laboratory ..................................................................................................................................... 3 3 Description of the Equipment under Test ........................................................................................................................ 4 4 Summary of Test Standards .............................................................................................................................................. 5 5 Summary of Test Results ................................................................................................................................................... 6 6 General Remarks ................................................................................................................................................................ 7 7 Test Setups .......................................................................................................................................................................... 8 8 Systems test configuration ................................................................................................................................................. 9 9 Technical Requirement .................................................................................................................................................... 10 9.1 Conducted peak output power................................................................................................................................ 10 9.2 6dB bandwidth .......................................................................................................................................................... 11 9.3 Power spectral density ............................................................................................................................................. 13 9.4 Spurious RF conducted emissions ........................................................................................................................ 14 9.5 Band edge ................................................................................................................................................................. 19 9.6 Spurious radiated emissions for transmitter ......................................................................................................... 21 10 Test Equipment List ...................................................................................................................................................... 23 11 System Measurement Uncertainty ............................................................................................................................. 24 Report Number: 68.710.13.408.01 Page 3 of 24 Jiangsu TÜV Product Service Ltd. Shenzhen Branch 6 floor, H Hall, Culture Creative Park, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: Jiangsu TÜV Product Service Ltd. Shenzhen Branch 6th Floor, H Hall,Culture Creative Park, No. 4001, Fuqiang Road, Futian District 518048, Shenzhen,P.R.C. Telephone: 86 755 8828 6998 Fax: 86 755 828 5299 Test Site 2 Company name: Audix Technology (shenzhen) Co.,Ltd Block Shenzhen, Science & Industry Park, Nantou, Shenzhen, Guangdong, China Telephone: 86 755 2663 9496 Fax: 86 755 2663 2877 Report Number: 68.710.13.408.01 Page 4 of 24 Jiangsu TÜV Product Service Ltd. Sh…

Text truncated - open the document above for the full version.

Test setup photo Radiated emission test below 1GHz Radiated emission test above 1GHz
