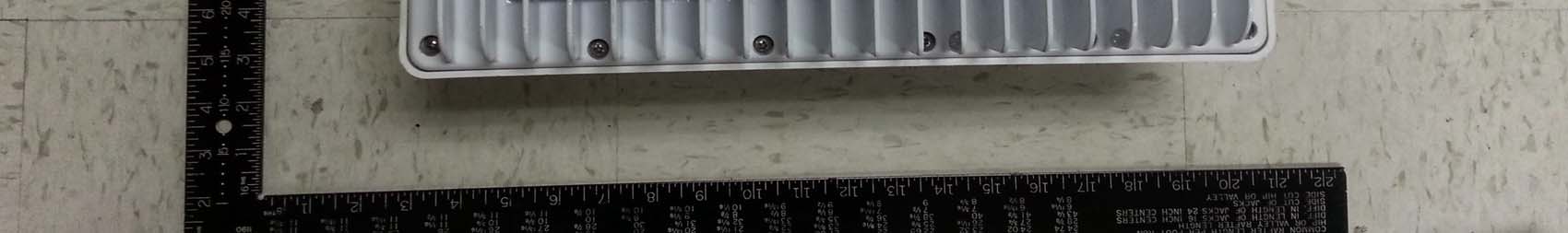

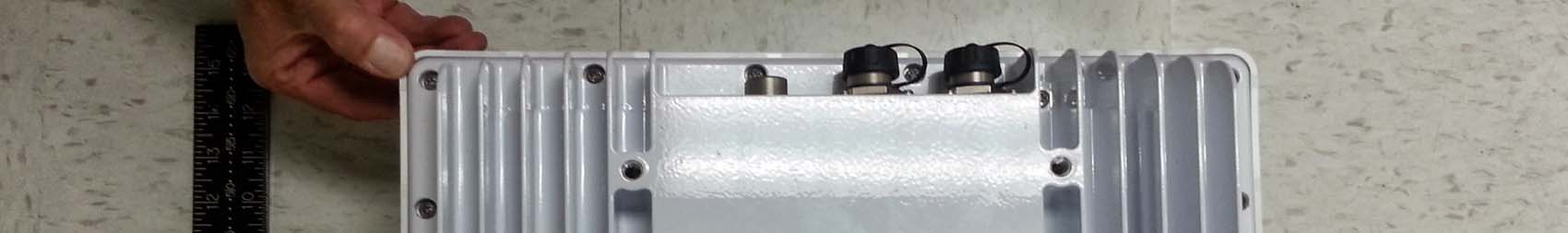

2AAEH-101Intelligent Backhaul Radio ISM 5.8GHz band

2460 N First St., Suite 200, San Jose, CA 95131 U.S.A. Doc # 770-00001-6 (408) 430-5440 www.fastbacknetworks.com Nov. 22, 2013 Intelligent Backhaul Radio Installation & Operation Manual IBR Installation Guide Page 2 of 34 Doc # 770-00001-6 Nov. 22, 2013 PURPOSE This Installation Guide provides detailed information related to initial configuration and installation of Fastback Network’s Intelligent Backhaul Radio (“IBR”). Supporting information is contained in the IBR Administration & Command Line Interface Guide (“CLI Guide”). Table of Contents Federal Communications Commission (FCC) Compliance Statement 4 1. Introducing Intelligent Backhaul Radio (“IBR”) 5 1.1 Overview ......................................................................................................................................................... 5 1.2 Transmit & Receive Frequencies ...................................................................................................................... 5 1.3 Radio Features................................................................................................................................................. 5 1.4 Switch Features ............................................................................................................................................... 5 1.5 Regulatory Compliance ................................................................................................................................... 6 1.6 Deployment Options ........................................................................................................................................ 6 1.7 Physical & Environmental Features ................................................................................................................. 6 2. Getting Started 7 2.1 Physical Inspection .......................................................................................................................................... 7 2.2 Inventory ......................................................................................................................................................... 8 2.3 External Features ............................................................................................................................................ 8 2.4 Power Requirements ...................................................................................................................................... 9 2.5 Technical Assistance ........................................................................................................................................ 9 3. Communicating with IBR 10 3.1 Access Control ............................................................................................................................................... 10 3.2 Serial Console ................................................................................................................................................ 10 3.3 Remote Access & Default IP Addresses ......................................................................................................... 11 3.4 Graphical User Interface (“GUI”) ................................................................................................................... 11 3.5 Command Line Interface (“CLI”) .................................................................................................................... 12 3.6 Antennas ....................................................................................................................................................... 13 3.7 Gigabit Ethernet Ports ................................................................................................................................... 13 3.8 Interfaces ....................................................................................................................................................... 13 3.9 External Ethernet connectors ........................................................................................................................ 13 3.10 LEDs ............................................................................................................................................................... 13 4. Preconfiguring IBR 13 4.1 Orienting IBRs For Bench Test And Preconfiguration .................................................................................... 13 4.2 Applying Power ............................................................................................................................................. 14 4.3 Logging Onto IBR Using Factory-Set User Name & Password ....................................................................... 14 4.4 Entering CLI User Mode ................................................................................................................................. 14 4.5 Entering CLI Privileged Mode ........................................................................................................................ 14 4.6 Confirming VLAN Settings ............................................................................................................................. 15 4.7 Displaying IBR IP Address .............................................................................................................................. 15 4.8 Separating Management Traffic From Data Traffic ...................................................................................... 15 4.9 Saving New Configuration ............................................................................................................................. 18 4.10 Changing Host Name .................................................................................................................................... 18 4.11 Changing Passwords ......................................................................................................................…

Text truncated - open the document above for the full version.

REVDESCRIPTION INITIALS CONTROL#DATE J6qVUjqS9 PROPRI8TVRYtVN)t(ON7I)8NTIVL Thistdocumenttandtthetspecificationstand informationtcontainedthereintaretthe exclusivetpropertytoft7astbacktNetworks andtshalltnottbetcopied,treproduced,tor disclosedtoutsidetoft7astbacktNetworks excepttastrequiredttotexecutetthettermstof atcontracttortpurchasetordertissuedtby 7astbacktNetworks.tTheytshalltnottbe includedtintanytproposaltortpresentation materialstwithouttpriortwrittentdirectiontof 7astbacktNetworks. J5#6tN.tSsttSTR88TtSUIT8tJ66 SantJose,t(VtM:S9S TitleX )octfX RevX 8ngineerX)rawntbyX SizeXtV MaterialX7inishX ScaleXtSXS SheetXtStoftS S88tNOT8SS88tNOT8S L.NI(OLI 6X L.NI(OLI 6X 7ORtQUOTINj LN8(OqXXXXX )IM8NSIONStINtMILLIM8T8RS. TOL8RVN(8StUNL8SStOTH8RWIS8tSP8(I7I8)X VNjULVR4Z8N)Xtw4qtStdegree X.XXtw4qt6.J:ttX.XXXtw4qt6.SttX.XXXXtw4qt6.6: NOT8SX S.ttjR8YtLIN8StVR8t7ORtLVZ8LtR878R8N(8tONLY. J.ttMVT8RIVLXttS88tZOM. 9.ttVLLtMVT8RIVLStMUSTtZ8tRoHSt(OMPLIVNTtP8Rt8Ut)IR8(TIV8tJ66J4M:48(. 5.ttPRINTINjtRIZZONtSHVLLtZ8tR8SIN.ttPRINTINjtSHVLLt(OMPLYtWITHtULtR8(OjNIZ8) tttttUN)8RtULM#Mty(LVSSt(O)8tPj)QJtORtPjjUJb. 5JSq6666S LVZ8L,tIZR,t:.z,tVj8N(Yt(8RTI7I(VTIONS 7((tI)XtJVV8HqS6S I(XtSSS:zVqS6S 5JSq6666S IP## 89#JSgS ThistdevicetcompliestwithtParttS:toftthet7((t Rules.Operationtistsubjectttotthetfollowingttwot conditionsXtySbtthistdevicetmaytnottcausetharmfult interference,tandtyJbtthistdevicetmusttaccepttanyt interferencetreceived,tincludingtinterferencetthatt maytcausetundesiredtoperation.

D C B A 87651234 B C D A 4321568 PROPRIETARY AND CONFIDENTIAL DIMENSIONS IN MILLIMETERS TOLERANCES UNLESS OTHERWISE SPECIFIED: ANGULAR/BEND: 0.5 X.X: 0.25 X.XX: 0.1 X.XXX: 0.05 2460 N. 1st STREET SUITE 200 San Jose, CA 95131 This document and the specifications and information contained herein are the exclusive property of Fastback Networks and shall not be copied, reproduced, or disclosed outside of Fastback Networks except as required to execute the terms of a contract or purchase order issued by Fastback Networks. They shall not be included in any proposal or presentation materials without prior written direction of Fastback Networks. 7 REVDESCRIPTIONINITIALSCONTROL # DATE 01INITIAL RELEASELNECO-00013211-NOV-13 15 of 1 Sheet: N/A Finish: SEE BOM Material: 4:5 Scale: 08-AUG-13 Date: L.NICOLI Drawn By: L.NICOLI Eng: D Size: 01 Rev: 715-00001 Doc.#: DRW, TOP LEVEL ASSY, IBR 1000, TX5787 Title: Bill Of Materials DescriptionPart NumberQtyItem 11 CAP, C1 PROTECTIVE W/RETAINER 320-00005 12 CAP, C2 PROTECTIVE W/RETAINER 320-00006 23 LABEL, IBR, 5.8, AGENCY CERTIFICATION 421-00001 14 LABEL, IBR, MODEL/SERIAL 421-00003 15 LABEL, DO NOT OPEN 421-00004 26 ANTENNA MOUNTING FRAME 430-00001 27 CHASSIS, IBR BASE 430-00005 18 HEAT SINK, CATALINA, IBR 430-00007 19 SHIELD, IBR, MAIN PCBA 430-00020 110 STRAIN RELIEF, IBR, RX ANTENNA CABLES 430-00021 111 FLANGE ADAPTOR, PANEL MOUNT ETHERNET CONNECTOR 430-00022 212 IBR RADOME 432-00003 113 GASKET, IBR CHASSIS 455-00003 114 VENT, SNAP-FIT 455-00004 115 O-RING, 23.47MM ID X 2.6MM WIDE, SILICONE 455-00005 216 CAP, PROTECTIVE, ROUND VINYL, BLACK 455-00006 117 O-RING, 10.5MM OD X 2.5MM WIDE 455-00007 118 THERMAL PAD, 2.0MM THICK, 10 X10 457-00001 219 THERMAL PAD, 2.0MM THICK, 20 X 20 457-00001 120 THERMAL PAD, 2.0MM THICK, 32 X 32 457-00001 121 THERMAL PAD, 2.0MM THICK, 40 X 40 457-00001 122 THERMAL PAD, 2.0MM THICK, 45 X 19 457-00001 123 SCREW, M4 X .7 X 10.0MM, PH PHIL/INT SEMS, SS 470-00015 1724 RIVET, SNAP, PLASTIC 470-00018 1625 RIVET, SNAP, 2.2DIA, 2.9/3.6 GRIP, PLASTIC 470-00019 1626 SCREW, M3 X .5 X 7.0MM, PH TORX/INT SEMS, SS 470-00021 3727 SCREW, M3 X .5 X 14.0MM, PH TORX/INT SEMS, STL, ZN 470-00026 228 BUSHING, SNAP-IN, OPEN, 4.8MM I.D 475-00002 229 STANDOFF, M3x6, 4.5mm HEX, M/F, SS 475-00009 230 WIRE SADDLE, MINI SNAP IN 495-00006 2431 CABLE CLAMP, N-SERIES, 1/2" CLAMPING 495-00008 132 WIRE SADDLE, MICRO, MWSEA1-1-1-01 495-00009 133 ROUTING CLIP, HALF-U, 3.2MM HOLDING DIA., SCREW-TYPE 495-00011 534 DUAL TX ANTENNA PANEL ASSEMBLY, 5300/5785 MHZ 820-00013 135 PWA, IBR MAIN BOARD, TX5787 820-00017 136 SUB-ASSY, ANTENNA, RX5300, APERTURE FEED 820-00027 437 SUB-ASSY, MECH, ANTENNA, DFS 820-00029 138 PWA, DFS MODULE, DUAL SENSOR 830-00011 139 CABLE, IP66 TWO COLOR LED (GREEN/YELLOW) TO CONNECTOR 840-00001 240 CABLE, IBC/IBR CONSOLE, IP67, 4 PIN C1 BULKHEAD TO MOLEX 51090 840-00003 141 CABLE, IP67, BULKHEAD RJ45 F TO RJ45 M, 300MM 840-00011 342 CABLE ASSY, I-PEX /I-PEX,DOUBLE SHIELDED COAXIAL (BLACK), 320mm 840-00019 643 CABLE ASSY, I-PEX /I-PEX,DOUBLE SHIELDED COAXIAL (BLACK), 432mm 840-00020 444 CABLE ASSY, I-PEX /I-PEX,DOUBLE SHIELDED COAXIAL (GRAY), 254mm 840-00021 145 ASSEMBLY NOTES: 1 FASTENER DRIVE SIZES ( REFER TO TABLE 1 FOR TORQUE SPECS): T-10 TORX FOR ALL TORX SCREWS #2 PHILIPS FOR PHILIP SCREWS 4.5MM HEX FOR HEX STANDOFFS 2 USE TABLE 2 FOR WIRING CONNECTION REFERENCE DESIGNATORS. 3 HAND TIGHTEN ALL CAPS. B C D A D C B A 87651234 4321568 7 15 of 13 Sheet FASTBACK Networks 4:5 Scale: 01 Rev: 715-00001 Doc. #: DRW, TOP LEVEL ASSY, IBR 1000, TX5787 Title: 5 4 17 6 AGENCY CERTIFICATION LABEL MODEL/SERIAL NUMBER LABEL 5 REF 6 REF 4 REF 6 REF

FCC Part 1 Subpart I FCC Part 2 Subpart J INDUSTRY CANADA RSS 102 ISSUE 3 RF EXPOSURE REPORT FOR Intelligent Backhaul Radio ISM 5.8GHz band MODEL NUMBER: IBR-1A FCC ID: 2AAEH-101 IC: 11158A-101 REPORT NUMBER: 13U14996-1 ISSUE DATE: 2013-11-22 Prepared for CBF NETWORKS, INC., DBA FASTBACK NETWORKS 2460 N. FIRST STREET, SUITE 200 SAN JOSE, CA 95131 Prepared by UL LLC 1285 WALT WHITMAN RD. MELVILLE, NY 11747, U.S.A. TEL: (631) 271-6200 FAX: (877) 854-3577 REPORT NO: 13U14996 DATE: 2013-10-18 FCC ID: 2AAEH-102 IC: 11158A-102 Page 2 of 12 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. Revision History Rev. Issue Date Revisions Revised By -- 2013- 10-22 Initial Issue Joseph Danisi -- 2013- 11-22 Corrected table page 10 , removed tables not applicable, added worst case tolerance to measured power readings, added power density table at 20cm Joseph Danisi REPORT NO: 13U14996 DATE: 2013-10-18 FCC ID: 2AAEH-102 IC: 11158A-102 Page 3 of 12 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. MAXIMUM PERMISSIBLE RF EXPOSURE ....................................................................... 6 5.1. FCC RULES ................................................................................................................ 6 5.2. IC RULES .................................................................................................................... 7 5.3. EQUATIONS ................................................................................................................ 8 5.4. LIMITS AND IC EXEMPTION ...................................................................................... 9 6. RF EXPOSURE RESULTS ................................................................................................10 REPORT NO: 13U14996 DATE: 2013-10-18 FCC ID: 2AAEH-102 IC: 11158A-102 Page 4 of 12 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: CBF NETWORKS, INC., DBA FASTBACK NETWORKS 2460 N. FIRST STREET, SUITE 200 SAN JOSE, CA 95131 EUT DESCRIPTION: Intelligent Backhaul Radio ISM 5.8GHz band MODEL: IBR-1A SERIAL NUMBER: 53 DATE TESTED: 2013-05-02 to 2013-09-16 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J Pass INDUSTRY CANADA RSS 102 ISSUE 3 Pass UL LLC calculated the RF Exposure of the above equipment in accordance with the requirements set forth in the above standards using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL LLC based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL LLC and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL CCS By: Calculated By: Bob DeLisi Joseph Danisi WiSE Principal Engineer WiSE Project Lead UL UL REPORT NO: 13U14996 DATE: 2013-10-18 FCC ID: 2AAEH-102 IC: 11158A-102 Page 5 of 12 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC OET Bulletin 65 Edition 97-01 and IC Safety Code 6. 3. REFERENCES All measurements were made as documented in test report UL Document 13U14996 for operation in the 5 GHz bands. Output power, Duty cycle and Antenna gain data is excerpted from the applicable test reports. Antenna gain data is excerpted from product documentation provided by the applicant. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 1285 Walt Whitman Rd. Melville, NY 11747, USA. UL LLC is accredited by NVLAP, Laboratory Code 100255-0. The full scope of accreditation can be viewed at http://ts.nist.gov/standards/scopes/1002550.htm. REPORT NO: 13U14996 DATE: 2013-10-18 FCC ID: 2AAEH-102 IC: 11158A-102 Page 6 of 12 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. 5. …

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR Intelligent Backhaul Radio ISM 5.8GHz band MODEL NUMBER: IBR-1A FCC ID: 2AAEH-101 IC: 11158A-101 REPORT NUMBER: 13U14996-2 ISSUE DATE: 2013-12-03 Prepared for CBF NETWORKS, INC., DBA FASTBACK NETWORKS 2460 N. FIRST STREET, SUITE 200 SAN JOSE, CA 95131 Prepared by UL LLC 1285 WALT WHITMAN RD. MELVILLE, NY 11747, U.S.A. TEL: (631) 271-6200 FAX: (877) 854-3577 REPORT NO: 13U14996-1 DATE: 2013-12-03 FCC ID: 2AAEH-101 IC: 11158A-101 Page 2 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. Revision History Rev. Issue Date Revisions Revised By -- 2013- 09-15 Initial Issue Joseph Danisi -- 2013- 09-20 Corrected the DTS FCC ID to 2AAEH-101. On page 7 corrected the frequency ranges. On page 14 and 24 corrected frequency to 5832. Joseph Danisi -- 2013- 10-22 Corrected the antenna gain from 12 to 10.5, corrected EUT description. Joseph Danisi -- 2013- 11-19 Added sample calculation, added better description, added additional KDB, clarified throughout report J48 & J49 and notes information. Joseph Danisi -- 2013- 11-22 Removed references to 802.11 proprietary, corrected limits in section 8.4. Joseph Danisi -- 2013- 12-03 Corrected table 5.2 power. Joseph Danisi REPORT NO: 13U14996-1 DATE: 2013-12-03 FCC ID: 2AAEH-101 IC: 11158A-101 Page 3 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 6 4.2. SAMPLE CALCULATION ............................................................................................ 6 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 6 5. EQUIPMENT UNDER TEST ............................................................................................... 7 5.1. DESCRIPTION OF EUT .............................................................................................. 7 5.2. MAXIMUM OUTPUT POWER...................................................................................... 8 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 9 5.4. SOFTWARE AND FIRMWARE .................................................................................... 9 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 9 5.6 DESCRIPTION OF TEST SETUP ................................................................................ 9 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................12 7. MEASUREMENT METHODS ............................................................................................14 8. ANTENNA PORT TEST RESULTS ...................................................................................15 8.1.1. 6 dB BANDWIDTH ...............................................................................................15 8.2. 99% BANDWIDTH ......................................................................................................25 8.3. AVERAGE POWER ....................................................................................................35 8.4. OUTPUT POWER.......................................................................................................39 8.5. PSD ............................................................................................................................51 8.6. OUT-OF-BAND EMISSIONS ......................................................................................61 9. RADIATED TEST RESULTS .............................................................................................85 9.1. LIMITS AND PROCEDURE ........................................................................................85 9.2 WORST-CASE BELOW 1 GHz ...................................................................................86 9.3 TRANSMITTER ABOVE 1 GHz ..................................................................................92 9.3.1 TX ABOVE 1 GHz IN THE 5.8 GHz BAND ..............................................................92 9 AC POWER LINE CONDUCTED EMISSIONS ................................................................ 124 REPORT NO: 13U14996-1 DATE: 2013-12-03 FCC ID: 2AAEH-101 IC: 11158A-101 Page 4 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. 10 SETUP PHOTOS ............................................................................................................. 131 REPORT NO: 13U14996-1 DATE: 2013-12-03 FCC ID: 2AAEH-101 IC: 11158A-101 Page 5 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: CBF NETWORKS, INC., DBA FASTBACK NETWORKS 2460 N. FIRST STREET, SUITE 200 SAN…

Text truncated - open the document above for the full version.

REPORT NO: 13U14996-1 DATE: 2013-11-19 FCC ID: 2AAEH-101 IC: 11158A-101 Page 131 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. 10 SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 13U14996-1 DATE: 2013-11-19 FCC ID: 2AAEH-101 IC: 11158A-101 Page 132 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 13U14996-1 DATE: 2013-11-19 FCC ID: 2AAEH-101 IC: 11158A-101 Page 133 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. RADIATED BACK PHOTO REPORT NO: 13U14996-1 DATE: 2013-11-19 FCC ID: 2AAEH-101 IC: 11158A-101 Page 134 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. RADIATED RF MEASUREMENT SETUP >1GHz RADIATED FRONT PHOTO RADIATED BACK PHOTO REPORT NO: 13U14996-1 DATE: 2013-11-19 FCC ID: 2AAEH-101 IC: 11158A-101 Page 135 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. REPORT NO: 13U14996-1 DATE: 2013-11-19 FCC ID: 2AAEH-101 IC: 11158A-101 Page 136 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 13U14996-1 DATE: 2013-11-19 FCC ID: 2AAEH-101 IC: 11158A-101 Page 137 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. LINE CONDUCTED BACK PHOTO REPORT NO: 13U14996-1 DATE: 2013-11-19 FCC ID: 2AAEH-101 IC: 11158A-101 Page 138 of 138 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. END OF REPORT
