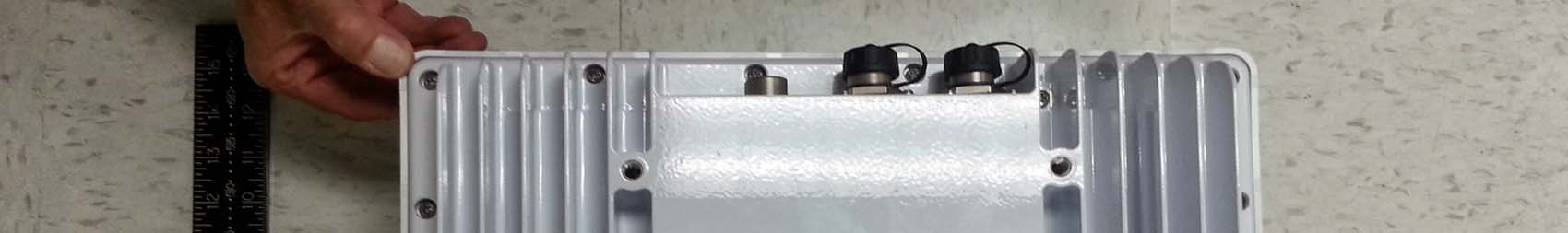

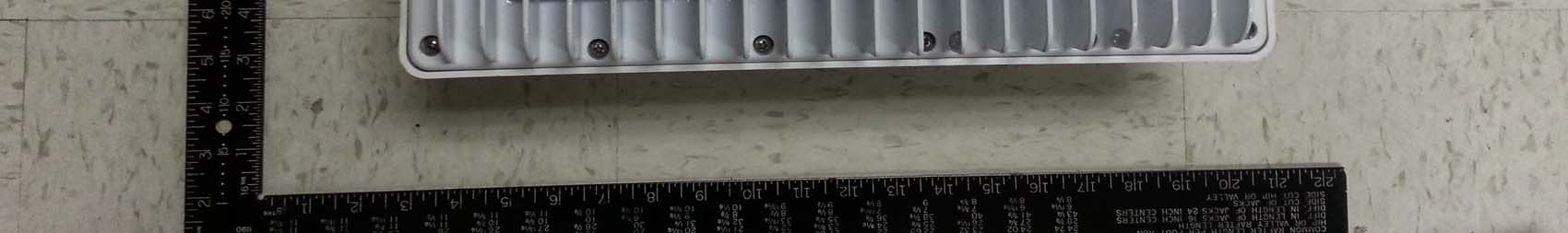

2AAEH-102Intelligent Backhaul Radio UNII 5.3GHz band

Doc # 770-00001-3 Aug. 30, 2013 Intelligent Backhaul Radio Installation & Operation Manual Fastback Networks, Inc. 2460 N First St. #200 San Jose, CA 95131 U.S.A. (408) 430-5440 www.fastbacknetworks.com IBR Installation Guide Page 2 of 32 Doc # 770-00001-3 Aug. 30, 2013 PURPOSE This Installation Guide provides detailed information related to initial configuration and installation of Fastback Network’s Intelligent Backhaul Radio (“IBR”). Supporting information is contained in the IBR Administration & Command Line Interface Guide (“CLI Guide”). Table of Contents Federal Communications Commission (FCC) Compliance Statement 4 1. Introducing Intelligent Backhaul Radio (“IBR”) 5 1.1 Overview .......................................................................................................................................................... 5 1.2 Transmit & Receive Frequencies ...................................................................................................................... 5 1.3 Radio Features................................................................................................................................................. 5 1.4 Switch Features ............................................................................................................................................... 5 1.5 Regulatory Compliance ................................................................................................................................... 6 1.6 Deployment Options ........................................................................................................................................ 6 1.7 Physical & Environmental Features ................................................................................................................. 7 2. Getting Started 7 2.1 Physical Inspection .......................................................................................................................................... 7 2.2 Inventory ......................................................................................................................................................... 8 2.3 External Features ............................................................................................................................................ 8 2.4 Power Requirements ...................................................................................................................................... 9 2.5 Technical Assistance ........................................................................................................................................ 9 3. Communicating with IBR 9 3.1 Access Control ................................................................................................................................................. 9 3.2 Serial Console .................................................................................................................................................. 9 3.3 Remote Access & Default IP Addresses ........................................................................................................ 10 3.4 Command Line Interface (“CLI”) .................................................................................................................... 10 3.5 Antennas ....................................................................................................................................................... 11 3.6 Gigabit Ethernet Ports ................................................................................................................................... 11 3.7 Interfaces ....................................................................................................................................................... 11 3.8 External Ethernet connectors ........................................................................................................................ 11 3.9 LEDs ............................................................................................................................................................... 11 4. Preconfiguring IBR 11 4.1 Orienting IBRs For Bench Test And Preconfiguration .................................................................................... 11 4.2 Applying Power ............................................................................................................................................. 12 4.3 Logging Onto IBR Using Factory-Set User Name & Password ...................................................................... 12 4.4 Entering CLI User Mode ................................................................................................................................. 12 4.5 Entering CLI Privileged Mode ........................................................................................................................ 12 4.6 Confirming VLAN Settings ............................................................................................................................. 13 4.7 Displaying IBR IP Address .............................................................................................................................. 13 4.8 Separating Management Traffic From Data Traffic ...................................................................................... 13 4.9 Saving New Configuration ............................................................................................................................. 16 4.10 Changing Host Name .................................................................................................................................... 16 4.11 Changing Passwords ..................................................................................................................................... 16 4.12 Password Recovery ..................................................................................................…

Text truncated - open the document above for the full version.

REVDESCRIPTION INITIALS CONTROL#DATE S#qVUjq0J PROPRI)TVRYtVNQt(ON8IQ)NTIVL Thistdocumenttandtthetspecificationstand informationtcontainedthereintaretthe exclusivetpropertytoft8astbacktNetworks andtshalltnottbetcopied,treproduced,tor disclosedtoutsidetoft8astbacktNetworks excepttastrequiredttotexecutetthettermstof atcontracttortpurchasetordertissuedtby 8astbacktNetworks.tTheytshalltnottbe includedtintanytproposaltortpresentation materialstwithouttpriortwrittentdirectiontof 8astbacktNetworks. S9:6tN.t0sttSTR))TtSUIT)tS66 SantJose,t(Vtz50J0 TitleM QoctfM RevM )ngineerMQrawntbyM SizeMtV MaterialM8inishM ScaleMt0M0 SheetMt0toft0 S))tNOT)SS))tNOT)S L.NI(OLI 60 L.NI(OLI 60 LN)(Oq666005 QIM)NSIONStINtMILLIM)T)RS. TOL)RVN()StUNL)SStOTH)RWIS)tSP)(I8I)QM VNjULVR4Z)NQMtw4qt0tdegree X.XMtw4qt6.S5ttX.XXMtw4qt6.0ttX.XXXMtw4qt6.65 9S0q6666S LVZ)L,tIZR,t5.J,tVj)N(Yt()RTI8I(VTIONS NOT)SM 0.ttjR)YtLIN)StVR)t8ORtLVZ)LtR)8)R)N()tONLY. S.ttMVT)RIVLMttS))tZOM. J.ttVLLtMVT)RIVLStMUSTtZ)tRoHSt(OMPLIVNTtP)Rt)UtQIR)(TIV)tS66S4z54)(. 9.ttPRINTINjtRIZZONtSHVLLtZ)tR)SIN.ttPRINTINjtSHVLLt(OMPLYtWITHtULtR)(OjNIZ)Q tttttUNQ)RtULz:zty(LVSSt(OQ)tPjQQStORtPjjUSb. INITIVLtR)L)VS) 9S0q6666S 8((tIQMtSVV)Hq06S I(Mt0005gVq06S IP:: )J:S0#0 ThistdevicetcompliestwithtPartt05toftthet8((t Rules.Operationtistsubjectttotthetfollowingttwot conditionsMty0btthistdevicetmaytnottcausetharmfult interference,tandtySbtthistdevicetmusttaccepttanyt interferencetreceived,tincludingtinterferencetthatt maytcausetundesiredtoperation.

FCC Part 1 Subpart I FCC Part 2 Subpart J INDUSTRY CANADA RSS 102 ISSUE 3 RF EXPOSURE REPORT FOR Intelligent Backhaul Radio UNII 5.3GHz band MODEL NUMBER: IBR-1B FCC ID: 2AAEH-102 IC: 11158A-102 REPORT NUMBER: 13U14996 ISSUE DATE: 2013-10-18 Prepared for CBF NETWORKS, INC., DBA FASTBACK NETWORKS 2460 N. FIRST STREET, SUITE 200 SAN JOSE, CA 95131 Prepared by UL LLC 1285 WALT WHITMAN RD. MELVILLE, NY 11747, U.S.A. TEL: (631) 271-6200 FAX: (877) 854-3577 REPORT NO: 13U14996 DATE: 2013-10-18 FCC ID: 2AAEH-102 IC: 11158A-102 Page 2 of 12 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. Revision History Rev. Issue Date Revisions Revised By -- 2013- 10-18 Initial Issue Joseph Danisi REPORT NO: 13U14996 DATE: 2013-10-18 FCC ID: 2AAEH-102 IC: 11158A-102 Page 3 of 12 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. REFERENCES ................................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. MAXIMUM PERMISSIBLE RF EXPOSURE ....................................................................... 6 5.1. FCC RULES ................................................................................................................ 6 5.2. IC RULES .................................................................................................................... 7 5.3. EQUATIONS ................................................................................................................ 8 5.4. LIMITS AND IC EXEMPTION ...................................................................................... 9 6. RF EXPOSURE RESULTS ................................................................................................10 REPORT NO: 13U14996 DATE: 2013-10-18 FCC ID: 2AAEH-102 IC: 11158A-102 Page 4 of 12 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: CBF NETWORKS, INC., DBA FASTBACK NETWORKS 2460 N. FIRST STREET, SUITE 200 SAN JOSE, CA 95131 EUT DESCRIPTION: Intelligent Backhaul Radio UNII 5.3GHz band MODEL: IBR-1B SERIAL NUMBER: 56 DATE TESTED: 2013-05-02 to 2013-10-04 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 1 SUBPART I & PART 2 SUBPART J Pass INDUSTRY CANADA RSS 102 ISSUE 3 Pass UL LLC calculated the RF Exposure of the above equipment in accordance with the requirements set forth in the above standards using test results reported in the test report documents referenced below and/or documentation furnished by the applicant. All indications of Pass/Fail in this report are opinions expressed by UL LLC based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL LLC and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL CCS By: Calculated By: Bob DeLisi Joseph Danisi WiSE Principal Engineer WiSE Project Lead UL UL REPORT NO: 13U14996 DATE: 2013-10-18 FCC ID: 2AAEH-102 IC: 11158A-102 Page 5 of 12 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. 2. TEST METHODOLOGY All calculations were made in accordance with FCC OET Bulletin 65 Edition 97-01 and IC Safety Code 6. 3. REFERENCES All measurements were made as documented in test report UL Document 13U14996 for operation in the 5 GHz bands. Output power, Duty cycle and Antenna gain data is excerpted from the applicable test reports. Antenna gain data is excerpted from product documentation provided by the applicant. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at 1285 Walt Whitman Rd. Melville, NY 11747, USA. UL LLC is accredited by NVLAP, Laboratory Code 100255-0. The full scope of accreditation can be viewed at http://ts.nist.gov/standards/scopes/1002550.htm. REPORT NO: 13U14996 DATE: 2013-10-18 FCC ID: 2AAEH-102 IC: 11158A-102 Page 6 of 12 UL LLC FORM NO: CCSUP4701D 1285 WALT WHITMAN RD, MELVILLE, NY 11747, USA TEL: (631) 271-6200 FAX: (877) 854-3577 This report shall not be reproduced except in full, without the written approval of Underwriters Laboratories Inc. 5. MAXIMUM PERMISSIBLE RF EXPOSURE 5.1. FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (…

Text truncated - open the document above for the full version.

DFS PORTION of FCC 47 CFR PART 15 SUBPART E DFS PORTION of INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR POINT to POINT OUTDOOR INTELLIGENT BACKHAUL RADIO IN 5 GHz UNLICENSED BAND with an 802.11b MANAGEMENT INTERFACE MODEL NUMBER: IBR-1000-83N with DFS Software Version 1.1.0 FCC ID: 2AAEH-102 IC ID: 11158A-102 REPORT NUMBER: 13U14996-1 ISSUE DATE: SEPTEMBER 30, 2013 Prepared for CBF NETWORKS INC. dba FASTBACK NETWORKS INC. 2460 N. FIRST STREET, SUITE 200 SAN JOSE CA., 95131, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 13U14996-1 DATE: SEPTEMBER 30, 2013 FCC ID: 2AAEH-102 IC ID: 11158A-102 Page 2 of 79 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . Revision History Rev. Issue Date Revisions Revised By -- 09/30/13 Initial Issue T. Lee REPORT NO: 13U14996-1 DATE: SEPTEMBER 30, 2013 FCC ID: 2AAEH-102 IC ID: 11158A-102 Page 3 of 79 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 5. DYNAMIC FREQUENCY SELECTION ............................................................................... 6 5.1. OVERVIEW ................................................................................................................. 6 5.1.1. LIMITS .................................................................................................................. 6 5.1.2. TEST AND MEASUREMENT SYSTEM ................................................................ 9 5.1.3. SETUP OF EUT ...................................................................................................12 5.1.4. DESCRIPTION OF EUT ......................................................................................13 5.2. TEST CHANNEL ........................................................................................................14 5.2.1. RADAR WAVEFORMS ........................................................................................14 5.3. RESULTS FOR 9 MHz BANDWIDTH .........................................................................20 5.3.1. TRAFFIC .............................................................................................................20 5.3.2. CHANNEL AVAILABILITY CHECK TIME .............................................................20 5.3.3. OVERLAPPING CHANNEL TESTS .....................................................................20 5.3.4. MOVE AND CLOSING TIME ...............................................................................21 5.3.5. DETECTION BANDWIDTH ..................................................................................27 5.3.1. IN-SERVICE MONITORING ................................................................................29 5.4. RESULTS FOR 18 MHz BANDWIDTH .......................................................................36 5.4.1. TRAFFIC .............................................................................................................36 5.4.2. CHANNEL AVAILABILITY CHECK TIME .............................................................36 5.4.3. OVERLAPPING CHANNEL TESTS .....................................................................36 5.4.4. MOVE AND CLOSING TIME ...............................................................................37 5.4.5. DETECTION BANDWIDTH ..................................................................................43 5.4.6. IN-SERVICE MONITORING ................................................................................45 5.5. RESULTS FOR 35 MHz BANDWIDTH .......................................................................52 5.5.1. TRAFFIC .............................................................................................................52 5.5.2. CHANNEL AVAILABILITY CHECK TIME .............................................................53 5.5.3. OVERLAPPING CHANNEL TESTS .....................................................................62 5.5.4. MOVE AND CLOSING TIME ...............................................................................62 5.5.5. NON-OCCUPANCY PERIOD ..............................................................................68 5.5.6. DETECTION BANDWIDTH ..................................................................................69 6. SETUP PHOTOS ...............................................................................................................78 REPORT NO: 13U14996-1 DATE: SEPTEMBER 30, 2013 FCC ID: 2AAEH-102 IC ID: 11158A-102 Page 4 of 79 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 1. ATT…

Text truncated - open the document above for the full version.

DFS PORTION of FCC 47 CFR PART 15 SUBPART E DFS PORTION of INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR POINT to POINT INTELLIGENT BACKHAUL RADIO IN 5 GHz UNLICENSED BAND with an 802.11b MANAGEMENT INTERFACE MODEL NUMBER: IBR-1000-83N with DFS Software Version 1.1.1 FCC ID: 2AAEH-102 IC ID: 11158A-102 REPORT NUMBER: 13U14996-2 ISSUE DATE: OCTOBER 09, 2013 Prepared for CBF NETWORKS INC. dba FASTBACK NETWORKS INC. 2460 N. FIRST STREET, SUITE 200 SAN JOSE CA., 95131, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 13U14996-2 DATE: OCTOBER 9, 2013 FCC ID: 2AAEH-102 IC ID: 11158A-102 Page 2 of 148 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . Revision History Rev. Issue Date Revisions Revised By -- 10/09/13 Initial Issue T. Lee REPORT NO: 13U14996-2 DATE: OCTOBER 9, 2013 FCC ID: 2AAEH-102 IC ID: 11158A-102 Page 3 of 148 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 6 4.2. SAMPLE CALCULATION ............................................................................................ 6 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 6 5. DYNAMIC FREQUENCY SELECTION ............................................................................... 7 5.1. OVERVIEW ................................................................................................................. 7 5.1.1. LIMITS .................................................................................................................. 7 5.1.2. TEST AND MEASUREMENT SYSTEM ...............................................................10 5.1.3. SETUP OF EUT ...................................................................................................13 5.1.4. DESCRIPTION OF EUT ......................................................................................14 5.2. PRIMARY SENSOR TEST RESULTS ........................................................................15 5.2.1. TEST CHANNEL .................................................................................................15 5.2.2. RADAR WAVEFORMS ........................................................................................15 5.3. RESULTS FOR 9 MHz BANDWIDTH .........................................................................21 5.3.1. TRAFFIC .............................................................................................................21 5.3.2. CHANNEL AVAILABILITY CHECK TIME .............................................................21 5.3.3. OVERLAPPING CHANNEL TESTS .....................................................................21 5.3.4. MOVE AND CLOSING TIME ...............................................................................22 5.3.5. DETECTION BANDWIDTH ..................................................................................28 5.3.6. IN-SERVICE MONITORING ................................................................................30 5.4. RESULTS FOR 18 MHz BANDWIDTH .......................................................................37 5.4.1. TRAFFIC .............................................................................................................37 5.4.2. CHANNEL AVAILABILITY CHECK TIME .............................................................37 5.4.1. OVERLAPPING CHANNEL TESTS .....................................................................37 5.4.2. MOVE AND CLOSING TIME ...............................................................................38 5.4.3. DETECTION BANDWIDTH ..................................................................................44 5.4.4. IN-SERVICE MONITORING ................................................................................46 5.5. RESULTS FOR 35 MHz BANDWIDTH .......................................................................53 5.5.1. TRAFFIC .............................................................................................................53 5.5.2. CHANNEL AVAILABILITY CHECK TIME .............................................................54 5.5.3. CHANNEL AVAILABILITY CHECK DUAL SENSOR BAND BLOCKING VERIFICATION TEST ........................................................................................................63 5.5.4. OVERLAPPING CHANNEL TESTS .....................................................................74 5.5.5. MOVE AND CLOSING TIME ...............................................................................74 5.5.6. NON-OCCUPANCY PERIOD ..............................................................................80 5.5.7. DETECTION BANDWIDTH ..................................................................................81 5.5.8. IN-SERVICE MONITORING ................................................................................83 5.6. SECONDARY SENSOR TEST RESULTS ...............................................................…

Text truncated - open the document above for the full version.

Waveform Parameters for FCC Long Pulse Radar Test Signal 5 Burst Number of Pulses Pulse WidthChirp Width Pulse 1 to 2 PRI Pulse 2 to 3 PRI Starting Location (us)(MHz)(us)(us)(us) Waveform Num = 1; Num of Bursts = 16; Burst Interval (us) = 750000.0; Total pulses in waveform = 33 1110018 --- --- 282425 2265101830 --- 761371 335516132418141982399 417016 --- --- 2688478 519015 --- --- 3745292 618515 --- --- 3764368 73808197419245229663 815012 --- --- 5486845 9255201439 --- 6543115 1039015147415307441179 1127051996 --- 7654495 12310019195911478279248 1337520111715659080373 1427081196 --- 9856934 15250161836 --- 11100297 16395121408149111491499 Burst Number of Pulses Pulse WidthChirp Width Pulse 1 to 2 PRI Pulse 2 to 3 PRI Starting Location (us)(MHz)(us)(us)(us) Waveform Num = 2; Num of Bursts = 17; Burst Interval (us) = 705882.0; Total pulses in waveform = 33 1290151917 --- 409194 215512 --- --- 807671 33956150915891950367 4295151221 --- 2349956 518520 --- --- 3224454 638017145017073655195 7285121361 --- 4412160 83808125917115026191 937012136518165852309 1037016158514786491890 1118514 --- --- 7757839 1226561092 --- 7841216 1326561366 --- 8575954 14290141139 --- 9778770 1517015 --- --- 9960975 161558 --- --- 11007629 1718011 --- --- 11571290 Random DFS waveform parameters (NewBin5) 25-Sep-2013 07:28:58 Burst Number of Pulses Pulse WidthChirp Width Pulse 1 to 2 PRI Pulse 2 to 3 PRI Starting Location (us)(MHz)(us)(us)(us) Waveform Num = 3; Num of Bursts = 10; Burst Interval (us) = 1200000.0; Total pulses in waveform = 18 117514 --- --- 683976 23807165718821440777 31909 --- --- 3435707 417513 --- --- 4765471 51758 --- --- 5513752 638018161414636495813 72100101957 --- 8257094 835515156311058422343 91607 --- --- 9788339 1025581626 --- 11567168 Burst Number of Pulses Pulse WidthChirp Width Pulse 1 to 2 PRI Pulse 2 to 3 PRI Starting Location (us)(MHz)(us)(us)(us) Waveform Num = 4; Num of Bursts = 19; Burst Interval (us) = 631579.0; Total pulses in waveform = 44 13851516531507625278 23100914061815804377 3275161738 --- 1549510 4260151571 --- 2450468 5285141813 --- 3115683 638515187714543729419 728591733 --- 4014935 81859 --- --- 4450700 93857138510065527439 1031009162012756048033 11280181289 --- 6868352 12265121205 --- 7031086 131657 --- --- 8148586 143858182817628439601 153906141919769373486 16290181221 --- 10070556 17350101897174710429232 18375201427185510760193 1915517 --- --- 11693320 Burst Number of Pulses Pulse WidthChirp Width Pulse 1 to 2 PRI Pulse 2 to 3 PRI Starting Location (us)(MHz)(us)(us)(us) Waveform Num = 5; Num of Bursts = 15; Burst Interval (us) = 800000.0; Total pulses in waveform = 26 1375711171083332240 2310017101915181064559 3260111669 --- 2261494 437011171612442434521 51657 --- --- 3829984 6265141059 --- 4437578 717518 --- --- 4893425 817014 --- --- 5944673 91659 --- --- 6401334 1039520138017187617467 11265151832 --- 8286453 121858 --- --- 9079549 1318018 --- --- 10298239 141757 --- --- 10540156 151809 --- --- 11624136 Burst Number of Pulses Pulse WidthChirp Width Pulse 1 to 2 PRI Pulse 2 to 3 PRI Starting Location (us)(MHz)(us)(us)(us) Waveform Num = 6; Num of Bursts = 10; Burst Interval (us) = 1200000.0; Total pulses in waveform = 24 11808 --- --- 1010588 23607108611561251798 3290101167 --- 2974322 438016102619814193827 539018187219394946564 6285131239 --- 6485959 736512187217377975371 8260191237 --- 8752617 9285181784 --- 9803203 103100141301158511473166 Burst Number of Pulses Pulse WidthChirp Width Pulse 1 to 2 PRI Pulse 2 to 3 PRI Starting Location (us)(MHz)(us)(us)(us) Waveform Num = 7; Num of Bursts = 9; Burst Interval (us) = 1333333.0; Total pulses in waveform = 21 11609 --- --- 1026755 225571012 --- 2072368 337016167219653351704 437016109012174463126 536512104319596294237 635014196312947852474 7255191574 --- 8709463 8295151347 --- 10058331 929071424 --- 10756647 Burst Number of Pulses Pulse WidthChirp Width Pulse 1 to 2 PRI Pulse 2 to 3 PRI Starting Location (us)(MHz)(us)(us)(us) Waveform Num = 8; Num of Bursts = 15; Burst Interval (us) = 800000.0; Total pulses in waveform = 32 13751418611172316354 21759 --- --- 1208720 337514110317912184208 41658 --- --- 2761197 5280171214 --- 3383397 635518154110974783415 73858199315015002780 8250111821 --- 6375552 935512151818036691128 1028571891 --- 7880236 1129571093 --- 8741341 12255161048 --- 9249950 13280111503 --- 10075740 1419017 --- --- 10622850 15285121200 --- 11292717 Burst Number of Pulses Pulse WidthChirp Width Pulse 1 to 2 PRI Pulse 2 to 3 PRI Starting …

Text truncated - open the document above for the full version.
