2AAGEAP6255Module

User manual Product Name: Module Model Name: AP6255 Manufacture: Chengdu Vantron Technology, Ltd. Features: • IEEE 802.11a/b/g/n/ac dual-band radio with virtual-simultaneous dual-band operation • Single-stream spatial multiplexing up to 433.3 Mbps data rate. • Supports 20, 40, 80 MHz channels with optional SGI(256 QAM modulation) • Supports Bluetooth V4.2+EDR with integrated PA for Class 1.5 and Low Energy (BLE). • Concurrent Bluetooth, and WLAN operation • Simultaneous BT/WLAN receive with single antenna • Supports standard SDIO v3.0 and backward compatible with SDIO v2.0 host interfaces. - SDIO v3.0(4-bit) — up to 208 MHz clock rate in SDR104 mode • BT host digital interface: - UART (up to 4 Mbps) • IEEE Co-existence technologies are integrated die solution • ECI — enhanced coexistence support, ability to coordinate BT SCO transmissions around WLAN receives • Front view Back view General Specification: Voltages： FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IC Warning This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement Le modular peut être installé ou intégré dans un mobile ou réparer une seule chose Installation dans n’importe quel appareil portable. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration de rayonnement IC Ce modular complies avec des radiations émettrices de rayonnement Environnement. Ceci ne doit pas être co-localisé ou opérer avec des autres Ce modular doit être installé et obtenu avec une distance minimale de 20 cm entre les radiateurs et le corps de l’utilisateur. Antenna requirements 1. Antenna List: Antenna type: PIFA Antenna Connector Type: USS RFI BT Antenna Gain: 2.8dBi Antenna impedance: 50 (Ω) Frequency range: 2400-2500MHz/5150-5850MHz This device is intended only for OEM integrators under the following conditions: (For module device use) 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour utilisation de dispositif module) 1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre l'antenne et les utilisateurs, et 2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne. Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son produit final pour toutes exigences de conformité supplémentaires requis pour ce module installé. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. 2.4GWIFI Antenna Gain: 2.8dBi 5G WIFI Antenna Gain: 2.9dBi

WiFi & BT CHIP AP6255 U.FL connector for external antenna VBAT 3.3V 802.11a/b/g/n/ac AP6255 VDDIO_WL 1.8V Crystal 37.4MHz BT 4.2+EDR/LE Operation Frequency:2402~2480 MHz 2.4G WIFI Operation Frequency: 802.11b/g/n 20: 2412~2462 MHz 5G WIFI IEEE 802.11a/ n(HT20)/ac(VHT20):5.180GHz-5.240GHz IEEE 802.11n(HT40)/ac(VHT40): 5.190GHz-5.310GHz IEEE 802.11ac(VHT80): 5.210GHz 5.8G WIFI IEEE 802.11a/ n(HT20)/ac(VHT20):5.745GHz-5.825GHz IEEE 802.11n(HT40)/ac(VHT40): 5.755GHz-5.795GHz IEEE 802.11ac(VHT80): 5.775GHz BT/WIFI ANT BCM43455XKUBG

Single Modular approval Declaration letter We ,apply Single modular approval for Product Name: Module Model: AP6255 FCC ID: 2AAGEAP6255 According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must beon the module assembly; Answer ：Yes，with shielded 2)The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer ：Yes ；All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer ：Yes ；A low drop out regulator is used for modular power supply regulation. 4)The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer ：Yes ；Device is equipped with Integral antenna. (5)The module must demonstrate compliance in a stand-alone configuration; Answer ：Yes，distance between modular and all AEs are longer than 20cm ，refer to setup photo. (6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer ：Yes ；The modular has a permanent fixed label, and below statement was listed in the User Manual;The host device must be labeled to display the FCCID of the module Contains FCC ID: 2AAGEAP6255 (7)The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer ：Yes ；The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8)The module must comply with RF exposure requirements Answer ：Yes ；Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPEReports and Refer to modular installation manual Date 2020.06.30 Signature Name: Wang Xi Title: Manager Company: Chengdu Vantron Technology, Ltd. Address: No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045

Chengdu Vantron Technology, Ltd. TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.06.30 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Module / AP6255 /FCC ID: 2AAGEAP6255) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description • SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Name: Wang Xi Signature:

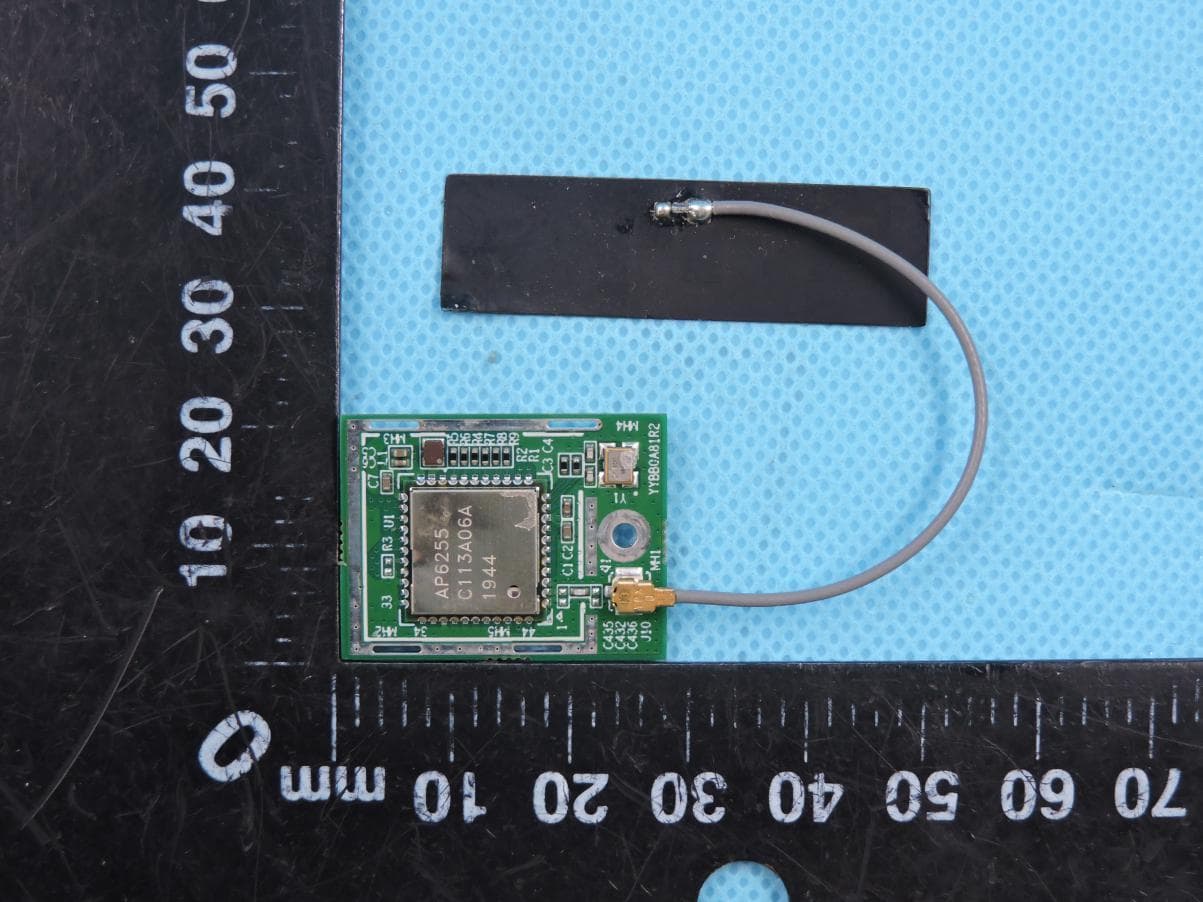

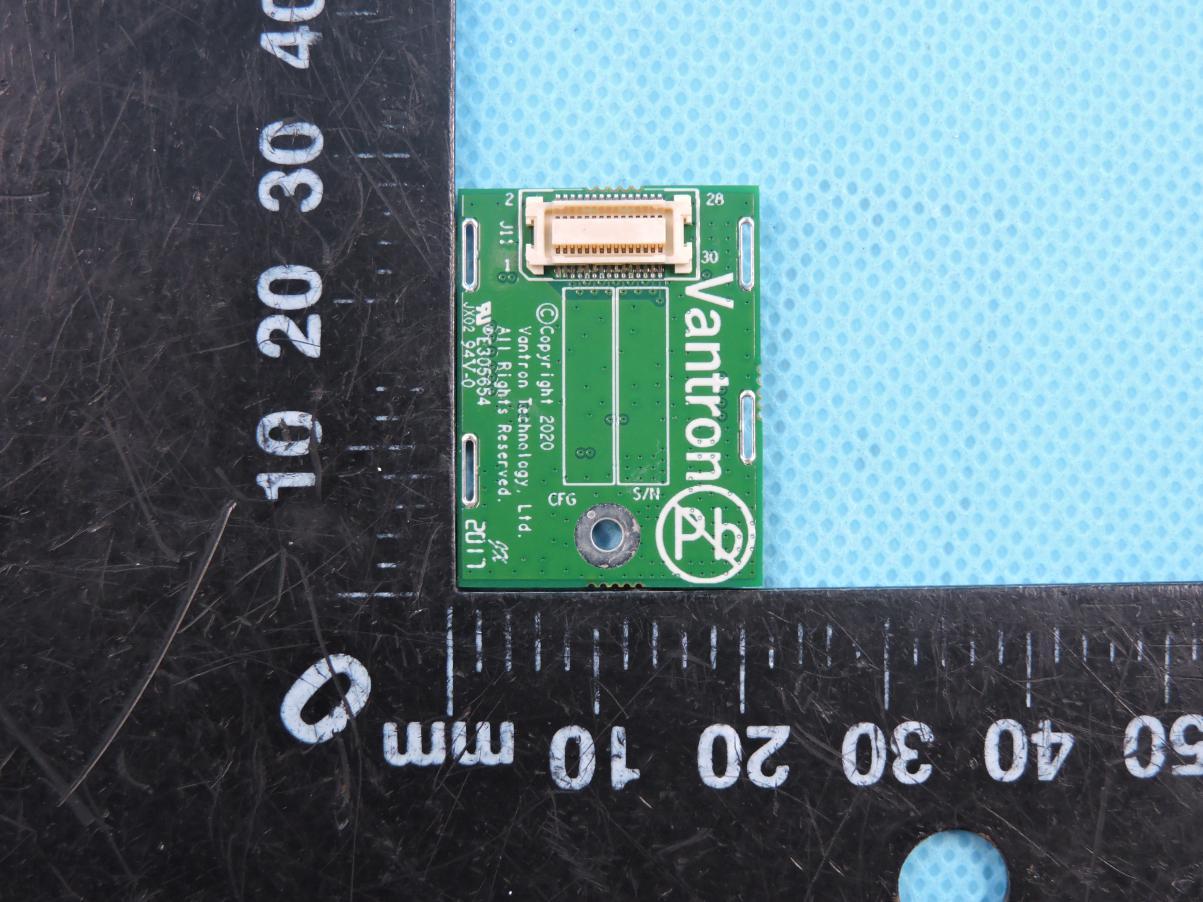

Page 1 of 4 Report No.: STS2004070 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 BT/WIFI Antenna Page 2 of 4 Report No.: STS2004070 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2004070 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2004070 Photo 7

FCC Label Module Model name: AP6255 FCC ID: 2AAGEAP6255 .

Page 1 of 2 Report No.: STS2004070 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 2 Report No.: STS2004070 Photo 3

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2004070W07 Issued for Chengdu Vantron Technology, Ltd. No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045 Product Name: Module Brand Name: N/A Model Name: AP6255 Series Model: N/A FCC ID: 2AAGEAP6255 IC: 11152A-AP6255 Test Standard: FCC Part 15.247 RSS-247 Issue 2, February 2017 S T L A B S Page 2 of 49 Report No.: STS2004070W07 TEST RESULT CERTIFICATION Applicant’s Name ..................: Chengdu Vantron Technology, Ltd. Address ..................................: No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045 Manufacture's Name .............: Chengdu Vantron Technology, Ltd. Address ..................................: No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045 Product Description Product Name .........................: Module Brand Name ..........................: N/A Model Name ...........................: AP6255 Series Model ...........................: N/A Test Standards ......................: FCC Part15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5 ,March 2019 Test Procedure .......................: ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC/IC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date of receipt of test item ...................... : 27 Apr. 2020 Date (s) of performance of tests ............. : 27 Apr. 2020 ~ 02 June 2020 Date of Issue ........................................... : 03 June 2020 Test Result ............................................... : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 49 Report No.: STS2004070W07 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 TEST PROCEDURE 15 3.3 TEST SETUP 15 3.4 EUT OPERATING CONDITIONS 15 3.5 TEST RESULTS 16 4. RADIATED EMISSION MEASUREMENT 18 4.1 RADIATED EMISSION LIMITS 18 4.2 TEST PROCEDURE 21 4.3 TEST SETUP 22 4.4 EUT OPERATING CONDITIONS 22 4.5 FIELD STRENGTH CALCULATION 23 4.6 TEST RESULTS 24 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 5.1 LIMIT 31 5.2 TEST PROCEDURE 31 5.3 TEST SETUP 31 5.4 EUT OPERATION CONDITIONS 31 5.5 TEST RESULTS 32 6. POWER SPECTRAL DENSITY TEST 36 6.1 LIMIT 36 6.2 TEST PROCEDURE 36 6.3 TEST SETUP 36 Page 4 of 49 Report No.: STS2004070W07 Table of Contents 6.4 EUT OPERATION CONDITIONS 36 6.5 TEST RESULTS 37 7. BANDWIDTH TEST 39 7.1 LIMIT 39 7.2 TEST PROCEDURE 39 7.3 TEST SETUP 39 7.4 EUT OPERATION CONDITIONS 39 7.5 TEST RESULTS 40 8. PEAK OUTPUT POWER TEST 44 8.1 LIMIT 44 8.2 TEST PROCEDURE 44 8.3 TEST SETUP 44 8.4 EUT OPERATION CONDITIONS 44 8.5 TEST RESULTS 45 9. ANTENNA REQUIREMENT 47 9.1 STANDARD REQUIREMENT 47 9.2 EUT ANTENNA 47 10. FREQUENCY STABILITY 48 10.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT 48 10.2 TEST PROCEDURE 48 10.3 TEST RESULT 48 11. EUT TEST PHOTO 49 Page 5 of 49 Report No.: STS2004070W07 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 03 June 2020 STS2004070W07 ALL Initial Issue Page 6 of 49 Report No.: STS2004070W07 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C RSS-247 Issue 2 Standard Section Test Item Judgment Remark 15.207 RSS-Gen 8.8 Conducted Emission PASS -- 15.247 (a)(2) RSS-Gen 6.7 RSS-247 5.2 a) 6dB Bandwidth 99% Bandwidth PASS -- 15.247 (b)(3) RSS-247 5.4 d) Output Power PASS -- 15.247 (c) RSS-Gen 8.9 8.10 Radiated Spurious Emission PASS -- 15.247 (d) RSS-247 5.5 RSS-Gen 8.9 8.10 Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) RSS-247 5.2 b) Power Spectral Density PASS -- 15.205 RSS-Gen 8.9 8.10 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) RSS-247 5.5 RSS-Gen 8.9 8.10 Band Edge Emission PASS -- 15.203 RSS-Gen 6.8 Antenna Requirement PASS -- RSS-Gen 6.11 8.11 Frequency Stability PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 49 Report No.: STS2004070W07 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±6.7dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, rad…
