Product Name: Module Model Name: MOB-WBT-56 Hardware Manual Rev 2.1 2021/03/01 Chengdu Vantron Technology Co., Ltd. User’s Manual Revision record Rev. Date Change Description Editor 1.0 2021-02-01 Initial Version XJ.WU MOB-WBT-56 WiFi 11ac + Bluetooth V5.0 Product Description The device is Module, model name is MOB-WBT-56, Features： • IEEE 802.11a/b/g/n/ac dual-band radio with virtual-simultaneous dual-band operation • Single-stream spatial multiplexing up to 433.3 Mbps data rate. • Supports 20, 40, 80 MHz channels with optional SGI(256 QAM modulation) • Supports Bluetooth V5.0+EDR with integrated PA for Class 1.5 and Low Energy (BLE). • Concurrent Bluetooth, and WLAN operation • Simultaneous BT/WLAN receive with single antenna • Supports standard SDIO v3.0 and backward compatible with SDIO v2.0 host interfaces. - SDIO v3.0(4-bit) — up to 208 MHz clock rate in SDR104 mode • BT host digital interface: - UART (up to 4 Mbps) • IEEE Co-existence technologies are integrated die solution • ECI — enhanced coexistence support, ability to coordinate BT SCO transmissions around WLAN receives • Front view Back view General Specification： Model name MOB-WBT-56 Product Description Support WI-FI/Bluetooth function 1Tx/1Rx 802.11ac/a/b/g/n WIFI+BT 5.0 Dimension L*W*H:12*12*1.5mm WIFI interface SDIO v2.0/v3.0 BT interface UART/PCM Operating temperature -30°C to 85°C Storage temperature -40°C to 125°C Humidity Operating humidity less than85% Non-condensing Antenna Model:81800UXX2 Antenna type: Internal Antenna Connector Type: USS RFI Peakgain:2400-2480MHz:2.66dBi, 5150-5850MHz:5.41dBi Voltages： Bluetooth Specification： Wi-Fi RF Specification 2.4GHz RF Specification： Support 802.11b,802.11g,802.11n (20MHz) 5GHz RF Specification： Support 802.11a,802.11n (20MHz,40MHz),802.11ac (20MHz,40MHz,80MHz) General Statements 1. Antenna List: Antenna type: PIFA Antenna Connector Type: USS RFI BT/2.4GWIFI Antenna Gain: 2.66dBi 5GWIFI Antenna Gain: 5.04dBi Antenna impedance: 50 (Ω) Frequency range: 2400-2500MHz/5150-5850MHz 2. Any change of antenna type is not allowed. The module only used PIFA antenna. 3. Host containing the modules must comply with FCC Rule requirement. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device is intended only for OEM integrators under the following conditions: (For module device use) The antenna must be installed such that 20 cm is maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). The end-product may need Verification testing, Declaration of Conformity testing, a Permissive Class II Change or new Certification. Please involve a FCC certification specialist in order to determine what will be exactly applicable for the end-product. FCC Radiation Exposure Statement This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2AAGEWBT56/IC: 11152A-WBT56 Or Contains FCC ID: 2AAGEWBT56/IC: 11152A-WBT56” When the module is installed inside another device, the user manual of the host must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipm…

Text truncated - open the document above for the full version.

Chengdu Vantron Technology Co., Ltd. Agent Authorization Company: Chengdu Vantron Technology Co., Ltd. Address: No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045 Product Name: Module Model Number(s): MOB-WBT-56 Product Description: Module BDR/EDR/BLE/802.11a/b/g/n/ac We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-04-08 Name: Wang Xi Title: Manager Company: Chengdu Vantron Technology Co., Ltd.

Chengdu Vantron Technology Co., Ltd. Authorization Letter We, (the approval holder) Company name Chengdu Vantron Technology Co., Ltd. Addresss No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045 declare that the following representative (agent): Name (person) Bovey Yang Company name Shenzhen STS Test Services Co., Ltd. Addresss 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Micom Labs for product certification below Product Description Module Type or Model(s) MOB-WBT-56 Tradename or Brand(s) VANTRON Attestation: City: Date: Name: (this must be a person) Function: Signature: (or official company stamp) China 2021/04/08 Wang Xi Manager

Chengdu Vantron Technology Co., Ltd. FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Subject; Modular Transmitter Application Company name: Chengdu Vantron Technology Co., Ltd. FCC ID: 2AAGEWBT56 Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID_2AAGEWBT56 has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, with shielded The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes , All inputs to the modules are buffered through logic or microprocessor inputs. The module must contain power supply regulation on the module. Yes, A low drop out regulator is used for modular power supply regulation. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Yes, Device is equipped with Integral antenna. The module must demonstrate compliance in a stand-alone configuration. Yes, distance between modular and all AEs are longer than 20cm ，refer to setup photo. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). Yes ,The modular has a permanent fixed label, and below statement was listed in the User Manual; The host device must be labeled to display the FCCID of the module Contains FCC ID: 2AAGEWBT56 The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes ,The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual Chengdu Vantron Technology Co., Ltd. FCC Modular Approval Request Rev 3.0 The module must comply with RF exposure requirements Yes , Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules 2.3 Summarize the specific operational use conditions 2.4 Limited module procedures 2.5 Trace antenna designs 2.6 RF exposure considerations 2.7 Antennas 2.8 Label and compliance information 2.9 Information on test modes and additional testing requirements 2.10 Additional testing, Part 15 Subpart B disclaimer Name: Wang Xi Date: 2021.04.11 Title: Manager Signature of applicant:

Chengdu Vantron Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021/04/08 Subject; Request for Confidentiality FCC ID: 2AAGEWBT56 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Chengdu Vantron Technology Co., Ltd. Name: Wang Xi Title: Manager

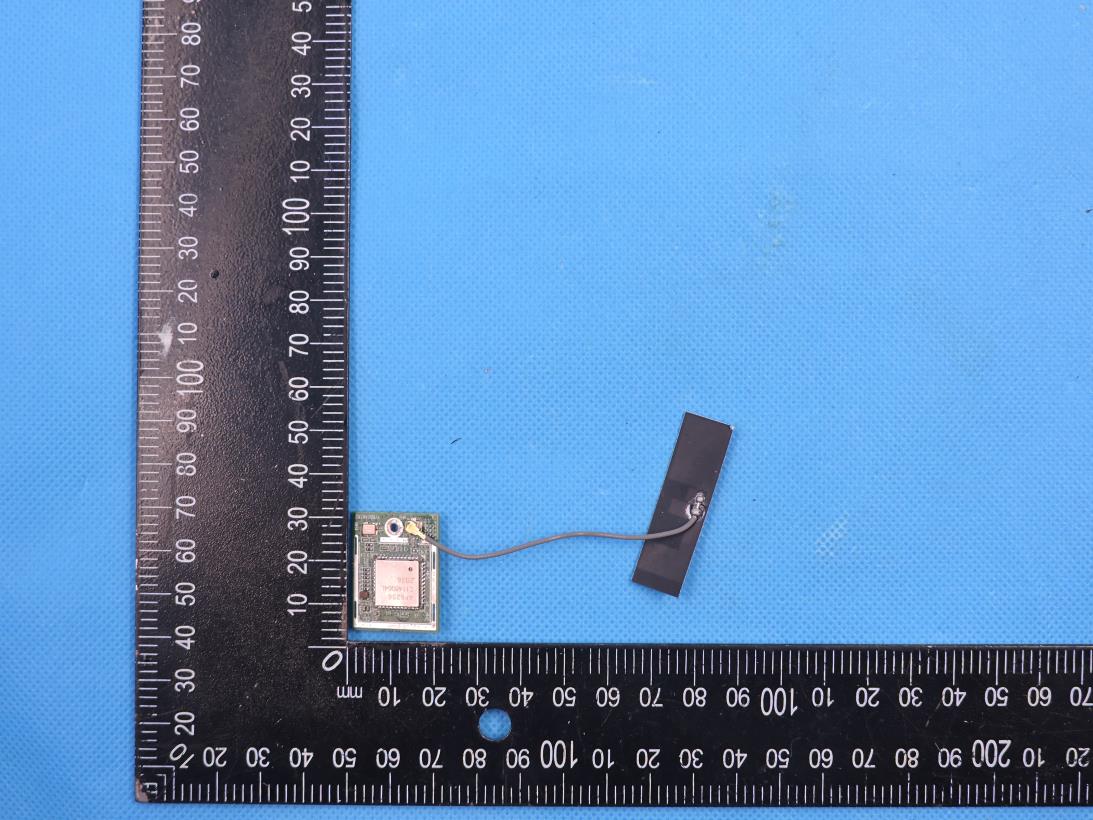

Report No: STS2103057 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: MOB-WBT-56 Photo 1 Photo 2 BT/2.4G/5G WIFI Antenna Report No: STS2103057 Photo 3

FCC Label Module Model name: MOB-WBT-56 FCC ID: 2AAGEWBT56 IC: 11152A-WBT56 .

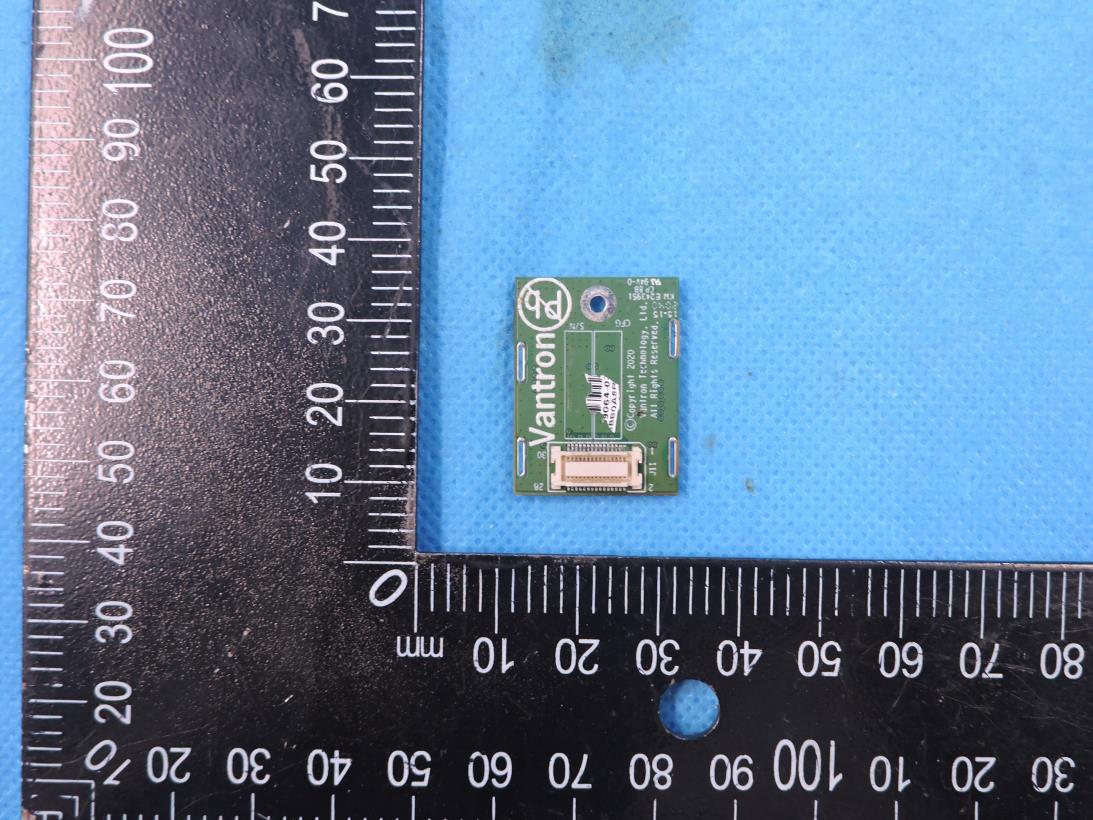

Report No: STS2103057 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: MOB-WBT-56 Photo 1

RF Exposure Report FCC ID: 2AAGEWBT56 RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. BT5.0+EDR Mode 2402-2480MHz Detector PEAK GFSK 7.29±1dBm π/4-DQPSK 5.5±1dBm 8DPSK 5.5±1dBm ANT Gain (G) Antenna gain : 2.66dBi (gain of antenna in linear scale=1.85) GFSK1.852480 8.296.74530.00248 1 π/4- DQPSK 1.852441 6.54.46680.00164 1 8DPSK1.852441 6.54.46680.00164 1 Power Density (mW/cm²) Limit (mW/cm ²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) BT5.0 LE Mode 2402-2480MHz Detector PEAK GFSK 5±1dBm ANT Gain (G) Antenna gain : 2.66dBi (gain of antenna in linear scale=1.85) GFSK1.852440 63.98110.00147 1 Power Density (mW/cm²) Limit (mW/cm ²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) 2.4G WIFI Mode 802.11b/g/n20:2412-2462MHz Detector PEAK 802.11b 16±1dBm 802.11g 16±1dBm 802.11n20 16±1dBm ANT Gain (G) Antenna gain : 2.66dBi (gain of antenna in linear scale=1.85) 802.11 b1.852462 1750.11870.01846 1 802.11 g1.852462 1750.11870.01846 1 802.11 n201.852412 1750.11870.01846 1 Power Density (mW/cm²) Limit (mW/cm ²) ANT Gain(gain of antenna in linear scale) Protocol Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) 5G WIFI ANT Gain (G) Mode IEEE 802.11a/ n(HT20)/ac(VHT20): 5.180GHz-5.240GHz IEEE 802.11n(HT40)/ac(VHT40): 5.190GHz-5.310GHz IEEE 802.11ac(VHT80): 5.210GHz Detector AV 802.11a/n/ac(HT20) 9±1dBm 802.11 n/ac(HT40) 9±1dBm 802.11 ac(HT80) 14±1dBm ANT Gain (G) Antenna gain : 5.04dBi (gain of antenna in linear scale=3.19) 802.11 a/n/ac(HT20) 3.195180 1010.00000.09999 1 802.11 n/ac(HT40) 3.195190 1010.00000.00635 1 802.11 ac(HT80) 3.195210 1531.62280.02008 1 Power Density (mW/cm²) Limit (mW/cm ²) ANT Gain(gain of antenna in linear Protocol Channel Frequen cy (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) 5G WIFI ANT Gain (G) Mode IEEE 802.11a/ n(HT20)/ac(VHT20): 5.745GHz-5.825GHz IEEE 802.11n(HT40)/ac(VHT40): 5.755GHz-5.795GHz IEEE 802.11ac(VHT80): 5.775GHz Detector AV 802.11 a/n/ac(HT20) 4±1dBm 802.11 n/ac(HT40) 5±1dBm 802.11 ac(HT80) 12±1dBm ANT Gain (G) Antenna gain : 5.04dBi (gain of antenna in linear scale=3.19) 802.11 a/n/ac(HT20) 3.195745 53.16230.03162 1 802.11 n/ac(HT40) 3.195755 63.98110.00253 1 802.11 ac(HT80) 3.195775 1319.95260.01267 1 Power Density (mW/cm²) Limit (mW/cm ²) ANT Gain(gain of antenna in linear Protocol Channel Frequen cy (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) According to the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value 0.0999 distance 20cm. This is less than the limit 1, so Compliance the RF exposure requirement.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2103057W07 Issued for Chengdu Vantron Technology Co., Ltd. No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045 Product Name: Module Brand Name: VANTRON Model Name: MOB-WBT-56 Series Model: N/A FCC ID: 2AAGEWBT56 IC: 11152A-WBT56 Test Standard: FCC Part 15.247 RSS-247 Issue 2, February 2017 S T L A B S Page 2 of 68 Report No.: STS2103057W07 TEST RESULT CERTIFICATION Applicant’s Name ................. : Chengdu Vantron Technology Co., Ltd. Address ................................. : No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045 Manufacturer's Name .......... : Chengdu Vantron Technology Co., Ltd. Address ................................. : No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045 Product Description Product Name ....................... : Module Brand Name ........................ : VANTRON Model Name .......................... : MOB-WBT-56 Series Model ......................... : N/A Test Standards ..................... : FCC Part15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5 ,March 2019 Test Procedure ...................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC/IC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 11 Mar. 2021 Date (s) of performance of tests ............. : 11 Mar. 2021 ~ 31 Mar. 2021 Date of Issue .......................................... : 31 Mar. 2021 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 68 Report No.: STS2103057W07 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 TEST PROCEDURE 16 3.3 TEST SETUP 16 3.4 EUT OPERATING CONDITIONS 16 3.5 TEST RESULTS 17 4. RADIATED EMISSION MEASUREMENT 19 4.1 RADIATED EMISSION LIMITS 19 4.2 TEST PROCEDURE 22 4.3 TEST SETUP 23 4.4 EUT OPERATING CONDITIONS 23 4.5 FIELD STRENGTH CALCULATION 24 4.6 TEST RESULTS 25 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 38 5.1 LIMIT 38 5.2 TEST PROCEDURE 38 5.3 TEST SETUP 38 5.4 EUT OPERATION CONDITIONS 38 5.5 TEST RESULTS 39 6. POWER SPECTRAL DENSITY TEST 47 6.1 LIMIT 47 6.2 TEST PROCEDURE 47 Page 4 of 68 Report No.: STS2103057W07 Table of Contents 6.3 TEST SETUP 47 6.4 EUT OPERATION CONDITIONS 47 6.5 TEST RESULTS 48 7. BANDWIDTH TEST 52 7.1 LIMIT 52 7.2 TEST PROCEDURE 52 7.3 TEST SETUP 52 7.4 EUT OPERATION CONDITIONS 52 7.5 TEST RESULTS 53 8. PEAK OUTPUT POWER TEST 61 8.1 LIMIT 61 8.2 TEST PROCEDURE 61 8.3 TEST SETUP 61 8.4 EUT OPERATION CONDITIONS 61 8.5 TEST RESULTS 62 9. ANTENNA REQUIREMENT 65 9.1 STANDARD REQUIREMENT 65 9.2 EUT ANTENNA 65 10. FREQUENCY STABILITY 66 10.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT 66 10.2 TEST PROCEDURE 66 10.3 TEST RESULT 66 11. EUT TEST PHOTO 68 Page 5 of 68 Report No.: STS2103057W07 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 31 Mar. 2021 STS2103057W07 ALL Initial Issue Page 6 of 68 Report No.: STS2103057W07 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C RSS-247 Issue 2 Standard Section Test Item Judgment Remark 15.207 RSS-Gen 8.8 Conducted Emission PASS -- 15.247 (a)(2) RSS-Gen 6.7 RSS-247 5.2 a) 6dB Bandwidth 99% Bandwidth PASS -- 15.247 (b)(3) RSS-247 5.4 d) Output Power PASS -- 15.247 (c) RSS-Gen 8.9 8.10 Radiated Spurious Emission PASS -- 15.247 (d) RSS-247 5.5 RSS-Gen 8.9 8.10 Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) RSS-247 5.2 b) Power Spectral Density PASS -- 15.205 RSS-Gen 8.9 8.10 Restricted Band Edge Emission PASS -- Part 15.247(d)/part 15.209(a) RSS-247 5.5 RSS-Gen 8.9 8.10 Band Edge Emission PASS -- 15.203 RSS-Gen 6.8 Antenna Requirement PASS -- RSS-Gen 6.11 8.11 Frequency Stability PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 68 Report No.: STS2103057W07 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39…
