2AAIH-M2CBluetooth headset

Call Bluetooth Headset Muses
2C INSTRUCTION Press the Volume button "+" or "-" to turn volume up or down, you hear "beep" voice prompts once reach the maximum or minimum. ● Select "Muses2C" . If you phone asks, enter 0000 (four zeros) for the passcode or accept the connection. The LED indicator stops flashing red and blue once successfully paired. Voice prompts "Connection successful". ● Turn on Bluetooth headset, press and hold the Multifunction button for about 5 seconds, the LED indicator flashes red and blue alternately. Voice prompts "Pairing". ● Activate Bluetooth on your phone and set it to search for new devices. Volume - / Trackforward Volume + / Trackback Multifunction button Status indicator Turn on / off Charge port Following items are included Start here Product overview USB cable Ear caps Basic operation Volume adjust LED indicator and voice prompts Instruction Power on Power off Pairing LED status Stays blue for 2 seconds Stays red for 2 seconds Flashes red and blue alternately Voice prompts & Alerts Power on Power off Pairing Standby Incoming call Battery low Flashes blue twice every 5 seconds Flashes blue continuously Flashes red twice every 5 seconds Connection successful Vibration alerts Battery low ChargingRed while charging Blue fully charged / Instruction LED status Voice prompts & Alerts Pair one phone Pairing Pair another phone Multipoint technology enables you to pair another phone and take a call from either. To pair with another mobile phone, follow the steps for “Pair One Phone”. After pairing successfully, restart the Headset to connect to 2 paired mobile phone automatically. Answer a call End a call Reject a call Redial the last call MIC mute on/off Press the Multifunction button once. Press the Multifunction button once. Press and hold the Multifunction button for about 2 seconds. Double-press the Multifunction button in standby mode. The mobile phone will redial the last call number. Press the Volume button "-" for about 2 seconds to mute on/off. Hardware reset Turn on Bluetooth headset, press and hold the Multifunction button, connect the Headset to a USB charger, hardware reset is done. (Note: The Headset automatically power off, please switch the power button to off then on to power on the Headset) Music Switch between the Headset and phone Press the Volume button "+" for about 2 seconds during a call, the call will be switched to the mobile phone, redo this operation again, the call will be switched back to the Headset. (Need media player support) Music play / pause Press Multifunction button to play / pause music. Trackback Press the Volume button "+" for 2 seconds to skip track back. Switch Music and Call When a call rings during a music playing, the music automatically pauses to allow you to answer or ignore the call. Once the call is ignored or ends, the music is resumed. Trackforward Press the Volume button "-" for 2 seconds to skip track forward. Battery Indicator More features When the Headset is connected to a device with iOS system, a battery indicator will appear at the upper right of the system, indicating battery status of the Headset. Charging Your new Headset has enough power to pair and make a few calls. When battery is low, you will hear the voice prompt " Battery low ". It takes 2.5 hours to fully charge the Headset. While charging, the battery indicator light is red, the indicator light stays blue once charging is complete. Power off Switch the power button to Off position to turn off the Headset. (Note: Power off the Headset to save power when not in use.) End current call and answer new call When a new call rings during a call, press the Multifunction button to answer new call and end current call simultaneously. On hold current call and answer new call When a new call rings during a call, hold the Multifunction button for 2 seconds to hold current call and answer new call. To switch between held call and active call, Hold the multifunction button for 2 seconds. Voice dial (Need phone support) Press the Volume button "+" and "-" in standby mode, wait for phone prompt and then tell the phone to dial the name of a stored contact. Clear paired list Turn on the Headset, connect it to a USB charger of USB, press and hold the Volume button "+" and "-" simultaneously for about 5 seconds, LED flashes 5 times, paired list is cleared. (Note: The Headset automatically enter pairing mode when power on the first time after clear paired list) FCC ID:2AAIH-M2C This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Oct.10, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AAIH-M2C Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ZHICHENG LIMITED Contact person: Sky Lee Title: Manager

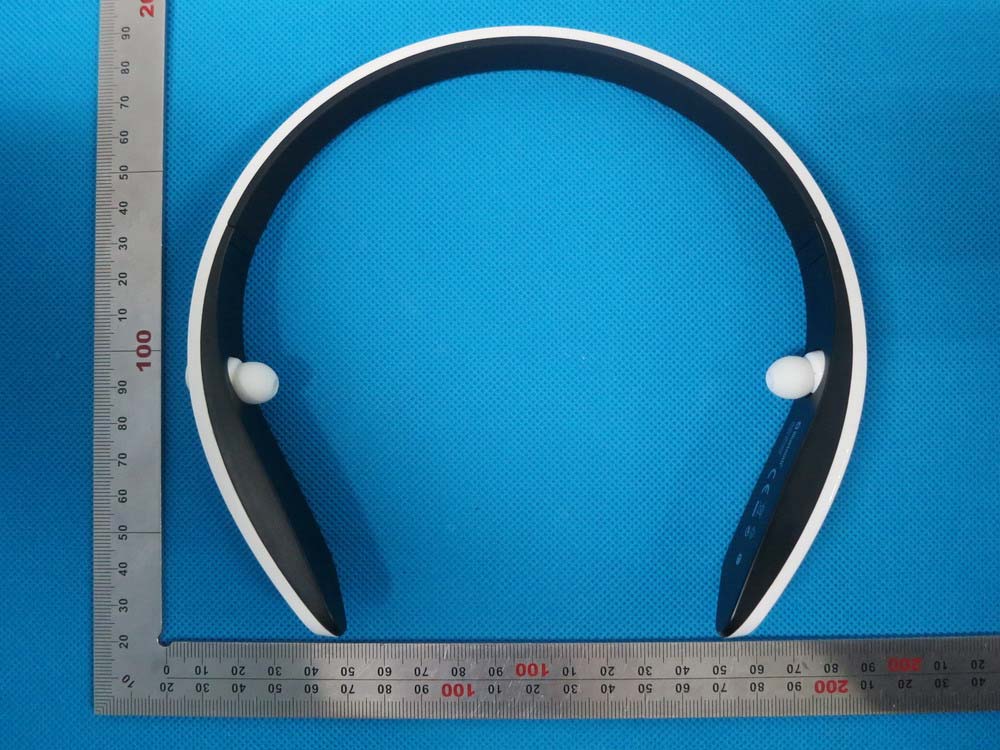

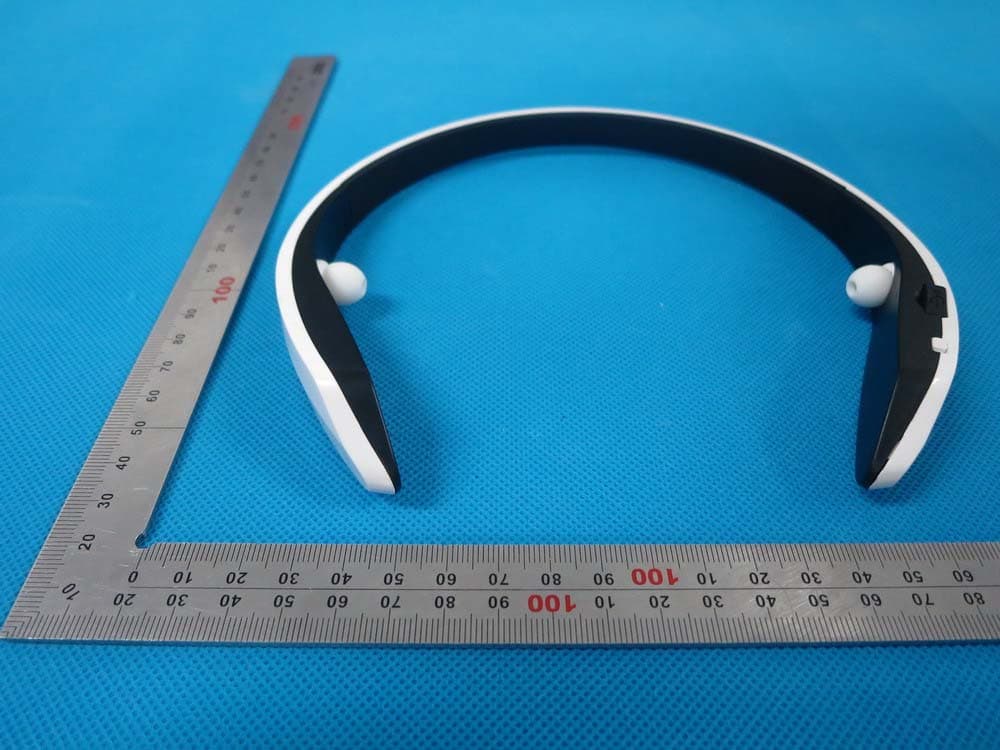

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: 2AAIH-M2C

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 Antenna

Page 1 of 50 FCC Test Report Report No.: AGC00015140901FE08 FCC ID : 2AAIH‐M2C APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Headset BRAND NAME : Cannice MODEL NAME : Muses2C CLIENT : Zhicheng Limited DATE OF ISSUE : Oct.09,2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00015140901FE08 Page 2 of 50 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Oct.09,2014 Valid Original Report Report No.: AGC00015140901FE08 Page 3 of 50 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE......................................................................................................... 5 2.GENERAL INFORMATION ...................................................................................................................... 6 2.1PRODUCT DESCRIPTION ............................................................................................................... 6 2.2 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................. 6 2.3TEST METHODOLOGY .................................................................................................................... 6 2.4 TEST FACILITY ................................................................................................................................ 6 2.5 SPECIAL ACCESSORIES ................................................................................................................ 6 2.6 EQUIPMENT MODIFICATIONS ....................................................................................................... 7 2.7 MEASUREMENT UNCERTAINTY ................................................................................................... 7 3. SYSTEM TEST CONFIGURATION ......................................................................................................... 8 3.1 CONFIGURATION OF TESTED SYSTEM ....................................................................................... 8 3.2 EQUIPMENT USED IN TESTED SYSTEM ...................................................................................... 8 3.3. SUMMARY OF TEST RESULTS ..................................................................................................... 8 4. DESCRIPTION OF TEST MODES .......................................................................................................... 9 5. ANTENNA REQUIREMENT .................................................................................................................... 9 5.1. STANDARD APPLICABLE .............................................................................................................. 9 5.2. TEST RESULT ................................................................................................................................ 9 6. TEST FACILITY ..................................................................................................................................... 10 7. RADIATED EMISSION .......................................................................................................................... 11 7.1 MEASUREMENT PROCEDURE .................................................................................................... 11 7.2 TEST SETUP .................................................................................................................................. 12 7.3 LIMITS AND MEASUREMENT RESULT ........................................................................................ 13 7.4 TEST RESULT (WORST MODULATION: GFSK) ................................................................................ 13 8. BAND EDGE EMISSION ....................................................................................................................... 26 8.1. MEASUREMENT PROCEDURE ................................................................................................... 26 8.2. TEST SET-UP ............................................................................................................................... 26 8.3. TEST RESULT .............................................................................................................................. 27 9. 6DB BANDWIDTH ................................................................................................................................ 31 9.1. TEST PROCEDURE ...................................................................................................................... 31 9.2. SUMMARY OF TEST RESULTS/PLOTS ...................................................................................... 31 10. CONDUCTED OUTPUT POWER ....................................................................................................... 33 10.1. MEASUREMENT PROCEDURE ................................................................................................. 33 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................................ 33 10.3. LIMITS AND MEASUREMENT RESULT ..................................................................................... 34 11. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ................................................ 36 11.1 MEASUREMENT PROCEDURE .................................................................................................. 36 Report No.: AGC00015140901FE08 Page 4 of 50 11.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ......................................................... 36 11.3 LIMITS AND MEASUREMENT RESULT ...................................................................................... 36 12. FCC LINE CONDUCTED EMISSION TEST ...................................................................…
