品名：muses2英文说明书 发行日期：2013/12/05 料号：415-13030201-000 版本：v1.0 要求： 1. 128g铜版纸 2. 双面单色印刷 3. 筒包折 4. 要求印刷清晰，对折整齐 5. 所使用材质及工艺符合RoHS/REACH标准要求 更新日志： 12/5 v1.0正式发行 制作： 审核： 批准： Music Call Bluetooth headset uses
2 INSTRUCTION Press the Volume button "+" or "-" to turn volume up or down, you hear "beep" voice prompts once reach the maximum or minimum. ● Select "Muses2" . If you phone asks, enter 0000 (four zeros) for the passcode or accept the connection. The LED indicator stops flashing red and blue once successfully paired. Voice prompts "Connection successful". NFC Pairing ● Turn on Bluetooth headset, press and hold the Multifunction button for about 5 seconds, the LED indicator flashes red and blue alternately. Voice prompts "Pairing". ● Activate Bluetooth on your phone and set it to search for new devices. Turn on Bluetooth headset, after 5 seconds, hold an NFC device against the NFC zone of the Headset. The LED indicator flashes red and blue, you hear voice prompts "Pairing", the LED indicator stops flashing red and blue once successfully paired, you hear voice prompts "Connection successful". NFC detection area Volume - / Trackforward Volume + / Trackback Multifunction button Status indicator Turn on / off Charge port Following items are included Start here Product overview USB cable Ear caps Basic operation Volume adjust LED indicator and voice prompts Instruction Power on Power off Pairing LED status Stays blue for 2 seconds Stays red for 2 seconds Flashes red and blue alternately Voice prompts & Alerts Power on Power off Pairing Standby Incoming call Battery low Flashes blue twice every 5 seconds Flashes blue continuously Flashes red twice every 5 seconds Connection successful Vibration alerts Battery low ChargingRed while charging Blue fully charged / Instruction LED status Voice prompts & Alerts Pair one phone Pairing Pair another phone Multipoint technology enables you to pair another phone and take a call from either. To pair with another mobile phone, follow the steps for “Pair One Phone”. After pairing successfully, restart the Headset to connect to 2 paired mobile phone automatically. Answer a call End a call Reject a call Redial the last call MIC mute on/off Press the Multifunction button once. Press the Multifunction button once. Press and hold the Multifunction button for about 2 seconds. Double-press the Multifunction button in standby mode. The mobile phone will redial the last call number. Press the Volume button "-" for about 2 seconds to mute on/off. Switch between the Headset and phone Press the Volume button "+" for about 2 seconds during a call, the call will be switched to the mobile phone, redo this operation again, the call will be switched back to the Headset. (Need media player support) Music play / pause Press Multifunction button to play / pause music. Trackback Press the Volume button "+" for 2 seconds to skip track back. Switch Music and Call When a call rings during a music playing, the music automatically pauses to allow you to answer or ignore the call. Once the call is ignored or ends, the music is resumed. Trackforward Press the Volume button "-" for 2 seconds to skip track forward. Battery Indicator More features When the Headset is connected to a device with iOS system, a battery indicator will appear at the upper right of the system, indicating battery status of the Headset. Charging Your new Headset has enough power to pair and make a few calls. When battery is low, you will hear the voice prompt " Battery low ". It takes 2.5 hours to fully charge the Headset. While charging, the battery indicator light is red, the indicator light stays blue once charging is complete. Power off Switch the power button to Off position to turn off the Headset. (Note: Power off the Headset to save power when not in use.) Hardware reset Turn on Bluetooth headset, press and hold the Multifunction button, connect the Headset to a USB charger, hardware reset is done. (Note: The Headset automatically power off, please switch the power button to off then on to power on the Headset) End current call and answer new call When a new call rings during a call, press the Multifunction button to answer new call and end current call simultaneously. On hold current call and answer new call When a new call rings during a call, hold the Multifunction button for 2 seconds to hold current call and answer new call. To switch between held call and active call, Hold the multifunction button for 2 seconds. Voice dial (Need phone support) Press the Volume button "+" and "-" in standby mode, wait for phone prompt and then tell the phone to dial the name of a stored contact. Clear paired list Turn on the Headset, connect it to a USB charger of USB, press and hold the Volume button "+" and "-" simultaneously for about 5 seconds, LED flashes 5 times, paired list is cleared. (Note: The Headset automatically enter pairing mode when power on the first time after clear paired list) FCC ID:2AAIH-MS02 m This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

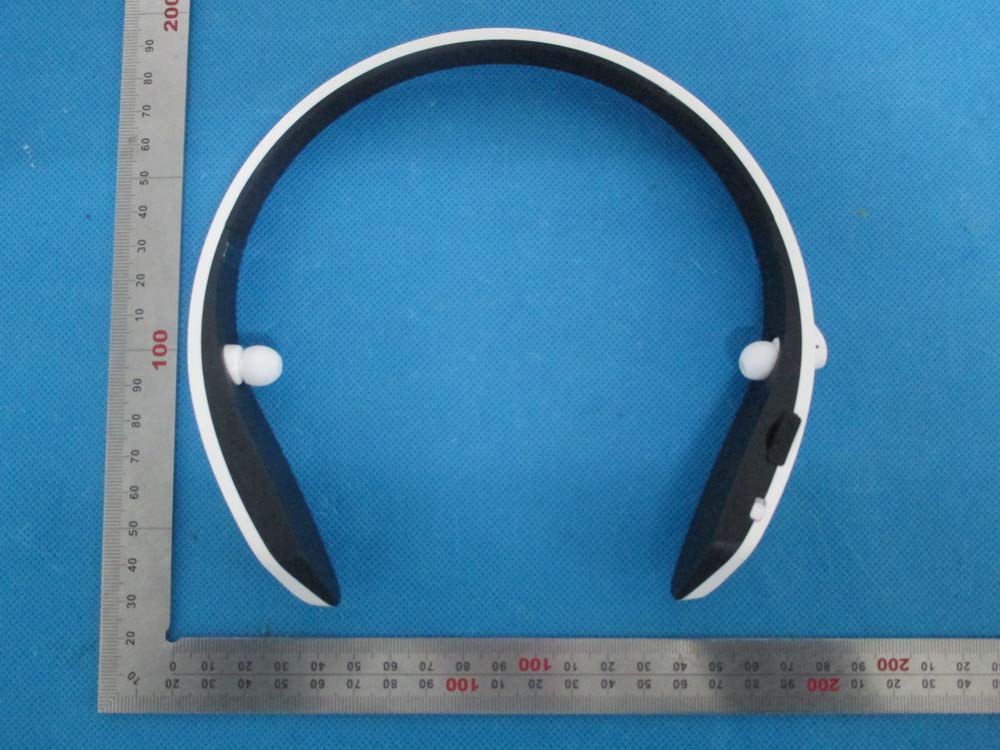

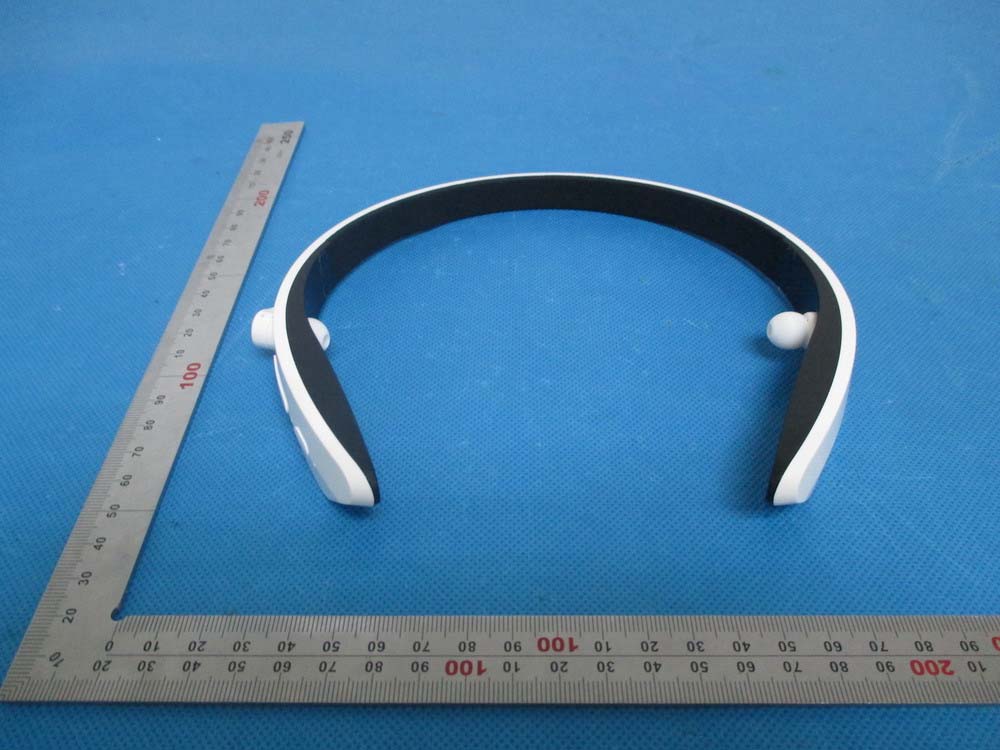

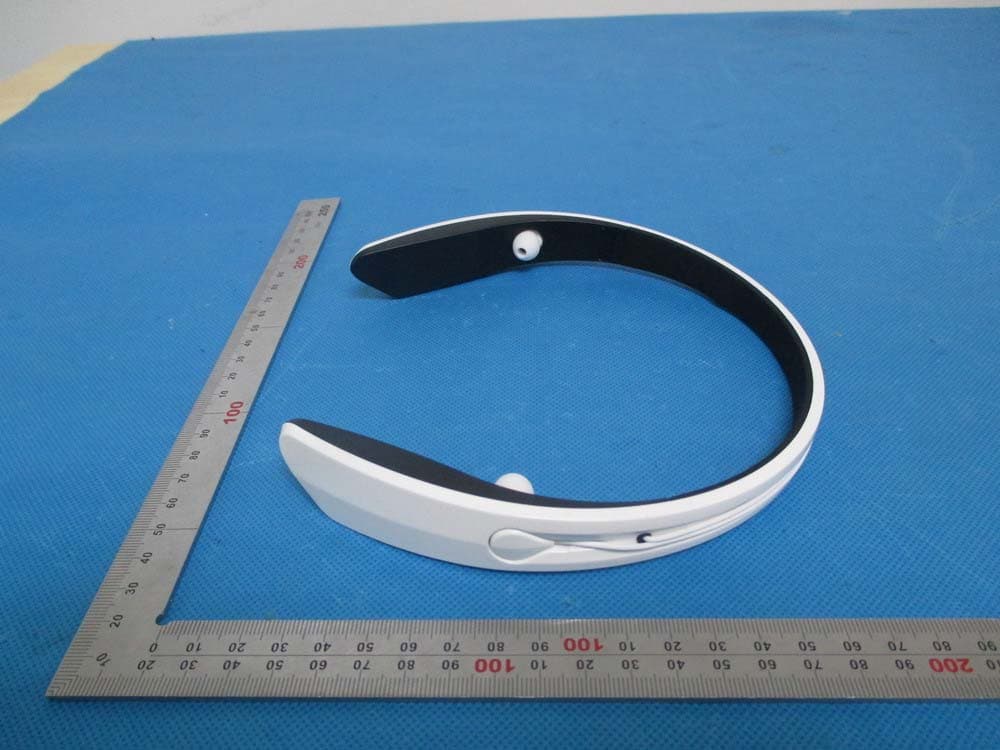

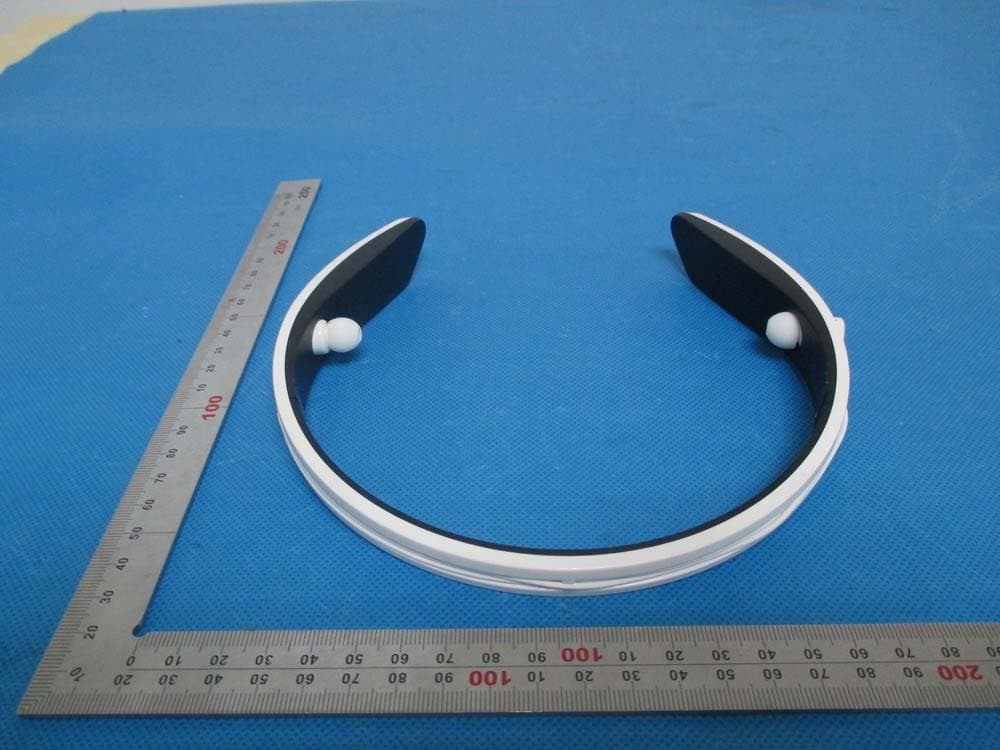

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Model: muses2 Brand Name: Cannice FCC ID: 2AAIH-MS02

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 BT Antenna

Report No.: AGC00015140303FE03 Page 1 of 60 FCC Test Report Report No.: AGC00015140303FE03 FCC ID : 2AAIH‐MS02 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth headset BRAND NAME : cannice MODEL NAME : muses2 CLIENT : ZHICHENG LIMITED DATE OF ISSUE : Mar.29, 2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00015140303FE03 Page 2 of 60 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Mar.29, 2014Valid Original Report Report No.: AGC00015140303FE03 Page 3 of 60 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ................................................................................................ 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 26 9.1. MEASUREMENT PROCEDURE ................................................................................................ 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 26 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 26 10. RADIATED EMISSION ..................................................................................................... 30 10.1. MEASUREMENT PROCEDURE .............................................................................................. 30 10.2. TEST SETUP ............................................................................................................................ 32 10.3. TEST RESULT .......................................................................................................................... 33 Report No.: AGC00015140303FE03 Page 4 of 60 11. BAND EDGE EMISSION .................................................................................................. 37 11.1. MEASUREMENT PROCEDURE .............................................................................................. 37 11.2. TEST SET-UP ........................................................................................................................... 37 11.3. TEST RESULT .......................................................................................................................... 38 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 42 12.1. MEASUREMENT PROCEDURE .............................................................................................. 42 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION)…
