2AAIH02Bluetooth Headset

Following items are included 1 2 3 4 6 7 8 10 1. Volume - 2. Volume + 3. Noise reduction mic 4. Multifunction button 5. Status indicator 6. Trackback 7. Trackforward 8. Talking mic 9. Micro USB port 10. 3.5mm audio input jack Start here Pair one phone Basic operation Call Answer a call Press the multifunction button. End a call Press the multifunction button. Reject a call Press and hold the volume button "+" for about 2 seconds. Redial the last call Double-press the multifunction button in standby mode. The mobile phone will redial the last call number. Mute on/off Press the volume button "-" for about 2 seconds to mute on/off. Pairing 3. Select "Headblue2" . If you phone asks, enter 0000 (four zeros) for the passcode or accept the connection. The LED indicator stops flashing red and blue once successfully paired. Bluetooth ON Search Bluetooth ON Connect Headblue2 Pair another phone Bluetooth ON Connect Headblue2 Bluetooth ON Connect Headblue2 5 9 1. Press and hold the Multifunction button for about 5 seconds, the LED indicator flashes red and blue alternately. 2. Activate Bluetooth on your phone and set it to search for new devices. 3. Select "Headblue2". If you phone asks, enter 0000 (four zeros) for the passcode or accept the connection. The LED indicator stops flashing red and blue once successfully paired. 4. Restart "Headblue2", it connects to two paired phone automatically. 1. Press and hold the Multifunction button for about 5 seconds, the LED indicator flashes red and blue alternately. 2. Activate Bluetooth on your phone and set it to search for new devices. NFC pairing 1. Press the multifunction button for about 2 seconds to turn on the headphone. 2. Hold an NFC device against the NFC zone of the headphone (right earcup). The LED indicator flashes red and blue, you hear voice prompts "Pairing", the LED indicator stops flashing red and blue once successfully paired, you hear voice prompts "connection successful". NFC detection area Volume adjust Press the "+" or "-" button to turn volume up or down, you hear beep voice prompts once reach the maximum or minimum. LED indicator and voice prompts Instruction Power on Power off Pairing Standby Incoming call Battery low LED status Flashes blue 3 times Flashes red 3 times Flashes red and blue alternately Flashes blue twice every 5 seconds Flashes blue continuously Flashes red twice every 2 seconds Voice prompts Power on Power off Pairing / / Battery low Multipoint technology enables you to pair another phone and take a call from either. ChargingFlashes red while charging Flashes blue once fully charged / Music (Need media player support) Switch between the headphone and phone Press the "+" button for about 2 seconds during a call, the call will be switched to the mobile phone, redo this operation again, the call will be switched to the headphone. Battery Indicator Listen music via 3.5mm Jack More features Charging Power off Your new headphone has enough power to pair and make a few calls. When battery is low, you will hear the voice prompt " battery low ". It takes 2.5 hours to fully charge the headphone. While charging, the battery indicator light is red, the indicator light flashes blue once charging is complete. Press and hold the Multifunction button for about 3 seconds. The red LED will flash three times rapidly before turning off. A voice prompt "power off" will appear, indicating the headphone has been turned off. Headblue 2 INSTRUCTION 1. Connect the headphone to a 3.5 mm jack connector on your mobile device or PC using the supplied music cable. 2. Turn on the music player on your mobile device or computer, you enjoy music from your headphone. When the headphone is connected to a device with iOS system, a battery indicator will appear at the upper right of the system, indicating battery status of the headphone. Note: The lifetime of the battery will be significantly reduced if your headphone is left uncharged for a long period. We recommend that you recharge your headphone at least once a month. Music play / pause Press multifunction button to play / pause music. (Some phones may require you to start a media player first) Track back/forward Press Track back to skip track backward, press Track forward to skip track forward. Switch Music and Call When a call rings during a music playing, the music automatically pauses to allow you to answer or ignore the call. Once the call is ignored or ends, the music is resumed. Note: Call functions are disabled in this mode. Hardware reset Press and hold the multifunction button, connect the headphone to a USB charger or USB port of computer, the LED indicator flashes red, hardware reset is done in about 3 seconds. 3.5mm audio jack USB cable Product overview Bluetooth headset FCC ID:2AAIH02 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Oct.16, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AAIH02 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ZHICHENG LIMITED Contact person: Sky Lee Title: Manager

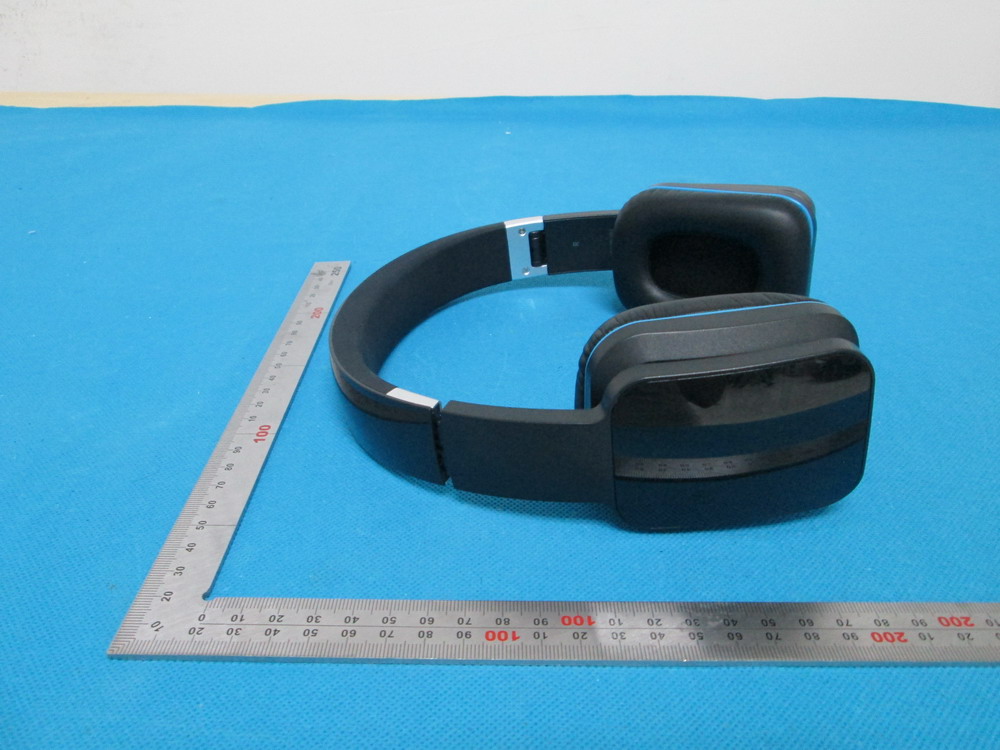

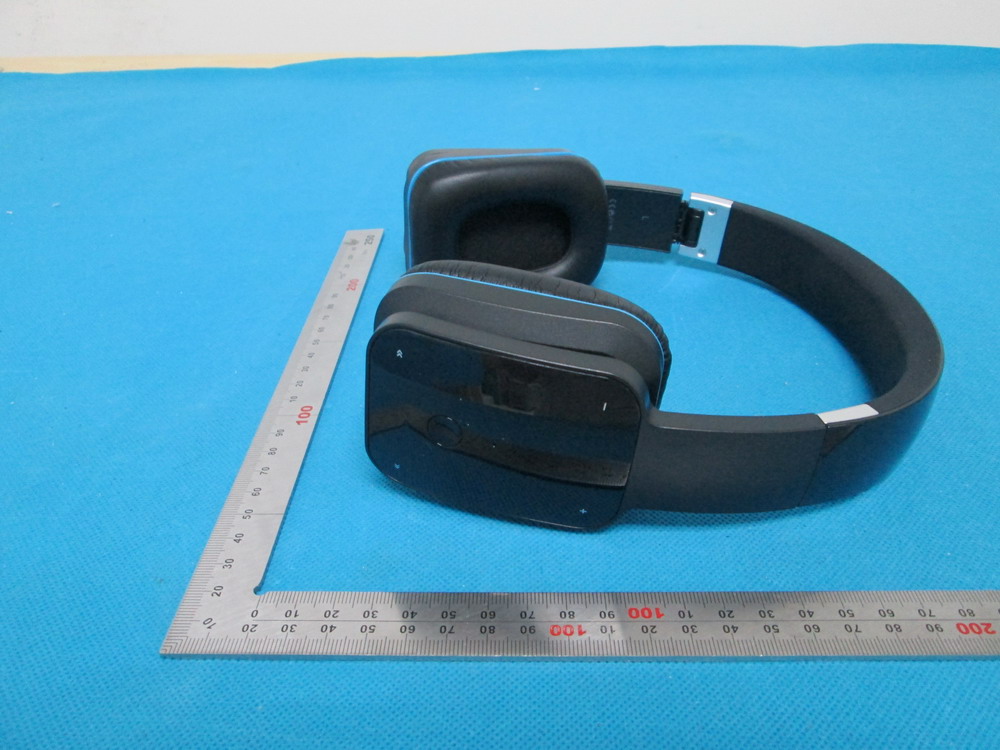

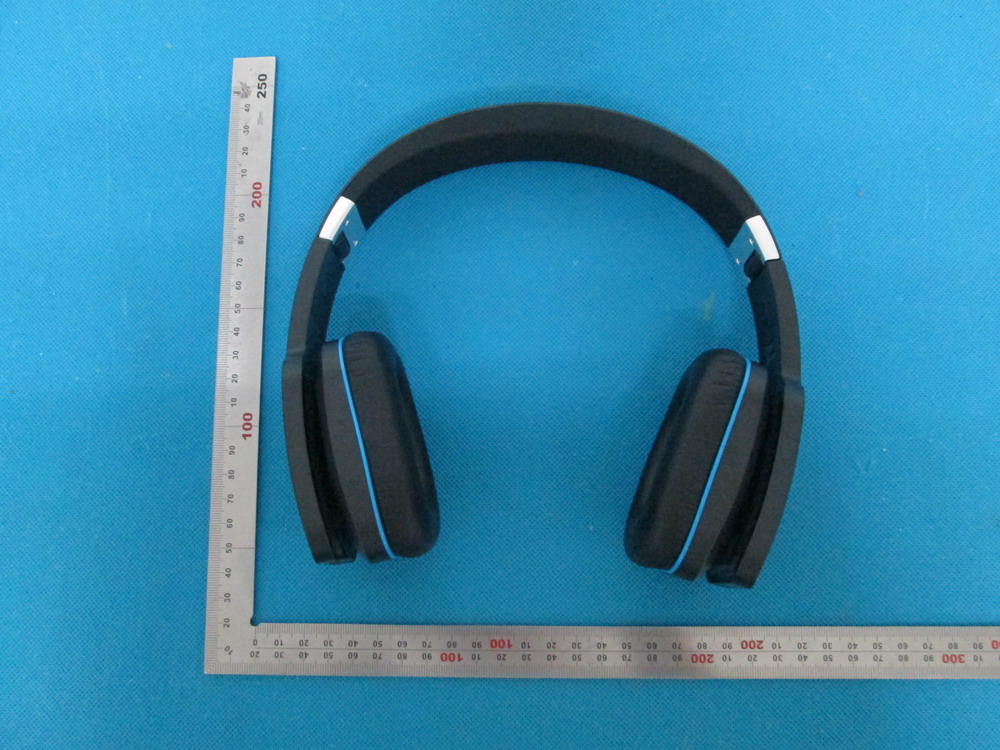

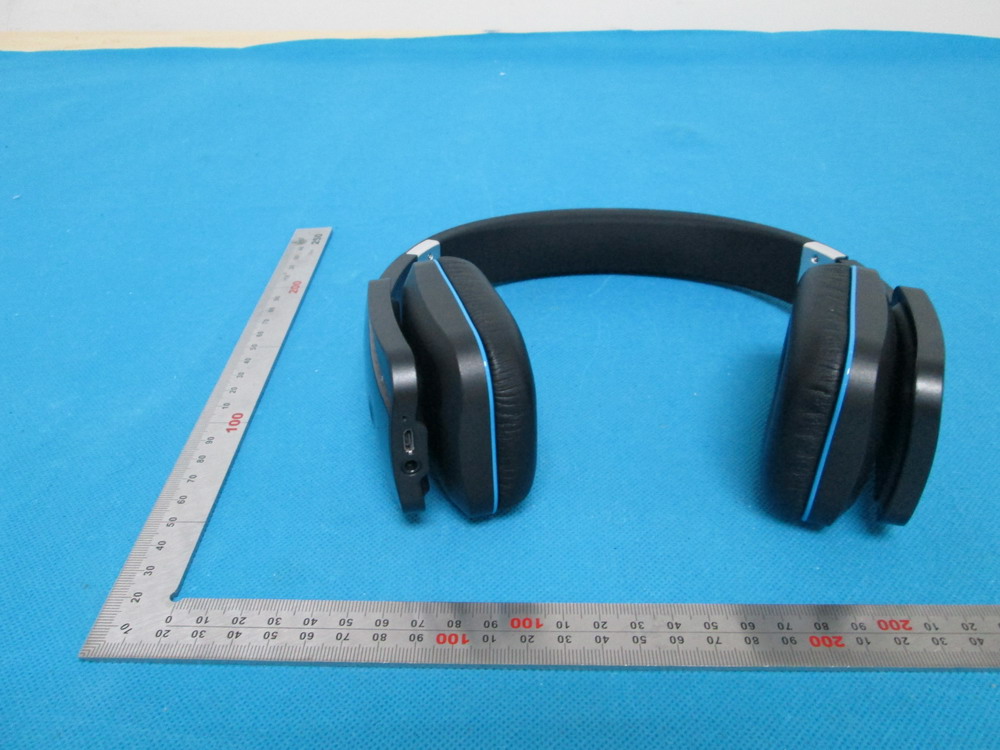

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Bluetooth headset Model: Headblue2 Brand Name: Cannice FCC ID: 2AAIH02

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna
