2AAM3SYRENI50DCIIWCDMA+GSM SMART PHONE

English SmartphoneSyreni50DCII Manualdeusuario FCC Regulations This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. The antenna(s) used for this transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. RF Exposure Information (SAR) This mobile phone meets the government’s requirements for exposure to radio waves. This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The highest SAR value for the model phone as reported to the FCC when tested for use at the ear is 0.313 W/kg and when worn on the body, as described in this user guide, is 0.459 W/kg (Body‐worn measurements differ among phone models, depending upon available accessories and FCC requirements.) While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: 2AAM3SYRENI50DCII. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and the positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. If you do no t use a body‐worn accessory and are not holding the phone at the ear, position the handset a minimum of 1.5 cm from your body when the phone is switched on. Please make sure the temperature for production unit will be between ‐10~50 ̊C. 1 English 1.The Basics..........................................................................................................................................2 1.1.Overview..........................................................................................................................................2 1.2.Safety Guide.....................................................................................................................................2 1.3.Safety Warnings And Notices...........................................................................................................2 2getting Started....................................................................................................................................5 2.1component Name And Explanation..................................................................................................5 2.2key Explanations................................................................................................................................6 2.3using The Touch Screen.....................................................................................................................6 2.4connecting To The Network..............................................................................................................6 3.Functional Menu................................................................................................................................9 3.1file Management...............................................................................................................................9 3.2sending An Email...........................................................................................................................…

Text truncated - open the document above for the full version.

26M BPI, APCRF IQ UART Debug port AudioSpeech TX MT6572 MT6166 JTAG ABB RXbalunFEM RX GSM/WCDMA ANT MSDC 4-bit micro SD USB 2.0 micro USB USB MSDC1 Charger MT6323 Class D/ABReceiver AU_VIN0 BSI ctrl 32K SPI AUD I/F Camera IF CameraModule CAM(MIPI / Parallel) SIM1SIM2 SIM2SIM1 VIB MemoryMCP NFIEMI NFIEMI x32 MT6627 26M_BB 26M_CN 26M_AUD 32K_BB i2C_1 I2C Motion Sensor CTPcontroller I2CI2C ALS + PXS EINTEINTEINT Keypad LCD module Charger BJT Battery DCXO ctrl LCD IF LCD (MIPI / Parallel) Camera IF 2nd Camera Module TCXO BC1.1 CONN IQCONN ctrl Wi-Fi/BT ANT i2C_0 I2C PowerManagement RTC POWER Headset(HPL, HPR, AU_VIN1) i2S 26M_CN

Bulltech Electronic Products S.L. Gran Via, 64, 2-I, 28013 Madrid, Spain Tel: +34 670 279 976 Fax: + 34-91 559 35 13 DOC ATTESTATION LETTER FCC ID: 2AAM3SYRENI50DCII Date: April 16, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the computer peripheral. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely,

Bulltech Electronic Products S.L. Gran Via, 64, 2-I, 28013 Madrid, Spain Tel: +34 670 279 976 Fax: + 34-91 559 35 13 Letter for Label Proposal FCC ID: 2AAM3SYRENI50DCII Date: April 16, 2014 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Dear Sirs: Bulltech Electronic Products S.L. requests acceptance of the labeling proposal described below for transceivers bearing FCC identifier 2AAM3SYRENI50DCII. The subject transceivers are compact handheld models as shown in figure 1, authorized under FCC Part 22/24 for mobile services. Figure 1. Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, we propose placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Bulltech Electronic Products S.L. Gran Via, 64, 2-I, 28013 Madrid, Spain Tel: +34 670 279 976 Fax: + 34-91 559 35 13 Proposed Label Location on EUT Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), We will add the FCC identifier "2AAM3SYRENI50DCII" to the outside of the consumer "gift box" packaging. Sincerely yours,

Bulltech Electronic Products S.L. Gran Via, 64, 2-I, 28013 Madrid, Spain Tel: +34 670 279 976 Fax: + 34-91 559 35 13 AGENCY AUTHORIZATION LETTER FCC ID: 2AAM3SYRENI50DCII Date: April 16, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Testing Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Testing Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on April. 15, 2015. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Bulltech Electronic Products S.L. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

QuieTek Corporation Page 1 of 1 Test Lab Attestation Letter Date of Test: 04/01/2014 Applicant Name: Bulltech Electronic Products S.L. FCC Id: 2AAM3SYRENI50DCII Reviewed By: Jame Yuan Title: Manager Email Address: [email protected] Phone No.: +86‐512‐62515088‐5160 Statement of Compliance: QuieTek Corporation Suzhou EMC Laboratory declares that this Unit has been tested in accordance with the test method identified in this test report and that we observed it being tested. It also declares that the Unit complies with the relevant limits. All instrumentation and accessories used to test this unit for compliance to the indicated test method are calibrated regularly in accordance with ISO 17025:2005 requirements by laboratories accredited by A2LA, NVLAP, or ACLAS for the measurement parameters. The measurements were made at: QuieTek Corporation Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi‐Tech Development Zone., Suzhou, China Test Lab Witness‐ Approved By: Jame Yuan Title of Witness: Manager Email Address: [email protected] Phone No.: +86‐512‐62515088‐5160

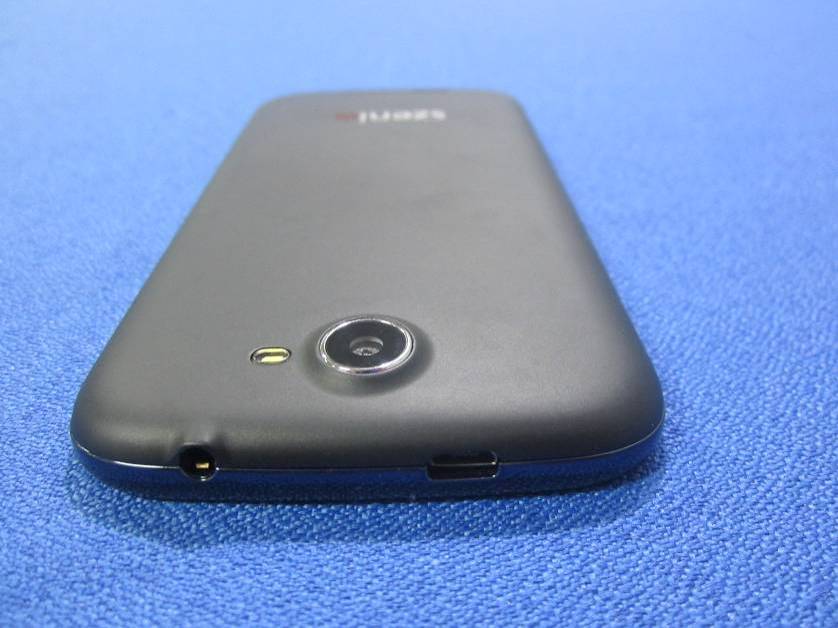

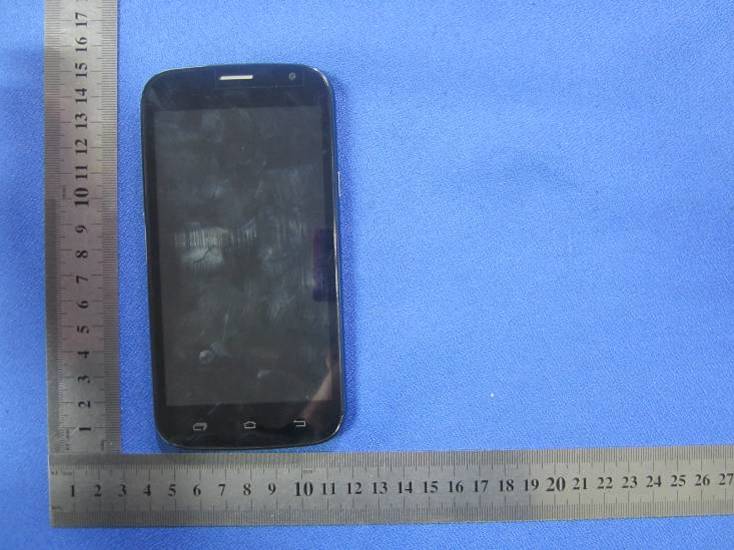

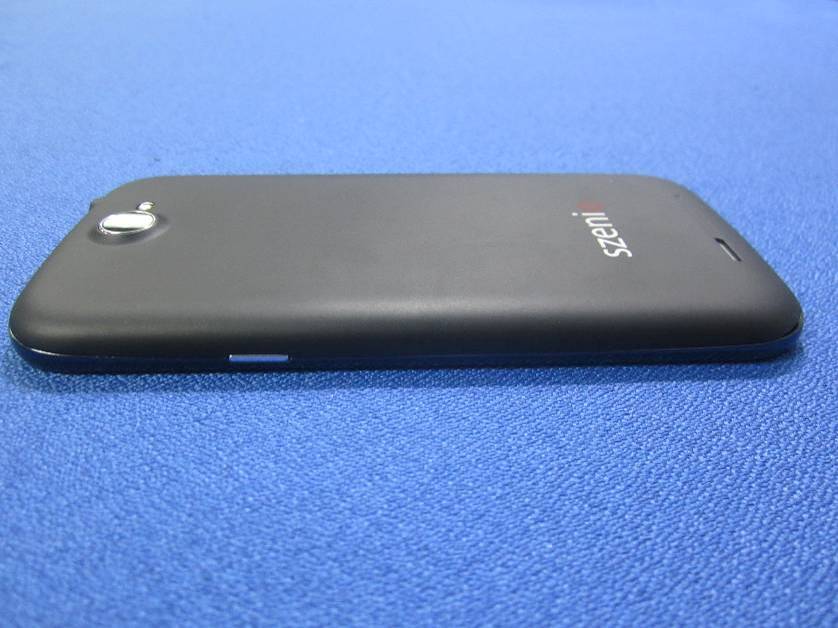

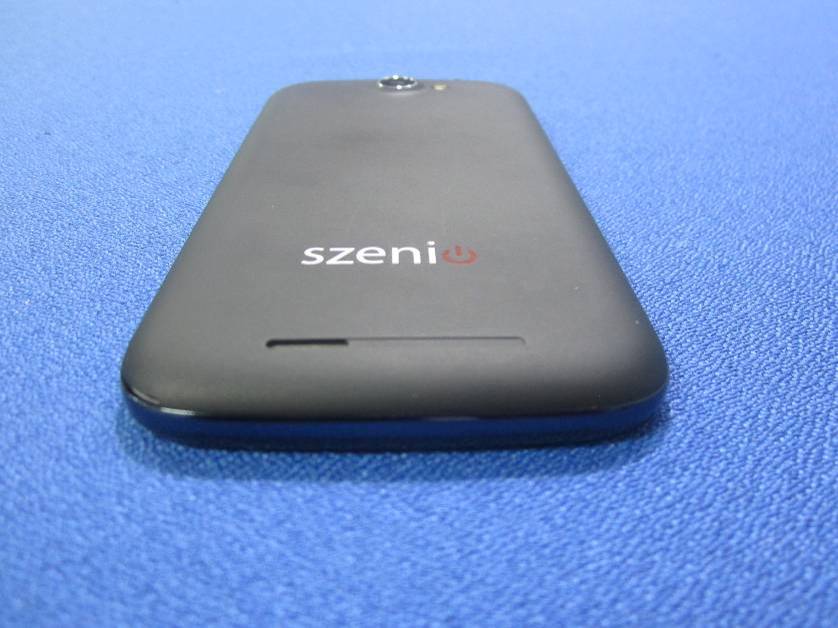

External Photos of EUT

FCC ID Label Information 1. Label location: 2. FCC ID Label: Bulltech Electronic Products S.L. SZENIO Smart Phone Syreni 50DC II GSM/GPRS/EDGE 850/900/1800/1900 WCDMA/HSPA 850/2100 FCC ID: 2AAM3SYRENI50DCII

Internal Photos of EUT

Description of Operation for BT/Wi-Fi EUT is a Bluetooth/WIFI device, This device is compliant with a MT6627. This device provided 1/11/6/54/65/135 Mbps of transmitting speed and supports WIFI Direct （WFA P-2-P standard）. The device of RF carrier is DQPSK, DBPSK, CCK and OFDM. The device integrated PA. The antenna is internal Antenna。 MT6627 provides the best and most convenient connectivity solution among the industry. MT6627 implements advanced and sophisticated Radio Coexistence algorithms and hardware mechanisms. It supports single antenna sharing among 2.4GHz antenna for Bluetooth, WLAN and 1.575GHz for GPS. The enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on mobile phones and Media Tablets. It is an IEEE 802.11b/g/n Wireless LAN. It allows your phone to connect to a wireless network. Operation in, its standard compliance ensures that it can communicate with any 802.11b/g/n network. The more details related operations, please refer to the user manual.

Qual. 22 2112711 18 1222 12 4411121111121 PCS Bit No. Spec. Unit No. 001 R110,R113,R114,R116,R117,R118,R119,R120,R1100,R1101,R1102,R1 103,R1104,R1105,R1107,R1108,R1109,C131,C135,C145,C126,C129 电阻 ,0 ohm,±5%,1/20W,0201 002 PCS R135,R140 电阻 ,27ohm,±5%,1/20W,0201 003 PCS R922 电阻 ,30 ohm,±5%,1/16W,0402 004 PCS R106 电阻 ,36 ohm,±5%,1/20W,0201 005 PCS R142,R144 电阻 ,51 ohm,±5%,1/20W,0201 006 PCS R104,R127,R128,R129,R130,R146,R147 电阻 ,1K ohm,±5%,1/20W,0201 007 PCS R112 电阻 ,10K ohm,±5%,1/20W,0201 008 PCS R122 电阻 ,24K ohm,±5%,1/20W,0201 009 PCS R200,R403,R529,R530,R531,R532,R630, R800,R841,R901,R920,R1112 ,R1113,R1114,R1115,R1116,C459,R996 电阻 ,0 ohm,±5%,1/16W,0402 010 PCS R808 电阻 ,5.1 ohm,±5%,1/16W,0402 011 PCS R624,R625 电阻 ,100 ohm,±5%,1/16W,0402 012 PCS R507,R508 电阻 ,240 ohm,±1%,1/16W,0402 013 PCS R628,R629 电阻 ,470 ohm,±5%,1/16W,0402 014 PCS R402,R416,R419,R601,R604,R621,R623, R712,R714,R715,R716,R717 电阻 ,1K ohm,±5%,1/16W,0402 015 PCS R301,R602,R603,R622 电阻 ,1.5K ohm,±5%,1/16W,0402 016 PCS R304,R305,R309,R310 电阻 ,2.2K ohm,±5%,1/16W,0402 017 PCS R407 电阻 ,3.3K ohm,±5%,1/16W,0402 018 PCS R902 电阻 ,4.7K ohm,±5%,1/16W,0402 019 PCS R303 电阻 ,5.1K ohm,±1%,1/16W,0402 020 PCS R520,R521 电阻 ,10K ohm,±1%,1/16W,0402 021 PCS R400 电阻 ,16.9K ohm,±1%,1/16W,0402 022 PCS R401 电阻 ,27K ohm,±1%,1/16W,0402 023 PCS R994 电阻 ,30K ohm,±5%,1/16W,0402 024 PCS R411 电阻 ,39K ohm,±1%,1/16W,0402 025 PCS R627 电阻 ,47K ohm,±5%,1/16W,0402 026 PCS R822,R993 电阻 ,100K ohm,±5%,1/16W,0402 027 PCS R408 电阻 ,330K ohm,±1%,1/16W,0402 1112532612231411516 11 2612211 35 028 PCS R626 电阻 ,470K ohm,±5%,1/16W,0402 029 PCS R501 电阻 ,0 ohm,±5%,1/10W,0603 030 PCS R428 电阻 ,0.2 ohm,±1%,1/8W,0805 031 PCS C144,C133 电容 ,0.5pF,±0.25pF,25V,COG,0201 032 PCS C155,C159,C160,C165,C166 电容 ,3.9pF,±0.25pF,25V,COG,0201 033 PCS C1100,C132,C121 电容 ,15PF,±5%,25V,COG,0201 034 PCS C111,C139 电容 ,18pF,±5%,25V,COG,0201 035 PCS C106,C107,C108,C109,C110,C143 电容 ,22pF,±5%,25V,COG,0201 036 PCS C114 电容 ,27PF,±5%,25V,COG,0201 037 PCS C127,C140 电容 ,39pF,±5%,25V,COG,0201 038 PCS C112,C153 电容 ,56pF,±5%,16V,COG,0201 039 PCS C1111,C1115,C1109 电容 ,100pF,±5%,25V,COG,0201 040 PCS C113 电容 ,220pF,±10%,25V,X7R,0201 041 PCS C125,C136,C146,C148 电容 ,1nF,±10%,25V,X7R,0201 042 PCS C1113 电容 ,4.7nF,±10%,10V,X7R,0201 043 PCS C1107 电容 ,10nF,±10%,10V,X7R,0201 044 PCS C226,C227,C228,C229,C1114 电容 ,100nF,±20%,6.3V,X5R,0201 045 PCS C1117 电容 ,220nF,±20%,6.3V,X5R,0201 046 PCS R102,R103,R107,R108,R109,R111 电容 ,470nF,±20%,6.3V,X5R,0201 047 PCS C219,C223,C224,C225,C1104,C1108, C1110,C1116,R121,R134,C801 电容 ,1uF,±20%,6.3V,X5R,0201 048 PCS C418,C419 电容 ,18pF,±5%,50V,COG,0402 049 PCS C611,C613,C623,C624,C631,C632 电容 ,33pF,±10%,50V,COG,0402 050 PCS C301 电容 ,56pF,±5%,50V,COG,0402 051 PCS C612,C622 电容 ,100pF,±5%,50V,COG,0402 052 PCS C480,C481 电容 ,1nF,±20%,50V,X7R,0402 053 PCS C980 电容 ,2.2nF,±10%,50V,X7R,0402 054 PCS C983 电容 ,10nF,±20%,50V,X5R,0402 055 PCS C200,C201,C202,C205,C206,C207,C208, C209,C240,C403,C412,C413, C458,C472,C511,C515,C516,C521,C601,C602,C621,C625,C902,C904, C906,C908,C912,C918,C919,C920,C931,C932,C981,C982,C1112 电容 ,100nF,±20%,10V,X5R,0402 19 11 151116 3412111211211112112 056 PCS C141,C203,C204,C402,C422,C425,C426, C453,C457,C510,C561,C810, C811,C830,C831,C991,C456,C800,C504 电容 ,1uF,±10%,6.3V,X5R,0402 057 PCS C436 电容 ,1UF,±10%,25V,X5R,0603 058 PCS C839 电容 ,1uF,±10%,50V,X5R,0603 059 PCS C210,C212,C217,C218,C401,C821,C901, C903,C905,C907,C915,C916, C917,C1118,C1119 电容 ,2.2uF,±20%,6.3V,X5R,0402 060 PCS C170,C432,C440,C509,C512,C514,C560, C603,C626,C816,C914 电容 ,4.7uF,±10%,6.3V,X5R,0603 061 PCS C100,C213,C214,C215,C216,C400,C411, C420,C421,C423,C424,C452, C627,C628,C990,C992 电容 ,10uF,±20%,6.3V,X5R,0603 062 PCS C179,C142,C151 (T) 电感 ,1.0nH,±0.3nH,0201, 063 PCS C168,C169,C152,C156 (T) 电感 ,1.8nH,±0.3nH,0201,SDCL0603Q1N8ST02,Sunlord 064 PCS C120 (T) 电感 ,2.0nH,±0.3nH,0201,SDCL0603Q2N0ST02,Sunlord 065 PCS L102,R115 (T) 电感 ,2.2nH,±0.3nH,0201,SDCL0603Q2N2ST02,Sunlord 066 PCS R100 (T) 电感 ,2.7nH,±0.3nH,0201,SDCL0603Q2N7ST02,Sunlord 067 PCS L103 (T) 电感 ,3.0nH,±0.3nH,0201,SDCL0603Q3N0ST02,Sunlord 068 PCS C164 (T) 电感 ,4.3nH,±0.3nH,0201,SDCL0603Q4N3ST02,Sunlord 069 PCS L110,L111 (T) 电感 ,6.2nH,±0.3nH,0201,SDCL0603Q6N2ST02,Sunlord 070 PCS L109 (T) 电感 ,7.5nH,±5%,0201,SDCL0603Q7N5JT02,Sunlord 071 PCS C116 (T) 电感 ,27nH,±5%,0201,SDCL0603Q27NJT02,Sunlord 072 PCS L107,C161 (T) 电感 ,39nH,±5%,0201,SDCL0603Q39NJT02,Sunlord 073 PCS L101 (S) 电感 ,1.0nH,±0.3nH,,0402,SDCL1005C1N0STDF,Sunlord 074 PCS L101 (S) 电感 ,1.0nH,±0.3nH,,0402,MGCI1005T1N0ST-LF, 麦捷 075 PCS L120 (S) 电感 ,2.7nH,±0.3nH,0402,SDCL1005C2N7STDF,Sunlord 076 PCS L120 (S) 电感 ,2.7nH,±0.3nH,0402,MGCI1005T2N7ST-LF, 麦捷 077 PCS L104,L105 (T) 电感 ,12nH,±5%,0201,SDCL0603Q12NJT02,Sunlord 078 PCS L1102 (S) 电感 ,82nH,±5%,0402,SDCL1005C82NJTDF,SUNLORD 079 PCS L1102 (S) 电感 ,82nH,±5%,0402,MGCI1005T82NJT-LF, 麦捷 080 PCS L410,L421 (T) 功率电感 ,0.68uH±20%,DCR ≤ 0.054 ohm,Is=4A,Ir=2.0A,2.5×2.0× 1.3mm,WIP252012Q-R68M, 佳邦 144442232224411111111 081 PCS L801 (T) 功率电感 ,10uH,±20%,DCR ≤ 0.69 ohm,Is=0.75A,Ir=0.62A,2.5x2.0x1.2mm,SWPA252012S100MT,Sunlord 082 PCS B611,B612,B621,B622 (S) 磁珠 ,75 ohm,100MHz,300mA,0402,MCB1005H750FBP, 佳邦 083 PCS B611,B612,B621,B622 (S) 磁珠 ,75 ohm,100MHz,600mA,0402,SZ1005G750TF,SUNLORD 084 PCS B611,B612,B621,B622 (S) 磁珠 ,75 ohm,100MHz,300mA,0402,BLM15BB750SN1D,MURATA 085 PCS B611,B612,B621,B622 (S) 磁珠 ,75 ohm,100MHz,300mA,0402,MGSB1005A750T-LF, 麦捷 086 PCS B626,L1104 (S) 电感 ,100nH,±5%,0402,SDCL1005CR10JTDF,SUNLORD 087 PCS B626,L1104 (S) 电感 ,100nH,±5%,0402,MGCI1005TR10JT-LF, 麦捷 088 PCS B623,B624,B625 (S) 磁珠 ,1.8Kohm,100MHz,100mA,0402,BLM15BD182SN1D,MURATA 089 PCS B480,B481 (T) 磁珠 ,220 ohm,100MHz,1400mA,0603,MGLB1608M221T1R4-LF, 麦捷 090 PCS B480,B481 (T) 磁珠 ,220 ohm,100MHz,1000mA,0603,PZ1608D221-1R0TF,SUNLORD 091 PCS B480,B481 (T) 磁珠 ,220 ohm,100MHz,2000mA,0603,MHC1608S221NB, 佳邦 092 PCS EMI830,EMI831,EMI832,EMI860 (S)EMI 滤波器 ,2 Lines Common Mode Filter,0.88x0.65x0.52mm,TCF03025H90002A, 佳邦 093 PCS EMI830,EMI831,EMI832,EMI860 (S)EMI 滤波器 ,2 Lines Common Mode Filter , 0.85x0.65x0.5mm , E…

Text truncated - open the document above for the full version.

Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage (3.5~ 4.2V DC) to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. The Base station simulator measures the WWAN device specific RF characteristics. 3. The maximum gains of each individual device are adjusted and measured until the target value met. z For GSM 850 band: PCL = 5, PWR = 32.5 ± 0.5 dBm z For GPRS 850 band (1slot): PCL = 5, PWR = 32.5 ± 0.5 dBm z For GPRS 850 band (2slot): PCL = 5, PWR = 32.0 ± 0.5 dBm z For GPRS 850 band (3slot): PCL = 8, PWR = 30.0 ± 0.5 dBm z For GPRS 850 band (4slot): PCL = 8, PWR = 29.0 ± 0.5dBm z For EDGE 850 band (1slot): PCL = 5, PWR = 26.5 ± 0.5 dBm z For EDGE 850 band (2slot): PCL = 5, PWR = 25.5 ± 0.5 dBm z For EDGE 850 band (3slot): PCL = 8, PWR = 23.5 ± 0.5 dBm z For EDGE 850 band (4slot): PCL = 8, PWR = 22.5 ± 0.5dBm z For PCS 1900 band : PCL = 0, PWR =30.0 ± 0.5 dBm z For GPRS 1900 band (1slot): PCL = 0, PWR =30.0 ± 0.5 dBm z For GPRS 1900 band (2slot): PCL = 0, PWR =29.5 ± 0.5dBm z For GPRS 1900 band (3slot): PCL = 0, PWR =27.5 ± 0.5 dBm z For GPRS 1900 band (4slot): PCL = 2, PWR = 26.5 ± 0.5 dBm z For EDGE 1900 band (1slot): PCL = 0, PWR =26.0 ± 0.5 dBm z For EDGE 1900 band (2slot): PCL = 0, PWR =25.0 ± 0.5dBm z For EDGE 1900 band (3slot): PCL = 0, PWR =23.0 ± 0.5 dBm z For EDGE 1900 band (4slot): PCL = 2, PWR = 22.0 ± 0.5 dBm z For WCDMA band V: PWR =22.5 ± 0.5 dBm z For HSDPA band V: PWR =21.5 ± 0.5 dBm z For HSUPA band V: PWR =21.5 ± 0.5 dBm z For Wi-Fi: 802.11b PWR = 9.0dBm ± 1dBm 802.11g PWR = 9.0dBm ± 1dBm 802.11n(20MHz) PWR = 8.0dBm ± 1dBm 802.11n(40MHz) PWR = 8.0dBm ± 1dBm z For Bluetooth: DH5 PWR = 2.0dBm ± 1dBm 2DH5 PWR = 1.0dBm ± 1dBm 3DH5 PWR = 0 dBm ± 1dBm BLE PWR = -4.0 dBm ± 1dBm Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated in this range. The measurement is done in a fully calibrated setup, which is based on the base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high). At last you can also help to update the NV by Qualcomm NV tools.

SAR Test Report Product Name : SMART PHONE Model No. : Syreni 50DC II FCC ID : 2AAM3SYRENI50DCII Applicant : Bulltech Electronic Products S.L. Address : Gran Via, 64, 2-I, 28013 Madrid, Spain. Date of Receipt : Apr. 01, 2014 Date of Test : Apr. 01, 2014 Issued Date : Apr. 03, 2014 Report No. : 1440095R-HP-US-P03V01 Report Version : V1.2 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 1440095R-HP-US-P03V01 Page: 2 of 125 Test Report Certification Issued Date: Apr. 03, 2014 Report No.: 1440095R-HP-US-P03V01 Product Name : SMART PHONE Applicant : Bulltech Electronic Products S.L. Address : Gran Via, 64, 2-I, 28013 Madrid, Spain. Manufacturer : Shenzhen ODX Telecom Equipment Co., Ltd. Address : 2nd Floor of Building B, HongLianYing Technology Park, No.286 of SiLi Road, DaBuXiang Community, Longhua New District, Shenzhen, China Model No. : Syreni 50DC II FCC ID : 2AAM3SYRENI50DCII Brand Name : SZENIO EUT Voltage : DC 3.7V Applicable Standard : IEEE Std. 1528-2013, 47CFR § 2.1093 FCC KDB Publication 447498 D01v05r02 FCC KDB Publication 648474 D04v01r02 FCC KDB Publication 865664 D01v01r03 FCC KDB Publication 941225 D01~D06 Test Result : Max. SAR Measurement (1g) Head: 0.313 W/kg; Body-worn: 0.459 W/kg Hotspot: 1.11 W/kg; Simultaneous transmission: 1.3 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-TechDevelopment Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No.: 1440095R-HP-US-P03V01 Page: 3 of 125 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC Japan : VCCI China : CNAS Report No.: 1440095R-HP-US-P03V01 Page: 4 of 125 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................. 6 1.1. EUT Description .................................................................................................. 6 1.2. Test Environment ................................................................................................. 8 1.3. EUT Antenna Locations ....................................................................................... 8 1.4. Simultaneous Transmission Configurations ......................................................... 9 1.5. SAR Test Exclusions Applied ............................................................................. 10 1.6. Power Reduction for SAR .................................................................................. 10 1.7. Guidance Documents ........................................................................................ 10 2. SAR Measurement System .................................................................................... 11 2.1. DASY5 System Description ............................................................................... 11 2.1.1. Applications ................................................................................................... 12 2.1.2. Area Scans .................................................................................................... 12 2.1.3. Zoom Scan (Cube Scan Averaging) .............................................................. 12 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ......................................... 12 2.2. DASY5 E-Field Probe ........................................................................................ 13 2.2.1. Isotropic E-Field Probe Specification ............................................................. 13 2.3. Boundary Detection Unit and Probe Mounting Device ...................................... 14 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................ 14 2.5. Robot ................................................................................................................. 15 2.6. Light Beam Unit ................................................................................................. 15 2.7. Device Holder .................................................................................................... 16 2.8. SAM Twin Phantom ........................................................................................... 16 3. Tissue Simulating Liquid ....................................................................................... 17 3.1. The composition of the tissue simulating liquid ................................................. 17 3.2. Tissue Calibration Result ..................…

Text truncated - open the document above for the full version.

MT6166 TX(I/Q) RX(I/Q) BSI FDD RX TXO TDD RX Test pin 26M output XO E10 V28 F2 VRXHF L7 VRXLF B11 VTXHF J11 VTXLF K6 AVDD_VIO18 K1 VTCXO28 K2 CLK_SEL H2 XTAL2 J1 XTAL1 K4 XO4 L2 XO3 K3 XO2 L4 XO1 L10 TST1 K11 TST2 J10 RCAL H10 TXBPI B10 GND D10 DETGND G1 32K_EN K5 OUT32K L1 EN_BB L5 XMODE K7 VXODIG C11 TMEAS E1 HB_RXP F1 HB_RXN C1 LB_RXP D1 LB_RXN B8 2GHB_TX A11 2GLB_TX A2 3GB1_RXP A3 3GB1_RXN B3 3GB5_RXP B4 3GB5_RXN A5 3GB2_RXP B5 3GB2_RXN A6 3GB8_RXP B6 3GB8_RXN A8 3GH1_TX A9 3GH2_TX A10 3GL5_TX A1 B40_RXP B1 B40_RXN G8 BSI_DATA2 H8 BSI_DATA1 F8 BSI_DATA0 G6 BSI_EN H6 BSI_CLK L8 RX_IP K8 RX_IN K10 RX_QP K9 RX_QN G10 3GTX_IP G11 3GTX_IN F10 3GTX_QP F11 3GTX_QN G2 RFVCO_MON L11 TXVCO_MON C10 GND C7 GND D11 DET J7 GND C9 GND C8 GND J8 GND D3 GND E3 GND F3 GND C2 GND J2 GND C3 GND D9 GND E9 GND F9 GND G9 GND J9 GND H9 GND B7 GND G3 GND H3 GND J3 GND D4 GND E4 GND F4 GND G4 GND F5 GND C4 GND D7 GND E7 GND J5 GND H4 GND J4 GND C5 GND D5 GND E5 GND C6 GND D6 GND E6 GND F6 GND D8 GND E8 GND J6 GND U100 MT6166/VFBGA104/P0.4/B0.25/4.6X4.6 MT6166 5 3 2 6 14 RF100 2 1 3 4 RF110 RF-TEST-LINE RF CON L120 2.7nH C101 0.75pF C114 27pF C116 27nH C115 NC C106 22pF C143 22pF C103 NC C119 1.5pF C117 NC C118 NC L107 39nH L106 NC L104 12nH L105 12nH L108 NC L109 7.5nH L110 6.2nH L111 6.2nH R134 1uF R132 NC R131 NC R116 0R R117 0R L101 1nH R118 0R R139 NC R119 0R R138 NC R120 0R R141 NC L102 2.2nH L103 3nH R115 2.2nH R129 1K R130 1K C110 22pF C109 22pF R128 1K R127 1K C10722pF C108 22pF R126 NC R114 0R R123 NC R113 0R R112 10K R122 24K C111 18pF C112 56pF C113 220pF C100 10uF C102 NC 2 GND 1 LBIN 8 LBOUT 9 LBOUT 3 GND 4 HBIN 5 GND 10 GND 6 HBOUT 7 HBOUT D103 Walsin / RFBLN2012090BM5T25 C128 1nF C126 1nF C137 1nF C129 1nF SKY77590 1 GND 2 GND 3 GND 4 GND 5 GND 6 GND 7 GND 8 GND 9 TX_HB_IN 10 TX_LB_IN 11 BS2 12…

Text truncated - open the document above for the full version.
