2AANDBT232Bluetooth headset

JY-BT232 Stereo Bluetooth Headphone Instruction Manual SAFETY PRECAUTIONS 1. Please read, follow and keep these instructions 2. Heed all warnings on the product and in the operation instructions 3. Stop using this product immediately if it causes discomfort or pain. When using this product, it is recommended that you limit volume to help avoid harm to your ears and danger resulting from being unable to hear what is going on around you. 4. Keep the device out of extreme heat and humidity. 5. Do not use the device near water, such as sinks, bathtubs, swimming pools, washing machines, tubs of water, etc. 6. Observe all signs and instructions that require an electrical device or radio product to be switched off in designated areas, such as petrol/refuelling stations, hospitals, blasting areas, potentially explosive atmospheres or aircraft. 7. Using a headphone while driving can distract you and increase the likelihood of an accident. If driving conditions demand it (such as bad weather, high traffic density, presence of children in the car, difficult road conditions), pull off the road and park before making or answering calls. 8. Power time may differ depending on personal habits. 9. Please do not rotate the headset when the head band has been set / pushed to the lowest position. 10. This appliance should be used in moderate climates. 11. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. 12. The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. 13. Only use attachments/accessories specified or provided by the manufacturer. WARNINGS! 14. To prevent possible hearing damage, do not listen at high volume levels for long periods. 15. Do not turn up the volume too high, doctors warn against prolonged exposure to high volume. 16. Stop using the product or lower the volume if you feel your ears ringing. 17. Prolonged listening at high volume could lead to hearing damage. * Bluetooth wireless technology Bluetooth wireless technology allows you to connect compatible devices without cables. A Bluetooth connection does not require that the phone and the headset be in line of sight, the distance between the devices is up to 10 meters (30 feet). The closer the phone and the headset are to each other, the better is the performance. The connection is subject to interference from distance and obstructions or other electronic devices. The headset is compliant with Bluetooth Specification 2.1+ EDR. Check with the manufacturers of other devices to determine their compatibility with this device. There may be restrictions on using Bluetooth technology in some countries/locations. Check with your local authorities or service provider. PACKAGE CONTENTS – Bluetooth Stereo Headphone – USB charging cable – Instruction manual – 3.5mm audio cable Features： ：： ： Bluetooth 2.1 + EDR Calling function OVERVIEW OF THE HEADPHONE 10.------ 9.------- 1. Volume up (Next track) 2. Multi-function button (pairing, play/pause, answer/end calls) 3. Volume down (Last track) 4. Power on/off switch, 5. Blue LED (power and pairing status indication) 6. AUX IN 7. Red LED (battery charging and low-voltage indication) 8. USB Charging port 9. 3.5mm Audio cable Microphone 10. USB charging cable Charging the Wireless Headphone – To charge the headphone, plug the included USB charging cable into your headset and computer (or an optional USB charger). When the headset battery is very low, the red LED will continually flash and a full charge can take up to three hours with solid red LED light. The red LED will turn off when charging has been finished. CHARGING LI-POLYMER BATTERY SAFELY
The headphone has a non-removable lithium-polymer battery.
Do not try to remove the battery. Do not dispose of the headphone in a fire, the battery may explode.
Dispose of the headphone in accordance with the applicable laws and regulations in your area for the disposal of lithium-polymer batteries.
Non-compliance with the conditions of use of the lithium-polymer battery may cause a fire, explosion or chemical burn.
Do not allow battery leakage to come into contact with eyes or skin. In case of contact, flush eyes or skin with plenty of water and seek medical advice.
Do not expose the lithium-polymer battery to a temperature higher than 60 °C.
Do not disassemble, crush, short-circuit or incinerate your battery as it may cause fire, injury, burns, or other hazards.
Before your first time use, please recharge your headphone.
Do not overcharge your player, or it may shorten the battery’s life.
The times of charge/discharge are no less than 300 cycles.
The li-polymer battery is consumptive material, so recharge it periodically is needed even if the player is not be used. Connecting the Wired Headphone – Turn OFF the power on/off switch. – Connect 3.5mm audio cable to AUX IN – Connect the 3.5mm audio cable to any 3.5mm audio jack of audio device. Connecting the Wireless Headphone – Turn ON the power on/off switch. – Power on the Bluetooth device (e.g. MP3, mobile phone, smart phone or tablet to be paired with the headphone).Turn on Bluetooth feature on your device and set to search the Bluetooth headphone. See the instruction of your Bluetooth device. – Press and hold the multi-function button for six seconds (It could be seven seconds if the headphone has never been paired with Bluetooth devices before) to turn the headphone on; the headphone would automatically enter pairing mode then the Red and Blue LED blinks rapidly – (The headphone could search the last paired Bluetooth device for 3 minutes and it would shut down automatically if without pairing) – In the Bluetooth device menu, select “CHBT08” from the list. – When the headphone status light turns solid blue, a Bluetooth connectio…

Text truncated - open the document above for the full version.

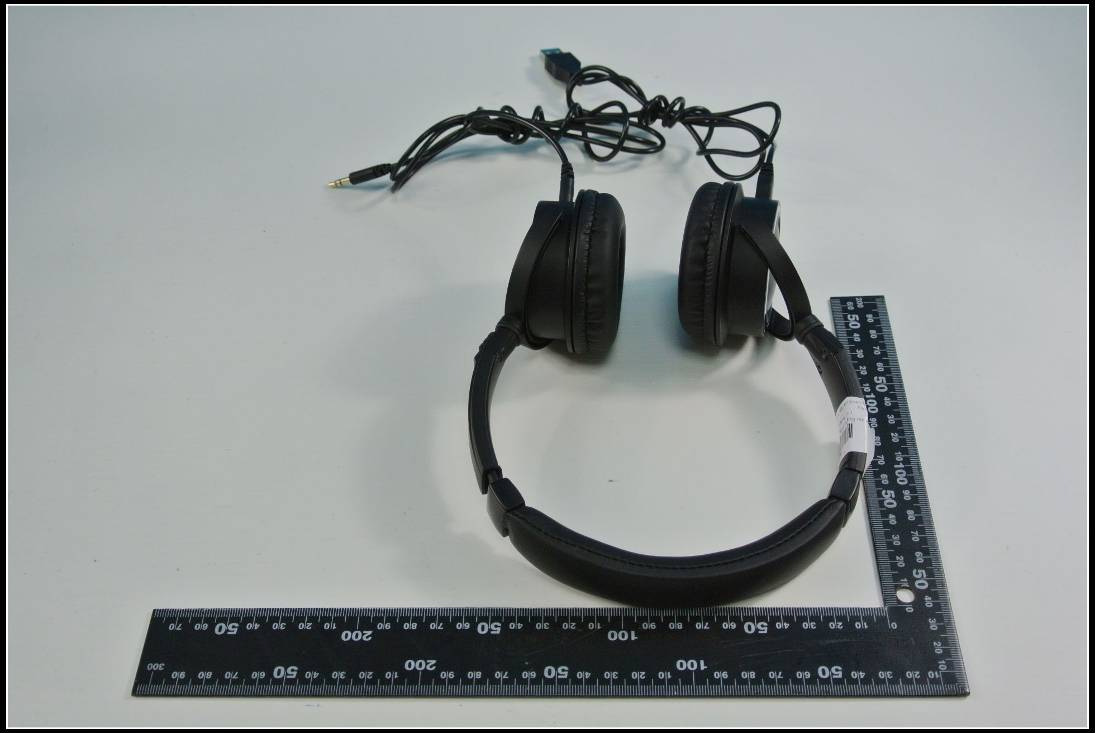

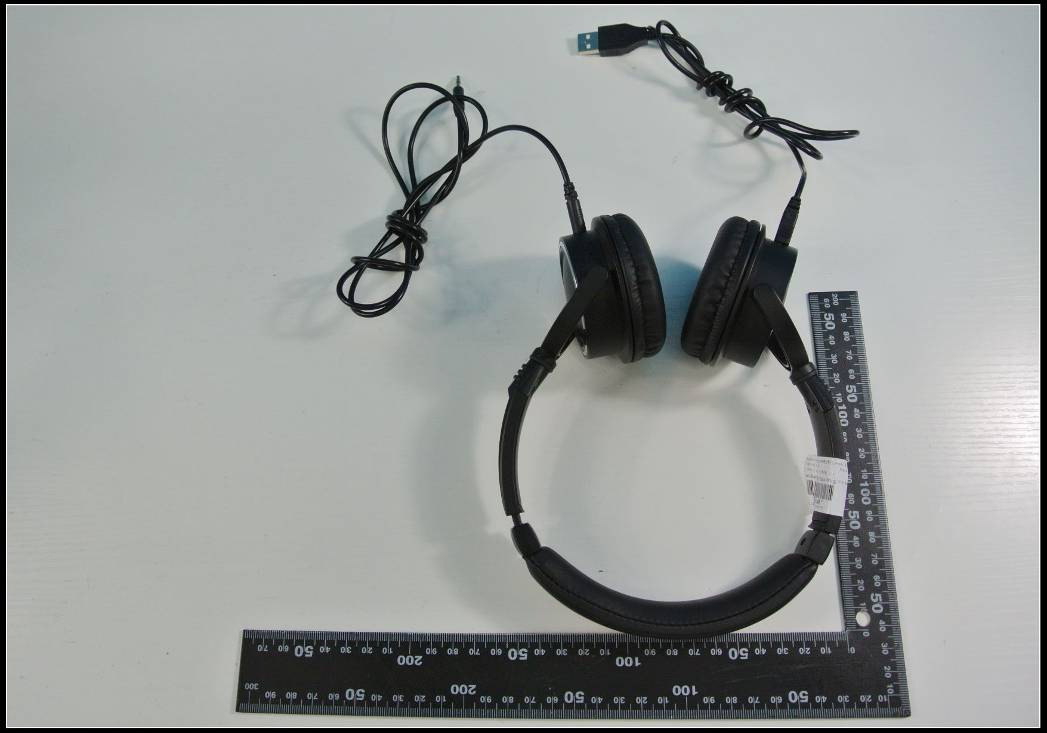

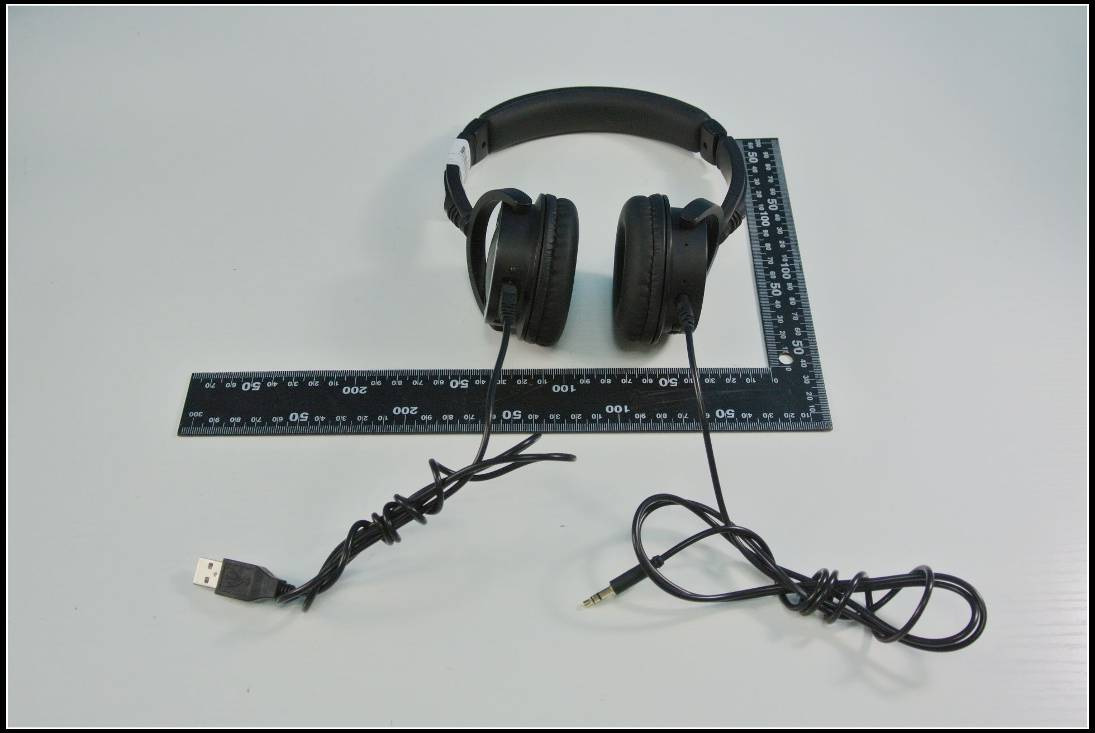

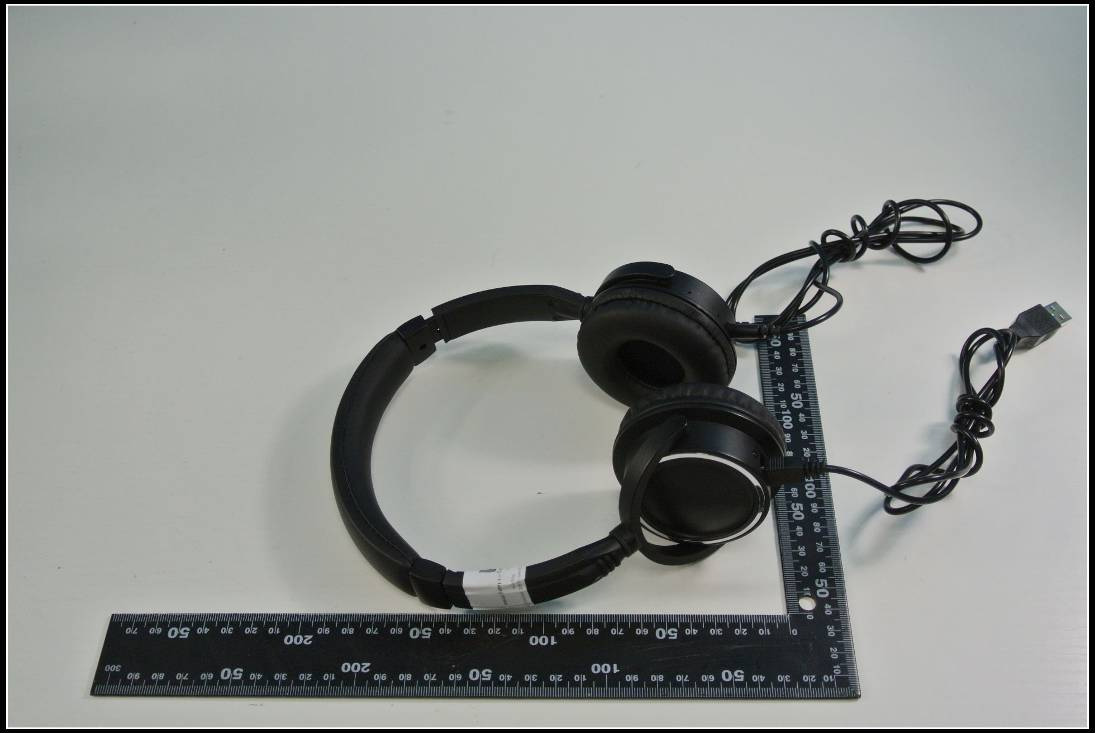

External Photos:

Internal Photos:

SGS-CSTC Standards Technical Services Co., Ltd. Application No..: GZEM1306002487RF Page: 1 of 1 FCC ID: 2AANDBT232 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. RF Exposure Compliance Requirement The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. The worst case test separation distance is 5mm. The Max Conducted Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit frequency (GHz) Max Conducted Output Power (mW) SAR Test Exclusion Threshold (mW) 2.402 1.68 9.7 2.441 1.62 9.6 2.480 1.62 9.5 The SAR Test Exclusion Threshold for 100 MHz to 6 GHz is calculated from: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v05, the SAR report is not required.

SGS-CSTC Standards Technical Services Co., Ltd. 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, G uangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: ee. [email protected] Report No.: GZEM130600248701 Page: 1 of 67 FCC ID: 2AANDBT232 Authorized Signature: Richard Li Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page TEST REPORT Application No.: GZEM1306002487RF Applicant: JUN YE ELECTRONIC COMPANY LTD OF SHUNDE FOSHAN CITY FCC ID: 2AANDBT232 Product Name: Bluetooth headset Product Description: Bluetooth headset with 2.4 GHz as carrier Model No.: JY-BT232, JY-BT233, JY-BT211, JY-BT185, JY-BT266, JY-BT260, MQBT950 ♣ ♣ Please refer to section 3 of this report for details Standards: 47 CFR PART 15 Subpart C: 2012 section 15.247 Date of Receipt: 2013-06-14 Date of Test: 2013-06-15 to 2013-07-02 Date of Issue: 2013-07-04 Test Result : Pass* * In the configuration testedthe EUT detailed in this report complied with the standards specified above. Please refer to section 3 of this report for further detail. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM130600248701 Page: 2 of 67 FCC ID: 2AANDBT232 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2013-07-04 Original Authorized for issue by: Tested By 2013-06-15 to 2013-07-02 (Storm Shu) /Signature Date Prepared By 2013-07-03 (Storm Shu) /Signature Date Checked By 2013-07-04 (Jeffrey Chen) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM130600248701 Page: 3 of 67 FCC ID: 2AANDBT232 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary Test Test Requirement Test method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PAS…

Text truncated - open the document above for the full version.

Setup Photos: 1. 1 RAD I AT E D SP U R I O U S EM I S S I O N TE S T SE T U P 30 M HZ TO 1 GHZ: 1. 2 AB O V E 1 GHZ: 1. 3 CO N D U C TE D EM I S S I O N TE S T SE TU P
