Bluetooth Neckband Headphone Please read the user manual carefully before you use the headphone. JY-BT232 JY-BT261 Content Overview........................................................................................2 Button Function and Operating Instruction ..............................3 Interface Function.........................................................................4 Indicator Function ........................................................................4 Headphone Charging....................................................................5 To Open or Close The Headphone Bluetooth Function ............6 Use music control function..........................................................6 To Pair and Connect Headphone .............................................7-8 Specification..................................................................................9 User manual This section is mainly introduced the basic parts and function of Bluetooth neckband headphone. · OVERVIEW OF THE HEADPHONE Volume up/ Track Forward Multifuction Button Volume Down/ Track Forward Power Switch Bluetooth Indicator Charger Connect USB Charging Cable Charger Indicator PACKAGE CONTENT – Bluetooth Neckband Headphone – USB charging cable – User manual Incidental goods may be different for different area. ·Button Function and Operating Instruction Button Function and Operating Instruction 一 一一 一. ON / OFF Power Switch 1. Toward ON to open the headphone. 2. Toward OFF to close the headphone. 二 二二 二. Multifuction Button (Answer a call/ Pause/ Play/ Pairing/ Stand by/ Close down) 1. Power switch to the ON position, long press(3 seconds) can awaken the headphone, enter the starting state. 2. Power switch to the ON position, long press (5 seconds) can awaken the headphone, paring machine. 3. But-up state, long press(3 seconds) to sleep the headphone, enter the standby state. 4. Music playback state, short press the pause music player. 5. Music pause playback state, short press the resume playing music. 6.The headphone pairing is successful, incoming call, short press to answer the call, press (2 seconds) can reject calls. 7. Call state press this button to end the call. 三. Volume up / Previous 1. When playing music press can replay the tune, continuous short press (2 times), can jump highest music. 2. When playing music or call state press can increase the music or the call volume. 四. Volume Down / Next Song 1. Short press when playing music can jump to the next song to play. 2. Long press when playing music or call state can decrease the music or the call volume. Bluetooth function keys for different feature phone, software, version will be different. ·Interface Function 一 一一 一. CHARGE: Charger connect 1. The plug end is inserted into the standard (5V) charger or other standard USB device output. To charge the headphone, as shown in fig.. ·Indicator Function 一 一一 一. Charger Indicator 1. During charging，charger indicator light shows red. 2. The headphone is full charge, the charger indicator light goes out. When charging and the power switch to the OFF position, can effectively extend battery life, and shorten the charging time required. 二 二二 二. POWER Bluetooth Indicator Light 1. Headphone in the shutdown and dormant standby, Bluetooth indicator lights. 2. Headphone in normal working state, the Bluetooth indicator for intermittent shining blue. 3. In paired state, working light flashes for fast red and blue. 4. When the Bluetooth work indicating lamp is bright red, please promptly to the headphone is charged, or they may damage the battery. Mini USB plug end is inserted into the earphone interface Headphone Charging The headphone with non detachable built-in rechargeable battery. Again using the first use or after long period of storage, to ensure that the headphone is charged (charging 12 hours). If you want to check the battery, please refer to page sixth. 1. Will be charged micro USB plug end is inserted into the headphone interface. 2. Will be charging standard USB plug end is inserted into the standard (5V) charger or other standard USB device output. 3. In the process of charging, charging indicator light will turn red, if not start charging, please plug the charging plug again. 4. when the headphonet is fully charged, the red light will turn off, line charging from the power outlet and the headphone off. · Using only standard USB interface (5V) charger or computer USB interface charge. · Non - standard charger may cause damage to the headphone, extreme cases can cause an explosion. · Repeated charging and discharging long time will cause the battery performance. This is repeated rechargeable batteries are a normal phenomenon for all. · Charging do not make or receive a call, please dial the charger is always from the headphone to answer the phone. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS When the headphone electricity shortage When the battery power is low, and the working indicator light turns red flashing, must be timely to charge the battery ·To Open or Close The Headphone Bluetooth Function 1. Shutdown, the power switch to the ON position, long press the multifunction key (3 seconds), Bluetooth indicator light blue lights, loosen the multi-function keys, Bluetooth headphone will be automatic equipment and nearby once paired connection, enter the normal working state. 2. Shutdown, the power switch to the ON position, long press the multifunction key (5 seconds), Bluetooth indicator light red and blue flashing alternately, loosen the multi-function keys, Bluetooth headphone into pairing mode (120 seconds), paired connect other equipment wait. (120 seconds) if no device is connected, will automatically enter hibernation standby. 3. Of the normal working state, long press (3 seconds) of multiple function keys, Bluetooth indicator lights, Bluetooth headphone into the dormant, waiting for the next open. 4…

Text truncated - open the document above for the full version.

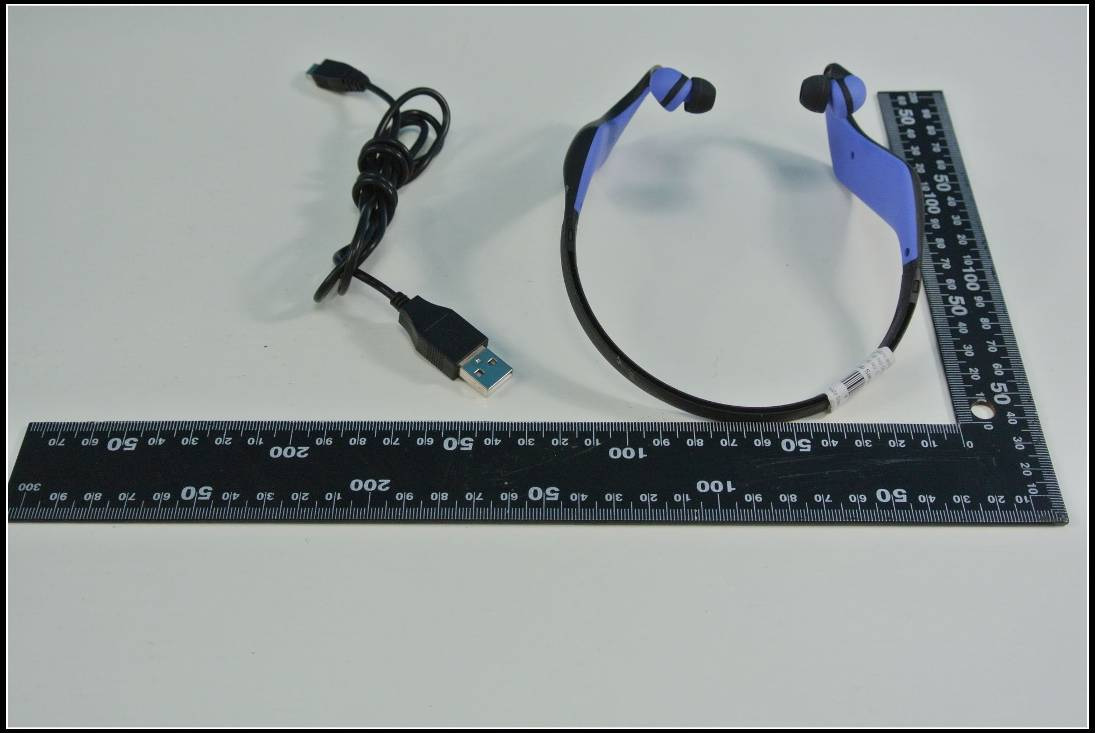

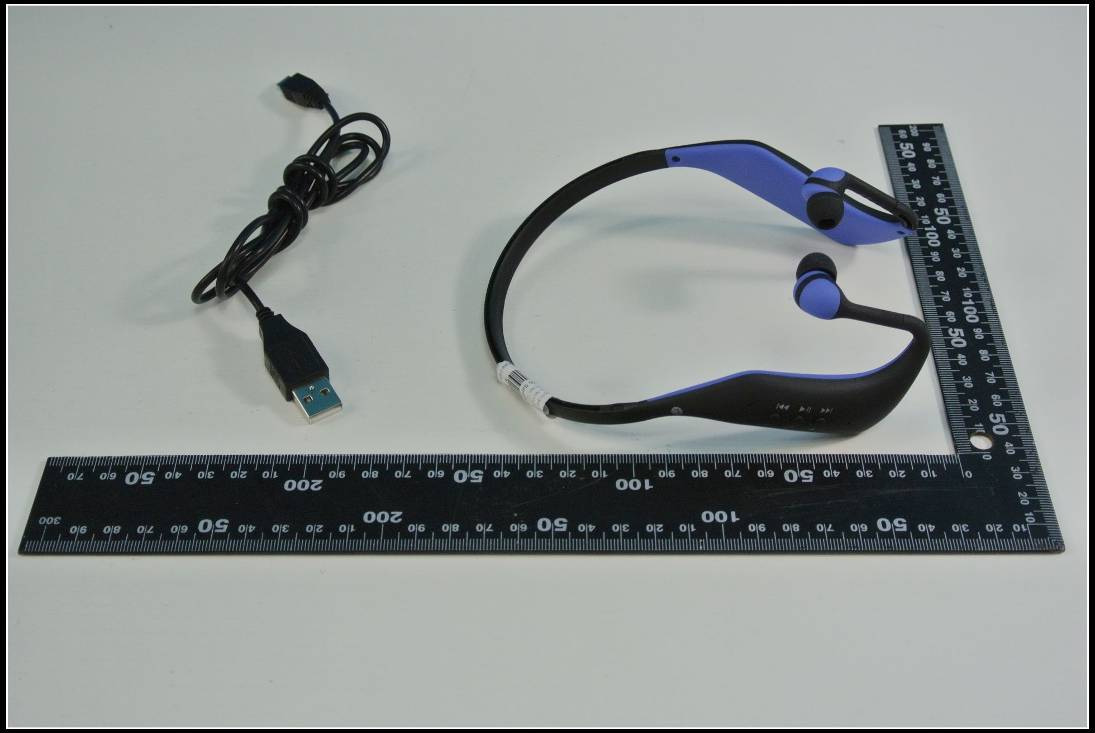

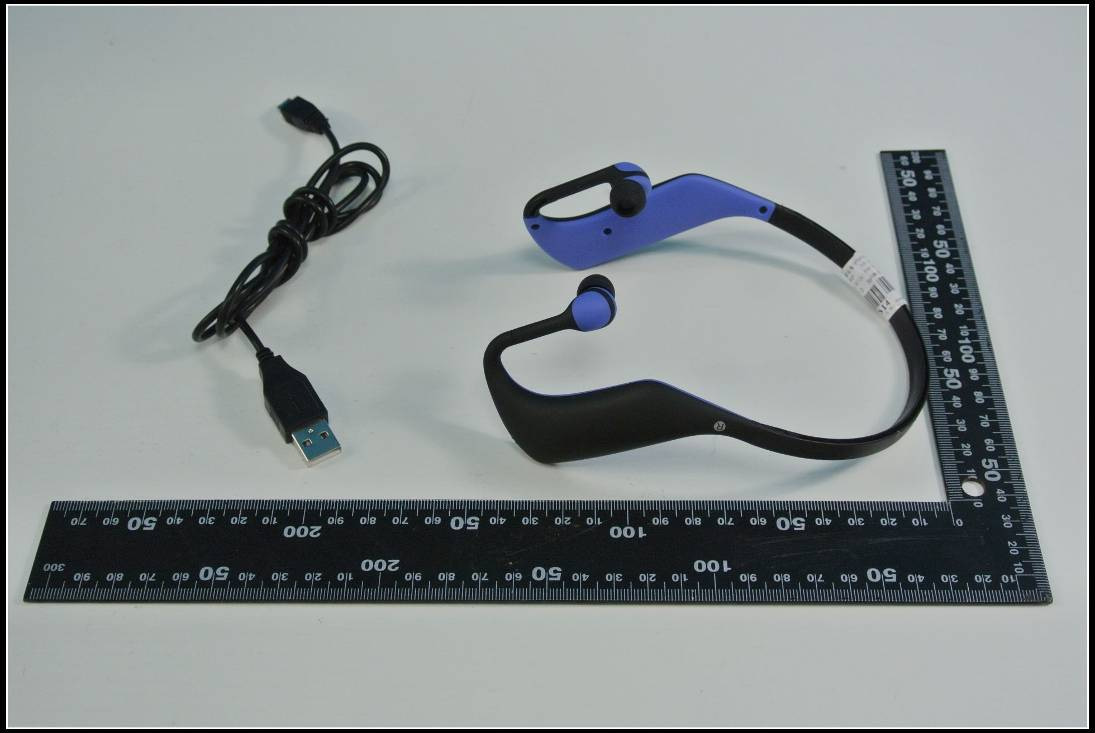

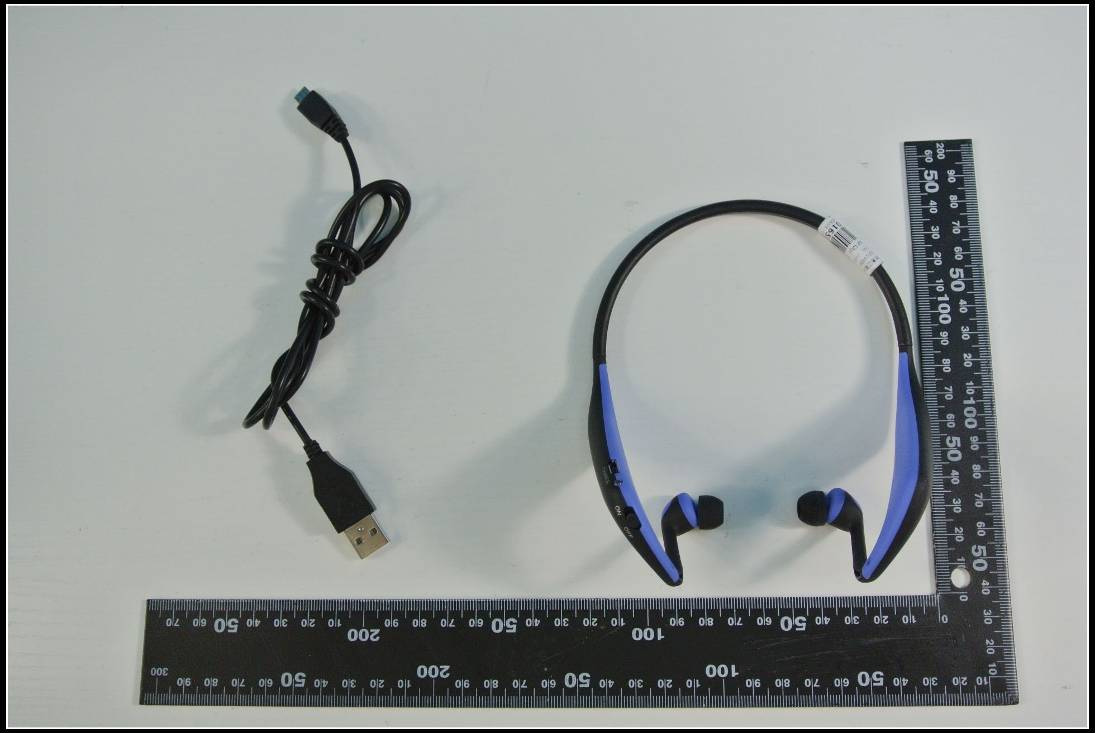

External Photos:

Internal Photos:

SGS-CSTC Standards Technical Services Co., Ltd. Application No..: GZEM1306002486RF Page: 1 of 2 FCC ID: 2AANDBT261 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. RF Exposure Compliance Requirement 1. Standard requirement Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 , ׀H׀ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 , ׀H׀ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- F/1500 30 1500-100000 -- -- 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density SGS-CSTC Standards Technical Services Co., Ltd. Application No..: GZEM1306002486RF Page: 2 of 2 FCC ID: 2AANDBT261 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2. MPE Calculation Method E (V/m)=(30*P*G) 0.5 /d Power Density: Pd(W/m 2 )=E 2 /377 E=Electric Field (V/m) P=Peak RF output Power (W) G=EUT Antenna numeric gain (numeric) d= Separation distance between radiator and human body (m) The formula can be changed to Pd= (30*P*G)/(377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 3. Calculated Result and Limit (1) Normal mode: Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2402 1.000 -0.76 0.839 0.00017 1 Complies 2441 1.000 -0.94 0.805 0.00016 1 Complies 2480 1.000 -0.88 0.817 0.00016 1 Complies (2) EDR mode: Frequency (MHz) Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2402 1.000 -1.88 0.649 0.00013 1 Complies 2441 1.000 -2.08 0.619 0.00012 1 Complies 2480 1.000 -1.99 0.632 0.00013 1 Complies

SGS-CSTC Standards Technical Services Co., Ltd. 19 8 Ke zhu Roa d, Scient ech Park, Guangzhou Economic & Technolo gical De velopment D istrict, Guangzhou, China 510663 Telephon e: +86 (0) 20 8 2155555 Fax: +86 (0) 20 820750 59 Email: ee. guangzh [email protected] Report No.: GZEM130600248601 Page: 1 of 67 FCC ID: 2AANDBT261 Authorized Signature: Richard Li Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page TEST REPORT Application No.: GZEM1306002486RF Applicant: JUN YE ELECTRONIC COMPANY LTD OF SHUNDE FOSHAN CITY FCC ID: 2AANDBT261 Product Name: Bluetooth headset Product Description: Bluetooth headset with 2.4 GHz as carrier Model No.: JY-BT261 Standards: 47 CFR PART 15 Subpart C: 2012 section 15.247 Date of Receipt: 2013-06-13 Date of Test: 2013-06-14 to 2013-07-03 Date of Issue: 2013-07-04 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Please refer to section 3 of this report for further detail. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM130600248601 Page: 2 of 67 FCC ID: 2AANDBT261 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2013-07-04 Original Authorized for issue by: Tested By 2013-06-14 to 2013-07-03 (Storm Shu) /Signature Date Prepared By 2013-07-03 (Storm Shu) /Signature Date Checked By 2013-07-04 (Jeffrey Chen) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM130600248601 Page: 3 of 67 FCC ID: 2AANDBT261 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary Test Test Requirement Test method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS Occupied Bandwidth FCC PART 15 C section 15.247 (a)(1) ANSI C63.10: Clause 6.9.1 PASS Carrier Frequenc…

Text truncated - open the document above for the full version.

Test Set-up Photos: 1.1 Radiated Spurious Emission Test Setup 30 MHz to 1 GHz: Above 1 GHz: 1.2 Conducted Emission Test Setup
