2AAOE15P3Bluetooth Speaker

ON/OFF button:Long press(5 seconds),power On, Short press,the following functional switch over(BT/AUX in). Play and Pause button: BT situation:Short press,play and pause,when called line,short press and answer the call.press again,hung up. When press twice in a short time,can call the last call number. Aux in situation:Short press,play and mute. 1 2 “-”Long press,the volume down,short press,prev. “+”:Long press,the volume up,Next. “ ”:Short press,prev,long press,the Rev. “ ”:Short press,Next,long press,the Ffw. 3 4 5 6 6 5 4 3 2 1 8 7 FAQ: If you have problem as following when you are using the speaker unit, please refer the following instructions,if still can not solve the problem, please contact the agency,Do not repair by yourself. 1.If there;s no sound from the speaker? 1).Check if the power is on. 2).Check if the battery is empty(charge it) 3).Check if the “AUX IN”cable is been connected well. Model:P3 2.Occur distortion when the volume is loud? 1)Please check the USB power cable,if there’s no enough power to support the battery,and change another USB cable. 2).Please check if the sound source is not connect well. 3.The box play normally with charged 3.7V battery,if connecting to 5V power supply,it may lead to sound distortion. Not appropriately control the volume of the speaker (Such as frequently readjust the volume),will impact the speaker’s effect, or damage the speaker. *Please try to avoid dropping down,collision or excessive pressure. *Please do not use the production in dangerous surrounding(special work condition,such as laboratory),the product may cause interference to the sensitive surrounding. *If any abnormal situation occurs when using,please immediately stop using this product. *Drop into fire or high temperature environment may explode. SAFETY PRACTICES: To ensure safety,firstly,please read and obey the following safety practices. Any edge cutting,not smooth surface,metal parts,accessories,or package are all possible to cause the bleed or injured accidentally,please be careful when using. This product can’t be eaten,please keep kids off it! Do not modify,repair or dismantle the product without authorization, improper handing may lead to wires short-circuit,product damaged or even cause fire.It will lose efficacy if the product has been change without authorization. Do not use any cleaner or fluid to clean the speaker surface,this product can only use dry cloth clean. ON/OFF Volume down Volume up Play/Pause/Answer the peone,hang up the phone Prev/Rew Next/Ffw DC in Audio input FCC ID:2AAOE15P3 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shenzhen B&W Electronics Development Limited 4/F, No. 2 Building, Guangxi Industrial Park, West of Jianshe Road, Longhua Town,Shenzhen,China

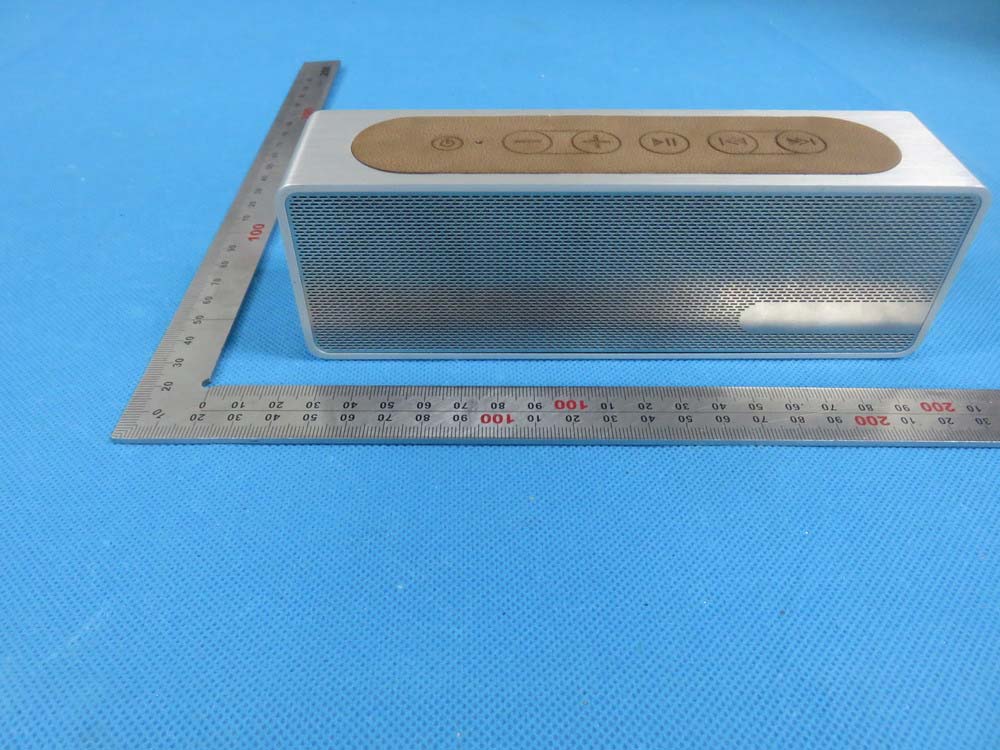

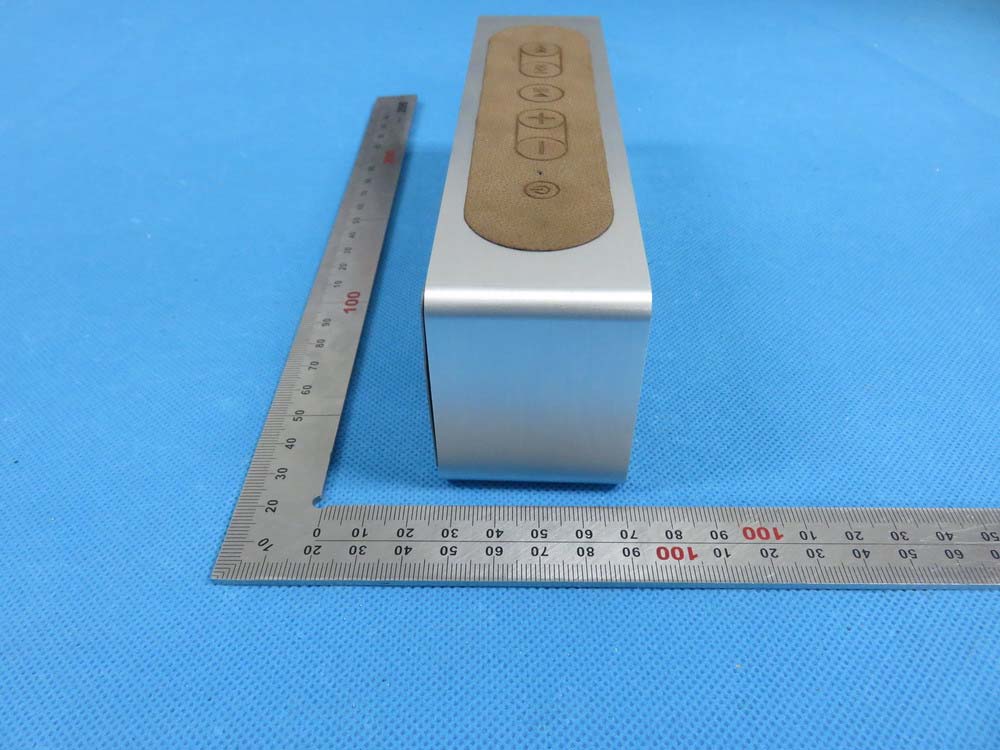

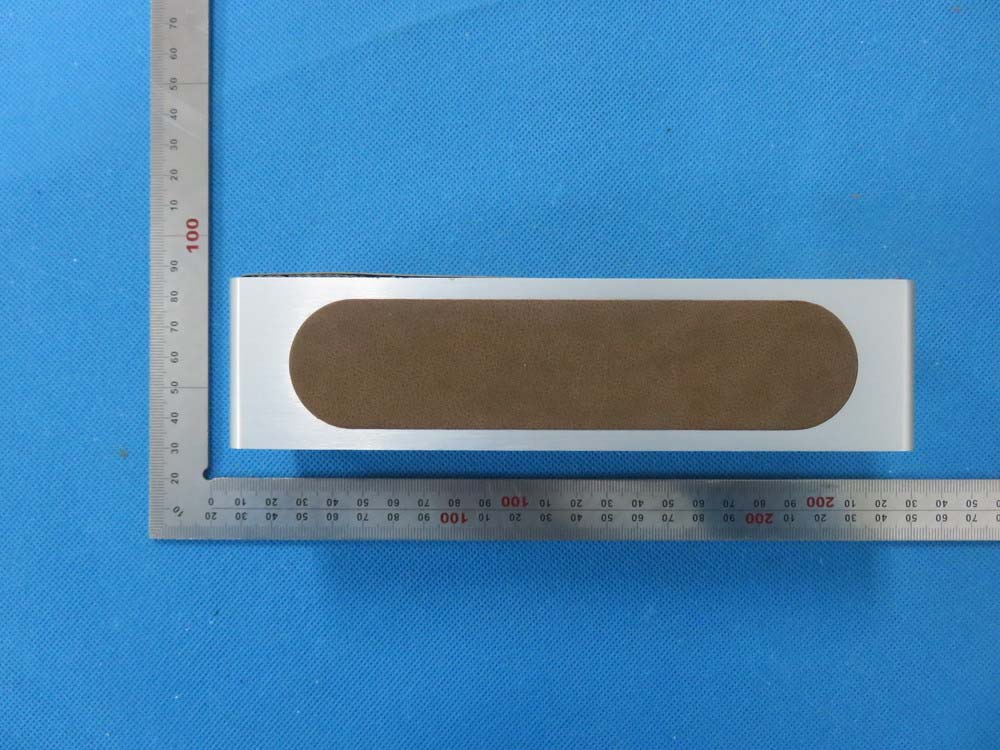

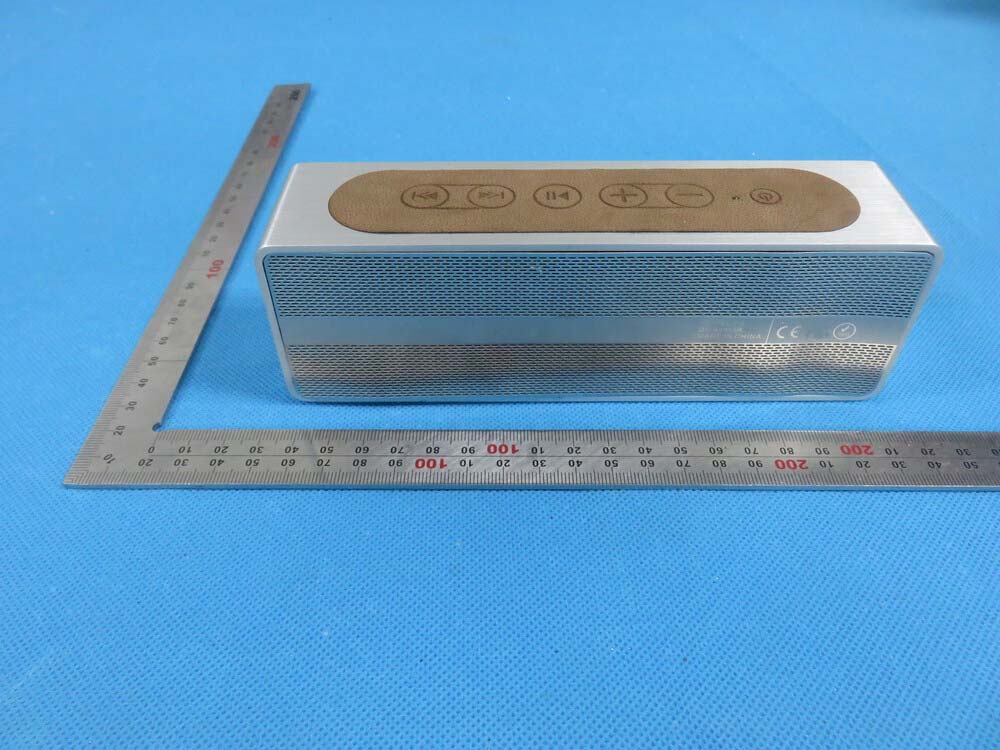

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Bluetooth Speaker Model:P3,E3 FCC ID: 2AAOE15P3

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-3 INTERNAL VIEW OF EUT-1 Antenna INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6

Page 1 of 76 FCC Test Report Report No.: AGC03058150901FE03 FCC ID : 2AAOE15P3 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Speaker BRAND NAME : N/A MODEL NAME : P3, E3 CLIENT : Shenzhen B&W Electronics Development Limited DATE OF ISSUE : Nov.04,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC03058150901FE03 Page 2 of 76 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Nov.04,2015 Valid Original Report Report No.: AGC03058150901FE03 Page 3 of 76 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES ........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 9 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 9 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 9 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 9 6. TEST FACILITY .................................................................................................................. 10 7.ALL TEST EQUIPMENT LIST ............................................................................................. 10 8. RADIATED EMISSION ....................................................................................................... 12 8.1TEST LIMIT ................................................................................................................................... 12 8.2. MEASUREMENT PROCEDURE ................................................................................................ 13 8.3. TEST SETUP .............................................................................................................................. 15 8.4. TEST RESULT ............................................................................................................................ 17 9. BAND EDGE EMISSION .................................................................................................... 43 9.1. MEASUREMENT PROCEDURE ................................................................................................ 43 9.2 TEST SETUP ............................................................................................................................... 43 9.3 RADIATED TEST RESULT .......................................................................................................... 44 10. 20DB BANDWIDTH .......................................................................................................... 52 10.1. MEASUREMENT PROCEDURE .............................................................................................. 52 10.2. TEST SET-UP ........................................................................................................................... 52 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 52 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 61 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 61 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 61 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 62 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 62 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 63 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 67 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 69 Report No.: AGC03058150901FE03 Page 4 of 76 1. VERIFICATION OF CONFORMITY Applicant Shenzhen B&W Electronics Development Limited Address 4/F, No. 2 Building, Guangxi Industrial Park, West of Jianshe Road, Longhua Town,Shenzhen,China Manufacturer Shenzhen B&W Electronics Development Limited Address 4/F, No. 2 Building, Guangxi Industrial Park, West of Jianshe Road, Longhua Town,Shenzhen,China Product Designation Bluetooth Speaker Brand Name N/A Test Model P3 Series Model E3 Different Description All the same except for the design of External Button Plate. Date of test Nov.02,2015 to Nov.03,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Dongguan Precise Testing Service Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Tested By Wat…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
