CQL1450-B Bluetooth Speaker Instruction Manual (Read before proceeding) Power:  Works on internal rechargeable Lithium battery. Please charge your speaker fully before first use. To charge the battery : Using a Micro USB cable (included), insert the jack into ”Charging” jack located at the back of the unit and then plug the USB connecter into the USB port on a computer for charging.  A red light aside will indicate the charging situation. When battery is full, the red light will turn off automatically. Bluetooth Speaker Operation  Turn on the unit by pushing the switch at the back. A Blue light aside will start blinking to indicate the speaker is in paring mode and searching for your Bluetooth mobile device.  Bluetooth speaker device name is “SB-01”, connect it via the option menu of your mobile device, pairing mode is 0000 if any is required. The Blue light will begin to flashing slowly after pair is complete.  Start playing music on your device. Keep your device within 33feet (10m) of your speaker.  Adjust the volume of your device to a comfortable level.  Turn off the unit when not in used. Universal Speaker Operation  For other music devices without Bluetooth, use the attached audio input cable. Insert the 3.5 mm jacks into the “Aux-in” jack and into the earphone jack on your device.  Turn on the unit and start playing music.  Turn off the unit when not in used. Caution:  This is not a toy. Please keep away from small children.  Please keep away from water / heat.  Low power may cause poor connection even no working of Bluetooth.  Do not over charge the battery. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

< Sure Wave (HongKong) Limited > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2015.01.09 Subject; Request for Confidentiality FCC ID: 2AAPLCQL1450-B To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission' s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Emma Lee Title: Senior Sales Executive Email: [email protected]

Sure Wave (HongKong) Limited Letter of Authorization Company: Sure Wave (HongKong) Limited Address: A-703, Building 2, Tianan Cyber Park, HuangGe North Road, LongGang District, Shenzhen 518172, P.R. China Product Name: Saucer Bluetooth Speaker Model Number: CQL1450-B We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following:  Testing  Approval applications (includes complete product documentation package, including Confidential information) and procedures  Payment of approval fees We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Emma Lee Date: 2015.01.09 Title: Senior Sales Executive Signature of applicant:

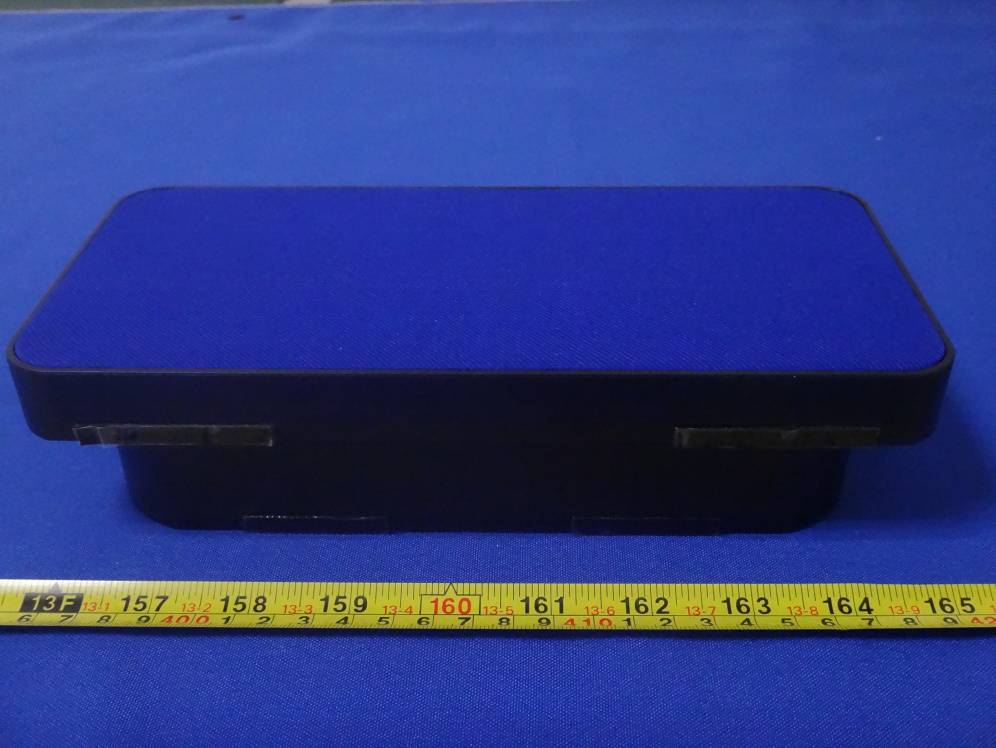

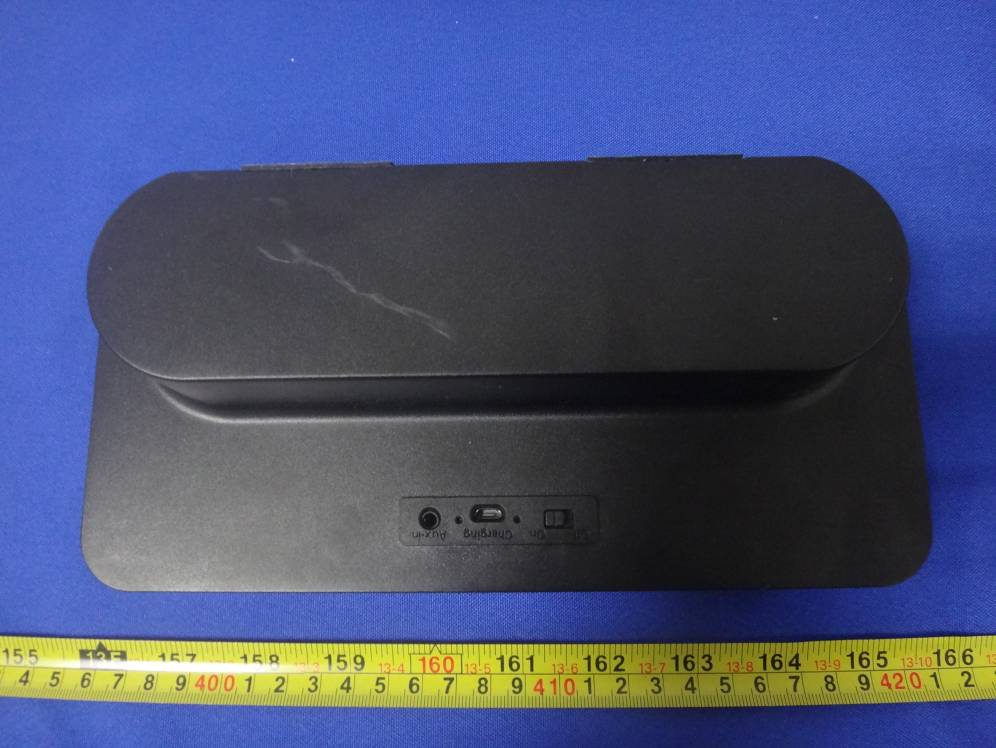

External photos

LABEL ARTWORK AND LOCATION Label size: L*W=28*22mm Color: white font Model: CQL1450-B FCC ID: 2AAPLCQL1450-B This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Location

Internal photos

FCC ID TEST REPORT for Saucer Bluetooth Speaker Model: CQL1450-B FCC ID: 2AAPLCQL1450-B Prepared for: Sure Wave (HongKong) Limited A-703, Building 2, TianAn Cyber Park, Huangge North Road, Longgang District, Shenzhen 518172, P.R. China Prepared by: Shenzhen TCT Testing Technology Co.,Ltd 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China TEL: +86-0755-27673339 FAX: +86-0755-27673332 Report Number：TCT150104E001 Date of Test： Jan. 4-Jan. 7, 2015 Date of Report： Jan. 8, 2015 The results detailed in this test report relate only to the specific sample(s) tested. It is the Application’s responsibility to ensure that all production units are manufactured with equivalent EMC characteristics. This report is not to be reproduced except in full, without written approval from TCT Testing Technology. FCC ID: 2AAPLCQL1450-B Report Number: TCT150104E001 Page 2 of 43 Table of Contents 1.0 General Details ................................................................................................................................................... 3 1.1 Test Lab Details ........................................................................................................................................... 3 1.2 Applicant Details ......................................................................................................................................... 3 1.3 Description of EUT ...................................................................................................................................... 4 1.4 Statement ..................................................................................................................................................... 4 1.5 Test Engineer ............................................................................................................................................... 4 2.0 Test equipments and Associated Equipment used during the test. ................................................................ 5 2.1 Test Equipments ........................................................................................................................................... 5 2.2 AE used during the test ................................................................................................................................ 5 3.0 Technical Details ................................................................................................................................................ 6 3.1 Summary of test results ............................................................................................................................... 6 3.2 Test Standards .............................................................................................................................................. 6 4.0 EUT Modification .............................................................................................................................................. 6 5.0 Measurement Uncertainty（95% confidence levels, k=2) ............................................................................. 6 6.0 Power Line Conducted Emission Test .............................................................................................................. 7 7.0 20dB Bandwidth Measurement .......................................................................................................................11 8.0 Maximum Peak Output Power ....................................................................................................................... 15 9.0 Carrier Frequency Separation ........................................................................................................................ 19 10.0 Number of Hopping Channels ...................................................................................................................... 23 11.0 Time of Occupancy (Dwell Time) ................................................................................................................. 25 12.0 Band edge Measurement ............................................................................................................................... 29 13.0 Spurious Emission Test.................................................................................................................................. 34 14.0 Antenna Requirement ................................................................................................................................... 43 FCC ID: 2AAPLCQL1450-B Report Number: TCT150104E001 Page 3 of 43 1.0 General Details 1.1 Test Lab Details Name : Shenzhen Tongce Testing Lab Address: 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China Telephone: 13410377511 Fax: -- The test facility is recognized, certified, or accredited by the following organizations: FCC Registration Number: 572331 Shenzhen TCT Testing Technology Co., Ltd., Shenzhen EMC Laboratory: Shenzhen Tongce Testing Lab The 3m Semi-anechoic chamber has been registered and fully described in a report with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration Number: 572331 Industry Canada (IC) The 3m Semi-anechoic chamber of Shenzhen TCT Testing Technology Co., Ltd. has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing Registration Number IC: 10668A-1 1.2 Applicant Details Applicant: Sure Wave (HongKong) Limited Address: A-703, Building 2, TianAn Cyber Park, Huangge North Road, Longgang District, Shenzhen 518172, P.R. China Telephone: 86-755-22157741 Fax: 86-75588157700 Manufacturer: Sure Wave (HongKong) Limited Address: A-703, Building 2, TianAn Cyber Park, Huangge North Road, Longgang District, Shenzhen 518172, P.R. China Telephone: 86-755-22157741 Fax: 86-75588157700 FCC ID: 2AAPLCQL1450-B Report Number: TCT150104E001 Page 4 of 43 1.3 …
