2AAPLCQL1460-BStereo Bluetooth Speaker

CQL1460-B Bluetooth Speaker Instruction Manual (Read before proceeding) Power:  Please charge your Bluetooth speaker fully before its first use.  Operates using an internal rechargeable Lithium battery. To charge the battery:  Using a Micro USB cable (included), insert the USB power cable into the micro USB port located on the back of the speaker. Connect the other end of the USB cord into a powered USB source such as a computer, laptop or USB AC adapter.  When your Bluetooth speaker is charging, the indicator light will turn red.  Once your Bluetooth speaker is fully charged, the red light will turn off. Playing Music Via Bluetooth  Turn your Bluetooth speaker on by sliding the power switch located on the back of the speaker to ‘ON’ position.  The indicator light will turn blue. This indicates that the speaker is in pairing mode and is searching for your Bluetooth device.  Make sure the Bluetooth function on your device is turned on.  Search the speaker named,”SB-01”.  Once you have selected the speaker, your device will pair without a password. (If your device prompts for a password, enter the password”0000”.  Once your speaker is paired, the indicator light will begin to flash blue more slowly.  Start playing music on your device. Make sure that you keep your device within a 33 foot range of your Bluetooth speaker.  Adjust the volume of your device to a comfortable level.  Turn off the unit when not used. Universal Speaker Operation  For devices that are not Bluetooth enabled, use the attached audio input cable.  Insert the 3.5mm input jack into the “AUX-IN” port.  Turn on the unit by sliding the switch on the back of the Bluetooth speaker to the ‘ON’ position and start listening to music. Hands-Free  When receiving an incoming call, press the answer button on your mobile device, the call will come in through the Bluetooth speaker for a hands-free phone call. Warning:  This is not a toy. Please keep away from small children.  Please keep away from water / heat.  Low power may cause poor connection and/or may cause the Bluetooth function to not work  Do not overcharge the battery. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

< Sure Wave (HongKong) Limited > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2015.02.12 Subject; Request for Confidentiality FCC ID: 2AAPLCQL1460-B To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission' s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Emma Lee Title: Senior Sales Executive Email: [email protected]

Sure Wave (HongKong) Limited Letter of Authorization Company: Sure Wave (HongKong) Limited Address: A-703, Building 2, Tianan Cyber Park, HuangGe North Road, LongGang District, Shenzhen 518172, P.R. China Product Name: Stereo Bluetooth Speaker Model Number: CQL1460-B We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: • Testing • Approval applications (includes complete product documentation package, including Confidential information) and procedures • Payment of approval fees We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Emma Lee Date: 2015.02.12 Title: Senior Sales Executive Signature of applicant:

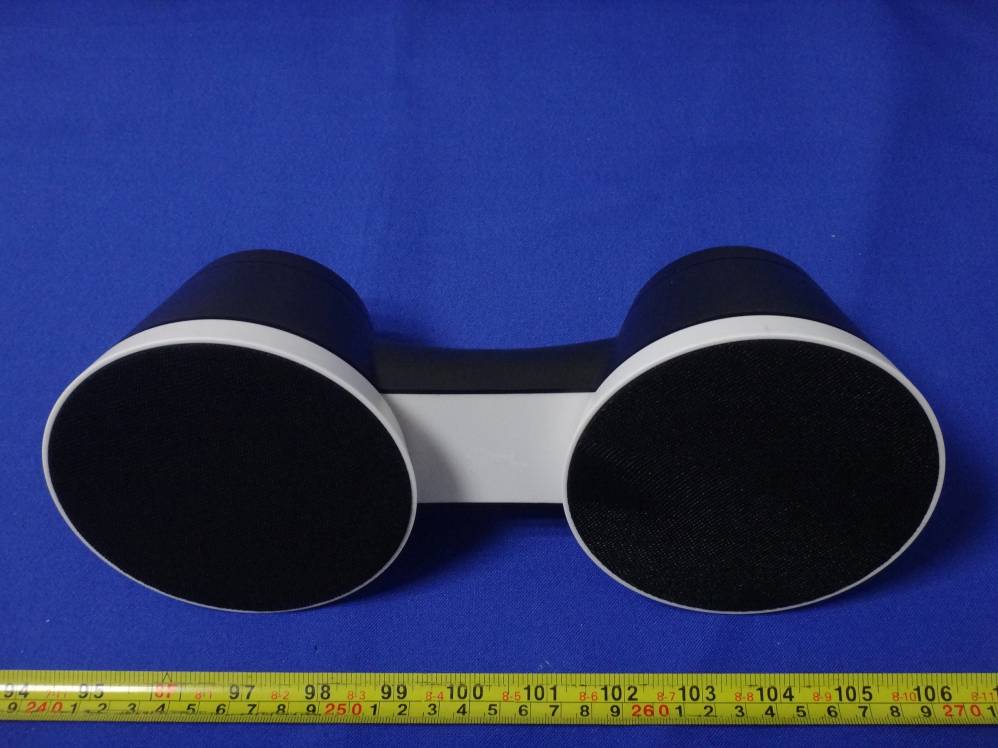

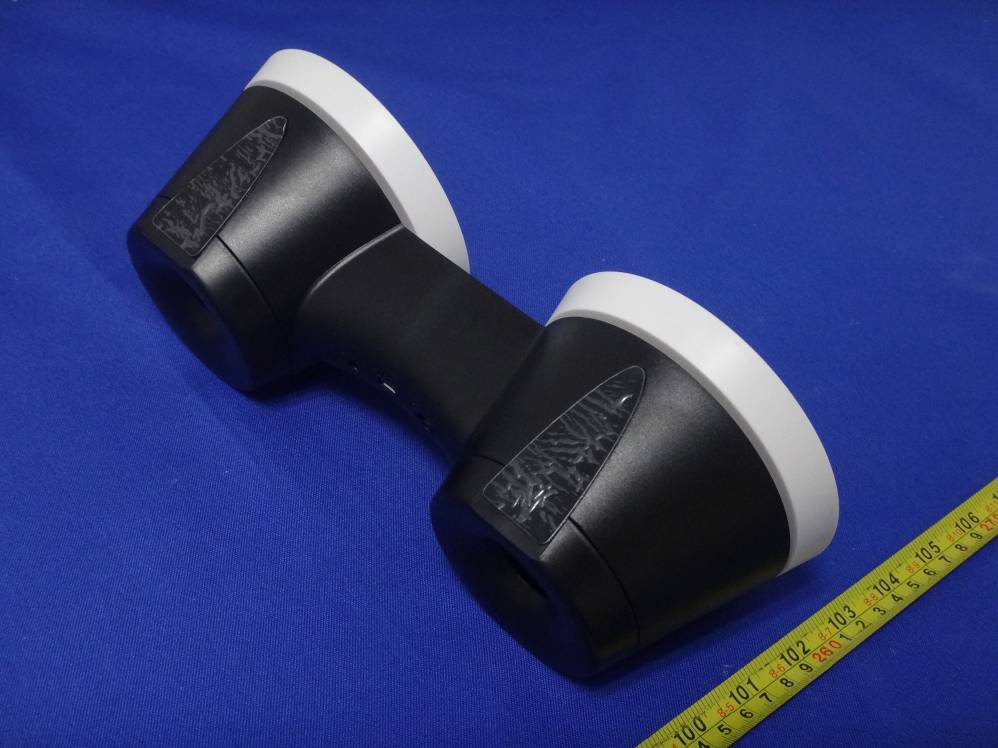

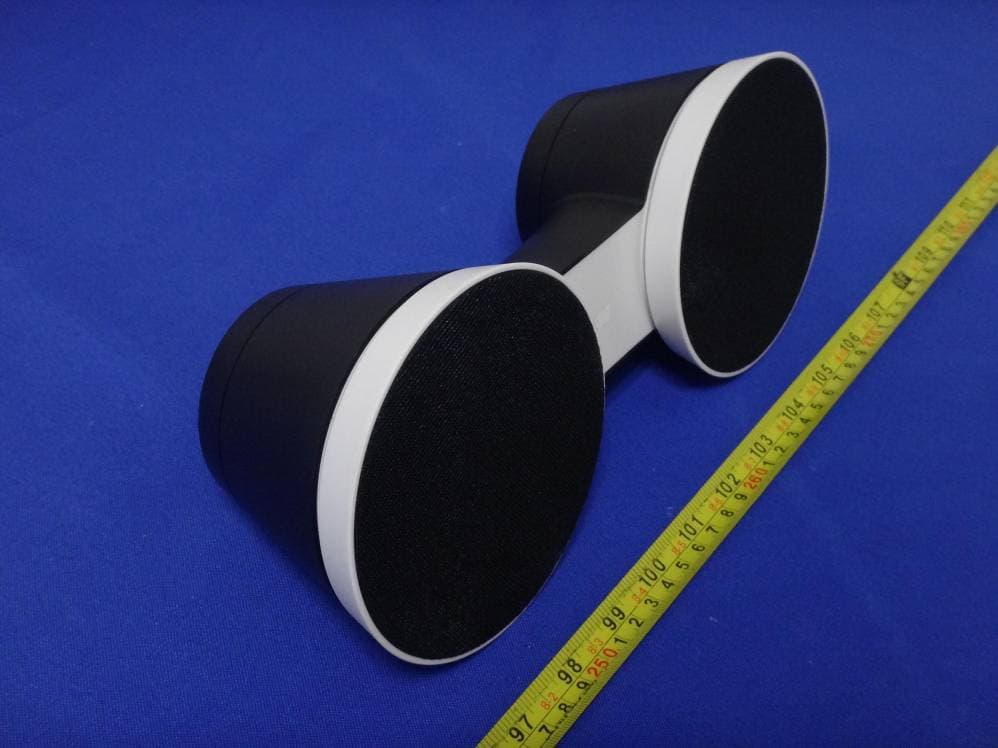

External photos

LABEL ARTWORK AND LOCATION Label size: L*W=28*22mm Color: white font Model: CQL1460-B FCC ID: 2AAPLCQL1460-B This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Location

Internal photos

Report No.: TCT150121E002 The results detailed in this test report relate only to the specific sample(s) tested. and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. This report is not to be reproduced except in full, without written approval from TCT Testing Technology. 1 Cover Page FCC REPORT Applicant: Sure Wave (HongKong) Limited Address of Applicant: A- 703, Building 2, Tianan Cyber Park, HuangGe North Road, LongGang District, Shenzhen 518172, P.R. China Equipment Under Test (EUT) Product Name: Stereo Bluetooth Speaker Model No.: CQL1460-B Trade mark: SURE FCC ID: 2AAPLCQL1460-B Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Jan. 12, 2015 Date of Test: Jan. 13 - Feb . 10, 2015 Date of report issued: Feb. 11, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: TCT150121E002 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755- 27673332 http://www.tct-lab.com Page 2 of 37 2 Version Version No. Date Description 00 Jan. 15, 2015 Original Prepared by: Date: Jan. 14, 2015 Report Clerk Reviewed by: Date: Jan. 15, 2015 EMC Manager Report No.: TCT150121E002 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755- 27673332 http://www.tct-lab.com Page 3 of 37 3 Contents Page 1 COVER PAGE .................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................ 2 3 CONTENTS ........................................................................................................................................................ 3 4 TEST SUMMARY ............................................................................................................................................... 4 5 GENERAL INFORMATION ................................................................................................................................ 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 MEASUREMENT UNCERTAINTY .............................................................................................................................. 6 5.4 TEST MODE ............................................................................................................................................................ 7 5.5 LABORATORY FACILITY ......................................................................................................................................... 7 5.6 LABORATORY LOCATION....................................................................................................................................... 7 5.7 TEST INSTRUMENTS LIST ....................................................................................................................................... 8 6 TEST RESULTS AND MEASUREMENT DATA ............................................................................................... 9 6.1 ANTENNA REQUIREMENT: ...................................................................................................................................... 9 6.2 CONDUCTED EMISSIONS ..................................................................................................................................... 10 6.3 CONDUCTED OUTPUT POWER ............................................................................................................................. 13 6.4 20DB OCCUPY BANDWIDTH ................................................................................................................................ 14 6.5 CARRIER FREQUENCIES SEPARATION ................................................................................................................ 17 6.6 HOPPING CHANNEL NUMBER .............................................................................................................................. 21 6.7 DWELL TIME ......................................................................................................................................................... 23 6.8 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ......................................................................................... 25 6.9 CONDUCTED BAND EDGE MEASUREMENT ......................................................................................................... 26 6.10 CONDUCTED SPURIOUS EMISSION MEASUREMENT ........................................................................................... 29 6.11 RADIATED SPURIOUS EMISSION MEASUREMENT ............................................................................................... 32 Report No.: TCT150121E002 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755- 27673332 http://www.tct-lab.com Page 4 of 37 4 Test Summary Test Item Section in CFR 47 Result Antenna Requirement 15.203/15.247 (c) Pass AC Power Line Conducted Emission 15.207 Pass Conducted Peak Output Power 15.247 (b)(1) Pass 20dB Occupied Bandwidth 15.247 (a)(1) Pass Carrier Frequencies Separation 15.247 (a)(1) Pass Hopping Channel Number 15.247 (a)(1) Pass Dwell Time 15.247 (a)(1) Pass Radiated Emission 15.205/15.209 Pass Band Edge 15.247(d) Pass Pass: The EUT complies with the essential requirements in the standard. Report No.: TCT150121E002 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755- 27673332 http://www.tct-lab.com Page 5 of 37 5 General Information 5.1 Client Information Applicant: Sure Wave (HongKong) Limited Address of Applicant: A- 703, Building 2, Tian…

Text truncated - open the document above for the full version.

Setup photo Radiated Emission Test Conducted Emission Test
