2AAPLCQL1508-BBluetooth Speaker

CQL1508-B/SBT6001 Bluetooth Speaker Instruction Manual (Read before proceeding) Power: Please charge your Bluetooth speaker fully before first use. To charge the battery: Using a MicroUSB cable(included), insert the USB power cable into the micro USB port located on the back of the speaker. Connect the other end of the USB cord into a powered USB source such as a computer, laptop or USB AC adapter. When your Bluetooth speaker is charging, the indicator light will turn red. Once your Bluetooth speaker is fully charged, the red light will turn off. Playing Music Via Bluetooth Turn your Bluetooth speaker on by sliding the power switch located on the bottom of the speaker to ‘ON’ position. The blue indicator light will flash quickly. This indicates that the speaker is in pairing mode and is searching for your Bluetooth device. Make sure the Bluetooth function on your device is turned on. Search the speaker named,”CQL1508-B”. Once you have selected the speaker, your device will pair without a password. (If your device prompts for a password, enter the password”0000”). Once your speaker is paired, the blue indicator light will begin to flash slowly. Charge your Strip LEDs to the back of the Bluetooth speaker. Start playing music on your mobile device. The LED lights will dance to your music. Make sure that you keep your device within 33 feet of your Bluetooth speaker. Adjust the volume of your device to a comfortable level. Turn off the unit when not in use. LightsDance to the Music Turn on the Bluetooth speaker and charge your Strip LEDs to the back of the Bluetooth speaker. Lights are always on when not playing music. Lights dance to yourmusic when playing music via your mobile device. Lights are always on when pause the music. Turn off the unit when not used. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

< Sure Wave (HongKong) Limited > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2015 .09.1 Subject; Request for Confidentiality FCC ID: 2AAPLCQL150 8-B To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Emma Lee Title: Senior Sales Executive Email: [email protected]

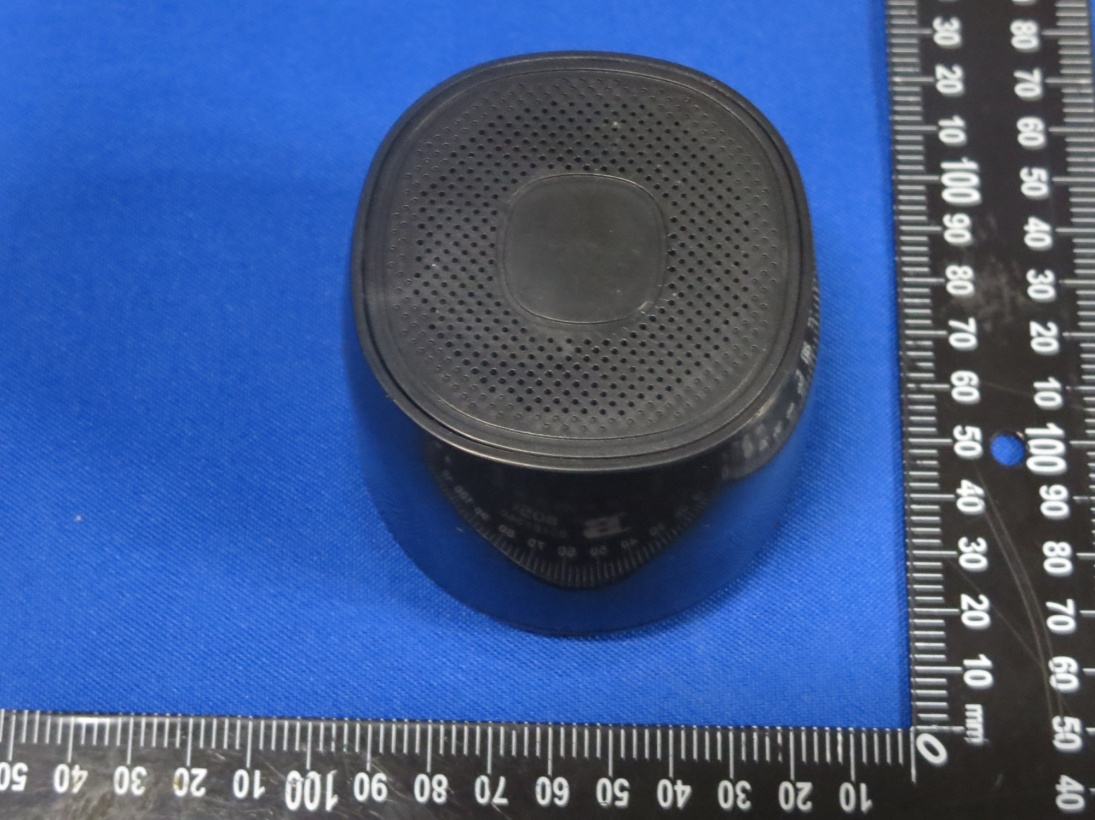

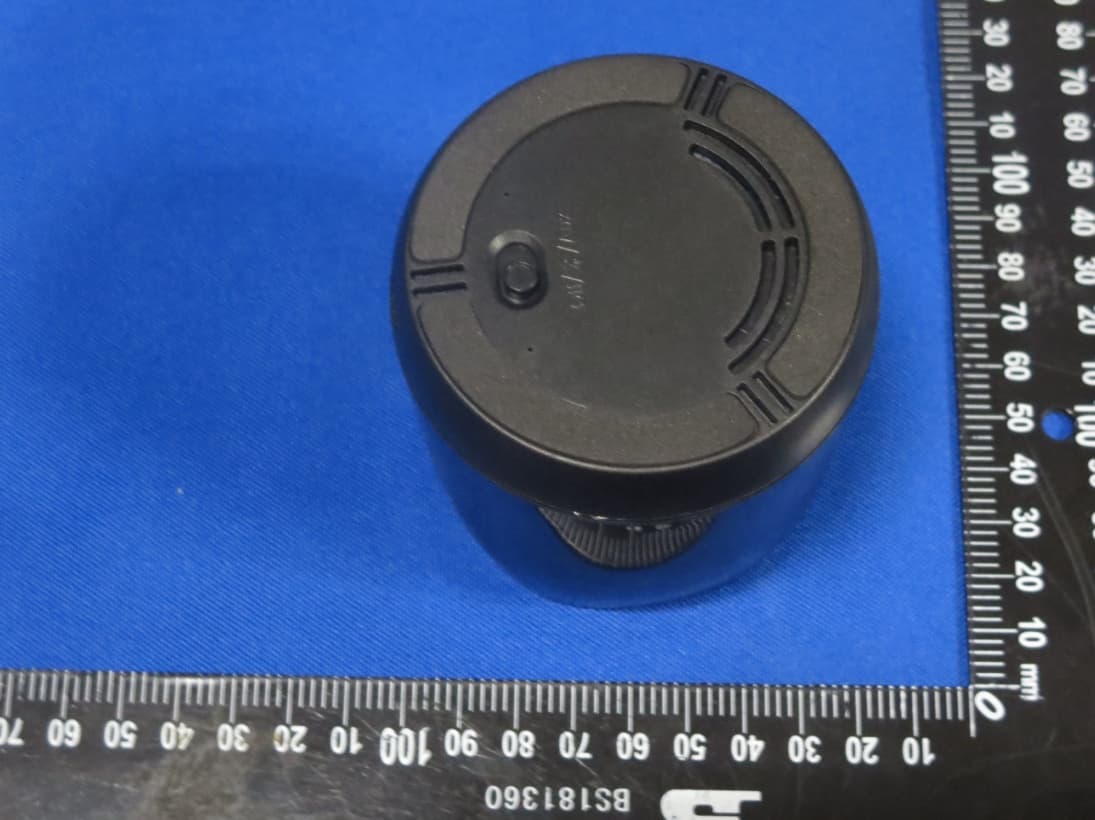

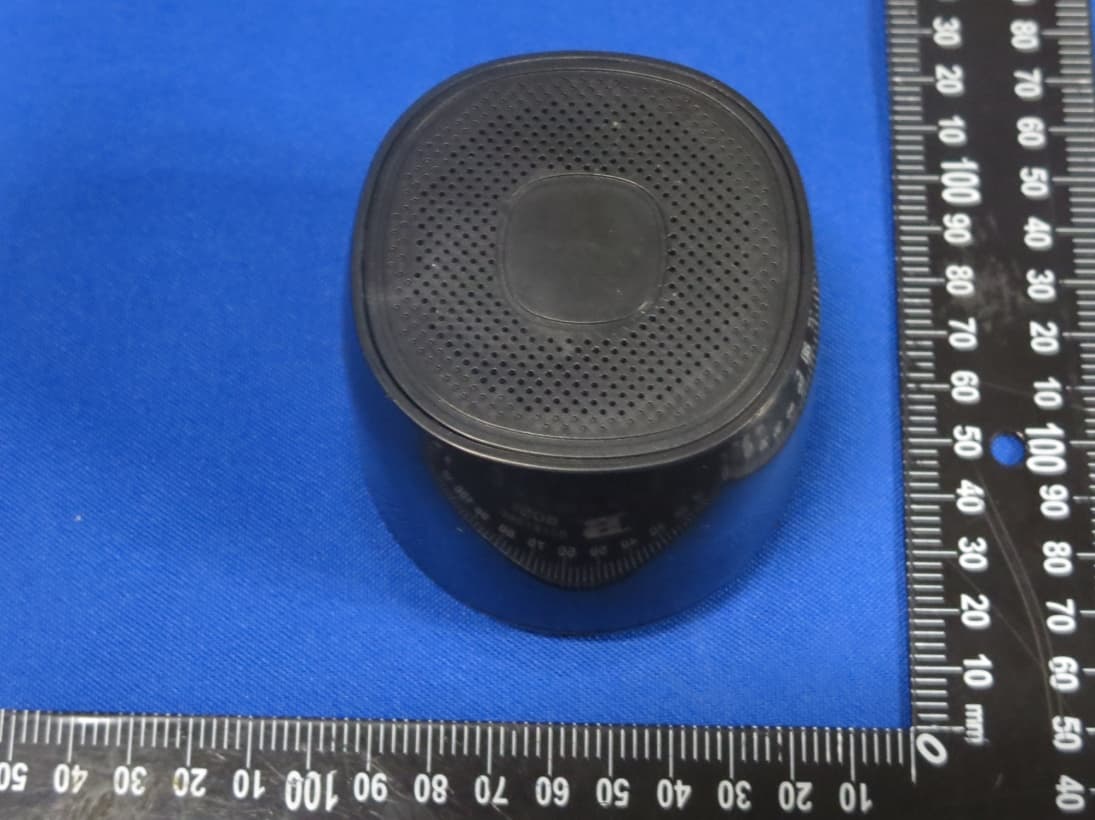

Appendix B: Photographs of EUT Model: CQL1508-B External Photos

LABEL ARTWORK AND LOCATION L*W=28mm*6mm Model No.: CQL1508-B Input: DC 5V FCC ID: 2AAPLCQL1508-B

Model: CQL1508-B Internal Photos

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AAPLCQL1508-B Product: Bluetooth Speaker Model No.: CQL1508-B Additional Model: SBT6001 Trade Mark: SURE Report No.: TCT150814E014 Issued Date: Sep. 01, 2015 Issued for : Sure Wave (HongKong) Limited A-703, Building 2, Tianan Cyber Park, HuangGe North Road, LongGang District, Shenzhen 518172, P.R. China. Issued By: Shenzhen Tongce Testing Lab. 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT150814E014 Page 2 of 45 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. Genera Information ................................................................................... 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations ................................................................... 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ...................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. 20dB Occupy Bandwidth .................................................................................... 17 6.5. Carrier Frequencies Separation ......................................................................... 21 6.6. Hopping Channel Number .................................................................................. 25 6.7. Dwell Time ............................................................................................................ 28 6.8. Pseudorandom Frequency Hopping Sequence ................................................ 31 6.9. Conducted Band Edge Measurement ................................................................ 32 6.10. Conducted Spurious Emission Measurement ................................................. 35 6.11.Radiated Spurious Emission Measurement ..................................................... 38 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT150814E014 Page 3 of 45 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Bluetooth Speaker Model No.: CQL1508-B Additional Model: SBT6001 Applicant: Sure Wave (HongKong) Limited Address: A-703, Building 2, Tianan Cyber Park, HuangGe North Road, LongGang District, Shenzhen 518172, P.R. China. Manufacturer: Sure Wave (HongKong) Limited Address: A-703, Building 2, Tianan Cyber Park, HuangGe North Road, LongGang District, Shenzhen 518172, P.R. China. Date of Test: Aug. 14 –Aug. 31, 2015 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date:Aug. 31, 2015 Garen Reviewed By: Date:Sep. 01, 2015 Joe Zhou Approved By: Date:Sep. 01, 2015 Tomsin Report No.: TCT150814E014 Page 4 of 45 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(1) PASS 20dB Occupied Bandwidth §15.247 (a)(1) PASS Carrier Frequencies Separation §15.247 (a)(1) PASS Hopping Channel Number §15.247 (a)(1) PASS Dwell Time §15.247 (a)(1) PASS Radiated Emission §15.205/§15.209 PASS Band Edge §15.247(d) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT150814E014 Page 5 of 45 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product Name: Bluetooth Speaker Model : CQL1508-B Additional Model: SBT6001 Trade Mark: SURE Operation Frequency: 2402MHz~2480MHz Transfer Rate: 1/2 Mbits/s Number of Channel: 79 Modulation Type: GFSK, π/4-DQPSK Modulation Technology: FHSS Antenna Type: Internal Antenna Antenna Gain: 0dBi Power Supply: DC 3.7V Remark: All models above are identical in i…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Radiated Emission Page 2 of 2 Conducted Emission
