2AAPLCQZ502-BBluetooth Speaker

CQZ502-B iLight Bluetooth Speaker Instruction Manual (Read before proceeding) Power for Bluetooth speaker:  Works on internal rechargeable Lithium-ion battery. Please charge your speaker fully before first use. To charge the battery : Using the power adaptor (included), insert the jack into the micro hole named “Charging” in the back of the unit, a red light aside will indicate the charging situation. When battery is full, the red light will turn off automatically. Power for lamp:  Using the power adaptor (included), insert the jack into the micro hole named “Charging” in the back of the unit. Bluetooth Speaker Operation:  Turn on the unit by pushing the “Bluetooth ON/OFF” switch at the back to ON position. A Blue light will start blinking to indicate the speaker is in paring mode and searching for your Bluetooth mobile device.  Open the Bluetooth function on your device and search the speaker named “SBT5004”. After selecting this speaker, your device will pair without a pin. (If your device need pair pin, enter the pin “0000” directly from your device and hit “OK”) .The Blue light will begin to flash more slowly after the pair is complete.  Start playing music on your device. Keep your device within 33 feet (10m) of your speaker.  Adjust the volume of your device to a comfortable level.  Turn off the unit when not used. Light Operation:  Turn on the unit by pushing the switch “POWER ON/OFF” switch at back to “ON” position.  Turn off the light by switching to “OFF” position. Universal Speaker Operation:  For other music devices without Bluetooth, use the auxiliary audio input cable. Insert the 3.5mm jack into the “Aux-in” hole and the earphone hole on your device.  Turn on the unit and start playing music. Charging Port:  Using the power adaptor (included), insert the jack into the micro hole named “Charging” in the back of the unit.  To charge your digital device, use a USB cable and insert the jack into to the big hole named “USB 5V” in the back and insert the other side to your digital device. Caution:  This is not a toy. Please keep away from small children.  Please keep away from water/heat.  Low power may cause poor connection even no working of Bluetooth.  Do not overcharge the battery. FCC Statement  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  -- Reorient or relocate the receiving antenna.  -- Increase the separation between the equipment and receiver.  -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  -- Consult the dealer or an experienced radio/TV technician for help  This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Sure Wave (HongKong) Limited Letter of Authorization Company: Sure Wave (HongKong) Limited Address: A-703, Building 2, Tianan Cyber Park, HuangGe North Road, LongGang District, Shenzhen 518172, P.R. China Product Name: Bluetooth Speaker Model Number: CQZ502-B, SBT5004 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: • Testing • Approval applications (includes complete product documentation package, including Confidential information) and procedures • Payment of approval fees We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Emma Lee Date: 2015.05.26 Title: Senior Sales Executive Signature of applicant:

< Sure Wave (HongKong) Limited > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2015.05.26 Subject; Request for Confidentiality FCC ID: 2AAPLCQZ502-B To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Emma Lee Title: Senior Sales Executive Email: [email protected]

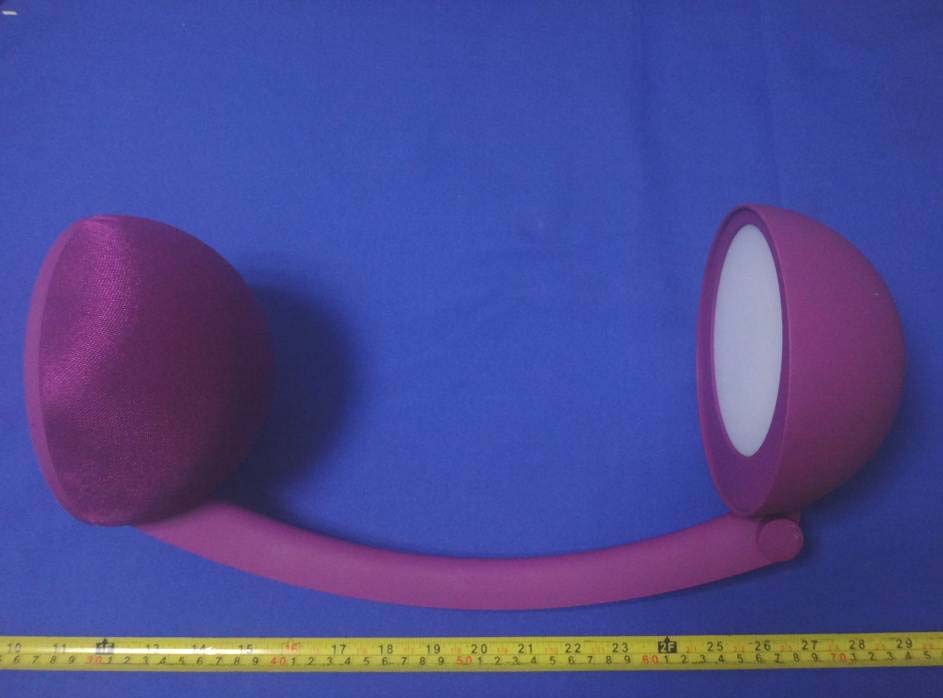

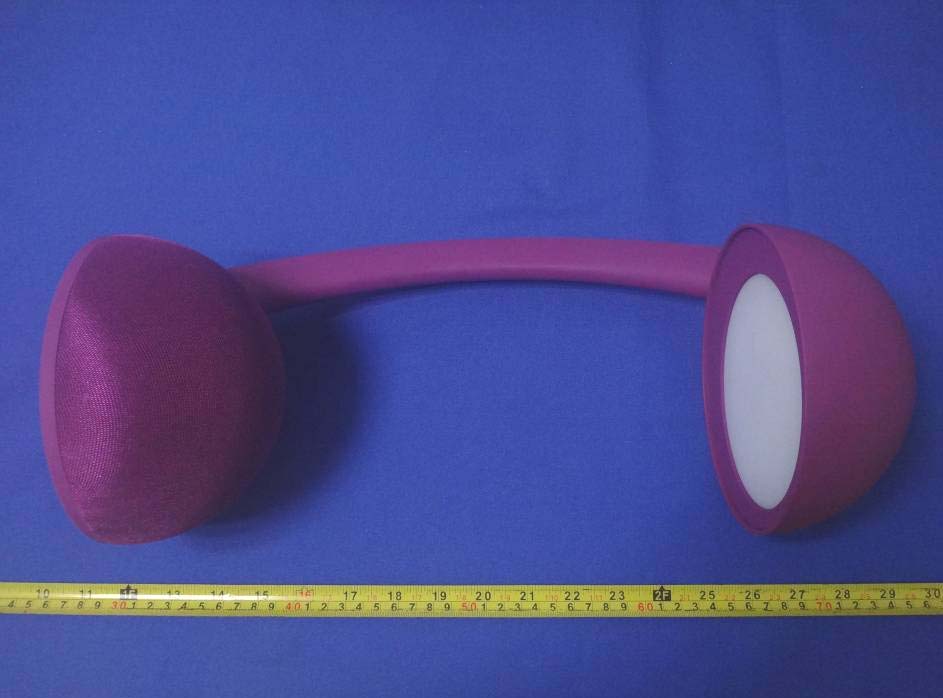

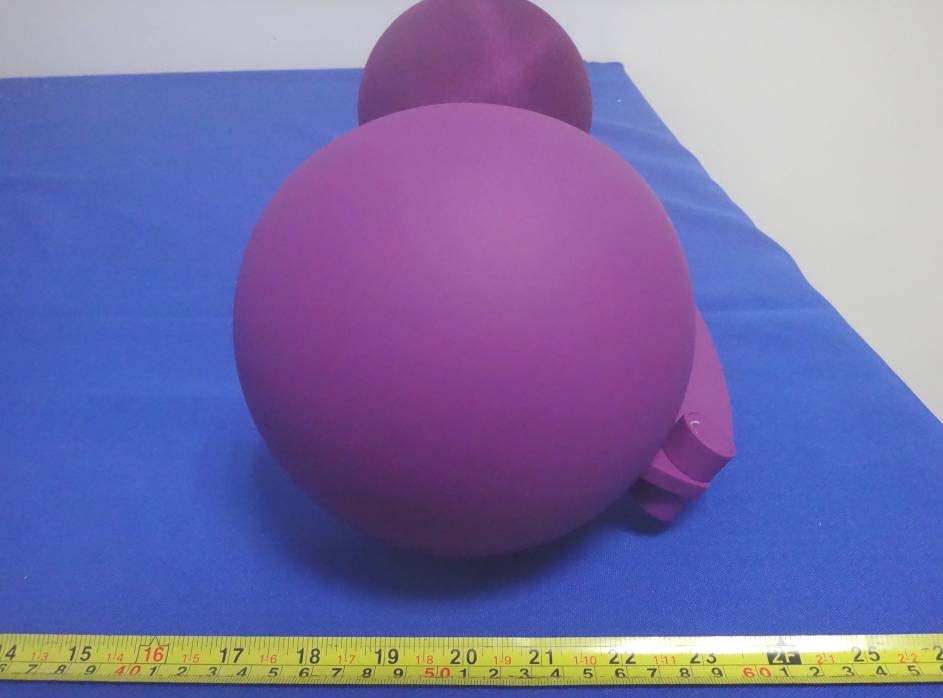

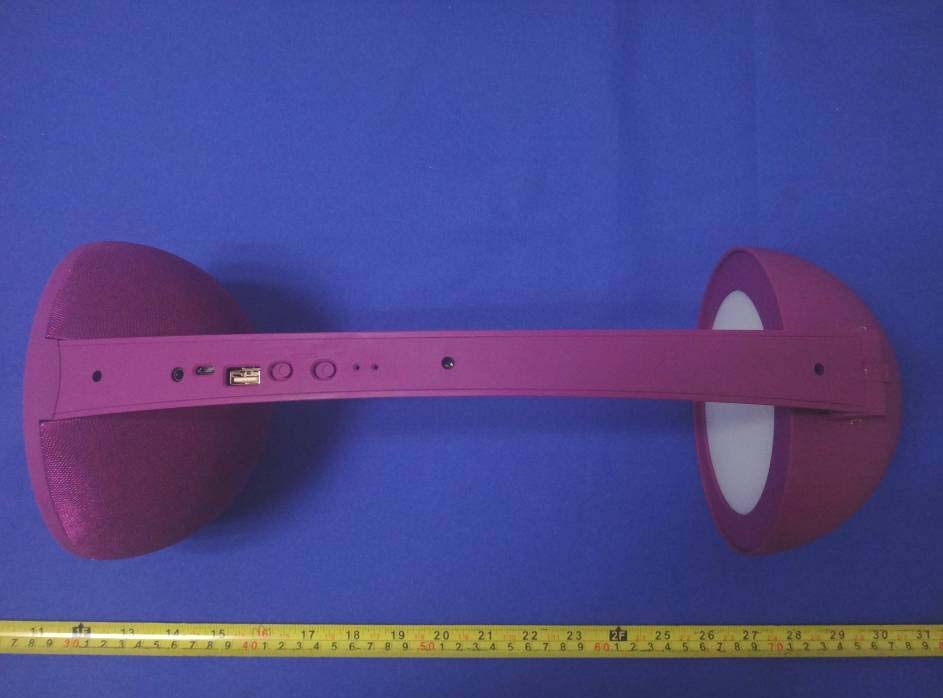

External photos Model: CQZ502-B

LABEL ARTWORK AND LOCATION FCC ID Location

Internal photos Model: CQZ502-B

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AAPLCQZ502-B Product: Bluetooth Speaker Model No.: CQZ502-B Additional Model No.: SBT5004 Trade Mark: SURE Report No.: TCT150407E004 Issued Date: May. 12, 2015 Issued for : Sure Wave (HongKong) Limited A-703, Building 2, Tianan Cyber Park, HuangGe North Road, LongGang District, Shenzhen 518172, P.R. China. Issued By: Shenzhen Tongce Testing Lab. 1F, Leinuo Watch Building, Fuyong Town, Baoan Dist, Shenzhen, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT150407E004 Page 2 of 42 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. Genera Information ................................................................................... 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations ................................................................... 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ...................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. 20dB Occupy Bandwidth .................................................................................... 17 6.5. Carrier Frequencies Separation ......................................................................... 21 6.6. Hopping Channel Number .................................................................................. 25 6.7. Dwell Time ............................................................................................................ 27 6.8. Pseudorandom Frequency Hopping Sequence ................................................ 29 6.9. Conducted Band Edge Measurement ................................................................ 30 6.10. Conducted Spurious Emission Measurement ................................................. 33 6.11. Radiated Spurious Emission Measurement .................................................... 36 Report No.: TCT150407E004 Page 3 of 42 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Bluetooth Speaker Model No.: CQZ502-B Additional Model No.: SBT5004 Applicant: Sure Wave (HongKong) Limited Address: A-703, Building 2, Tianan Cyber Park, HuangGe North Road, LongGang District, Shenzhen 518172, P.R. China. Manufacturer: Sure Wave (HongKong) Limited Address: A-703, Building 2, Tianan Cyber Park, HuangGe North Road, LongGang District, Shenzhen 518172, P.R. China. Date of Test: Apr. 07 - May. 11, 2015 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date:May. 11, 2015 Leon Chen Reviewed By: Date:May. 12, 2015 Joe Zhou Approved By: Date:May. 12, 2015 Tomsin Report No.: TCT150407E004 Page 4 of 42 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203/§15.247 (c) Pass AC Power Line Conducted Emission §15.207 Pass Conducted Peak Output Power §15.247 (b)(1) Pass 20dB Occupied Bandwidth §15.247 (a)(1) Pass Carrier Frequencies Separation §15.247 (a)(1) Pass Hopping Channel Number §15.247 (a)(1) Pass Dwell Time §15.247 (a)(1) Pass Radiated Emission §15.205/§15.209 Pass Band Edge §15.247(d) Pass Note: 1. Pass: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT150407E004 Page 5 of 42 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product Name: Bluetooth Speaker Model No.: CQZ502-B Additional Model No.: SBT5004 Trade Mark: SURE Operation Frequency: 2402MHz~2480MHz Transfer Rate: 1/2 Mbits/s Number of Channel: 79 Modulation Type: GFSK, π/4-DQPSK Modulation Technology: FHSS Antenna Type: Internal Antenna Antenna Gain: 0dBi Power Supply: Rechargeable Li-ion Battery DC3.7V Remark: All the models are identical in circuit, PCB layout, only dif…
