2AAQQ48525332323030WIRELESS HEART RATE TRANSMITTER

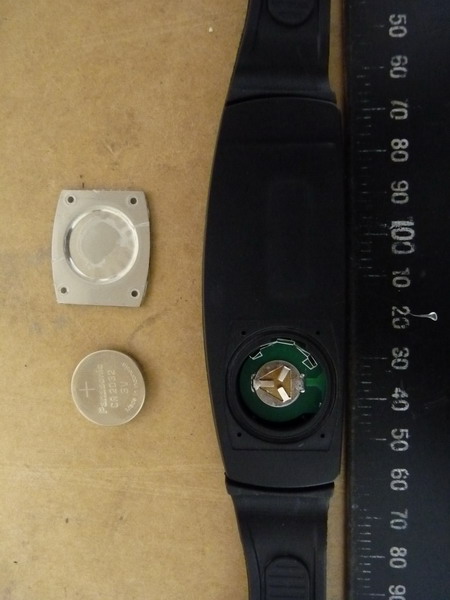

LifeVisa WIRELESS HEART RATE TRANSMITTER HRS‐2200 User Manual COMPONENTS Heart Rate Transmitter Elastic Strap O-Ring Battery Cover Screw x 4pcs Magnetic Key 3V CR2032 Lithium Battery 2.4GHz TRANSMITTER BATTERY INSTALLMENT This Transmitter includes a 3V CR2032 lithium battery. Please follow below steps to install the battery. Step 1. Insert the battery (CR2032) with the positive (+) side up. ☆ Make sure the battery is hooked by the contact spring. Step 2. Put on the O-Ring in the groove to ensure water resistance. ☆ Make sure to place the O-Ring properly in order to prevent battery composition from being spoiled by sweat and moisture. Step 3. Place Battery Cover with convex face up. Step 4. Tighten 4 screws properly. Thank you for purchasing LifeVisa products. This manual contains information required to use the Heart Rate Transmitter. Please read this manual thoroughly before you use the Heart Rate Transmitter. 1 3. Adjust the strap length to fit around your chest snugly and comfortably, just below the pectoral muscles. TROUBLESHOOTING AND CARE Troubleshooting of the Transmitter ● If you are not getting a good connection to the host, please (a) Check the Transmitter and make sure it's not worn too high or too low on the chest. Adjust the position of the Transmitter on the chest to see if satisfactory connection has been achieved. (b) Apply some ECG gel on the electrodes to get better performance. (c) Check if the battery is installed properly or change a new battery. (d) Repeat HOST CONNECTION section. ● The Transmitter will not detect heart rate when operated under water. ● The effective range of the whole system is 10 meters. If the host is away by a greater distance than this, it might not receive a heart rate signal. Care of the Heart Rate Transmitter ● After every use, you should clean the electrodes in warm fresh water and dry with a dry cloth. ● DO NOT store the Transmitter wet; it must be stored in a cool and dry place, and kept out of extremely cold and hot. ● The Transmitter should be stored flat rather than folded and should never be bent or stretched, as this may damage the electrodes. ● Never lay the Transmitter on a metal surface or near magnet. ● Avoid the Transmitter from direct exposure to sunlight. ● Electrodes and gel should never be applied over broken skin. ● Trim (don't shave) your body hair where electrodes are going to be put. ● Clean skin before and after wearing the Transmitter. 4. Check that the wet electrode areas are firmly against your skin and that the logo of the Transmitter is in a central, upright position. 4 HOW TO WEAR THE TRANSMITTER 3. Wait for connection. 4. The host should begin to display a reading, showing the connection has been done and you can start your workouts. NOTE: ☆ This step only has to be done at the first time of use with the same Transmitter and host. Afterwards, even changing battery, you don't need to reconnect to the host. ☆ See TROUBLESHOOTING AND CARE section if you are experiencing connection issues. The Heart Rate Transmitter consists of two conductive electrodes. The electrodes sense the heart beat. 1. For best performance, before wearing the Transmitter, please moisten the electrodes on the back of the Transmitter using clean tap water or ECG gel. This makes it easier for the electrodes to detect the electrical signal. 2. Attach one side of the strap to the Transmitter. Then wear it over your chest and meet the strap with the Transmitter at the other side. ELECTRODES 3 Step 1. Step 2. Step 3. Step 4. 2 ☆ The effective distance/range is within 10 meters. Be sure no other devices are within this distance making the same approach. HOST CONNECTION This Transmitter must be recognized to the host before being used for the first time. Please follow below instructions to complete the connection. 1. Turn on the host and enter connection mode. The host will wait the signal for 1 minute. If not receiving the signal, the host will exist the connection mode automatically. 2. Use Magnetic Key to startup the host connection function in the Heart Rate Transmitter by sliding on the top of Transmitter. NOTE: ☆ Open the battery cover only when changing the battery to ensure a long life, and make sure the O-Ring is not damaged, in which case you should replace it with a new one. ☆ Keep battery away from children. If swallowed, contact a physician at once. B atteries should be disposed of in compliance with applicable laws and regulations. Connection done!!! Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example ‐ use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This transmitter must not be co‐located or operating in conjunction w…

Text truncated - open the document above for the full version.

Taiwan Biotronic Technology Inc. 20 Lane 53 Hua Cheng Street, Da Li Dist., Taichung Hsien 41247 Taiwan Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 15.08.2013 To whom it may concern: We, the undersigned, hereby authorize Worldwide Testing Services (Taiwan) Co., Ltd to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AAQQ48525332323030 including the signing of all documents related to these matters. Any and all acts carried out by Worldwide Testing Services (Taiwan) Co., Ltd on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Name: Keven Su Title: Manager Company: Taiwan Biotronic Technology Inc.

Taiwan Biotronic Technology Inc. 20 Lane 53 Hua Cheng Street, Da Li Dist., Taichung Hsien 41247 Taiwan Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 15.08.2013 Request for Confidentiality Company name: Taiwan Biotronic Technology Inc. FCC ID: 2AAQQ48525332323030 FCC Part 15 Certification To whom it may concern: In accordance with 0.459 of CFR 47, Taiwan Biotronic Technology Inc. hereby requests confidentiality of all Block Diagrams, Schematics, Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Taiwan Biotronic Technology Inc. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Taiwan Biotronic Technology Inc. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Name: Keven Su Title: Manager Company: Taiwan Biotronic Technology Inc.

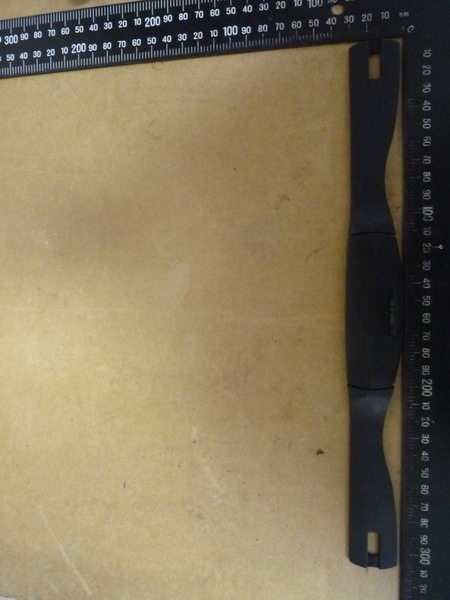

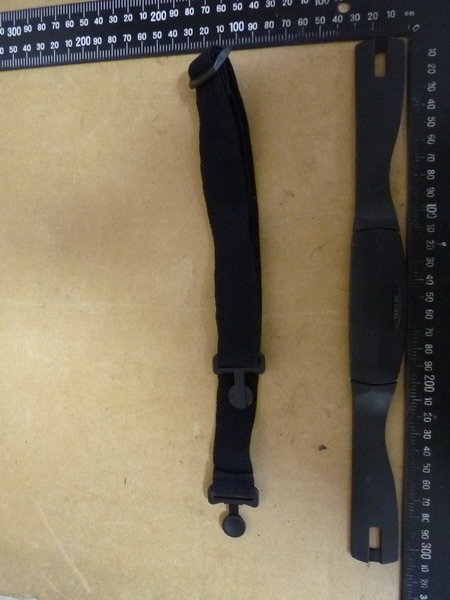

Registration number: W6M21307-13370-FCC FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 12 External Photos Registration number: W6M21307-13370-FCC FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 12 Registration number: W6M21307-13370-FCC FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 12 Registration number: W6M21307-13370-FCC FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 12

Model: HRS-2200 FCC ID: 2AAQQ48525332323030

Registration number: W6M21307-13370-FCC FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 12 Internal Photos Registration number: W6M21307-13370-FCC FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 12 Registration number: W6M21307-13370-FCC FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 12 Registration number: W6M21307-13370-FCC FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 12

of Applicant: Taiwan Biotronic Technology Inc. Address: 20 Lane 53 Hua Cheng Street, Da Li Dist., Taichung Hsien 41247 Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21307-13370-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for WIRELESS HEART RATE TRANSMITTER Model No.: HRS-2200 FCC ID: 2AAQQ48525332323030 Registration number: W6M21307-13370-C-1 FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 22 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 TESTING LABORATORY................................................................................................................3 1.2.1 Location ..............................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................3 1.3 DETAILS OF APPROVAL HOLDER...................................................................................................4 1.4 APPLICATION DETAILS.................................................................................................................4 1.5 GENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 T EST STANDARDS.........................................................................................................................4 2 TECHNICAL TEST .........................................................................................................................5 2.1 SUMMARY OF TEST RESULTS........................................................................................................5 2.2 T EST ENVIRONMENT....................................................................................................................5 2.3 TEST EQUIPMENT LIST.................................................................................................................6 2.4 GENERAL TEST PROCEDURE........................................................................................................8 3 TEST RESULTS (ENCLOSURE) ..................................................................................................9 3.1 P EAK OUTPUT POWER (TRANSMITTER) ......................................................................................10 3.2 E QUIVALENT ISOTROPIC RADIATED POWER................................................................................11 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................11 3.4 O UT OF BAND RADIATED EMISSIONS.........................................................................................12 3.5 SPURIOUS EMISSION (TX) ...........................................................................................................13 3.6 R ADIATED EMISSIONS FROM DIGITAL PART..............................................................................16 3.7 RADIATED EMISSION ON THE BAND EDGE..................................................................................17 3.8 POWER LINE CONDUCTED EMISSION.........................................................................................21 A PPENDIX..............................................................................................................................................22 Registration number: W6M21307-13370-C-1 FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 22 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: August 23, 2013 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: August 23, 2013 Kevin Wang Date WTS Name Signature Registration number: W6M21307-13370-C-1 FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 22 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter semi-anechoic chamber No.35, Aly. 21, Ln. 228, Ankang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) TEL:886-2-6613-0228 FAX:886-2-2791-5046 Company Worldwide Testing Services(Taiwan) Co., Ltd. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA accredited number: 2730.01 FCC filed test laboratory…

Text truncated - open the document above for the full version.

Registration number: W6M21307-13370-FCC FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 12 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21307-13370-FCC FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 12 Above 1GHz Registration number: W6M21307-13370-FCC FCC ID: 2AAQQ48525332323030 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 12 RF
