2AASRIREEMOV1iReemo

RF exposure warning The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.

RF_160, Issue 03 THLight Co. Ltd Declaration of Authorization We Name: THLight Co. Ltd Address: 8F.-8, No.99, Sec. 1, Chongqing S. Rd., Zhongzheng Dist., Taipei City 100, Taiwan (R.O.C.) City: Taipei City Country: Taiwan Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: iReemo FCC ID : 2AASRIREEMOV1 Trademark: THLight on our behalf. Date: 2013/08/30 City: Taipei City Name: CJ Chi (2) Function: CEO Signature:  . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. Measurement Result: According to KDB 447498 D01 Mobile Portable RF Exposure v05, Operation frequency = 2450MHz and antenna separation distance = 5mm, SAR Test Exclusion Threshold = 10mW The Device max peak output power = 0.72dBm, Equivalent to 1.18mW and less than 10mW The SAR/MPE measurement is not necessary.

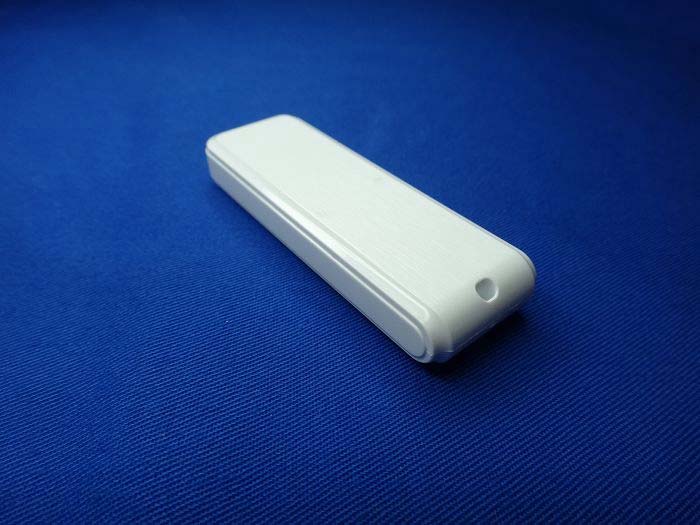

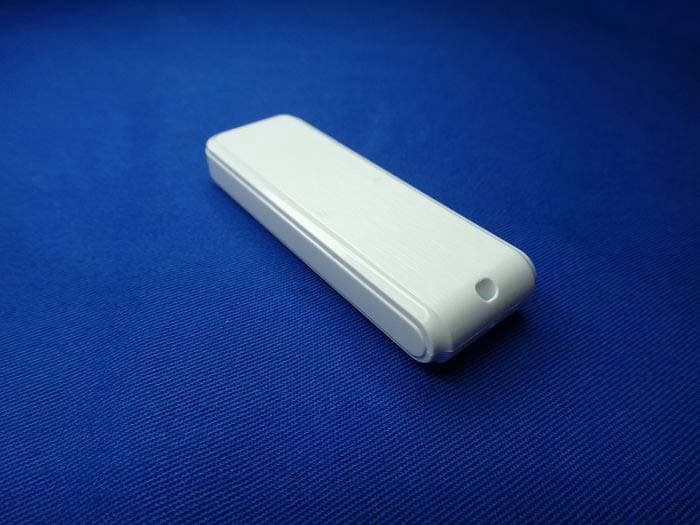

Report No.: 138042R-RFUSP42V01 Page : 1 of 7 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

THLight Co. Ltd FCC ID.: 2AASRIREEMOV1 8F.-8, No.99, Sec. 1, Chongqing S. Rd., Zhongzheng Dist., Taipei City 100, Taiwan (R.O.C.) Tel : +886-2-2626-2670 The FCC ID Label will be placed on the equipment as shown in the photograph below.

THLight Co. Ltd FCC ID.: 2AASRIREEMOV1 8F.-8, No.99, Sec. 1, Chongqing S. Rd., Zhongzheng Dist., Taipei City 100, Taiwan (R.O.C.) Tel : +886-2-2626-2670 FCC ID Label

Report No.: 138042R-RFUSP42V01 Page : 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 138042R-RFUSP42V01 Page : 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 138042R-RFUSP42V01 Page : 4 of 7 (7) EUT Photo (8) EUT Photo Antenna Report No.: 138042R-RFUSP42V01 Page : 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 138042R-RFUSP42V01 Page : 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 138042R-RFUSP42V01 Page : 7 of 7 (13) EUT Photo

Report No. 138042R-RFUSP42V01 Page: 1 of 81 FCC Test Report Product Name iReemo Model No. IREEMO FCC ID. 2AASRIREEMOV1 Applicant THLight Co. Ltd Address 8F.-8, No.99, Sec. 1, Chongqing S. Rd., Zhongzheng Dist., Taipei City 100, Taiwan (R.O.C.) Date of Receipt July. 29, 2013 Issued Date Aug. 13, 2013 Report No. 138042R-RFUSP42V01 Report Version V1.0 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Report No. 138042R-RFUSP42V01 Page: 2 of 81 Test Report Certification Issued Date: Aug. 13, 2013 Report No.: 138042R-RFUSP42V01 Product Name iReemo Applicant THLight Co. Ltd Address 8F.-8, No.99, Sec. 1, Chongqing S. Rd., Zhongzheng Dist., Taipei City 100, Taiwan (R.O.C.) Manufacturer THLight Co. Ltd Model No. IREEMO FCC ID. 2AASRIREEMOV1 EUT Rated Voltage DC 5V (Power by USB) EUT Test Voltage AC 120V/ 60Hz Trade Name THLight Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009, KDB 558074 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Documented By : (Senior Adm. Specialist / Leven Huang ) Tested By : ( Engineer / Alan Chen) Approved By : (Manager / Vincent Lin ) Report No. 138042R-RFUSP42V01 Page: 3 of 81 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Tested System Details..............................................................................................................................8 1.4. Configuration of Tested System ..............................................................................................................8 1.5. EUT Exercise Software ...........................................................................................................................8 1.6. Test Facility .............................................................................................................................................9 2. CONDUCTED EMISSION ................................................................................................................10 2.1. Test Equipment ......................................................................................................................................10 2.2. Test Setup ..............................................................................................................................................10 2.3. Limits.....................................................................................................................................................11 2.4. Test Procedure .......................................................................................................................................11 2.5. Uncertainty ............................................................................................................................................11 2.6. Test Result of Conducted Emission .......................................................................................................12 3. PEAK POWER OUTPUT ..................................................................................................................14 3.1. Test Equipment ......................................................................................................................................14 3.2. Test Setup ..............................................................................................................................................14 3.3. Limit .....................................................................................................................................................14 3.4. Test Procedure .......................................................................................................................................14 3.5. Uncertainty ............................................................................................................................................14 3.6. Test Result of Peak Power Output .........................................................................................................15 4. RADIATED EMISSION .....................................................................................................................17 4.1. Test Equipment ......................................................................................................................................17 4.2. Test Setup ..............................................................................................................................................17 4.3. Limits.....................................................................................................................................................18 4.4. Test Procedure .......................................................................................................................................19 4.5. Uncertainty ............................................................................................................................................19 4.6. Test Result of Radiated Emission ..........................................................................................................20 5. RF ANTENNA CONDUCTED TEST ..............…

Text truncated - open the document above for the full version.

Report No.: 138042R-RFUSP42V01 Page : 1 of 4 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 138042R-RFUSP42V01 Page : 2 of 4 Front View of Radiated Test Back View of Radiated Test Report No.: 138042R-RFUSP42V01 Page : 3 of 4 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn) Report No.: 138042R-RFUSP42V01 Page : 4 of 4 EUT & Test Fixture
