Brand: THLight Model Name: W8010R Product Name: SENTINEL W8010R Fig.1 Positive product photos。 Fig. 2 Product photos on the back of the product。In the center are 2 USB jacks and one RJ45 jack. The right side is the power cord jack User Guide Sentinel (USBeacon W8010R) is a beacon receiving locator used by Sentinel indoor positioning system. The product has Bluetooth reception, signal analysis processing and calculation, and transmits preliminary positioning information to the designated server via WiFi or RJ45 for positioning analysis. Power on: The product does not need a power button, after directly plugging in the power cord and supplying power, the power can be turned on. Settings: Use Sentinel Cong APP to make related settings. Fig. 3 Sentinel Config APP setting screen. NCC warning: The low-power RF motor that has passed the type certification is not approved, and the company, company or user shall not change the frequency without authorization Rate, increase power or change the original design features and functions. The use of low-power RF motors must not affect flight safety and interfere with legal communications; when interference is found, it should be immediately Stop using it and improve it to no interference before continuing to use it. The legal communication in the preceding paragraph refers to the radio communication operating in accordance with the provisions of the Telecommunication Law letter. Low-power RF motors must tolerate interference from legal communications or radio wave radiating motor equipment for industrial, scientific, and medical use. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

RF_160, Issue 04 Declaration of Authorization We Name: THLight Co. Ltd Address: 8F., No.14, Ln. 609, Sec. 5, Chongxin Rd., Sanchong Dist., City: New Taipei City Country:Taiwan Declare that: Name Representative of agent: Chenz Ker Agent Company name: MRT Technology (Taiwan) Co., Ltd Address: No. 38, Fuxing Second Rd., Guishan Dist., City: Taoyuan Country Taiwan is authorized to apply for Certification of the following product(s): Product description: SENTINEL FCC ID: 2AASRW8010R Type designation: W8010R Trademark: THLight Validity/ expiry date 2020/6/30 on our behalf. Date: 2020/4/24 City: Taipei City Name: CJ Chi Function: CEO Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

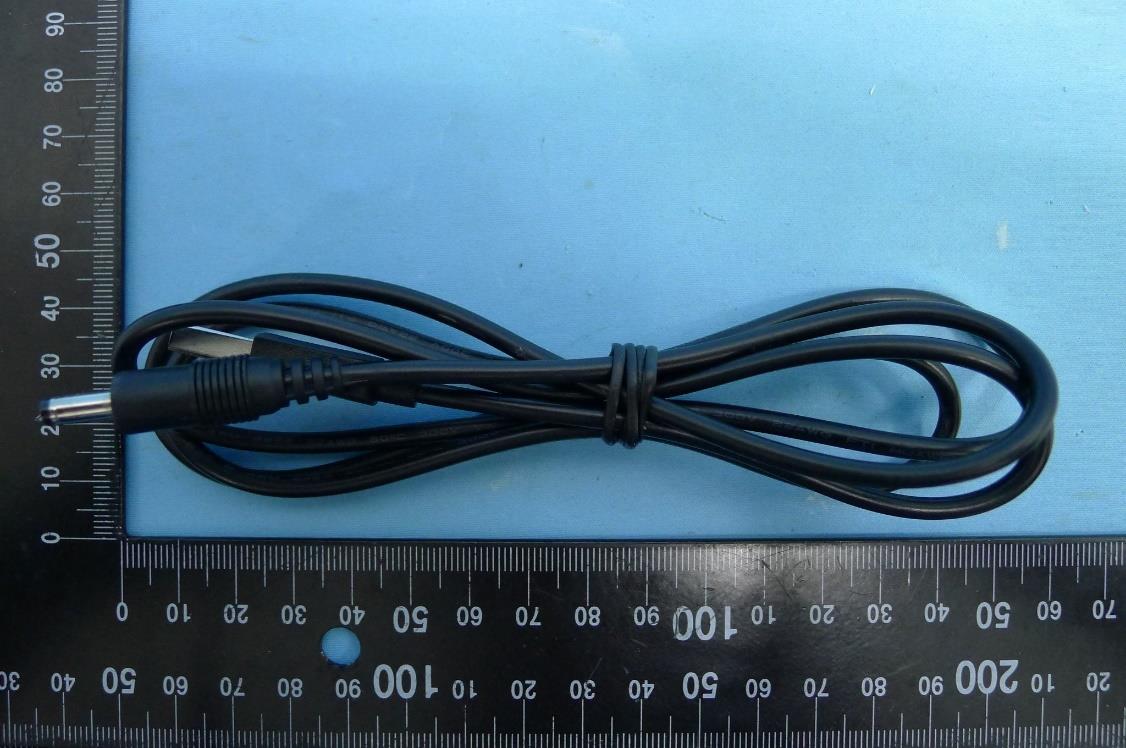

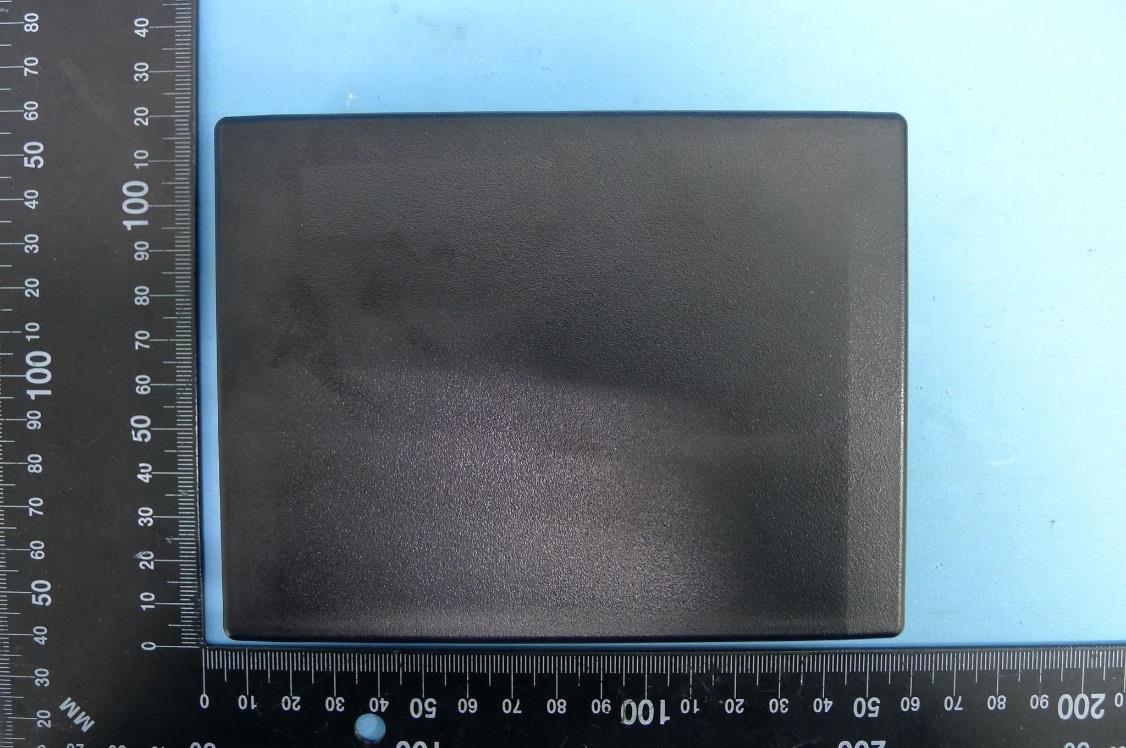

Report No.: 2004TW1102-U2 Product: SENTINEL Brand Name: THLight Model Number: W8010R 1 of 4 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2004TW1102-U2 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2004TW1102-U2 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2004TW1102-U2 4 of 4 (7) EUT Photo

Label Label location

Report No.: 2004TW1102-U2 Product: SENTINEL Brand Name: THLight Model Number: W8010R 1 of 5 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2004TW1102-U2 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 2004TW1102-U2 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 2004TW1102-U2 4 of 5 (7) EUT Photo (8) EUT Photo Report No.: 2004TW1102-U2 5 of 5 (9) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2004TW1102-U3 Phone: +886-3-3288388 Report Version: 1.0 Fax: +886-3-3288918 Issue Date: 2020-05-19 Web: www.mrt-cert.com FCC ID: 2AASRW8010R Page Number: 1 of 5 Maximum Permissible Exposure FCC ID: 2AASRW8010R APPLICANT: THLight Co. Ltd Application Type: Certification Product: SENTINEL Model No.: W8010R Trademark: FCC Rule Part(s): Part 2.1091 (Mobile) Test Procedure(s): KDB 447498 D01v06 Test Date: April 18 ~ May 4, 2020 Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2004TW1102-U3 FCC ID: 2AASRW8010R Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 2004TW1102-U3 1.0 Original Report 2020-05-19 Report No.: 2004TW1102-U3 FCC ID: 2AASRW8010R Page Number: 3 of 5 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Antenna Description No. Manufacturer Part No. Antenna Type Peak Gain 1 ARISTOTLE ENTEPRISES INC. RFA-25-P70-70B-150-2 PCB 0.72dBi Product Name SENTINEL Model No. W8010R Trademark Supports Radios Spec. WLAN: 2.4G: 802.11b/g/n-20 Wi-Fi Specification 802.11 b/g/n Frequency Range 2.4GHz: For 802.11b/g/n-HT20: 2412 ~ 2462 MHz Type of Modulation 802.11b: DSSS, DBPSK, DQPSK, CCK 802.11g/n-20M: OFDM, BPSK, QPSK, 16QAM, 64QAM Report No.: 2004TW1102-U3 FCC ID: 2AASRW8010R Page Number: 4 of 5 2. Maximum Permissible Exposure(MPE) 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.4 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 Note : (1) f= Frequency in MHz , (2) * = Plane-wave equivalent power density Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Under normal use condition, is at least 20cm away from the body of the user . So, this device is classified as Mobile Device. Report No.: 2004TW1102-U3 FCC ID: 2AASRW8010R Page Number: 5 of 5 2.2. Test Result For 2.4 GHz : 802.11n-20M/n-40M Frequency Band (MHz) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412 ~ 2462 23.74 236.59 0.72 20 0.0556 1 Therefore, the maximum calculations are less than the “1” limit. Complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091. The End

MRT Technology (Taiwan) Co., Ltd Report No.: 2004TW1102-U2 Phone: +886-3-3288388 Report Version: 1.0 Fax: +886-3-3288918 Issue Date: 2020-05-18 Web: www.mrt-cert.com FCC ID: 2AASRW8010R Page Number: 1 of 90 FCC ID: 2AASRW8010R APPLICANT: THLight Co. Ltd Application Type: Certification Product: SENTINEL Model No.: W8010R Trademark: FCC Classification: (DTS) Digital Transmission System FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v05r02 Received Date: April 15, 2020 Test Date: April 18 ~ May 4, 2020 MEASUREMENT REPORT FCC PART 15.247 WLAN 802.11b/g/n Tested By : ( Fran Chen ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results only relate to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v05r02. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2004TW1102-U2 FCC ID: 2AASRW8010R Page Number: 2 of 90 Revision History Report No. Version Description Issue Date Note 2004TW1102-U2 1.0 Original Report 2020-05-18 Report No.: 2004TW1102-U2 FCC ID: 2AASRW8010R Page Number: 3 of 90 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope .................................................................................................................................... 6 1.2. MRT Test Location ................................................................................................................ 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .......................................................................................................... 7 2.2. Working Frequencies for this Report ..................................................................................... 8 2.3. Test Mode ............................................................................................................................. 9 2.4. Test Software ........................................................................................................................ 9 2.5. Test Configuration ............................................................................................................... 10 2.6. EMI Suppression Device(s)/Modifications ........................................................................... 10 2.7. Labeling Requirements ....................................................................................................... 10 3. DESCRIPTION of TEST ......................................................................................................... 11 3.1. Evaluation Procedure .......................................................................................................... 11 3.2. AC Line Conducted Emissions ............................................................................................ 11 3.3. Radiated Emissions ............................................................................................................ 12 4. ANTENNA REQUIREMENTS ................................................................................................ 13 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 14 6. MEASUREMENT UNCERTAINTY ......................................................................................... 15 7. TEST RESULT ...................................................................................................................... 16 7.1. Summary ............................................................................................................................. 16 7.2. 6dB Bandwidth Measurement ............................................................................................. 17 7.2.1. Test Limit ......................................................................................................................... 17 7.2.2. Test Procedure used ....................................................................................................... 17 7.2.3. Test Setting ..................................................................................................................... 17 7.2.4. Test Setup ....................................................................................................................... 17 7.2.5. Test Result ...................................................................................................................... 18 7.3. Output Power Measurement ................................................................................................ 21 7.3.1. Test Limit ......................................................................................................................... 21 7.3.2. Test Procedure Used ....................................................................................................... 21 7.3.3. Test Setting ..................................................................................................................... 21 7.3.4. Test Setup ....................................................................................................................... 21 7.3.5. Test Result of Output Power ............................................................................................ 22 7.4. Power Spectral Density Measurement ................................................................................ 23 7.4.1. Test Lim…

Text truncated - open the document above for the full version.

Report No.: 2004TW1102-U2 Product: SENTINEL Brand Name: THLight Model Number: W8010R 1 of 3 Test Photograph Test Mode 3 Description: Front View of Conducted Emission Test Setup Test Mode 3 Description: Back View of Conducted Emission Test Setup Report No.: 2004TW1102-U2 2 of 3 Test Mode: Mode 3 Description: Radiated Emission Test Setup for below 1GHz Test Mode: Mode 1/ Mode 2/ Mode 3/ Mode 4 Description: Radiated Emission Test Setup for above 1GHz Report No.: 2004TW1102-U2 3 of 3 Test Mode: Mode 1/ Mode 2/ Mode 3/ Mode 4 Description: Conducted Emission Test Setup
