2AAT8-98ANWPSS2.4G WIRELESS KEYBOARD

G ST 123 M G K390 keybo a S et Wireless C o T he keyboard i s 1 . Turn on the c 2 . Plug the US B 3 . Install 1*AA A M ultimedia ke y a rd User Guide o nnection s pre-paired bef o omputer. B receiver into a n A battery into t h y s o re packing. Us e n available US B h e keyboard. Pr e e rs can use the w B port on your c e ss any key to s w ireless keybo a c omputer. tart. a rd after installi nn g the battery. 1 1 2 multimedia k k eys Spill proof design The keyboard is with spill proof design. When it gets wet, don ’ t worry, just shake it and clean the water, after that you can continue to use Don ’ t immerse the keyboard in the water when cleaning. Low power indicator The keyboard has low power indicator, when the power is nearly used up, the LED will flash to remind you to replace the battery . Battery Disposal Don ’ t throw away the batteries into the fire. After replace the batteries, put them to the right place for recycling. Technical data Power supply: 1.5V Keyboard operating current: ≤ 3.0mA FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfu l interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Hunan Ocean Wing E-commerce Technology Co., Ltd. Nov. 20, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AAT8-98ANWPSS. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematic Diagram Schematics.pdf Circuit Description Circuit Description.pdf Internal Photos Internal Photos.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Hunan Ocean Wing E-commerce Technology Co., Ltd. <SIGNATURE of Anan Hu > ---------------------------------------------------------- Product Manager

Hunan Ocean Wing E-commerce Technology Co., Ltd. FCC ID: 2AAT8-98ANWPSS POWER OF ATTORNEY (11/12/2013) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Anbotek Compliance Laboratory Limited (MR. Tom Chen, Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Anbotek Compliance Laboratory Limited (MR. Tom Chen, Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on (11/12/2014). This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (Hunan Ocean Wing E-commerce Technology Co., Ltd.), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, (Hunan Ocean Wing E-commerce Technology Co., Ltd.) ------------------------------- (Anan Hu) (Product Manager)

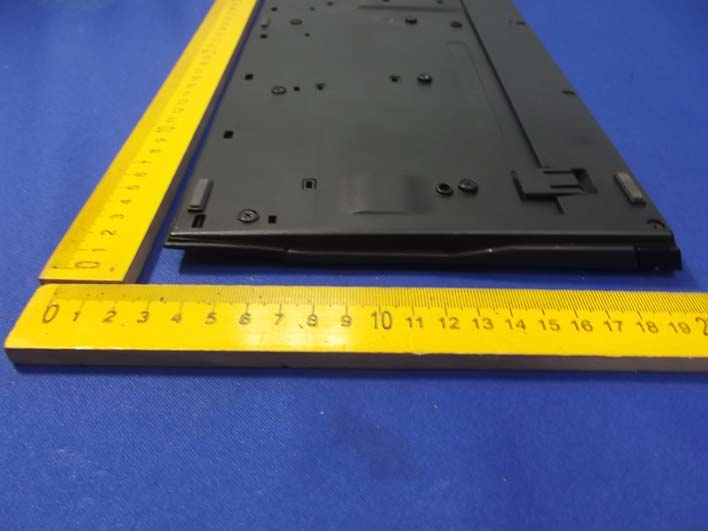

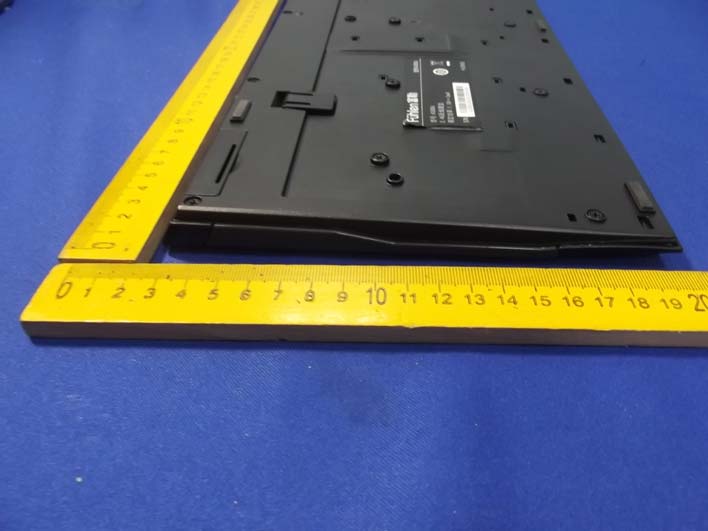

Figure 1 The EUT-Top View Figure 2 The EUT-Bottom View Figure3 The EUT-Left View Figure 4 The EUT-Right View Figure 5 The EUT-Front View Figure 6 The EUT-Rear View

Label Location On EUT

Product Name: 2.4G Wireless Keyboard Model No.: 98ANWPSS-K1M1A FCC ID: 2AAT8-98ANWPSS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AAT8-98ANWPSS Page 1 of 25 Report No.: 201310700F Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com FCC TEST REPORT for Hunan Ocean Wing E-commerce Technology Co., Ltd. 2.4G Wireless Keyboard Model No.: 98ANWPSS-K1M1A Report Number : 201310700F Date of Test : Oct. 12~ 25, 2013 Date of Report : Oct. 25, 2013 Prepared for : Hunan Ocean Wing E-commerce Technology Co., Ltd. Address : 25 Floor, Jiatian International Building, #359 Furong Zhonglu, Changsha, Hunan Province, China Prepared By : Shenzhen Anbotek Compliance Laboratory Limited Address : 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AAT8-98ANWPSS Page 2 of 25 Report No.: 201310700F Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION ......................................................................................................... 4 1.1. Description of Device (EUT) .................................................................................................................... 4 1.2. Auxiliary Equipment Used during Test .................................................................................................... 5 1.3. Description of Test Facility ...................................................................................................................... 6 1.4. Measurement Uncertainty ......................................................................................................................... 6 2. TEST PROCEDURE ....................................................................................................................... 7 3. RADIATION INTERFERENCE .................................................................................................... 8 3.1. Requirements (15.249, 15.209): ............................................................................................................... 8 3.2 Test Procedure ........................................................................................................................................... 8 3.3. Test Configuration: ................................................................................................................................... 9 3.3 Test Results .............................................................................................................................................. 10 4. OCCUPIED BANDWIDTH .......................................................................................................... 16 4.1. Requirements (15.249): .......................................................................................................................... 16 4.2. Test Procedure ........................................................................................................................................ 16 4.3. Test Configuration: ................................................................................................................................. 16 4.4. Test Results ............................................................................................................................................. 16 5. PHOTOGRAPH ............................................................................................................................. 20 5.1. Photo of Radiation Emission Test .......................................................................................................... 20 APPENDIX I (External Photos) (3 Pages) APPENDIX II (Internal Photos) (2 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AAT8-98ANWPSS Page 3 of 25 Report No.: 201310700F Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com TEST REPORT Applicant : Hunan Ocean Wing E-commerce Technology Co., Ltd. Manufacturer : Hunan Ocean Wing E-commerce Technology Co., Ltd. EUT : 2.4G Wireless Keyboard Model No. : 98ANWPSS-K1M1A Serial No. : N/A Trade Mark : ANKER Rating : DC 1.5V Battery Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Shenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Shenzhen Anbotek Compliance Laboratory Limited. Date of Test : Oct. 12~ 25, 2013 Prepared by : (Tested Engineer / Rock Zeng ) Reviewer : (Project Manager / Sally Zhang ) Approved & Authorized Signer : (Manager / Tom Chen) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AAT8-98ANWPSS Page 4 of 25 Report No.: 201310700F Shenzhen Anbotek Compliance Laboratory Limited Tel: (86)755-26066544 Fax: (86)755-26014772 www.anbotek.com 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : 2.4G Wireless Keyboard Model Number : 98ANWPSS-K1M1A Test Power Supply : DC 1.5V Frequency : 2402-2479MHz No. of Channel : 78 Channel Space : 1MHz Antenna Specification : Printed Antenna:0 dBi Applicant : Hunan Ocean Wing E-commerce Technology Co., Ltd. Address : 25 Floor, Jiatian International Building, #359 Furong Zhonglu, Changsha, Hunan Province, China Manufacturer : Hunan Ocean Wing E-commerce Technology Co., Ltd. Addres…

Text truncated - open the document above for the full version.

1. Photo of Power Line Conducted Emission Test 2. Photo of Radiated Emission Test
