Anker Portable Bluetooth Speaker Model No: 99ANSP9901 Code NO. ：MP141 Instruction Manual Package Contents Anker Portable Bluetooth Speaker Micro USB cable 3.5mm audio cable Travel pouch Instruction manual Product Features ● Huge 1800mAh capacity delivers 15-20 hours of play time, outlasting even your iPhone 5s. ● Powerful 4W acoustic driver pumps out clear, room-filling sound. ● Latest Bluetooth 4.0 standards enables high definition audio, backward compatible with all Bluetooth versions. ● Built-in high-sensitivity microphone with advanced CVC (Clear Voice Capture) technology captures clear sound within a 2-foot (60cm) radius, perfect for use as a speaker phone. ● 3.5mm line-in port for connecting to your non-Bluetooth devices. ● Automatically turns off after 10 minutes when no device is connected. ● Automatically connects to the last-connected device when turned on (both device’s Bluetooth functions need to be enabled). Specifications Bluetooth Standard 4.0, backward compatible with all standards. Product Weight 280 ± 10 g / 9.9 ± 0.4oz Product Size 80 × 80 × 60mm / 3.1 × 3.1 × 2.7in Lithium Battery Capacity 1800mAh Play Time 15 - 20 hours Charge Time 5 hours Operating Range 10m / 33ft Speaker Output Power 4W × 1 Audio Cable Type 3.5mm audio cable Supported Bluetooth Profiles HSP, HFP, A2DP and AVRCP Product Overview 1. Volume Down 2. Volume Up 3. Play/Pause 4. Micro USB Input 5. Audio Input 6. Power Switch 7. Status Indicator 8. Battery Indicator How to Pair with Your Device 1. Turn the Power Switch on. The Status Indicator will light up. The speaker will enter pairing mode automatically within 3 seconds, and the Status Indicator will begin to flash. 2. Activate your device’s Bluetooth function and search for the device. 3. Once the Bluetooth speaker has been detected, select the product name “Anker MP141” to connect. (For devices with Bluetooth versions below 3.0, press “Yes” to confirm pairing. Enter a passkey or PIN code “0000” (4 zeros), then press the “Yes” or “OK” key to finish pairing.) 4. When the Bluetooth speaker and your device are successfully paired, the Status Indicator will go on and remain on while connected. Note: The speaker will automatically connect to the last-connected device once Bluetooth function is enabled. When pairing with an additional device, disable the Bluetooth function on the previous device and shut off the speaker, or simply delete the pairing record. Then, repeat the pairing process. How to Use Turning the speaker on/off Slide the switch to the “on” or “off” position to turn the speaker on or off. Music play/pause First, make sure your device is connected to the speaker successfully. Open your music software to play your music from the speaker. Press the “Play/Pause” button to pause music. Adjusting volume Press the “Volume Up” or “Volume Down” button to increase or decrease the volume. Voice dialing Please ensure your mobile phone supports voice dialing and voice tag recognition to use this feature. Press the “Play/Pause” button for 2 seconds, then give your voice command. Your device should then repeat the name to confirm before calling. (On iPhone, this will activate Siri.) Answering a call Press the “Play/Pause” button to answer a call, or answer directly from the phone. Ending a call Press the “Play/Pause” button to end a call, or end directly from the phone. Rejecting an incoming call Press the “Play/Pause” button for 2 seconds to reject an incoming call. Microphone Use the microphone directly on the speaker to talk after answering a call. The distance between your mouth and the speaker should not exceed 2ft/60cm. Deleting pairing records When the speaker is in standby mode, press the “Volume Down” and “Volume Up” buttons for 2 seconds to delete pairing records. Note: Basic functions may be restricted depending on Bluetooth software compatibility or setting limitations of your device. How to Recharge When the speaker’s battery is low, the speaker will announce, “Battery low”, and the Battery Indicator will flash 10 times every 5 minutes to remind you. 1. Plug the micro USB cable into the input port of the speaker. 2. Insert the remaining end of the USB power wire into (a) a USB AC adapter (not included) connected to a wall socket, or (b) a charging computer USB port. A steady red Battery Indicator will show that it is charging. 3. The red Battery Indicator will go off when the speaker is fully charged. LED Indicator Instructions LED indicator Meaning Blue Status Indicator rapidly flashing Pairing mode Steady Blue Status Indicator Connected to a device Red Battery Indicator flashing 10 times every 5 minutes Low Battery Steady Red Battery Indicator Charging Red Battery Indicator goes off Fully charged Usage Tips 1. Power off the speaker when not in use and before storing. 2. The operational range of the speakers may be influenced by obstructions, such as walls, pillars, etc. To ensure a stable connection, we recommend avoiding such obstructions whenever possible and/or shortening the distance during use. 3. To protect the long-term performance of the battery, please do not place the speaker in high temperatures above 140°F/60, such as in a hot vehicle or under direct sunlight.°C 4. Do not expose the speaker or any of its supplied parts to rain or other liquids. FA Q 1. Why can’t the speaker connect to my device? a. Check to ensure your device’s Bluetooth function is enabled. b. Make sure your device is within 3ft/1m of the speaker. c. Delete the pairing record(s) on the speaker or your device. 2. Can I use the speaker to play music while charging? No. Concurrently charging and using the speaker will cause damage to the speaker’s circuit and affect the long-term performance of the battery. 3. Can I Skype using this speaker? Skype is only available when using iOS 6. It cannot currently be used under other operating systems (Android, iOS versions excluding iOS 6 ). FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is sub…

Text truncated - open the document above for the full version.

Hunan Ocean Wing E-commerce Technology Co., Ltd. Jan. 23, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AAT899ANSP9901. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematic Diagram Schematics.pdf Circuit Description Circuit Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Hunan Ocean Wing E-commerce Technology Co., Ltd. <SIGNATURE of Anan Hu > ---------------------------------------------------------- Product Manager

Hunan Ocean Wing E-commerce Technology Co., Ltd. FCC ID: 2AAT899ANSP9901 POWER OF ATTORNEY (01/23/2014) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Anbotek Compliance Laboratory Limited (MR. Tom Chen, Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Anbotek Compliance Laboratory Limited (MR. Tom Chen, Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on (01/23/2015). This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (Hunan Ocean Wing E-commerce Technology Co., Ltd.), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, (Hunan Ocean Wing E-commerce Technology Co., Ltd.) ------------------------------- (Anan Hu) (Product Manager)

NINGBO EMTEK CO., LTD. Statement Jan. 23, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, NINGBO EMTEK CO., LTD. (Address: 1F Building 4, 1177#, Lingyun Road, Ningbo National Hi-Tech Zone, Ningbo, Zhejiang, China) declare for the equipment identified by: Product Description: Anker Portable Bluetooth Speaker Model Number: 99ANSP9901 Tradename or Brands: ANKER FCC ID: 2AAT899ANSP9901 We confirm that all the tests for this product according to FCC PART 15.249 were conducted in our test lab. Yours Sincerely, ---------------------------------------------------------- Andy Wang/ Manager NINGBO EMTEK CO., LTD. Tel: 86-574-27907998 Fax: 86-574-27721538

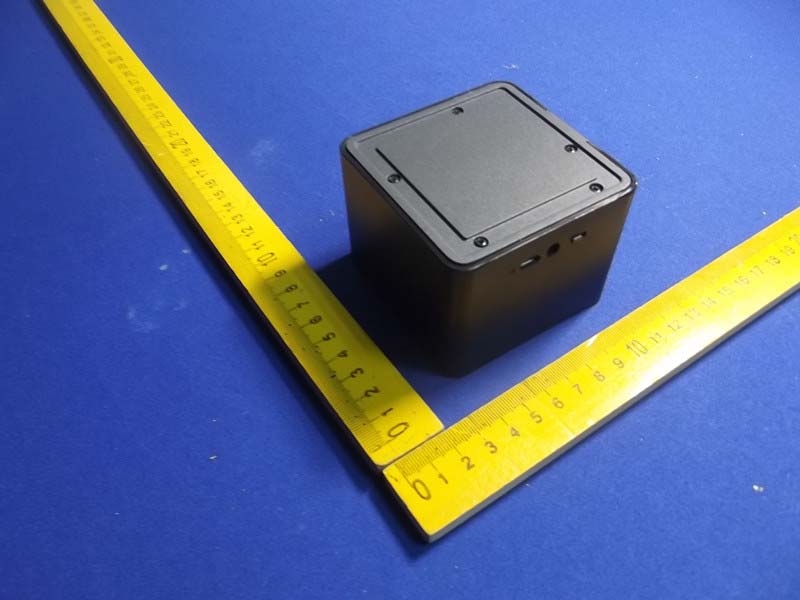

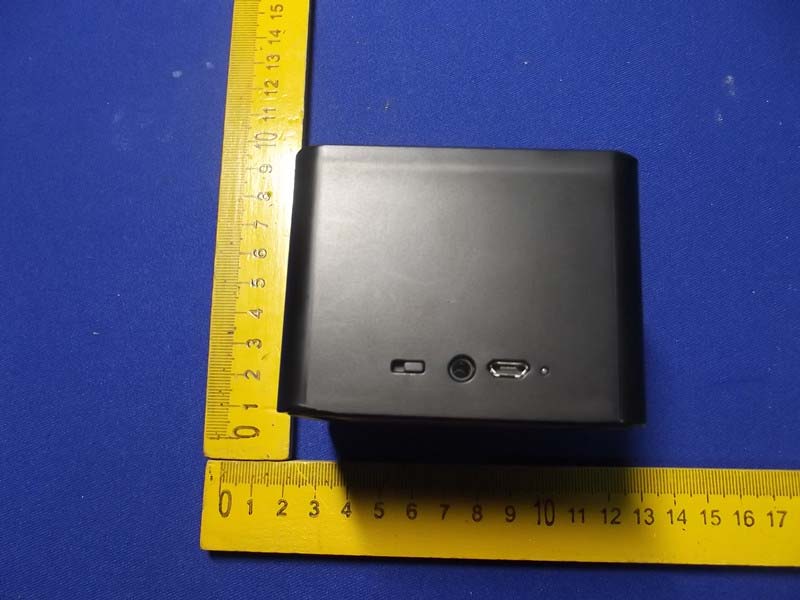

Figure 1 The EUT-Front View Figure 2 The EUT- Back View Figure 3 The EUT-Port View
