Antenna Measurement Report Model ： MG‐BLK‐APBBBK‐01 Product Name ： Contour Antenna Type ： Print on PCB Date ： 2015/1/16 Test Laboratory: Name: Linkou Laboratory Address: No. 5‐22 Rueishu Keng, Rueiping Tsuen, Linkou Shiang,Taipei County 244,Taiwan, R.O.C. The test results relate only to the samples tested. CONTENT: 1. General Information................................................................................................................... 3 1.1. Applied Reference Documents....................................................................................... 3 1.2. Te s t S e t u p......................................................................................................................... 3 2. Summary...................................................................................................................................... 4 3. 2D Plots......................................................................................................................................... 5 4. 3D Plots....................................................................................................................................... 10 5. EUT Photo.................................................................................................................................. 11 1. General Information 1.1. Applied Reference Documents The Equipment Under Test (EUT) has been tested at Linkou Laboratory according to the leading reference document in below table.: No. Identity Document Title Version/Date 1 Std 149 IEEE Standard Test Procedures for Antenna 1979 1.2. Test Setup EUT coordinate systems of the previous sections will apply independent of the physical orientations of the EUT inside the chamber. The figure shows the typical setup using a combined axis system. In addition to the pictured Theta axis rotation, the EUT will have to be rotated about the Z-axis (Phi rotation) in order to perform the full spherical scans. 2. Summary Frequency (MHz) Summary Max power (db) Summary Min power (db) Summary Passive (db) Summary NHPRP+/‐ 45 deg (db) Summary NHPRP+/‐ 30 deg (db) Summary UHRP 0 ~ 90 deg (db) Summary PRP 0 ~ 120 deg (db) Directivity (dBi) Efficiency (dB) Efficiency (%) Gain (dBi) 2400 ‐0.51 ‐22.71 ‐5.47 ‐7.01 ‐8.05 ‐7.93 ‐6.38 4.96 ‐5.47 28.40 ‐0.51 2450 ‐2.23 ‐26.15 ‐8.12 ‐9.65 ‐10.61 ‐10.80 ‐9.04 5.89 ‐8.12 15.40 ‐2.23 2500 ‐5.79 ‐22.88 ‐10.51 ‐12.05 ‐13.13 ‐13.81 ‐11.64 4.72 ‐10.51 8.90 ‐5.79 3. 2D Plots 2400 Azimuth 0° 2400 MHz Azimuth 90° 2400 MHz H‐Plane (Elevation 90°) 2450 Azimuth 0° 2450 MHz Azimuth 90° 2450 MHz H‐Plane (Elevation 90°) 2500 Azimuth 0° 2500 MHz Azimuth 90° 2500 MHz H‐Plane (Elevation 90°) 4. 3D Plots 3D view at Channel 2400 3D view at Channel 2450 3D view at Channel 2500 5. EUT Photo

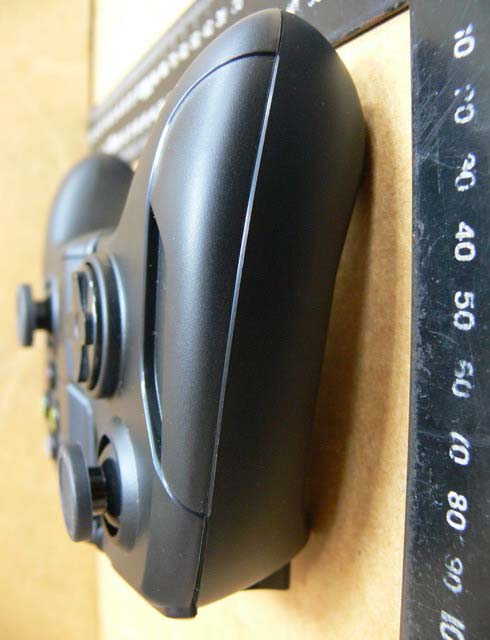

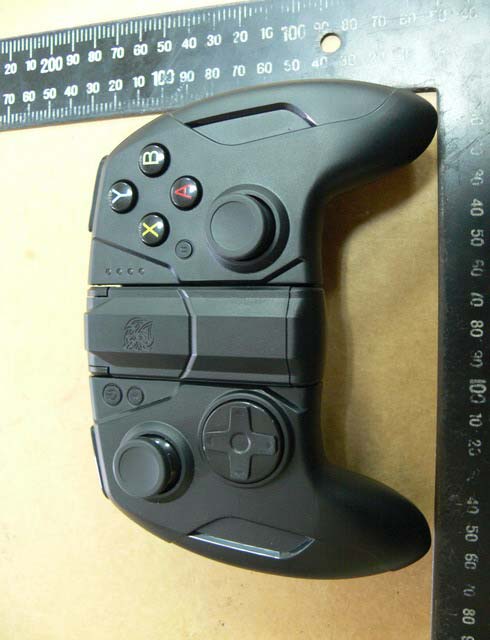

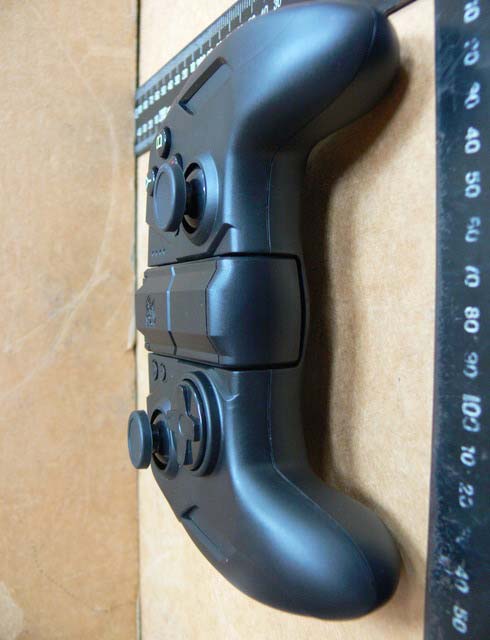

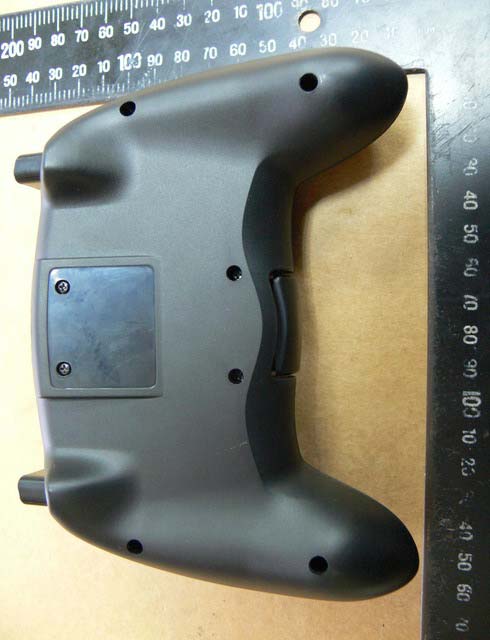

Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 28 External Photos Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 28

Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 28 Internal Photos Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 16 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 17 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 18 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 19 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 20 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 21 of 28 Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 22 of 28

RF Exposure Compliance Requirements RESULT: Test standard : FCC KDB Publication 447498 10 D01v05 According to KDB447498 10 D01v05: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. The enclosure of the device provides ≥ 0.5 cm separation from the antenna elements to significant metal parts of the enclosure to minimize potential perturbations. Frequency Band:2400-2483.5 MHz Maximum Power fed to Antenna (BT2.0): 1. 1508 mW Sep aration distances: Radiator to user: > 5 mm Distance prescribed in user manual: > 5 mm MHz 5 10 15 20 25 mm 2450 10 19 29 38 48 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2450 57 67 77 86 96 SAR Test Exclusion Threshold (mW) MHz 50 60 70 80 90 100 110120130140150160170180 190 mm 2450 96 196 296 396496 596 6967968969961096119612961396 1496 mW

of Applicant: Thermaltake Technology Co., Ltd. Address: 5F.,No.185, Sec.2, Tiding Blvd Neihu Dist., Taipei City 114, Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1, IC 5107A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21412-14665-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C / IC RSS-210 TEST REPORT for Contour Model No.: MG-BLK-APBBBK-01 FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Registration number: W6M21412-14665-C-1 FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 45 TABLE OF CONTENTS 1 GENERAL INFORMATION ...................................................................................................... 2 1.1 Notes .................................................................................................. 2 1.2 Testing laboratory .................................................................................................. 3 1.2.1 Location .................................................................................................. 3 1.2.2 Details of accreditation status .............................................................................................. 3 1.3 Details of approval holder .................................................................................................. 3 1.4 Application details .................................................................................................. 4 1.5 General information of Test item......................................................................................... 4 1.6 Test standards .................................................................................................. 5 2 TECHNICAL TEST .................................................................................................................... 6 2.1 Summary of test results .................................................................................................. 6 2.2 Test environment .................................................................................................. 6 2.3 Test Equipment List .................................................................................................. 7 2.4 General Test Procedure .................................................................................................. 9 3 TEST RESULTS (ENCLOSURE) ............................................................................................ 11 3.1 Peak Output Power (transmitter) ....................................................................................... 12 3.2 RF Exposure Compliance Requirements ........................................................................... 16 3.3 Out of Band Radiated Emissions ....................................................................................... 16 3.4 Transmitter Radiated Emissions in restricted Bands ......................................................... 17 3.5 Spurious emissions (tx) ................................................................................................ 18 3.6 Carrier Frequency Separation ............................................................................................ 20 3.7 Number of Hopping Frequencies....................................................................................... 23 3.7.1 Pseudorandom Frequency Hopping Sequence................................................................... 25 3.7.2 Coordination of hopping sequences to other transmitters ................................................. 25 3.7.3 System Receiver Hopping Capability ................................................................................ 25 3.8 Time of Occupancy (Dwell Time) ..................................................................................... 26 3.9 20dB Bandwidth ................................................................................................ 32 3.9.1 System Receiver Input Bandwidth .................................................................................... 35 3.10 Band-edge Compliance of RF Emissions .......................................................................... 36 3.11 Radiated Emissions from Receiver part ............................................................................ 41 3.12 Power Line Conducted Emission....................................................................................... 42 Appendix..........................................................................................................45 Registration number: W6M21412-14665-C-1 FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Page 9 of 45 2.4 General Test Procedure POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STANDARD C63.4- 2009 5.2 using a 50μH LISN (if necessary). Both lines were observed. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. RADIATION INTERFERENCE: The test procedure used was according to ANSI STANDARD C63.4- 2009 6.4 employing a spectrum analyzer. For investigated frequency is equal to or below 1GHz, the RBW and VBW of the spectrum analyzer was 100 kHz and 100kHz respectively with an appropriate sweep speed. For investigated frequency is above 1GHz, both of RBW and VBW of the spectrum analyzer were 1 MHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The ambient. temperature of the UUT was 23°C with a humidity of 40 %. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBμV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated…

Text truncated - open the document above for the full version.

Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 23 of 28 Set Up Photo of Radiated Emission EMI Battery Below 1GHz Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 24 of 28 Above 1GHz Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 25 of 28 Charge Below 1GHz Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 26 of 28 Above 1GHz Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 27 of 28 RF Registration number: W6M21412-14665-FCC FCC ID: 2AAUCMGBLKAPBBBK IC: 12645A-MGBLKAPBBBK Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 28 of 28 Set Up Photo of Conducted Emission
