2AAUQ-CTL2607ZigBee-Ready RF Transceiver

Computime Ltd.
ZigBee-Ready RF Transceiver - FCC ID 2AAUQ-CTL2607 - Computime Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 10, 2015
Application Purpose
Original Equipment
Date of Application
Oct 10, 2015
Equipment Note
ZigBee-Ready RF Transceiver
Frequency Range
2405.00000000 - 2480.00000000
Company
Computime Ltd.
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

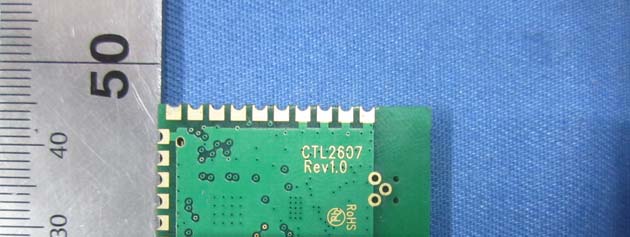

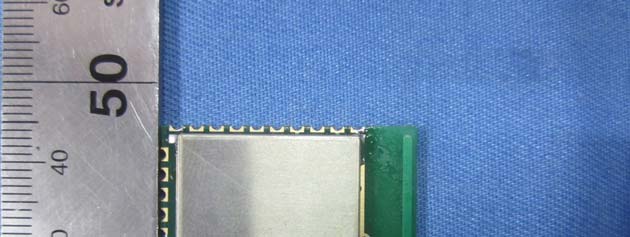

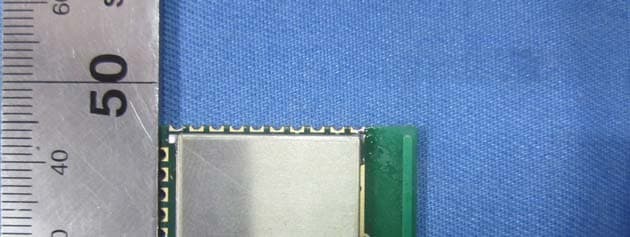

External Photos

↗

ID Label/Location Info

↗
↗

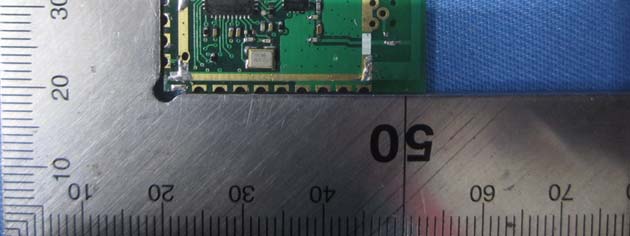

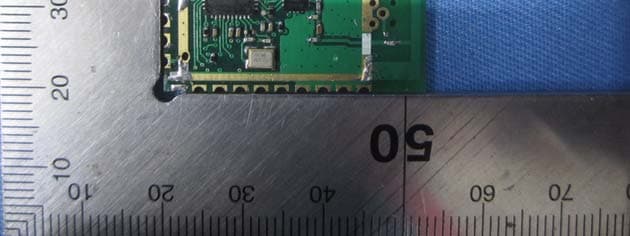

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Copyright © 2011 Computime Limited. All rights reserved. Rev. 2 ZigBee- Ready SoC RF Transceiver Modules CTL2607 The reproduction of this datasheet is NOT allowed without approval of Computime Limited. All information and data contained in this datasheet are subject to change without notice. This publication supersedes and replaces all information previously supplied. Computime has no responsibility to the consequence of using the information described in this document. ZigBee- Ready SoC RF Transceiver Modules CTL2607 Copyright © 2011 Computime Limited. All rights reserved. Rev. 2 Page 1 Table of Contents 1.General Description ...................................................................................................................................... 2 2.Applications .................................................................................................................................................. 2 3.Features ....................................................................................................................................................... 2 4.Absolute Maximum Ratings .......................................................................................................................... 3 5.Recommended Operating Conditions .......................................................................................................... 3 6.Electrical Specifications ................................................................................................................................ 4 7.Pin Assignment ............................................................................................................................................. 5 8.Pin Description ............................................................................................................................................. 5 9.Block Diagram .............................................................................................................................................. 7 10. Circuit Description ........................................................................................................................................ 7 11. SIF Module Programming and Debug Interface ........................................................................................... 8 12. Power Management ..................................................................................................................................... 8 13. RF Frequency Detail..................................................................................................................................... 9 14. Antenna Design Considerations ................................................................................................................. 10 15. PCB Layout Recommendations ................................................................................................................. 11 16. Product Approvals ...................................................................................................................................... 12 17. Typical application block ............................................................................................................................ 15 18. Mechanical Dimensions .............................................................................................................................. 15 19. Ordering Information ................................................................................................................................... 17 20. Moisture Sensitivity Level (MSL) ................................................................................................................ 17 21. Document Revision History ........................................................................................................................ 17 ZigBee- Ready SoC RF Transceiver Modules CTL2607 Copyright © 2011 Computime Limited. All rights reserved. Rev. 2 Page 2 1. General Description The CTL2607 RF Transceiver Modules is compact surface mounted modules specially designed for Ember ZigBee™ protocol stack for wireless networks, EmberZNet, based on IEEE 802.15.4 standard in the 2.4GHz world-wide ISM band. The complete module is only 32.4 x 25.4 x 4.1mm .They both integrate a 2.4GHz, IEEE 802.15.4-compliant transceiver with a 16-bit network processor (XAP2b core) to run EmberZNet. They contain embedded Flash and integrated RAM for program and data storage. It utilizes the non-intrusive SIF module for powerful software debugging and programming of the network processor. The CTL2607 modules are specially designed for ZigBee application. They provide a fast jump start design for system integrators or electronic designers wishing to use ZigBee wireless technologies. The module contains qualified RF hardware and enough processor power to run the EmberZNet stack or other ZigBee network stack (depending on version), making it a powerful platform for building wireless networking products. ZigBee Coordinators (ZC), ZigBee Routers (ZR), and ZigBee End Devices (ZED) are all supported and are programmed onto the module together with a custom application. Minimal RF design experience is need to use CTL2607 modules. 2. Applications Home automation & building control Home appliances & alarms Monitoring of remote systems Lighting controls Sensor data capturing 3. Features Complete ZigBee-ready module with or without integrated chip antenna Integrated IEEE 802.15.4 PHY and MAC layer 12MHz XAP2b 16-bit network processor core Integrated FEM(Front-End Module) Non-intrusive debug interface (SIF) SPI interface for communication and controlled by the Host using the EmberZNet Serial Protocol (EZSP) Internal RC oscillator for timer 16 channels in the 2.4 GHz ISM band On-chip regulator for 2.7-3.6V operation , three sleep low power modes -17dBm------20dBm output power, SW controlled -19+/-1dBm ------ 18+/-1dBm output powe…

Text truncated - open the document above for the full version.

ID Label/Location Info

备注:字体为Arial,贴纸尺寸:17x14mm Model No.: CTL2607 FCC ID: 2AAUQ-CTL2607 IC: 1700D-CTL2607 Zigbee Module

ID Label/Location Info

Label Location Label location

RF Exposure Info

FCC ID: 2AAUQ-CTL2607 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.06141.63*(100)6 3.0–301842/f4.89/f*(900/f 2 )6 30–30061.40.1631.06 300–1500f/3006 1500–100,00056 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f 2 )30 30–30027.50.0730.230 300–1500f/150030 1500–100,0001.030 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd= power density in mW/cm 2 , Pout= output power to antenna in mW; G= gain of antenna in linear scale, Pi= 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation Frequency Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 )Result 2405MHz60.954 0.01126 1.0PASS 2440MHz57.016 0.01054 1.0PASS 2475MHz40.365 0.00746 1.0PASS 2480MHz0.0100.000001.0PASS Remark: antenna gain=-0.32dBi Remark: Worse case is reported

Test Report

Global United Technology Services Co., Ltd. Report No.: GTSE15070148201 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT Applicant: Computime Limited. Address of Applicant: 9/F, Tower One, Lippo Centre 89 Queensway, Hong Kong Equipment Under Test (EUT) Product Name: ZigBee-Ready RF Transceiver Model No.: CTL2607 FCC ID: 2AAUQ-CTL2607 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2014 Date of sample receipt: September 06, 2015 Date of Test: September 07-10, 2015 Date of report issued: September 11, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE15070148201 Global United Technology Services Co., Ltd. Project No.: GTSE150701482RF 2 Version Version No. Date Description 00September 11, 2015 Original Prepared By: Date: September 11, 2015 Project Engineer Check By: Date: September 11, 2015 Reviewer Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone,Xixiang Road, Baoan District, Shenzhen 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 2 Report No.: GTSE15070148201 Global United Technology Services Co., Ltd. Project No.: GTSE150701482RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone,Xixiang Road, Baoan District, Shenzhen 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 3 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3CONTENTS .............................................................................................................................................. 3 4TEST SUMMARY ..................................................................................................................................... 4 4.1MEASUREMENT UNCERTAINTY ............................................................................................................ 4 5GENERAL INFORMATION ...................................................................................................................... 5 5.1CLIENT INFORMATION ......................................................................................................................... 5 5.2GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3TEST MODE ........................................................................................................................................ 6 5.4DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 5.5TEST FACILITY .................................................................................................................................... 7 5.6TEST LOCATION ................................................................................................................................. 7 6TEST INSTRUMENTS LIST ..................................................................................................................... 8 7TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1ANTENNA REQUIREMENT ..................................................................................................................... 9 7.2CONDUCTED EMISSIONS ................................................................................................................... 10 7.3CONDUCTED PEAK OUTPUT POWER .................................................................................................. 13 7.4CHANNEL BANDWIDTH ...................................................................................................................... 16 7.5POWER SPECTRAL DENSITY ............................................................................................................. 19 7.6BAND EDGES .................................................................................................................................... 22 7.6.1Conducted Emission Method ..................................................................................................... 22 7.6.2Radiated Emission Method ........................................................................................................ 24 7.7SPURIOUS EMISSION ....................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated Emission Conducted Emission

Contact Information

Applicant

stanley ye(manager)
[email protected](86) 755 8473 6036Fax: (86) 755 8473 6036

Test Firm

Global United Technology Service Co., LtdRobinson Lo
[email protected]86-755-27798480Fax: 86-755-2779860

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz60.95 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single modular approval. Power output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
