2AAWE-SS88S-Storm-Weatherproof Floatable Bluetooth Wireless Speaker

B18s Usermanual Bluetooth pairing Name: Soul s-storm 1: 2. Single machine mode operation 2.1. Press the key for 1 second, turn on the machine and enter the Bluetooth mode. The Bluetooth indicator (red and blue lights flash alternately) will enter the Bluetooth configuration state. After connecting with the mobile phone, the Bluetooth indicator light (blue light 8s flashes once). 2.2. Click this key to pause the play attack; press and hold this key for 10s; Automatically enter the pairing mode (with pairing prompt sound); double click this key to enter the redial function of the speaker. After dialing out successfully, click this key to hang up the phone; when the associated mobile phone calls, there is a voice prompt; short press this key to answer the call, long press 2S to refuse to answer the call; after the call is completed, click this key again to hang up the phone; 2.3. Short press the "" key to reduce the volume, and long press the "" key for 2 seconds to select the previous song, 2.4. Short press the "" key to increase the volume, and long press the "" key for 2 seconds to select the next song, 2.5. Press the key three times quickly (after Siri starts, you can't speak one sentence, you have to manually click the phone voice, otherwise Siri will be automatically turned off). 3. TWS mode operation 1. Press the key for 1 second, turn on the machine and enter the Bluetooth mode. The Bluetooth indicator (red and blue lights flash alternately) will enter the Bluetooth configuration state. After connecting with the mobile phone, the Bluetooth indicator light (blue light 8s flashes once). 2.2. Any one of the two models enters TWS pairing status, and the blue light flashes rapidly; after the pairing is successful, the host computer (red and blue lights flash alternately), and the auxiliary machine (the blue light 8s flashes once), and the Bluetooth indicator light (the blue light 8s flashes once) is connected with the mobile phone. 3.2.2. Click this key to pause the play attack; 4. When the mobile phone and TWS are connected, the chief and vice captains press 3S to disconnect the TWS connection, first release the TWS connection, and then long press 10s to disconnect to enter the manual pairing mode, and the red and blue lights flash alternately.) 5. Short press the "" key to reduce the volume, and long press the "" key for 2 seconds to select the previous song, 6. Short press the "" key to increase the volume, and long press the "" key for 2 seconds to select the next song, 7. When calling, the short key can realize the function of answering the call, a short press can end the call, and a long key for 1.5 seconds can reject the call. 8.2.5. Press the key three times quickly (after Siri starts, you can't speak one sentence, you need to manually click the phone voice, otherwise Siri will be automatically closed). 9. In TWS state, press and hold the host or slave key for 3 seconds, and the two models enter the shutdown state. The red light is on for one second and then goes out 10. Switch on and enter Bluetooth mode. If no device is connected, Bluetooth will be automatically turned off after 3 minutes, and the Bluetooth indicator will be off. 11. Connect back mode: 1. Connect back to the connected mobile phone when the phone is turned on; 2. Turn on the Bluetooth of Android mobile phone to automatically connect back; 3. When the mobile phone is disconnected automatically after leaving the Bluetooth receiving distance, it can be connected back before the Bluetooth stereo is automatically turned off (3 minutes) Note: 1. The equipment has the function of automatic back connection, and there is a prompt tone after the equipment is connected back, 2. When the speaker is not working, it will shut down automatically after 3 minutes 3. Low battery alarm at 3.4V; shutdown at 3.0V 4. Connect the mobile phone with Bluetooth to display the power FCC Warning a、§ 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. b、§ 15.21 Changes or modification warning. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. c、§ 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  -Reorient or relocate the receiving antenna.  -Increase the separation between the equipment and receiver.  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Differences Description We Soul Electronics Limited state: Product： S-Storm-Weatherproof Floatable Bluetooth Wireless Speaker Model Name： S-Storm, SS88 Brand Name： SOUL FCC ID: 2AAWE-SS88 PCB board is the same, only the appearance difference; S-Storm and SS88 are just different models. The rest are exactly the same Signatory Date 2020-07-24 In.... ..........................., ............................................................ Signature of the petitioner, Ken Chung/VP of Engineering

C5266091_X8_Ed.1 1/1 Letter of Authorization Soul Electronics Limited Company: Soul Electronics Limited Address: Suite 2108, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Product Name: S-Storm-Weatherproof Floatable Bluetooth Wireless Speaker Model Number: S-Storm, SS88 FCC Identifier: 2AAWE-SS88 We authorize LGAI Techno logical Center S.A., Ronda de la Font del Carme, s/ n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and tak e action on the application. We declare that authorize LGAI Technolo gical Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Ken Chung Date: 2020-07-24 Title: VP of Engineering Signature of applicant:

C5266091_X10_Ed.2 1/1 Date:2020-07-24 Soul Electronics Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: 2AAWE-SS88 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual No Internal Photos No Parts List / Tune Up RF Exposure Info No Operational Description Cover Letter(s) No No SDR Software / Security Info No NOTE 1: Lon g‐Term Confidentiality may be permitted under special conditions (See II. LONG‐TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short‐Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. In.... ..........................., ............................................................ Signature of the petitioner, Ken Chung/VP of Engineering Name: Ken Chung Title: VP of Engineering

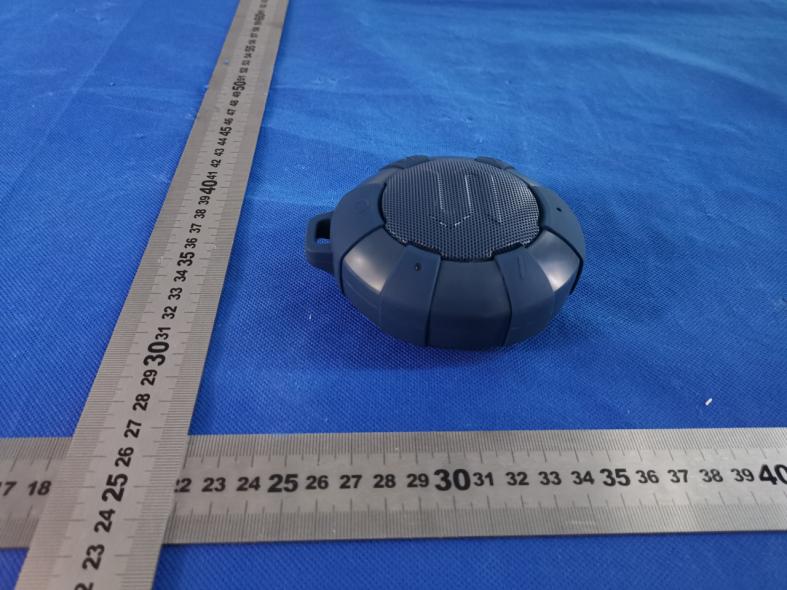

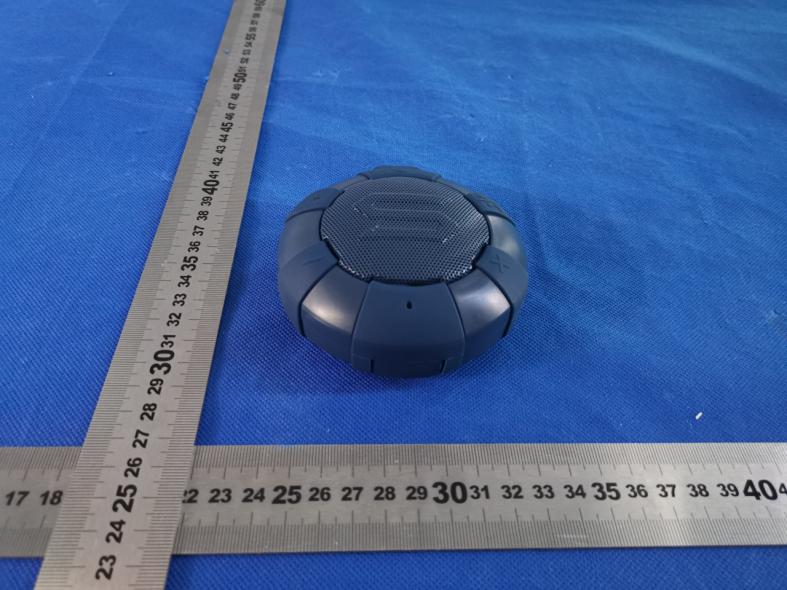

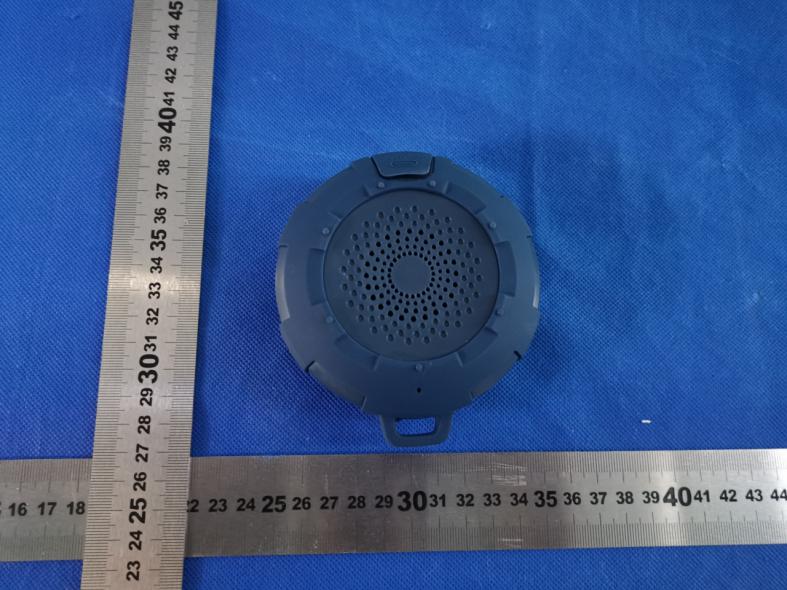

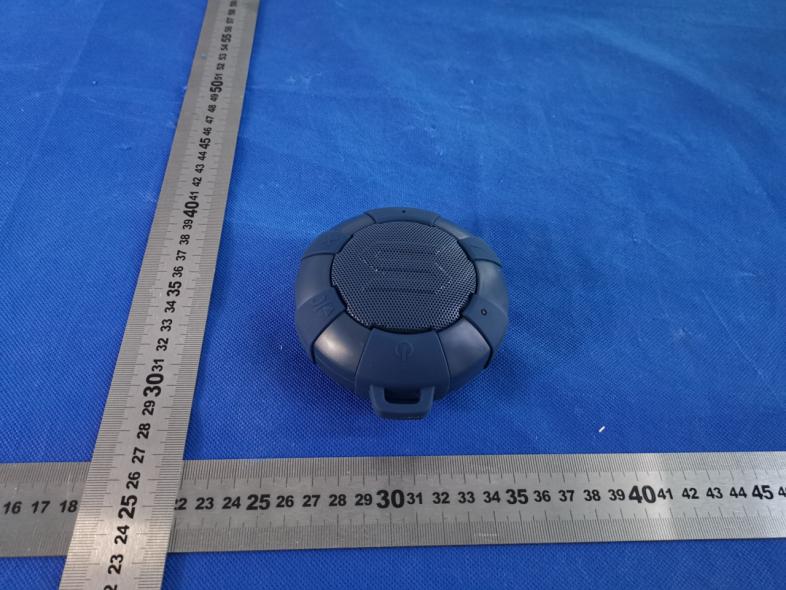

Page 1 of 3 Report No.:FCS202007014 External photos Photo 1 Photo 2 Model: S-Storm Page 2 of 3 Report No.:FCS202007014 Photo 3 Photo 4 Page 3 of 3 Report No.:FCS202007014 Photo 5 Photo 6

S-STORM BACK RATING LABEL22 / JUN / 2020 ACTUAL SIZE LASER ENGRAVED 5.25cm 5.25cm GRAPHIC PLACEMENT CENTERED 工艺：镭雕

Page 1 of 4 Report No.:FCS202007014 Internal photos Photo 1 Photo 2 Model: S-Storm Page 2 of 4 Report No.:FCS202007014 Photo 3 Photo 4 Page 3 of 4 Report No.:FCS202007014 Photo 5 Photo 6 Antenna Page 4 of 4 Report No.:FCS202007014 Photo 7

FCC Test Report Report No: FCS202007014W01 Issued for Applicant: Soul Electronics Limited Address: Suite 2108, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Product Name: S-Storm-Weatherproof Floatable Bluetooth Wireless Speaker Brand Name: SOUL Model Name: S-Storm Series Model: SS88 FCC ID: 2AAWE-SS88 Issued By: Flux Compliance Service Laboratory Add: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Page 2 of 32 Report No.: FCS202007014W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com TEST RESULT CERTIFICATION Applicant’s Name ................... : Soul Electronics Limited Address .................................. : Suite 2108, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Manufacture's Name .............. : Soul Electronics Limited Address .................................. : Suite 2108, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Product Description Product Name ........................ : S-Storm-Weatherproof Floatable Bluetooth Wireless Speaker Brand Name ......................... : SOUL Model Name ........................... : S-Storm Series Model .......................... : SS88 Test Standards ....................... : FCC Rules and Regulations Part 15 Subpart C, Section 249 Test Procedure ....................... : ANSI C63.10:2013 This device described above has been tested FCS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of FCS, this document may be altered or revised by FCS, personal only, and shall be noted in the revision of the document.. Date of Test ................................ : Date (s) of performance of tests : 18 July. 2020 ~ 28 July. 2020 Date of Issue .............................. : 28 July. 2020 Test Result .................................. : Pass Tested by : (Chris Chen) Reviewed by : (Jack Chen) Approved by : ( Andy yue) Page 3 of 32 Report No.: FCS202007014W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.4 EQUIPMENTS LIST 11 3 CONDUCTED EMISSION MEASUREMENT 12 3.1 LIMIT 12 3.2 TEST PROCEDURE 12 3.3 TEST SETUP 13 3.4 TEST RESULTS 14 4. RADIATED EMISSION MEASUREMENT 16 4.1 LIMIT 16 4.2 TEST PROCEDURE 17 4.3 TEST SETUP 18 4.4 TEST RESULTS 19 5. BAND EDGE TEST 26 5.1 LIMIT 26 5.2 TEST PROCEDURE 26 5.3 TEST SETUP 27 5.4 TEST RESULTS 28 6. 20 DB BANDWIDTH TEST 30 6.1 LIMIT 30 6.2 TEST PROCEDURE 30 6.3 TEST SETUP 30 6.4 TEST RESULTS 31 7. ANTENNA REQUIREMENT 33 7.1 STANDARD REQUIREMENT 33 7.2 EUT ANTENNA 33 Page 4 of 32 Report No.: FCS202007014W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com Revision History Rev. Issue Date Effect Page Contents 00 28 July. 2020 All Initial Issue Page 5 of 32 Report No.: FCS202007014W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.249 Meas Guidance v05r02 FCC Part 15.249,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.205(a), 15.209(a), 15.249(a), 15.249(c) Radiated Spurious Emission PASS -- 15.209 Field strength of fundamental PASS -- 15.249(d) Band Edge Emission PASS -- 15.215(c) 20dB Bandwidth PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) All tests are according to ANSI C63.10-2013 Page 6 of 32 Report No.: FCS202007014W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 1.1 TEST FACTORY Company Name: Flux Compliance Service Laboratory Address: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Telephone: +86-769-27280901 Fax: +86-769-27280901 FCC Test Firm Registration Number: 514908 Designation number: CN0127 A2LA accreditation number：5545.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.71dB 2 Unwanted Emissions, conducted ±2.988 dB 3 Conducted Emission (9KHz-150KHz) ±4.13 dB 4 Conducted Emission (150KHz-30MHz) ±4.74 dB 5 All emissions,radiated(<1G) 30MHz-1000MHz ±5.2 dB 6 All emissions,radiated (1GHz -18GHz) ±3.66 dB 7 All emissions,radiated (18GHz -40GHz) ±4.31 dB Page 7 of 32 Report No.: FCS202007014W01 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.fcs-lab.com 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name S-Storm-Weatherproof Floatable Bluetooth…

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.:FCS202007014 Blo w 1GHz for radiated emission test setup Above 1GHz for radiated emission test setup Model: S-Storm Page 2 of 2 Report No.:FCS202007014 CE
