2AAXFKF03AKey Finder

SHENZHEN HOMELEAD ELECTRONICS CO., LTD.

SHENZHEN HOMELEAD ELECTRONICS CO., LTD.

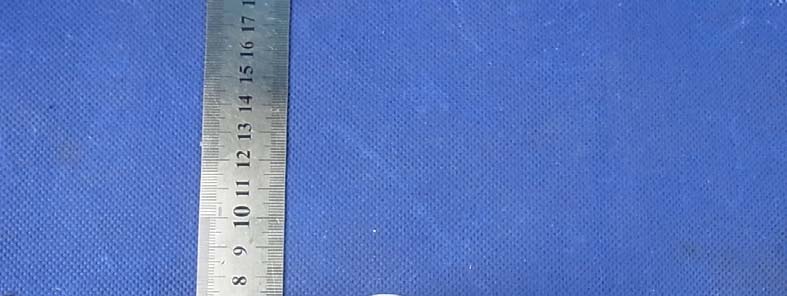

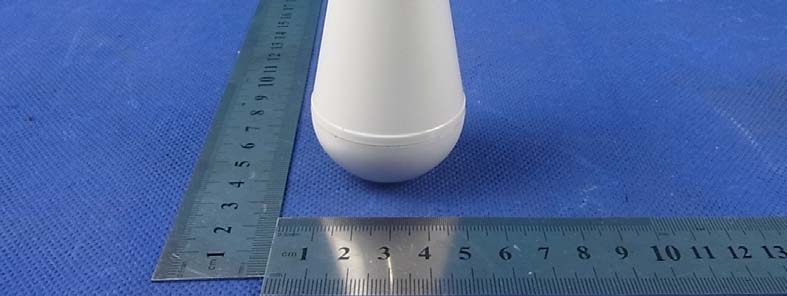

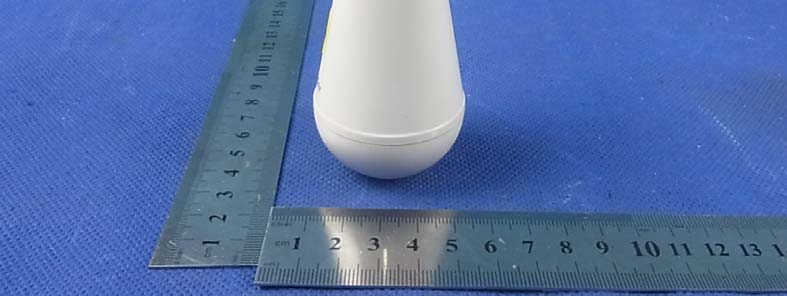

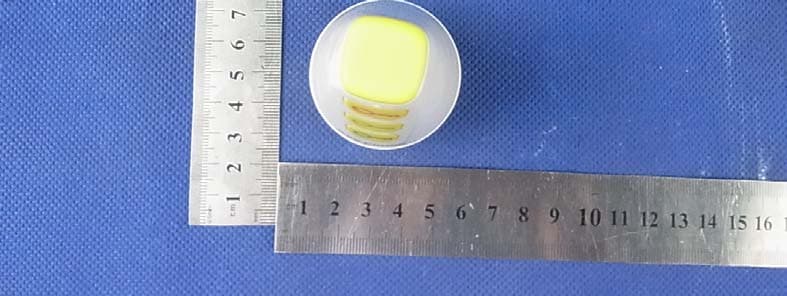

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5

Key Finder FCC ID: 2AAXFKF03A

Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11

FCC RADIO TEST REPORT FCC ID: 2AAXFKF03A Product： Key Finder Trade Name： N/A Model Name： KF03A Serial Model： HL-KF04A, HL-KF02A, KF04B, KF02B, KF03B, KF02C Report No.： STT-2013DG822058F Prepared for SHENZHEN HOMELEAD ELECTRONICS CO., LTD. Quanbao Industrial Park, 36 Guangming Rd, Shiyan Town, Baoan, Shenzhen, China Prepared by Shenzhen STONE Testing Technology Co.,Ltd. F/6, Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District Shenzhen China Page 2 of 26 Report No.: STT-2013DG822058F ` TEST RESULT CERTIFICATION Applicant’s name................. : SHENZHEN HOMELEAD ELECTRONICS CO., LTD. Address ................................. : Quanbao Industrial Park, 36 Guangming Rd, Shiyan Town, Baoan, Shenzhen, China Manufacture's Name............ : SHENZHEN HOMELEAD ELECTRONICS CO., LTD. Address ................................. : Quanbao Industrial Park, 36 Guangming Rd, Shiyan Town, Baoan, Shenzhen, China Product description Product Name ........................... : Key Finder Model and/or type reference : KF03A Serial Model： HL-KF04A, HL-KF02A, KF04B, KF02B, KF03B, KF02C Standards............................. : FCC Part15.231:2012 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by STT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STT, this document may be altered or revised by STT, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 17 Aug. 2013 ~26 Aug. 2013 Date of Issue...........................................: 26 Jul. 2013 Test Result...............................................: Pass Testing Engineer : (Eric Wang) Technical Manager : (Jerry You) Authorized Signatory : (Jack yu) Page 3 of 26 Report No.: STT-2013DG822058F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.2 TEST PROCEDURE 16 3.4.3 DEVIATION FROM TEST STANDARD 16 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BELOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 23 4.1 TEST PROCEDURE 23 4.2 DEVIATION FROM STANDARD 23 4.3 TEST SETUP 23 4.4 TEST RESULTS 24 5 . TRANSMITTER TIMEOUT 25 5.1 REQUIREMENTS 25 6 . EUT TEST PHOTO 26 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 26 Report No.: STT-2013DG822058F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 26 Report No.: STT-2013DG822058F ` 1.1 TEST FACILITY Shenzhen STONE Testing Technology Co.,Ltd. Add. : F/1, Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District Shenzhen China FCC Registration No.: 323508; IC Registration No.: 11043A 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 26 Report No.: STT-2013DG822058F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Key Finder Model Name KF03A Serial Model HL-KF04A, HL-KF02A, KF04B, KF02B, KF03B, KF02C Model Difference All models are identical except model names. Product Description The EUT is a Key Finder Product Type Remote Control Operation Frequency: 433.92MHz Modulation Type: FSK Number Of Channel 1CH. Antenna Designation: Not remove antenna Antenna Gain(Peak) 0 dBi Output Power: 69.82 dBuV/m (AV Max.) Channel List N/A Adapter N/A Battery DC 3V Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A Not remove antenna NA 0 Antenna Page 7 of 26 Report No.: STT-2013DG822058F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description Mode 1 N/A For Radiated Emission Final Test Mode Description Mode 1 TX Page 8 of 26 Report No.: STT-2013DG822058F ` 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED Radiated Spurious Emission Test E-1 EUT Page 9 of 26 Report No.: STT-2013DG822058F ` 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) The EUT has been tested as an independent unit together w…

Text truncated - open the document above for the full version.

Page 26 of 26 Report No.: STT-2013DG822058F ` 6. EUT TEST PHOTO Radiated Measurement Photos
