2AB4KMETYH8106PLL AM/FM DUAL ALARM CLOCK RADIO WITH BLUETOOTH AND USB CHARGING PORT

Bluetooth Digital AM/FM Dual Alarm Clock Radio with USB Charging Port MODEL: JCR-298 USER MANUAL PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE E-1 WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The Rating plate is located at the bottom enclosure of the apparatus IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that product heat. 9. AC adaptor is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the AC adaptor should be disconnected from the mains socket outlet completely. 10. Only use attachments/accessories specified by the manufacturer. 11. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 12. Unplug this apparatus during lightning storms or when unused for a long period of time. 13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 14. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquids such as vases shall be placed on the apparatus. 15. Do not overload wall outlet. Use only power source as indicated. E-2 16. Use replacement part as specified by the manufacturer. 17. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks. 18. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instruction. 19. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 20. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance - this indicates a need for service. 21. The battery shall not be exposed to excessive heat such as sunshine, fire or the like. 22. Minimum distances of 4 inches around the apparatus for sufficient ventilation. 23. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc. 24. No open flame sources, such as lit candles, should be placed on the product. 25. The use of apparatus in moderate climates. 26. Attention should be drawn to the environmental aspects of battery disposal SAVE THESE INSTRUCTIONS E-3 COMPLIANCE WITH FCC REGULATIONS FCC ID: 2AB4KMETYH8106 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Th…

Text truncated - open the document above for the full version.

METINDUSTRIALLTD Date:2020-11-04 To:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD FCCID:2AB4KMETYH8106 ToWhomItMayConcern: ThisletteristoascertainthatMETINDUSTRIALLTD EUT：PLLAM/FMDUALALARMCLOCKRADIOWITHBLUETOOTHANDUSB CHARGINGPORT MODELNo.:MET8106,JCR-298,JCR-298XXXXX(whereXXXXXdenoteanyprintable charactersintheASCIIStandardCharacterTabletorepresentvariancesincosmeticsor buyers) HasbeentheunitsusedforconductingFCCcompliancetesting,theSDoCpartwillbe testedbyEMTEK(SHENZHEN)CO.,LTD. Ifyouhaveanyquestionorconcerns,pls.contactus. Sincerely, Client’ssignature： Client’sname/title：TONYLAM Contactinformation/address:METINDUSTRIALLTD/Room605,6/F.,No.9WingHong Street,LaiChiKok,Kowloon,HongKong

Rev11/20/07 METINDUSTRIALLTD FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationof FCCID:2AB4KMETYH8106 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram,Schematics,Operational Description, BlockDiagram OperationDescription schematicdiagram Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. Sincerely, TONYLAM METINDUSTRIALLTD

Declarationonmodeldifference Wetheundersignedherebyconfirmthatanyofourproductionunitsbearingthefollowingmodel numbersareidenticalincircuitryandelectrical,mechanicalandphysicalconstruction;theonly differencesarethemodelnameandthecolorofappearancefortradingpurpose. FCCID:2AB4KMETYH8106 ProductionnameTradenameModelno. PLLAM/FMDUALALARM CLOCKRADIOWITH BLUETOOTHANDUSB CHARGINGPORT MET,JENSENMET8106,JCR-298,JCR-298XXXXX(whereXXXXX denoteanyprintablecharactersintheASCIIStandard CharacterTabletorepresentvariancesincosmeticsor buyers) ConfirmedbyMETINDUSTRIALLTD TONYLAM METINDUSTRIALLTD Date:2020-11-04

METINDUSTRIALLTD FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2020-11-04 SUBJECT:FCCApplicationforFCCID:2AB4KMETYH8106 ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWangatEMTEK(SHENZHEN)CO.,LTD.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyEMTEK(SHENZHEN)CO.,LTD.onourbehalfshallhavethe sameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, TONYLAM METINDUSTRIALLTD

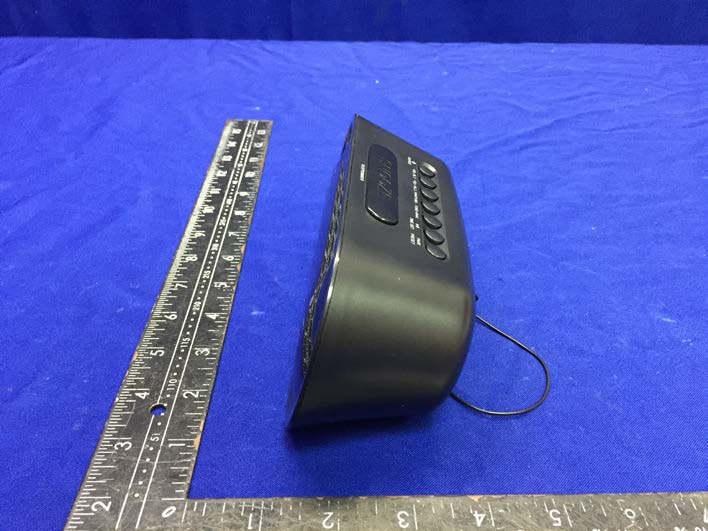

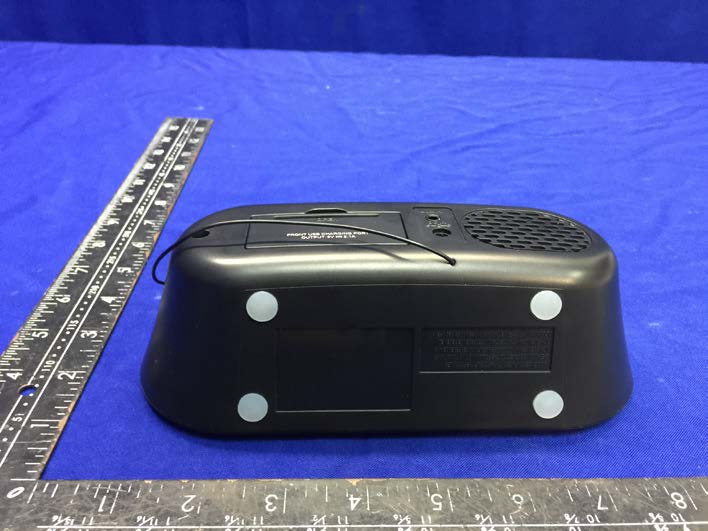

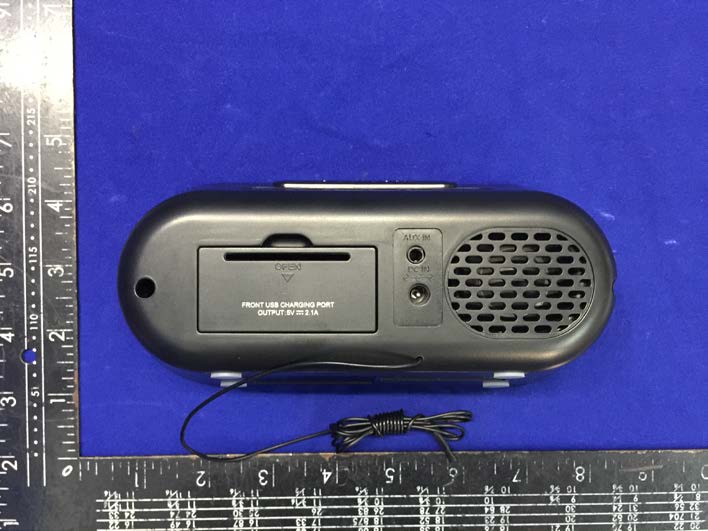

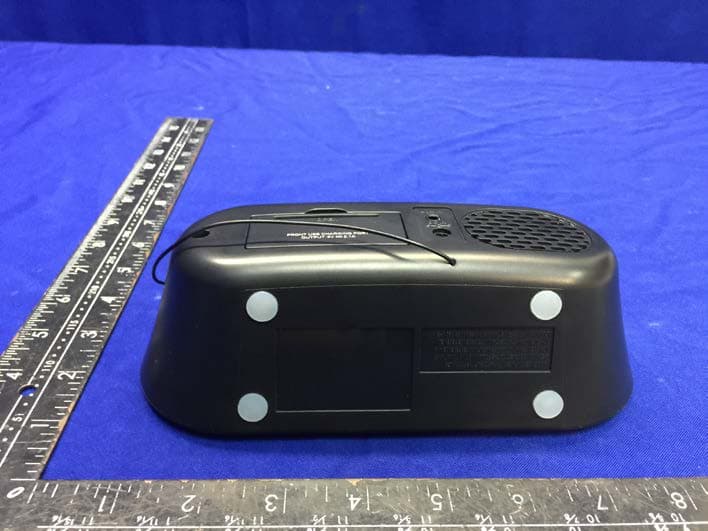

TRF NO. FCC15/A Page 1 of 5 Report No.: ES201013037W EUT EXTERNAL PHOTOGRAPHS TRF NO. FCC15/A Page 2 of 5 Report No.: ES201013037W TRF NO. FCC15/A Page 3 of 5 Report No.: ES201013037W TRF NO. FCC15/A Page 4 of 5 Report No.: ES201013037W TRF NO. FCC15/A Page 5 of 5 Report No.: ES201013037W ----------------The end----------------

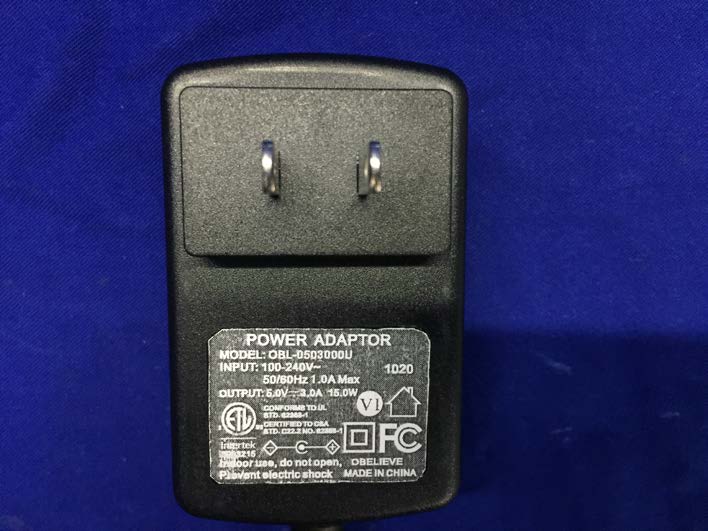

S/N: 20201110001 S/N: 20201115000 Model: JCR-298 Rating Label Size: 44.5mm(W) x 29mm (H) MODEL: JCR-298 Made in China BLUETOOTH DIGITAL AM/FM DUAL ALARM CLOCK RADIO WITH USB CHARGING PORT AC Adaptor: DC 5V 3A Clock Backup Batteries: 3V 2 x AAA Batteries FCC ID: 2AB4KMETYH8106 Distributed by: Spectra Merchandising lnternational, lnc 4230 North Normandy Avenue, Chicago IL 60634, U.S.A. For Customer service, Please call 1-800-777-5331 FCC Label Size: 36mm(W) x 14mm (H) S/N: 20201110001 Distributed by: Spectra Merchandising lnternational, lnc 4230 North Normandy Avenue, Chicago IL 60634, U.S.A. For Customer service, Please call 1-800-777-5331 USB Charging Output: DC 5V 2.1A Freq: AM: 520 1710 kHz FM: 87.5 108 MHz MODEL: JCR-298 Made in China BLUETOOTH DIGITAL AM/FM DUAL ALARM CLOCK RADIO WITH USB CHARGING PORT AC Adaptor: DC 5V 3A Clock Backup Batteries: 3V 2 x AAA Batteries FCC ID: 2AB4KMETYH8106 USB Charging Output: DC 5V 2.1A Freq: AM: 520 1710 kHz FM: 87.5 108 MHz

TRF NO. FCC15/A Page 1 of 6 Report No.: ES201013037W EUT INTERNAL PHOTOGRAPHS TRF NO. FCC15/A Page 2 of 6 Report No.: ES201013037W TRF NO. FCC15/A Page 3 of 6 Report No.: ES201013037W TRF NO. FCC15/A Page 4 of 6 Report No.: ES201013037W TRF NO. FCC15/A Page 5 of 6 Report No.: ES201013037W TRF NO. FCC15/A Page 6 of 6 Report No.: ES201013037W ----------------The end---------------- BT Antenna

FCC ID : 2AB4KMETYH8106 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. 11.2 Measurement Result BT Antenna gain: 1.9dBi modulation Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) GFSK 2402 1.49 0 to 2 2 1.55 0.0005 1 2441 1.89 0 to 2 2 1.55 0.0005 1 2480 2.41 1 to 3 3 1.55 0.0006 1 pi/4-DQPSK 2402 2.22 1 to 3 3 1.55 0.0006 1 2441 2.59 1 to 3 3 1.55 0.0006 1 2480 3.09 2 to 4 4 1.55 0.0007 1 8DPSK 2402 1.95 0 to 2 2 1.55 0.0005 1 2441 2.56 1 to 3 3 1.55 0.0006 1 2480 2.82 1 to 3 3 1.55 0.0006 1

Report No. ES201013037W Page 1 of 64 Ver.1.0 TEST REPORT Product Name ： PLL AM/FM DUAL ALARM CLOCK RADIO WITH BLUETOOTH AND USB CHARGING PORT Model Number ： MET8106,JCR-298,JCR-298XXXXX(where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers) FCC ID ： 2AB4KMETYH8106 Prepared for : MET INDUSTRIAL LTD Address : Room 605, 6/F., No. 9 Wing Hong Street, Lai Chi Kok, Kowloon, Hong Kong Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES201013037W Date(s) of Tests : October 20, 2020 to October 28, 2020 Date of issue : November 02, 2020 $二维码$ Report No. ES201013037W Page 2 of 64 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ....................................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ..................................................................................................................................... 5 3 SUMMARY OF TEST RESULT .......................................................................................................................................... 6 4 TEST METHODOLOGY ...................................................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .................................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ............................................................................................................. 8 5 FACILITIES AND ACCREDITATIONS ............................................................................................................................. 9 5.1 FACILITIES ................................................................................................................................................ 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................................... 9 6 TEST SYSTEM UNCERTAINTY ...................................................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST .......................................................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP 1 .................................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2 .................................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................................ 13 7.4 SUPPORT EQUIPMENT .......................................................................................................................... 13 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ................................................................................................... 14 8.1 STANDARD APPLICABLE ............................................................................................................................. 14 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ........................................................................... 14 8.3 EQUAL HOPPING FREQUENCY USE .............................................................................................................. 15 8.4 FREQUENCY HOPPING SYSTEM ................................................................................................................... 15 9 TEST REQUIREMENTS .................................................................................................................................................... 16 9.1 20DB BANDWIDTH ................................................................................................................................. 16 9.2 CARRIER FREQUENCY SEPARATION ................................................................................................ 22 9.3 NUMBER OF HOPPING FREQUENCIES ............................................................................................... 28 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ........................................................................... 30 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER............................................................................ 33 9.6 CONDUCTED SUPRIOUS EMISSION .................................................................................................... 39 9.7 RADIATED SPURIOUS EMISSION ........................................................................................................ 46 9.8 CONDUCTED EMISSION TEST ............................................................................................................. 60 Report No. ES201013037W Page 3 of 64 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : MET INDUSTRIAL LTD Address : Room 605, 6/F., No. 9 Wing Hong Street, Lai Chi Kok, Kowloon, Hong Kong Manufacturer : Dongguan City Wangniudun Yinghui Electronics Factory Address : Chijiaoluduan Zhengzhong Road Wangniudun Town Dongguan City, China EUT : PLL AM/FM DUAL ALARM CLOCK RADIO WITH BLUETOOTH AND USB CHARGING PORT Model : MET8106,JCR-298,JCR-298XXXXX(where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers) Trademark : MET, JENSEN Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test proced…

Text truncated - open the document above for the full version.

TRF NO. FCC15/A Page 1 of 2 Report No.: ES201013037W TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement TRF NO. FCC15/A Page 2 of 2 Report No.: ES201013037W 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
