2AB4KMETYH8117TWS Bluetooth Speaker

PORTABLE TRUE WIRELESS BLUETOOTH SPEAKER MODEL NO.: SP929 INSTRUCTION MANUAL Please read these instructions thoroughly before use and retain for future reference SYLVANIA is a registered trademark of OSRAM Sylvania Inc. used under license. Getting Started • Remove the product from the box. • Remove any packaging from the product. • Please retain all packaging after you have checked and counted all the parts and the contents against the list. Package Contents • 2pcs Bluetooth Speakers • 2pcs USB Charging Cables (with Micro USB output) • Instruction Manual Features • Portable True Wireless Bluetooth Speakers • Double up your music beats with this Portable True Wireless Speaker, turn them on and pair with each other wirelessly • Connect With your mobile device and stream wireless true wireless music — double sound output than traditional speaker • Wirelessly connect both speakers for true right & left stereo play back • Works independently or together as paired true wireless speaker • Built-in magnet at the bottom that sticks to each other • Wireless range up to 10 meters Safety Instructions • Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids. • DO not operate the unit if it has been exposed to water, moisture or any Other liquids to prevent against electric shock, explosion and/or injury to yourself and damage to the unit. • Do not use the unit if it has been dropped or damaged in any way. • Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk. • Do not use the unit with wet hands. • Do not put objects into any of the openings. • Keep the unit free from dust, lint, etc. • Do not use this unit for anything other than its intended use. • Keep the unit out of reach of children. • This product is not a toy. Description Of parts: 1. Micro USB port 2. Play and Pause / Bluetooth Pairing button 3. Power button 4. Volume increase or decrease / next or previous track button INSTRUCTIONS FOR USE Charging the Speakers The speaker has built-in rechargeable battery. When the battery is drained out, speaker would turn OFF automatically. please recharge the battery every time it drains out. Plug the Micro USB end of the included USB rechargeable cable into the Micro USB charging port. Plug the other end into a USB port on your computer or other devices made for USB charging. Red LED Light illuminates indicating that the device is being charged. It takes about 1.5 hours to fully charge the speaker. Once the speaker is fully charged, LED Light would turn OFF. Please charge it completely before the first-time use. Turning on/off the Bluetooth Speakers Press and hold the Power button for 2-3 seconds to turn ON or OFF the device. Connecting two Speakers and a Bluetooth device for TWS pairing function Activate the TWS pairing function: 1. Press and hold the Power button on both Speakers for 2-3 seconds simultaneously to turn on, you would hear an indication tone and blue LED flashes rapidly from each Speaker. 2. After few seconds, both Speakers will pair together with another indication tone. The LED light indicator on the host Speaker will flash blue rapidly, while the subordinate Speaker LED light Stay on. Remark: If they don’t pair each other automatically, disconnected with your Bluetooth devices first, and short press twice the Power button on anyone speaker, and the speakers will automatically pair with each other within few seconds. Once paired successfully, you will hear an indication tone, and the LED light indicator on the host Speaker will flash blue rapidly, while the subordinate Speaker LED light stay on. 3. At this point, activate the Bluetooth function on your mobile device, and search for Bluetooth devices near you. Your mobile device should show one of "Sylvania SP929" instead of two in list, (This is the host Speaker. The reason you do not see subordinate Speaker in the list of available devices is that it is already paired with the host Speaker). Choose it to Start the TWS pairing function. 4. Once paired successfully, an indication tone will be heard and the LED on the host Speaker will LED light stay on. Listening to Music Wirelessly in Stereo pairing mode Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with the Bluetooth Speakers to stream music wirelessly, once it is paired, play music from your device. Function Operation Button Pause Playing music Short press the Play and Pause button of one Speaker will pause the music Play Pausing Short press the Play and Pause button of one Speaker will resume the music Note: Other functions including volume increase/decrease, next/previous track, you may need to control through your source device. Pairing either one Bluetooth Speaker with Bluetooth devices • Ensure the Bluetooth Speaker is turned off, press and hold the Power button for seconds to turn on, you would hear an indication tone and blue LED flashes rapidly. • Place the Bluetooth Speaker and Bluetooth device no further than 1 meter apart from each other. • Activate the Bluetooth function on your mobile device. please refer to the manufacturer's instructions for instructions on enabling Bluetooth on your device. • Once you have activated Bluetooth on your mobile device, select the "Sylvania SP929" from the list of available Bluetooth devices. • If required, enter the password '0000' to confirm & finalize pairing. • Once paired successfully, another indication tone will be heard, and the blue LED will stay on. • You can now start to use the Speaker. • If pairing is unsuccessful, turn off the device first and then re-pair following the above steps. • Once have paired the Bluetooth Speaker with a mobile device, the Speaker will remember this mobile device and will pair automatically when its Bluetooth is activated within the range, during subsequently pairing. You do not need to re-pair any previously connected devices. • The Bluetooth Sp…

Text truncated - open the document above for the full version.

MET INDUSTRIAL LTD Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020-05-13 SUBJECT: FCC Application for FCC ID: 2AB4KMETYH8117 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wang at EMTEK (SHENZHEN) CO., LTD.on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out byEMTEK (SHENZHEN) CO., LTD.on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, TONY LAM/Manager MET INDUSTRIAL LTD

Rev 11/20/07 MET INDUSTRIAL LTD Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AB4KMETYH8117 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Block Diagram Operation Description schematic diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, TONY LAM/Manager MET INDUSTRIAL LTD

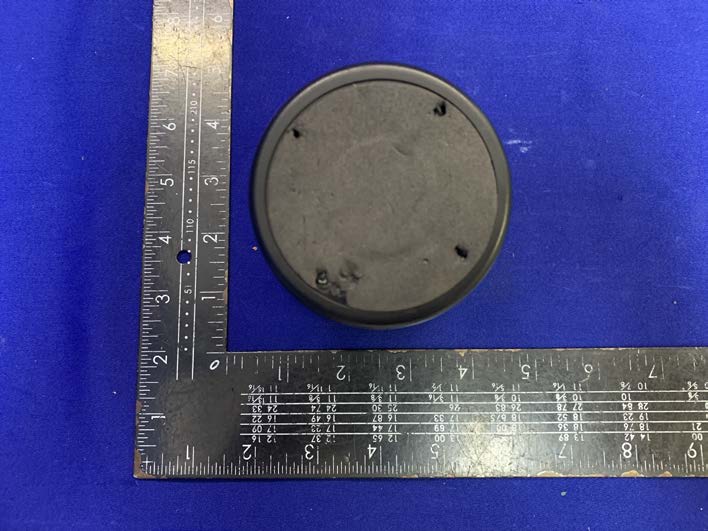

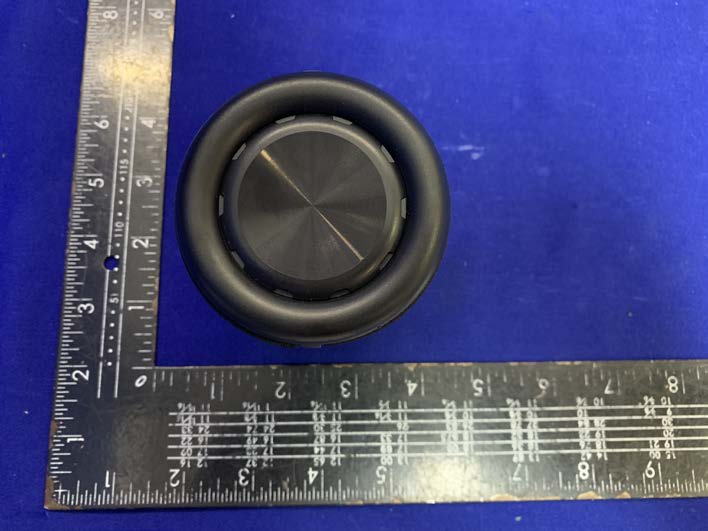

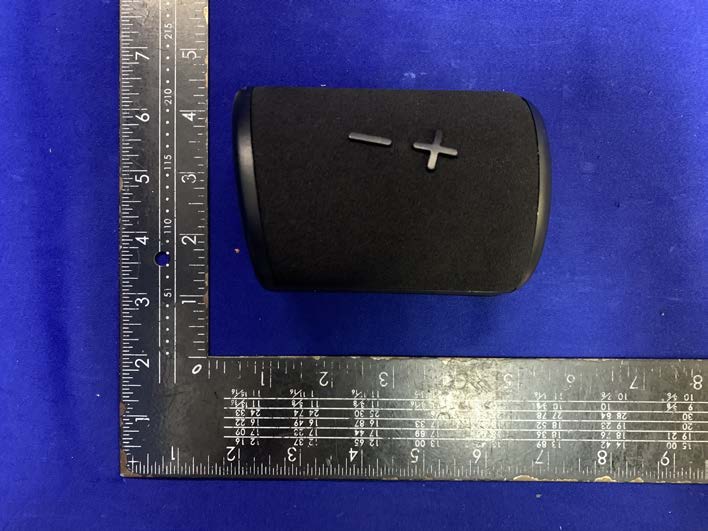

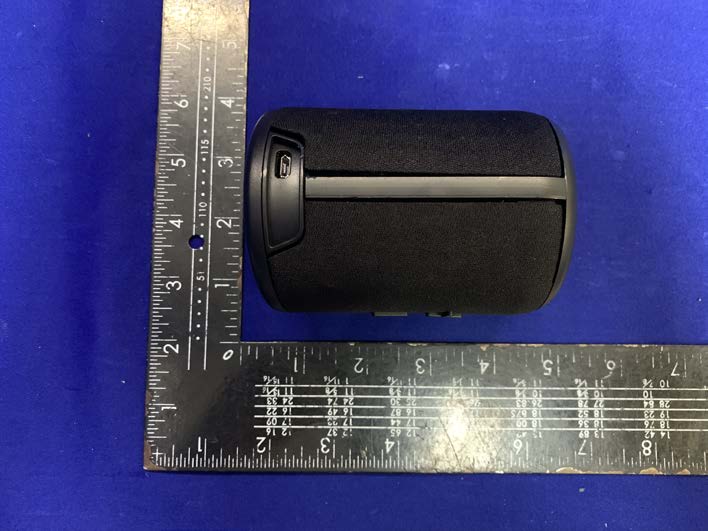

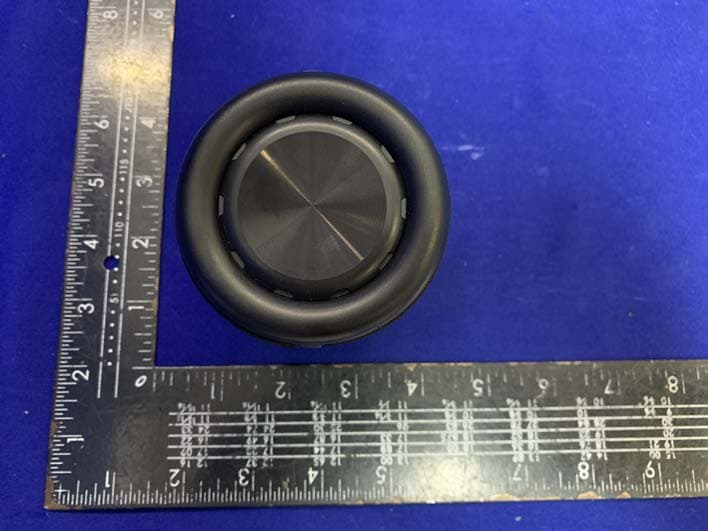

TRF NO. FCC15/A Page 1 of 3 Report No.: ES200103025W Ver.1.0 EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 TRF NO. FCC15/A Page 2 of 3 Report No.: ES200103025W Ver.1.0 EUT View 3 EUT View 4 TRF NO. FCC15/A Page 3 of 3 Report No.: ES200103025W Ver.1.0 EUT View 5 ----------------The end----------------

8mm40mm x S/N:A2005316470000001 L40*H5mm MANUFACTURED: MAY 2020 SP929-BLACK (8117) S/N:A2005316470002500 S/N:A2005316470000001 MANUFACTURED: MAY 2020 MODEL:SP929-BLACK Cancer and Reproductive Harm -www.P65Warning.ca.gov MODEL:SP929-BLACK OUTPUT POWER : 3W x 2 Micro USB POWER SUPPLY : DC 5V CURTIS INTERNATIONAL LTD FCC ID : 2AB4KMETYH8117 IMPORTED BY: MADE IN CHINA TWS SPEAKERS

TRF NO. FCC15/A Page 1 of 3 Report No.: ES200103025W Ver.1.0 EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1: EUT Housing and Board View 2: TRF NO. FCC15/A Page 2 of 3 Report No.: ES200103025W Ver.1.0 EUT Housing and Board View 3: Battery: TRF NO. FCC15/A Page 3 of 3 Report No.: ES200103025W Ver.1.0 Antenna : ----------------The end---------------- BT Ant.

FCC ID: 2AB4KMETYH8117 Portable device According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: Transmit Frequency (GHz) Mode Max Conducted Power (dBm) tune up maximum power(dBm) Result calculation 1-g SAR 2.402 GFSK -1.97 -1 0.246 3 2.441 GFSK -2.10 -2 0.197 3 2.480 GFSK -1.99 -1 0.250 3 2.402 PI/4 DQPSK -1.48 -1 0.246 3 2.441 PI/4 DQPSK -1.73 -1 0.248 3 2.480 PI/4 DQPSK -1.69 -1 0.246 3 Conclusion: For the max result : 0.250≤ 3.0 for 1-g SAR extremity SAR, No SAR is required.

Report No. ES200424035W01 Page 1 of 56 Ver.1.0 TEST REPORT Product Name ： TWS Bluetooth Speaker Model Number ： MET8117, SP929,SP929-BLACK, SP929-XXXXX(Where X would be any Arabian umber or English letter or blank) FCC ID ： 2AB4KMETYH8117 Prepared for : MET INDUSTRIAL LTD Address : Room 605, 6/F., No. 9 Wing Hong Street, Lai Chi Kok, Kowloon, Hong Kong Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES200424035W01 Date(s) of Tests : May 2, 2020 to May 8, 2020 Date of issue : May 12, 2020 Report No. ES200424035W01 Page 2 of 56 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................................................ 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................................................................ 6 4 TEST METHODOLOGY ........................................................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................................................. 7 4.2 MEASUREMENT EQUIPMENT USED ............................................................................................................................. 7 4.3 DESCRIPTION OF TEST MODES ..................................................................................................................................... 8 5 FACILITIES AND ACCREDITATIONS................................................................................................................................... 9 5.1 FACILITIES ......................................................................................................................................................................... 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS .................................................................................................... 9 6 TEST SYSTEM UNCERTAINTY ........................................................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP 1 ............................................................................................................................. 11 7.2 RADIO FREQUENCY TEST SETUP 2 ............................................................................................................................. 11 7.3 CONDUCTED EMISSION TEST SETUP......................................................................................................................... 13 7.4 SUPPORT EQUIPMENT ................................................................................................................................................... 13 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ........................................................................................................ 14 8.1 S TANDARD APPLICABLE ..................................................................................................................................................... 14 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ................................................................................................... 14 8.3 E QUAL HOPPING FREQUENCY USE ..................................................................................................................................... 15 8.4 F REQUENCY HOPPING SYSTEM ........................................................................................................................................... 15 9 TEST REQUIREMENTS .......................................................................................................................................................... 16 9.1 20DB BANDWIDTH ......................................................................................................................................................... 16 9.2 CARRIER FREQUENCY SEPARATION ........................................................................................................................ 20 9.3 NUMBER OF HOPPING FREQUENCIES ....................................................................................................................... 24 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................................... 26 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER .................................................................................................... 29 9.6 CONDUCTED SUPRIOUS EMISSION ............................................................................................................................ 33 9.7 RADIATED SPURIOUS EMISSION ................................................................................................................................ 40 9.8 CONDUCTED EMISSION TEST ..................................................................................................................................... 54 9.9 ANTENNA APPLICATION .............................................................................................................................................. 55 Report No. ES200424035W01 Page 3 of 56 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : MET INDUSTRIAL LTD Address : Room 605, 6/F., No. 9 Wing Hong Street, Lai Chi Kok, Kowloon, Hong Kong Manufacturer : Dongguan City Wangn…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
