2AB4KMETYH8196Portable AM/FM Radio with Bluetooth

1 WARNINGS TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. IMPORTANT SAFETY INSTRUCTIONS 1.R ead these instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.Do not use this apparatus near water. 6.Cleaning-Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.D o not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that product heat. 9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit i nto your outlet, consult an electrician for replacement of the obsolete outlet. 10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11.Only use attachments/accessories specified by the manufacturer. 12.Unplug this apparatus during lightning storms or when unused for a long periods of time. 13.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen int o the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 14.Power Sources - This product should be operated only from the ty pe of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instruction. 15.Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 3 LOCATION AND DESCRIPTION OF CONTROLS 4 5 6 7 8 11 1. Speaker 2. Dial Mark 3. Tuning Knob 4. Swivel FM Telescopic Antenna 5. OFF/FM/AM/Bluetooth Mode Switch 6. Battery Compartment 7. Carrying Handle 8. 9. 10. Bluetooth Indicator 11. 12. Volume Control Knob AUX IN Jack POWER SUPPLY Plug the included AC/AC power adapter (220V 50Hz 9V/800mA) into the AC Jack on the side of the unit and the other end is plugged into the wall outlet. FM 88 92 96 100 104 106 108 MHz AM520 600 800 1000 1200 1400 1600 1710 kHz AM 520 600 800 1000 1200 1400 1710 kHz . . . . . . . FM 88 92 96 100 102 104 106 108 MHz . . . . . . . . - TUNING + AC IN VOLUME AUX IN POWER 12 3 AC/AC Adapter Power in Jack Power Indicator 12 POWER 9 10 POWER 4 LISTENING TO THE RADIO 1.Use the Mode Switch to toggle the AM or FM band. 2. Use the tuning knob to tune to your desired radio station. 3. Adjust the volume level. 4. Toggle to OFF when finish. HINTS FOR BEST RECEPTION: AM - The AM antenna is located inside the cabinet of the unit. If AM reception is weak, change the position of unit until the internal antenna picks up the strongest signal. FM - To insure maximum FM tuner reception, fully extend the FM telescopic antenna and rotate it for the best FM radio reception. LISTENING TO AN AUXILIARY AUDIO SOURCE This unit provides an auxiliary audio signal input jack for connecting external audio devices like MP3 players, CD players and iPods (except iPod sh uffle 3rd generation) and liste n to your external source through the speakers of this system. 1.You need an audio cable (not included) with one 3.5 mm stereo plug on each end of the cable. 2.Plug one end of the cable into the AUX-IN jack located on the right hand side of the unit and the other end of the cable into the Line-out Jack or Headphone Jack of your external audio device. 3.Turn on the external audio device. 4.Turn on your unit by toggle the Mode to Bluetooth or FM or AM band. 5.The volume level can now be controlled through the volume control of your radio. Operate all other functions on the auxiliary device as usual. Note: •If you connected the Line-out Jack of your external device then you only need to adjust the volume control of this system. If you connected the Headphone Jack of your external device then you may need to adjust both the volume control of your external device and the volume control of this system to find the most desirable volume setting. •Remove the audio cable from AUX IN jack when you finish listening. Don't forget to switch off the power on your external device as well. BATTERY OPERATION 1.Remove the Batteries Compartment Door. 2.Install 3 x DC1.5 V "C" Size (UM-2) batteries (not included) according to the polarity diagram inside the battery compartment. 3.Replace the Batteries Compartment Door. 5 AM or FM no sound. Unit not set to AM or FM band. Volume at minimum. Slide the band selector to AM or FM position. Increase Volume. SPECIFICATIONS POWER SUPPLY FREQUENCY RANGE BLUETOOTH VERSION ACCESSORIES AC - 220V~ 50Hz DC - 3 x1.5V type R14/ UM-2/ “C” size batteries (not provided) FM 88 -108 MHz AM 520 -1710 kHz Version 5.0 1 X Owner's Manual 1 X AC/AC Power Adapter TROUBLESHOOTING GUIDE Symptom Possible Cause Solution Noise or sound distorted on AM or FM broadcast. Station not tuned properly for AM or FM. FM: Telescopic antenna is not extended. AM: The bar antenna is not positioned correctly. Retune the AM or FM broadcast station. Fully extend the FM telescopic antenna. Reposition the unit until the best reception is obtained. BLUETOOTH OPERA…

Text truncated - open the document above for the full version.

Declaration on model difference We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences are the model name and the color of appearance for trading purpose. FCC ID: 2AB4KMETYH8196 Production name Trade name Model no. Portable AM/FM Radio with Bluetooth MET, SYLVANIA, PROSCAN MET8196, PRR1010BT, PRR1010BT-SL, PRR1010BT- XXXXX, PJR2200BT, PJR2200BT-SL, PJR2200BT- XXXXX (where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers) Con firmed by MET INDUSTRIAL LTD TONY LA M MET INDUSTRIAL LTD Date: 2022-9-15

MET INDUSTRIAL LTD 2022-9-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Product Name: Portable AM/FM Radio with Bluetooth Model Number: MET8196, PRR1010BT, PRR1010BT-SL, PRR1010BT-XXXXX, PJR2200BT, PJR2200BT-SL, PJR2200BT-XXXXX (where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers) FCC ID: 2AB4KMETYH8196) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram, Circuit Schematic, Operation Description) required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, TONY LAM/Manager Date: 2022.9.20 MET INDUSTRIAL LTD

MET INDUSTRIAL LTD 2022-9-20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE : LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize EMTEK (SHENZHEN) CO., LTD. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Th is agreement expires one year from the current date. Si ncerely, TONY LAM/Manager Date: 2022.9.20 MET INDUSTRIAL LTD

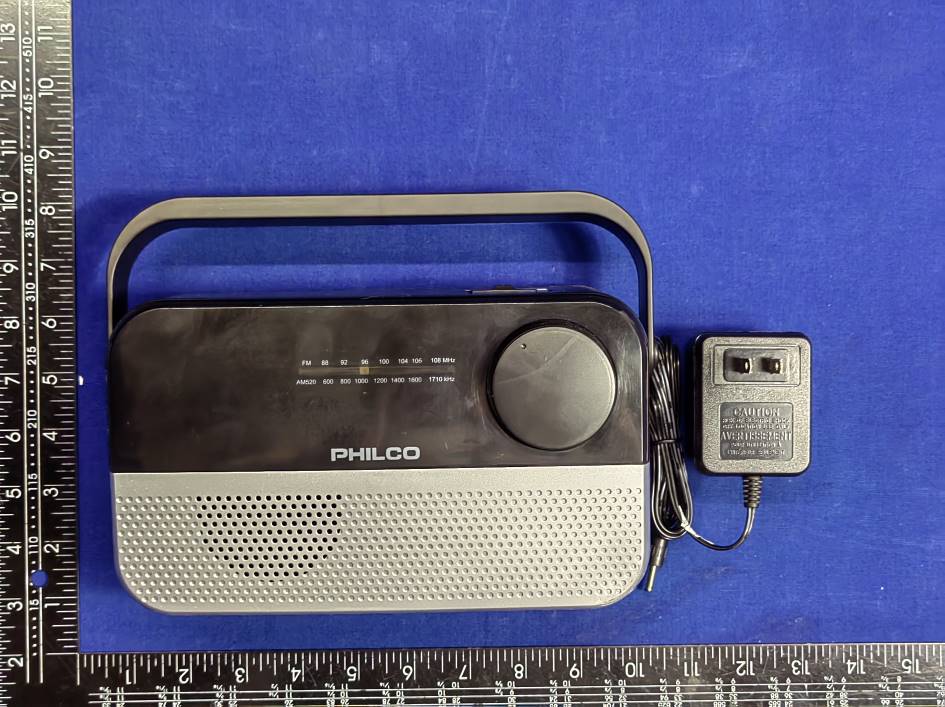

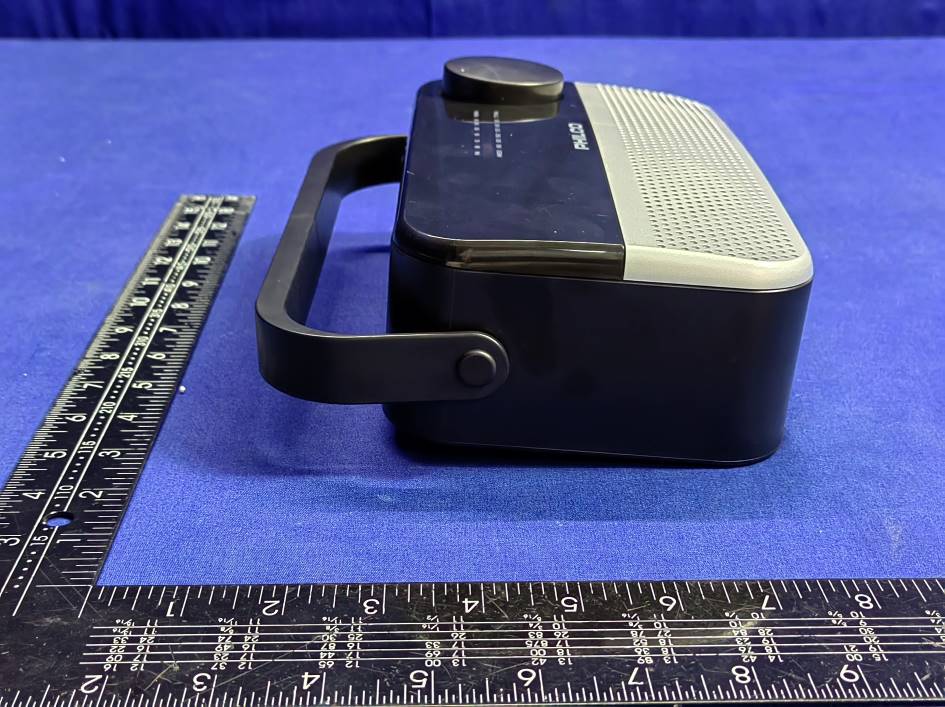

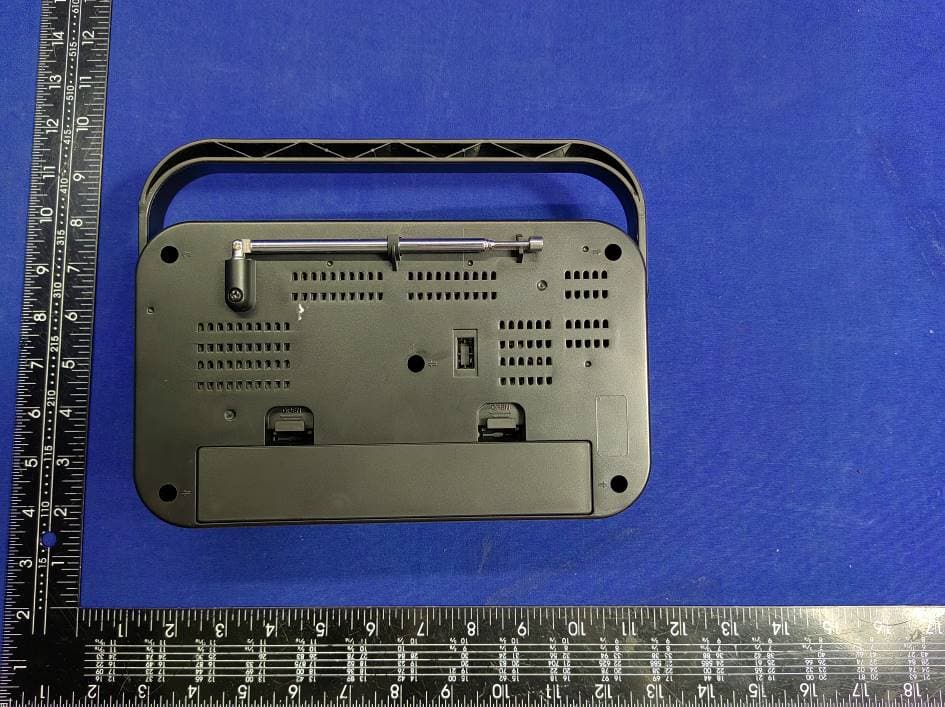

EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 EUT View 3 EUT View 4 EUT View 5 EUT View 6 EUT View 7 ----------------The end----------------

PHC Americas, LLC 2275 NW 84th Avenue, Doral, FL 33122, U.S.A. MADE IN CHINA For customer service e-mail: [email protected] Size:L35XH8mm 1 P22 08 000001P22 08 003000 MANUFACTURED DATE: AUG 2022MANUFACTURED DATE: AUG 2022 Size: L40XH42mm Color: Pantone Cool Gray 9C text on Transparent background Size: Wide 1.9” Color: Pantone Cool Gray 9C text on Transparent background Box CTN label P22 08 000001 MANUFACTURED DATE: AUG 2022 FCC ID: 2AB4KMETYH8196 PHC Americas, LLC 2275 NW 84th Avenue, Doral, FL 33122, U.S.A. MADE IN CHINA For customer service e-mail: [email protected] FCC ID: 2AB4KMETYH8196

EUT INTERNAL PHOTOGRAPHS EUT View 1 EUT Housing and Board View 1 EUT Housing and Board View 2 EUT Housing and Board View 3 ----------------The end---------------- BT Antenna BT Module

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Report No. ENS2208170001W00201R Page 1 of 78 Ver.1.0 TEST REPORT Product Name ： Portable AM/FM Radio with Bluetooth Model Number ： PRR1010BT FCC ID ： 2AB4KMETYH8196 Prepared for : MET INDUSTRIAL LTD Address : Room 605, 6/F., No. 9 Wing Hong Street, Lai Chi Kok, Kowloon, Hong Kong Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone,Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2208170001W00201R Date(s) of Tests : August 18, 2022 to September 13, 2022 Date of issue : September 15, 2022 $二维码$ Report No. ENS2208170001W00201R Page 2 of 78 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ............................................................................................................. 6 3 SUMMARY OF TEST RESULT .................................................................................................................. 7 4 TEST METHODOLOGY ............................................................................................................................. 8 4.1 General Description Of Applied Standards .................................................................................... 8 4.2 Measurement Equipment Used ..................................................................................................... 8 4.3 Description Of Test Modes ............................................................................................................. 9 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 10 5.1 Facilities ....................................................................................................................................... 10 5.2 Equipment .................................................................................................................................... 10 5.3 Laboratory Accreditations And Listings ........................................................................................ 10 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 11 7 SETUP OF EQUIPMENT UNDER TEST .................................................................................................. 12 7.1 Radio Frequency Test Setup 1 .................................................................................................... 12 7.2 Radio Frequency Test Setup 2 .................................................................................................... 12 7.3 Conducted Emission Test Setup .................................................................................................. 14 7.4 Block Diagram Configuration Of Test System ............................................................................. 15 7.5 Support Equipment ...................................................................................................................... 15 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ............................................................................ 16 8.1 Standard Applicable ..................................................................................................................... 16 8.2 Eut Pseudorandom Frequency Hopping Sequence .................................................................... 16 8.3 Equal Hopping Frequency Use .................................................................................................... 17 8.4 Frequency Hopping System ........................................................................................................ 17 9 TEST REQUIREMENTS ........................................................................................................................... 18 9.1 20db&99%Bandwidth .................................................................................................................. 18 9.2 Carrier Frequency Separation ..................................................................................................... 29 9.3 Number Of Hopping Frequencies ................................................................................................ 34 9.4 Average Time Of Occupancy (Dwell Time) .................................................................................. 37 9.5 Maximum Peak Conducted Output Power .................................................................................. 40 9.6 Conducted Suprious Emission..................................................................................................... 45 9.7 Radiated Spurious Emission ........................................................................................................ 61 9.8 Conducted Emission Test ............................................................................................................ 74 9.9 Antenna Application ..................................................................................................................... 77 Report No. ENS2208170001W00201R Page 3 of 78 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : MET INDUSTRIAL LTD Address : Room 605, 6/F., No. 9 Wing Hong Street, Lai Chi Kok, Kowloon, Hong Kong Manufacturer : Dongguan City Wangniudun Yinghui Electronics Factory Address : Chijiaoluduan Zhengzhong Road Wangniudun Town Dongguan City, China EUT : Portable AM/FM Radio with Bluetooth Model Name : PRR1010BT Trademark : MET, SYLVANIA, PROSCAN Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS IC RSS-GEN, Issue 5(04-2018)+A1(03-2019)+A2(02-2021) IC RSS-247 Issue 2(02-2017) PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configuratio…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
