2AB4XAMP10519RRoll-in Spy Bug

FCC ID:2AB4XAMP10519T FCC ID:2AB4XAMP10519R

10519 RoLL-IN SPY BUG Receiver Block Diagram Y1 RF FILTER SW1 MCU U3 SCLK SDA U1 FM DEMODULATION 22uF C3 32.768KHz Battery EARPHONE 106MHz 12 SP1 L3 2.2uH

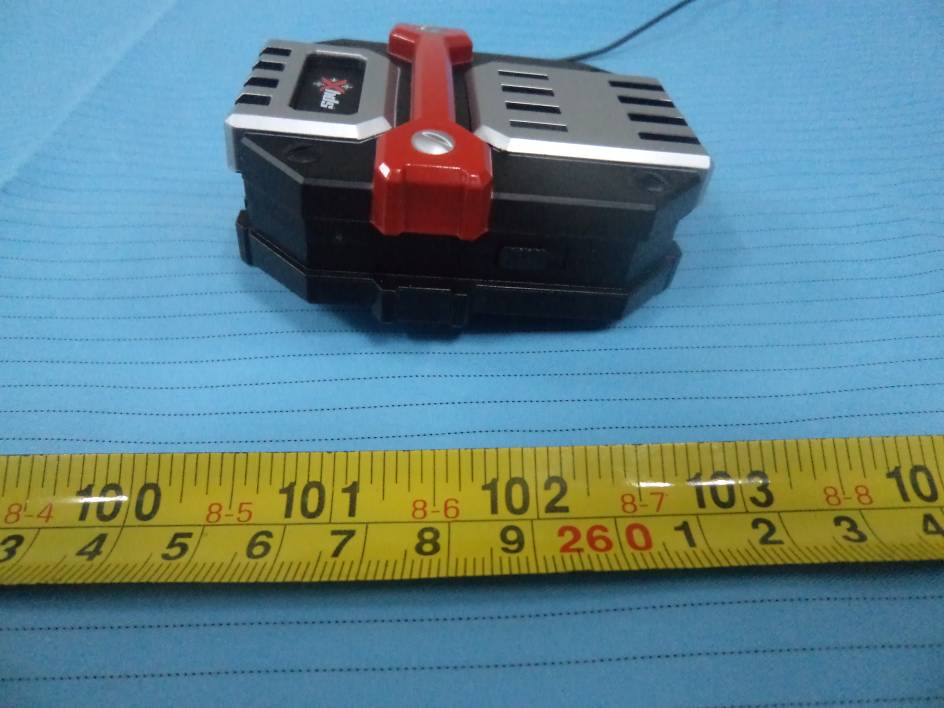

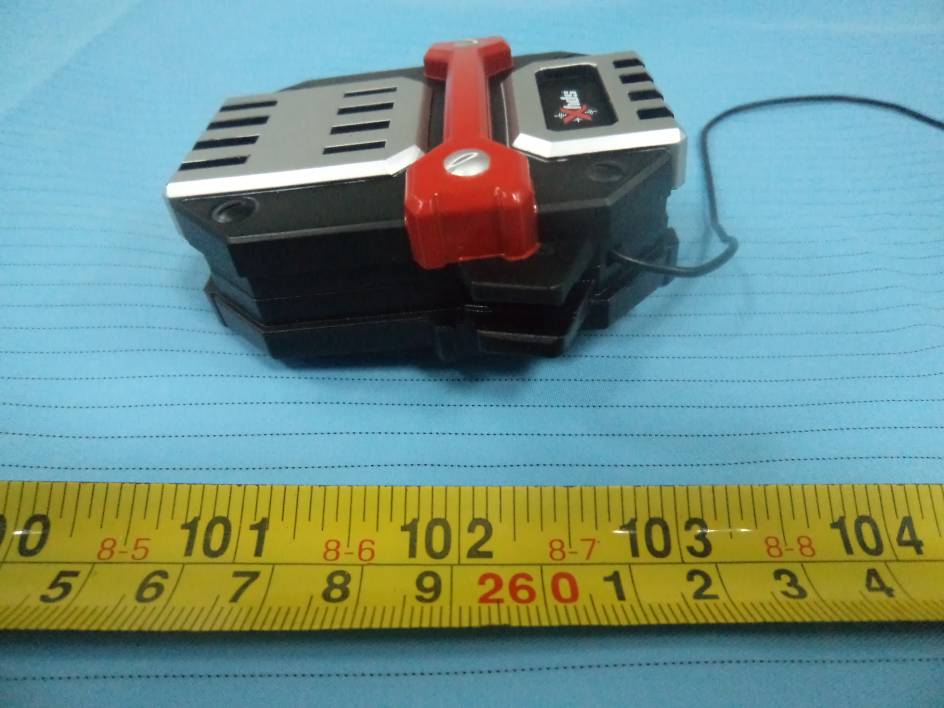

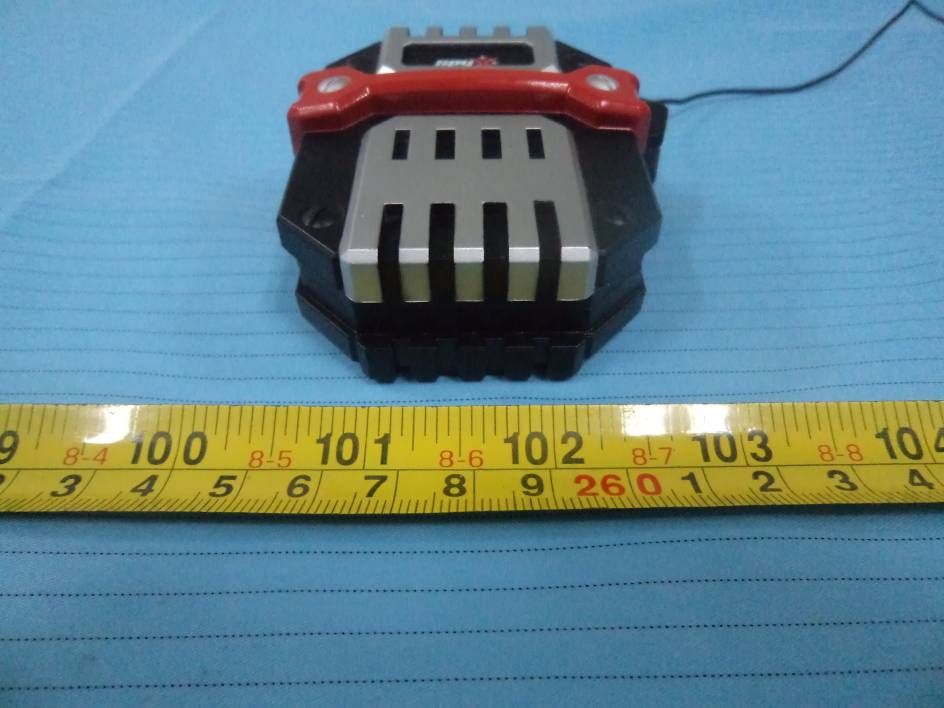

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15B, CLASS B MEASUREMENT AND TEST REPORT For Atomic Monkey Products Ltd. Room 811, 8/F., Corporation Park, No.11 On Lai Street, Shatin, N.T., HongKong Report Type: Original Report Product Name: Roll-in Spy Bug Test Engineer: Sean Zhao Report Number: RSZ140416830-00 Report Date: 2014-04-25 Reviewed By: Dick Zhang EMC Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID: 2AB4XAMP10519R Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140416830-00 FCC Part 15B, Class B Page 2 of 9 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION (FCC §15.27) .................................................................................................. 4 JUSTIFICATION ............................................................................................................................................................. 4 EUT EXERCISE SOFTWARE .......................................................................................................................................... 4 SPECIAL ACCESSORIES ................................................................................................................................................. 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 EXTERNAL I/O CABLE .................................................................................................................................................. 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 4 SUMMARY OF TEST RESULTS ............................................................................................................................... 5 FCC§15.109 - RADIATED EMISSIONS .................................................................................................................... 6 APPLICABLE STANDARD .............................................................................................................................................. 6 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 EUT SETUP .................................................................................................................................................................. 6 EMI TEST RECEIVER SETUP ......................................................................................................................................... 7 TEST PROCEDURE ........................................................................................................................................................ 7 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 7 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................... 8 TEST RESULTS SUMMARY ............................................................................................................................................ 8 TEST DATA .................................................................................................................................................................. 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140416830-00 FCC Part 15B, Class B Page 3 of 9 GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Atomic Monkey Products Ltd.’s product, model number: 10519 (FCC ID: 2AB4XAMP10519R) or the "EUT" in this report is a Roll-in Spy Bug, which was measured approximately: 7.8 cm (L) x 6.5cm (W) x 3.0 cm (H), input power: DC 3V battery. The highest operating frequency is 106.1MHz. * All measurement and test data in this report was gathered from production sample serial number: 14041601 (Assigned by BACL, Shenzhen). The EUT supplied by the applicant was received on 2014-04-16. Objective This report is prepared on behalf of Atomic Monkey Products Ltd. in accordance with Part 2-Subpart J, and Part 15-Subparts A and B of the Federal Communication Commissions rules. The objective of the manufacturer is to determine the compliance of EUT with FCC Part 15B. Related Submittal(s)/Grant(s) FCC Part 15.239 DXX submissions with FCC ID: 2AB4XAMP10519T. Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2009, American National Standard for Methods of Mea…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions - Front View Radiated Emissions - Rear View
