2AB4XAMP10519TRoll-in Spy Bug

FCC ID:2AB4XAMP10519T FCC ID:2AB4XAMP10519R

SW1 10519 RoLL-IN SPY BUG Transmitter Block Diagram Antenna Battery C9 U4-A RF FILTER Y1 7.6MHz C7 C8 0.1uF0.1uF 0.1uF AMPLIFIER FM MODULATION U1 SDA SCLK U3 MCU C15 0.1uF U4-B DETECTION AMPLIFIER 106MHz 12 MIC1 MICPHONE

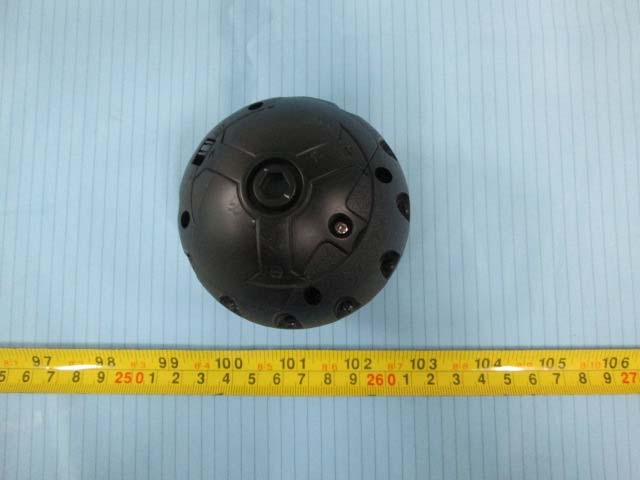

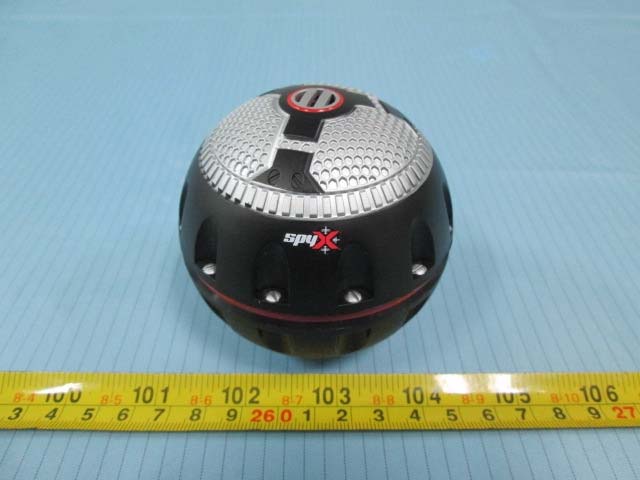

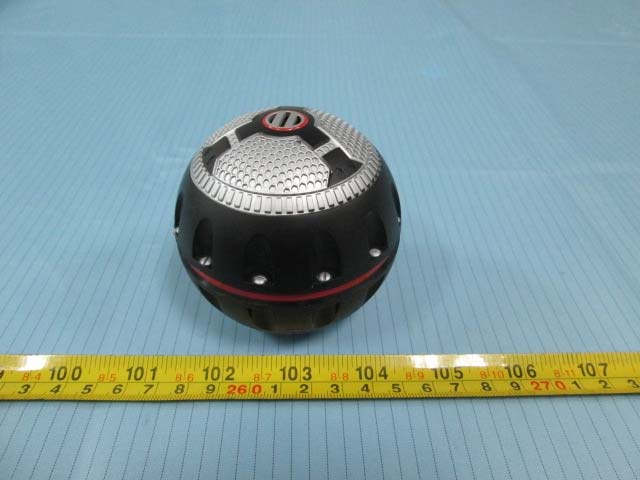

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View Antenna EUT – Main Board Top View EUT – Main Board Bottom View

Circuit Description This product include 1 Transmitter and 1 Receiver. Worked frequency is 106MHz. TX description: MIC1 sense the voice signal, though C9, R7 output to U4-A(LM358), the voice signal was amplified by U4-A, then output from U4 Pin 1, though C7, C8 to U1 Pin 9 and pin 10, amplified voice signal modulated FM by U1, then the 106MHz RF signal output from U1 pin5, L2, C4, L3, C3, L4 and C20 constitute harmonic filter. Then the 106MHz RF signal though C17 to antenna. Y1 is the reference clock cycle for U1, the frequency of Y1 is 7.6MHZ. C5，C6 are load capacitors. U3 is a micro processor, it control the system working. U4-B and C15, R10, R9, C16, C13, D1, D2, R3, C14, Q1 is the voice detect circuit. When the micro process detected no voice signal over 30 seconds, it will cut off the RF signal. All the circuit supplied by 2*AA battery, SW1 is the power switch.

FM TRANSMITTER-01 1 2 3 4 56 7 8 9 10 U1 A7109 C1 475 L1 100nH L2 33nH C424P ANT1 Y1 7.6MHz C5 24P C6 24P C7 104 C8 104 B1 1 VCC 2 P13 3 P12 4 P11 8 VSS 7 P00 6 P10 5 P54 U3 DI13118 R5 4.7K R1 20K R2 10K C9 104 R6 200K R7 4.7K C11103 C10475 C18475 R4 1K C19104 C2104 23 1 SW1 C12 222 C15 104 R9 200K R10 4.7K C16 100P L3 100nH C351P L4 100nH C17 18P R13 47K R14 100R C2039P C13 104 D1 1N4148-SMD D2 1N4148-SMD 2 1 3 Q1 2N3904SMD R3 200K C14 104 +- 65 7 U4-B LM358 +- 23 1 U4-A LM358 12 MIC1 MICPHONEE VBATT VCC-1 MIC-OUT MIC-OUT SDA SCLK VBATT SDA SCLK VBATT VBATT VOICE-SENSOR VOICE-SENSOR VCC-1

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.239 TEST REPORT For Atomic Monkey Products Ltd. Room 811, 8/F., Corporation Park, No.11 On Lai Street, Shatin, N.T., HongKong FCC ID: 2AB4XAMP10519T Report Type: Original Report Product Type: Roll-in Spy Bug Test Engineer: Candy Li Report Number: RSZ140416834-00 Report Date: 2014-05-19 Reviewed By: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140416834-00 FCC Part 15.239 Page 2 of 12 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 JUSTIFICATION ............................................................................................................................................................. 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 4 SUMMARY OF TEST RESULTS ............................................................................................................................... 5 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 6 APPLICABLE STANDARD .............................................................................................................................................. 6 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 6 FCC§15.35, §15.209 & §15.239 - RADIATED EMISSIONS ..................................................................................... 7 APPLICABLE STANDARD .............................................................................................................................................. 7 MEASUREMENT UNCERTAINTY .................................................................................................................................... 7 EUT SETUP .................................................................................................................................................................. 7 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP ................................................................................................ 8 TEST PROCEDURE ........................................................................................................................................................ 8 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................... 8 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 8 TEST RESULTS SUMMARY ............................................................................................................................................ 9 TEST DATA .................................................................................................................................................................. 9 FCC§15.215(C) - 20DB EMISSION BANDWIDTH ................................................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140416834-00 FCC Part 15.239 Page 3 of 12 GENERAL INFORMATION Product Description for Equipment under Test (EUT) The Atomic Monkey Products Ltd. ’s product, model number: 10519 (FCC ID: 2AB4XAMP10519T) or the "EUT" in this report was …

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
