2AB7X-CHB2XChipper 2X BT

Advanced mPOS Design Integrating Bluetooth ® Magstripe, EMV and NFC Card Reading Functions Chipper 2X TM BT www.bbpos.com Support Operating System:iOS, Android, Windows Phone 8, MS Windows Package ContentsDevice X1 USB cable X1 Lanyard X1 Quick Start Guide X1 Application Download & InstallationThis device can support either iOS & Android. 1. Please download the ocial application from app stores before operation . 2. Please follow app instructions to register and login for proper operation. 3. For any questions, please contact the ocial application developer. STEP 3Select Chipper™ 2X BT in the Scanned Device List on your smartphone/tablet. Then, your Chipper™ 2X BT is connected and green LED will ON. Reset button (**please use paper clip for reset) Micro USB Port forCharging Index & Accessories (Fig.1) Power button For EMV Card Reading For Magstripe Card Reading LED Indicator Lanyard holder For NFC card reading NFC status indicators Quick Start Procedures STEP 1Connect Micro USB charging cable to charge the device as shown to the right.Download the ocial application from APP Store or Google Play Store.** Chipper™ 2X BT is powered by an internal Lithium Polymer rechargeable battery pack that cannot be removed or replaced. Before rst use, charging is required for approximately two to three hours. To prevent potential electrical damage to the Chipper™ 2X BT , please be recommended to use the Micro USB cable provided with the packaging only.** within 4 cm STEP 4:You can follow your application instruction to start the transaction process, then swipe, insert or tap card to complete the transaction. ** If you pay via swiping card or inserting EMV IC card, please ensure that the magstripe or EMV chip of the card is facing the right direction. If you pay using NFC card, please ensure you tap the NFC payment card within 4cm range on top of the NFC marking. NFC Status indicators Ready for tapping card First LED ON Reading card information LEDs ON in consecutive order Card reading process successfully completed 4 LEDs ON + “BEEP” Transaction completed “BEEP” Standby mode First LED ashing Error, please retry 2 “BEEP”s APP DOWNLOAD STEP 2Turn on the device pairing function of your smartphone/tablet. Then, press “ ” to turn on the Chipper™ 2X BT.** Please ensure that Bluetooth ® function of your smartphone/tablet is ON before device pairing. Bluetooth ON Scanned Device List Quick Start Procedures • Please use a paper clip to press the reset button at the bottom for reboot. Device has no response FCC Caution Statements: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Warranty • Any damage or defects caused by a failure to follow the instruction which relate to this device or as the result of an accident, abuse, misuse, misapplication, product modication, improper voltage or current, acts of God, shipping damages or loss, or damage caused by service performed by anyone other than our company are expressly excluded from the warranty stated below. • We are not under any obligation to support the device for all operating environments, including but not limited to, interoperability with all current and/ or future versions of software or hardware. • Please contact the dealer for any warranty or customer support services. Any repair of the device by yourself will void the Warranty. Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.Need Help?E: [email protected] | T: +852 3158 2585Room 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, Hong Kong www.bbpos.com ©2017 BBPOS Limited. All rights reserved. BBPOS and Chipper™ are either trademark or registered trademarks of BBPOS Limited. iOS is the trademark of Apple Inc. Android™ is a trademark of Google Inc. Windows® is registered trademark of Microsoft Corporation in the United States and/or other countries. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BBPOS Limited is under license. Other trademarks and trade names are those of their respective owners.All details are subject to change without prior notice. Revise v.3 / 20170516 Cautions & Important Notes • Ensure the device is fully charged before use.• Please ensure magstripe/ EMV chip of the card is facing the right direction when swiping or inserting card. • The NFC card should be tapped within 4 cm range on top of the reader mark.• Don’t drop, disassemble, tear, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint or ins…

Text truncated - open the document above for the full version.

BBPOS International Limited Suite 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong 香港新界荃灣楊屋道8號如心廣場2期19樓1903-04室 Tel 電話 (852) 3158-2585 Fax 傳真 (852) 3158-2586 www.bbpos.com Letter of Agency for FCC Certification April 19th, 2021 To whom it may concern, Letter of Agency I, an officer of BBPOS International Limited do hereby authorize Intertek Testing Services (Mr. Terry Chan / Tim Lee / Herbert Wong / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Regards, Adrian Kwan Product Compliance Manager

BBPOS International Limited Suite 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong 香港新界荃灣楊屋道8號如心廣場2期19樓1903-04室 Tel 電話 (852) 3158-2585 Fax 傳真 (852) 3158-2586 www.bbpos.com Page 1 of 2 April 19th, 2021 Attention: Application Examiner Re: Request for confidentiality Applicant: BBPOS International Limited FCC ID: 2AB7X-CHB2X To whom it may concern, Request for Permanent Confidentiality under FCC Part 15 Certification Request is hereby submitted by BBPOS International Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) & 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: •Schematics •Detailed Block diagrams •Detailed Operational/Functional Description Rationale for request for confidentiality: This information represents intellectual property of BBPOS International Limited and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. BBPOS International Limited Suite 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong 香港新界荃灣楊屋道8號如心廣場2期19樓1903-04室 Tel 電話 (852) 3158-2585 Fax 傳真 (852) 3158-2586 www.bbpos.com Page 2 of 2 BBPOS International Limited has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Adrian Kwan Product Compliance Manager

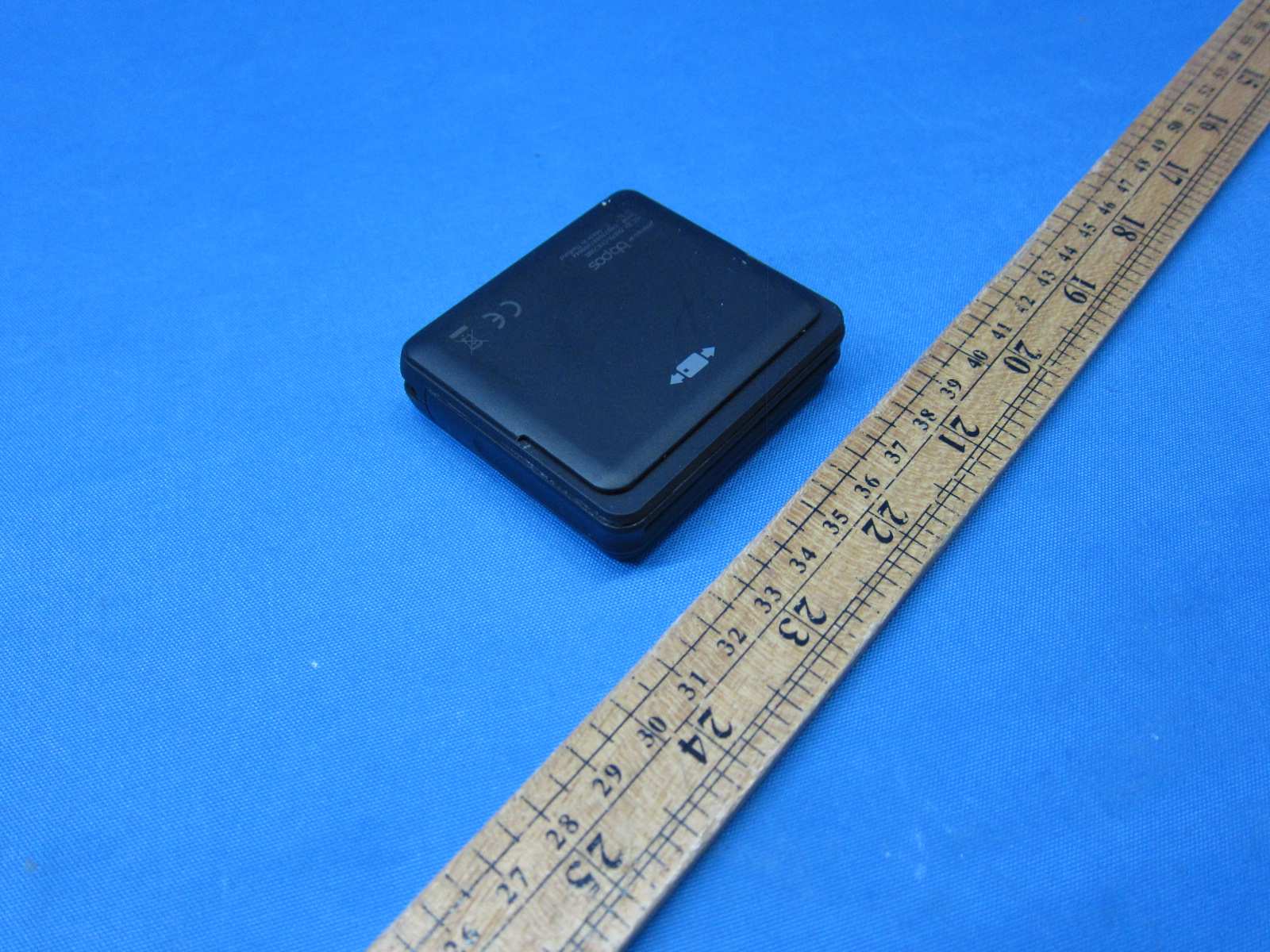

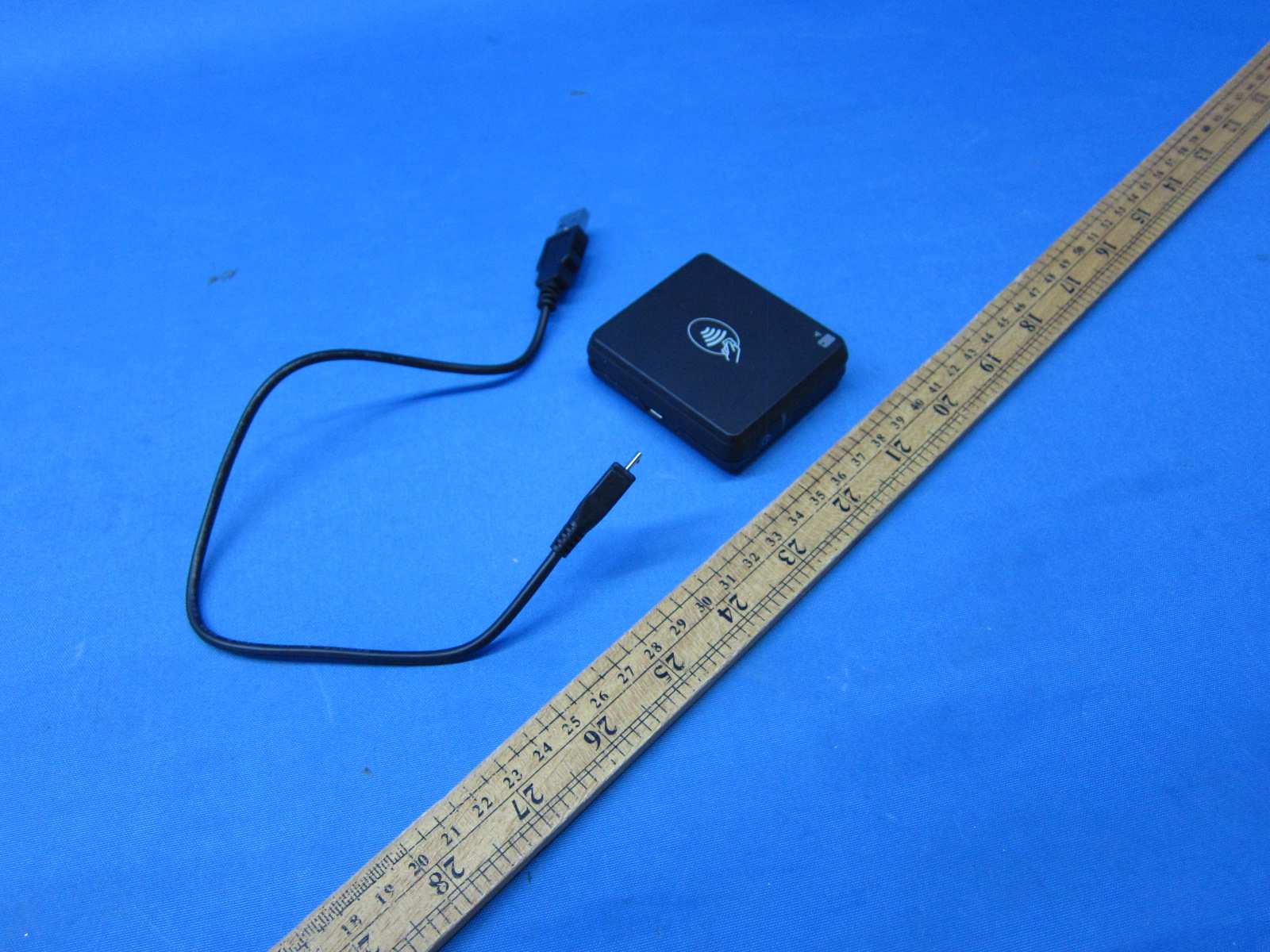

INTERTEK TESTING SERVICE Report No.: HK21031508 Equipment Photographs (External) INTERTEK TESTING SERVICE Report No.: HK21031508 Equipment Photographs (External)

INTERTEK TESTING SERVICE Report No.: HK21031508 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK21031508 Equipment Photographs 13.56MHz RFID antenna (Internal) INTERTEK TESTING SERVICE Report No.: HK21031508 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK21031508 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK21031508 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK21031508 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK21031508 Equipment Photographs (Internal)

Analysis Report Report No.: 21031508HKG-001 The Equipment Under Test (EUT) is a Bluetooth controlled mobile POS device. It supports reading EMV smart credit card, tape credit card and NFC credit card. It can be paired with smartphone and operated by mobile APP through Bluetooth link. The EMV smart card interface is for reading EMV smart credit card data. The magnetic tape head is for reading tape credit card. The 13.56MHz NFC reader is for reading NFC credit card. The EUT is powered by 3.7V internal rechargeable battery. The internal battery can be charged by USB socket (5VDC). The USB port in EUT is for this charging purpose and does not contain PC connectivity. Bluetooth portion (3.0 and 4.0 BLE) Antenna Type: Internal, Internal Antenna Gain: 0dBi Modulation Type: GFSK Frequency Range: 2402MHz to 2480MHz RF conducted power range: -6dBm to +4dBm According to the KDB 447498: Conducted Power (maximum) = 4 dBm (2.51 mW) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing. 13.56MHz NFC portion (single channel) Antenna Type: Internal, Integral Antenna Gain: 0dBi RF conducted power range: -40dBm to 0dBm According to the KDB 447498: Conducted Power (maximum) = 0 dBm (1.00 mW) The SAR Exclusion Threshold Level for 13.56MHz when minimum test separation distance < 50 mm: = [474 * (1 + log100/f(MHz))]/2 = 442.7 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing. Simultaneous Transmission SAR exclusion considerations Since the NFC 13.56MHz and Bluetooth transmitters of this device may operate simultaneously, simultaneous transmission analysis is required. Per KDB 447498, simultaneous transmission SAR test exclusion can be applied when the sum of 1-g SAR of all simultaneously transmitting antennas in an operating mode and exposure condition combination is within the SAR limit (≤ 1.6W/kg). When the standalone SAR test exclusion is applied, the standalone 1-g SAR must be estimated according to the following equation, Estimated SAR = )max/()5.7/)((TDPxGHzF where F(GHz) is the RF channel transmit frequency in GHz Pmax is the max. power of channel, including tune-up tolerance, mW TD is the min. test separation distance, mm For NFC operation, Maximum Time-averaged Conducted Power of this device = 1.00 mW Therefore, the Estimated SAR will be determined as follow, Estimated SAR = )max/()5.7/)((TDPxGHzF = 0.00311 W/kg where Pmax = 1.00 mW, TD = 5 mm and F(GHz) = 0.01356 GHz For Bluetooth operation, Maximum Time-averaged Conducted Power of this device = 2.51 mW Therefore, the Estimated SAR will be determined as follow, Estimated SAR = )max/()5.7/)((TDPxGHzF = 0.10541 W/kg where Pmax = 2.51 mW, TD = 5 mm and F(GHz) = 2.480 GHz Simultaneous Transmission Analysis NFC SAR (W/kg) Bluetooth SAR (W/kg) Σ SAR (W/kg) Simultaneous SAR Required 0.00311 0.10541 0.10852 No Conclusion Since the above summed SAR result for all simultaneous transmission conditions were below the SAR limit (1.6 W/kg), SAR evaluation for simultaneous transmission configuration are not required.

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 24 TEST REPORT Report No.: 21031508HKG-001 BBPOS International Limited Application For Certification (Original Grant) FCC ID: 2AB7X-CHB2X IC: 24228-CHB2X Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: April 26, 2021 TEST REPORT BBPOS International Limited Intertek Report No: 21031508HKG-001 Page 2 of 24 GENERAL INFORMATION Grantee: BBPOS International Limited Grantee Address: Suite 1903-04, Tower 2, Nina Tower, 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong Contact Person: Adrian Kwan Tel: + 852 3158 2585 Fax: + 852 3158 2586 e-mail: [email protected] Manufacturer: BBPOS International Limited Manufacturer Address: Suite 1903-04, Tower 2, Nina Tower, 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong Brand Name: BBPOS Model / HVIN: CHB29 PMN: Chipper 2X BT Type of EUT: Transceiver Description of EUT: Chipper 2X BT Serial Number: N/A FCC ID / IC: 2AB7X-CHB2X / 24228-CHB2X Date of Sample Submitted: March 29, 2021 Date of Test: March 29, 2021 to April 22, 2021 Report No.: 21031508HKG-001 Report Date: April 26, 2021 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS-210 Issue 10 Certification. TEST REPORT BBPOS International Limited Intertek Report No: 21031508HKG-001 Page 3 of 24 SUMMARY OF TEST RESULT Test Specification Reference Results Transmitter Field Strength Frequency Stability 15.225 / RSS-210 B.6 Pass Radiated Emission Radiated Emission on the Bandedge 15.209 / RSS-210 4.4 Pass Radiated Emission in Restricted Bands 15.205 / RSS-210 4.1 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition RSS-210 Issue 10, December 2019 RSS-Gen Issue 5 Amendment 1, March 2019 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT BBPOS International Limited Intertek Report No: 21031508HKG-001 Page 4 of 24 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 7 2.5 Support Equipment List and Description .................................................................... 7 3.0 EMISSION RESULTS ....................................................................................................... 8 3.1 Field Strength Calculation .......................................................................................... 8 3.2 Radiated Emission Configuration Photograph ............................................................ 9 3.3 Radiated Emission Data ............................................................................................. 9 3.4 Conducted Emission Configuration Photograph ........................................................ 9 3.5 Conducted Emission Data .......................................................................................... 9 3.6 Frequency Stability .................................…

Text truncated - open the document above for the full version.

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 34 TEST REPORT Report No.: 21031508HKG-002 BBPOS International Limited Application For Certification (Original Grant) FCC ID: 2AB7X-CHB2X IC: 24228-CHB2X Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: April 26, 2021 TEST REPORT BBPOS International Limited Intertek Report No: 21031508HKG-002 Page 2 of 34 GENERAL INFORMATION Grantee: BBPOS International Limited Grantee Address: Suite 1903-04, Tower 2, Nina Tower, 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong Contact Person: Adrian Kwan Tel: + 852 3158 2585 Fax: + 852 3158 2586 e-mail: [email protected] Manufacturer: BBPOS International Limited Manufacturer Address: Suite 1903-04, Tower 2, Nina Tower, 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong Brand Name: BBPOS Model / HVIN: CHB29 PMN: Chipper 2X BT Type of EUT: Transceiver Description of EUT: Chipper 2X BT Serial Number: N/A FCC ID / IC: 2AB7X-CHB2X / 24228-CHB2X Date of Sample Submitted: March 29, 2021 Date of Test: March 29, 2021 to April 22, 2021 Report No.: 21031508HKG-002 Report Date: April 26, 2021 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS-210 Issue 10 Certification. TEST REPORT BBPOS International Limited Intertek Report No: 21031508HKG-002 Page 3 of 34 SUMMARY OF TEST RESULT Test Specification Reference Results Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 8.8 Pass Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 / RSS-210 B.10, RSS-210 4.4 Pass Radiated Emission in Restricted Bands 15.205 / RSS-210 4.1 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition RSS-210 Issue 10, December 2019 RSS-Gen Issue 5 Amendment 1, March 2019 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT BBPOS International Limited Intertek Report No: 21031508HKG-002 Page 4 of 34 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 7 2.5 Support Equipment List and Description .................................................................... 7 3.0 EMISSION RESULTS ....................................................................................................... 8 3.1 Field Strength Calculation .......................................................................................... 8 3.2 Radiated Emission Configuration Photograph ............................................................ 9 3.3 Radiated Emission Data ............................................................................................. 9 3.4 Conducted Emission Configuration Photograph ........................................................ 9 3.5 Conducted Emission Data .......................................................................................... 9 4.0 EQUIPMENT PHOTOGRAPHS .............…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK21031508 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK21031508 Configuration Photographs Worst-Case Radiated Emissions (Rear View)

INTERTEK TESTING SERVICE Report No: HK21031508 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK21031508 Configuration Photographs Worst-Case Radiated Emissions (Rear View)

INTERTEK TESTING SERVICE Report No: HK21031508 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK21031508 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) INTERTEK TESTING SERVICE Report No: HK21031508 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View)
