PINPAD (WPD30) Instruction Manual Follow your application instruction to start the transaction process, then swipe, insert or tap card to complete the transaction. ** If you pay via inserting EMV IC card, please ensure that the EMV chip of the card is facing the right direction. If you pay using NFC card, please ensure you tap the NFC payment card within 4cm range on top of the NFC marking. Within 4cm NFC Status Indictors Cautions & Important Notes • Ensure the device is fully charged before use. • Please ensure EMV chip of the card is facing the right direction when inserting card. • The NFC card should be tapped within 4 cm range on top of the reader mark. • Don’t drop, disassemble, tear, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint or insert foreign object into the device. Doing any of which will damage the device and void the Warranty. • Don’t immerse the device into water and place near washbasins or any wet locations. Don’t spill food or liquid on the devices. Don’t attempt to dry the device with external heat sources, such as microwave or hair dryer. Don’t use any corrosive solvent or water to clean the device. • Recommend using dry cloth to clean the surface only. • Don’t use any sharp tools to point the internal components, connectors or contacts, doing which may lead to device malfunction and void the Warranty simultaneously. Product Specifications FCC Caution Statement FCC Supplier’s Declaration of Conformity: BBPOS / PINPAD (WPD30) This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. BBPOS Corp. 970 Reserve Drive, Suite 132 Roseville, CA 95678 www.bbpos.com Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. ISED Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. Manuel d'instructions PINPAD (WPD30) Suivez les instructions de votre demande pour démarrer le processus de transaction, puis glissez, insérez ou appuyez sur la carte pour terminer la transaction. ** Si vous payez en insérant une carte EMV IC, veuillez vous assurer que la puce EMV de la carte est orientée dans la bonne direction. Si vous payez avec une carte NFC, assurez-vous de placer la carte de paiement NFC dans un rayon de 4 cm au-dessus du marquage NFC. À moins de 4 cm Indicateurs d'état NFC Précautions et remarques importantes • Assurez-vous que l'appareil est complètement chargé avant utilisation. • Veuillez vous assurer que la puce EMV de la carte est orientée dans le bon sens lors de l'insertion de la carte. • La carte NFC doit être tapée à moins de 4 cm au-dessus de la marque du lecteur. • Ne pas laisser tomber, démonter, déchirer, ouvrir, écraser, plier, déformer, percer, déchiqueter, micro- ondes, incinérer, peindre ou insérer un objet étranger dans l’appareil. Toute action de ce type endommagera l'appareil et annulera la garantie. • Ne plongez pas l’appareil dans l’eau et ne le placez pas à proximité de lavabos ou de tout endroit humide. Ne renversez pas de nourriture ou de liquide sur les appareils. N'essayez pas de sécher l'appareil avec des sources de chaleur externes, comme un micro-ondes ou un sèche-cheveux. N'utilisez pas de solvant corrosif ou d'eau pour nettoyer l'appareil. • Il est recommandé d'utiliser un chiffon sec pour nettoyer uniquement la surface. • N'utilisez pas d'outils pointus pour pointer les composants internes, les connecteurs ou les contacts, car cela pourrait entraîner un dysfonctionnement de l'appareil et annuler la garantie simultanément. Spécifications du produit Déclaration de mise en garde FCC Déclaration de conformité du fournisseur FCC: BBPOS / PINPAD (WPD30) Cet équipement est conforme à la partie 15 des règles FCC. Son fonctionnement est soumis aux deux conditions suivantes…

Text truncated - open the document above for the full version.

BBPOS International Limited Suite 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong 香港新界荃灣楊屋道8號如心廣場2期19樓1903-04室 Tel 電話 (852) 3158-2585 Fax 傳真 (852) 3158-2586 www.bbpos.com Letter of Agency for FCC Certification March 3rd, 2021 To whom it may concern, Letter of Agency I, an officer of BBPOS International Limited do hereby authorize Intertek Testing Services (Mr. Terry Chan / Tim Lee / Herbert Wong / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Regards, Adrian Kwan Product Compliance Manager

BBPOS International Limited Suite 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong 香港新界荃灣楊屋道8號如心廣場2期19樓1903-04室 Tel 電話 (852) 3158-2585 Fax 傳真 (852) 3158-2586 www.bbpos.com Page 1 of 2 March 3rd, 2021 Attention: Application Examiner Re: Request for confidentiality Applicant: BBPOS International Limited FCC ID: 2AB7X-PINPAD To whom it may concern, Request for Permanent Confidentiality under FCC Part 15 Certification Request is hereby submitted by BBPOS International Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) & 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: •Schematics •Detailed Block diagrams •Detailed Operational/Functional Description Rationale for request for confidentiality: This information represents intellectual property of BBPOS International Limited and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. BBPOS International Limited Suite 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong 香港新界荃灣楊屋道8號如心廣場2期19樓1903-04室 Tel 電話 (852) 3158-2585 Fax 傳真 (852) 3158-2586 www.bbpos.com Page 2 of 2 BBPOS International Limited has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Adrian Kwan Product Compliance Manager

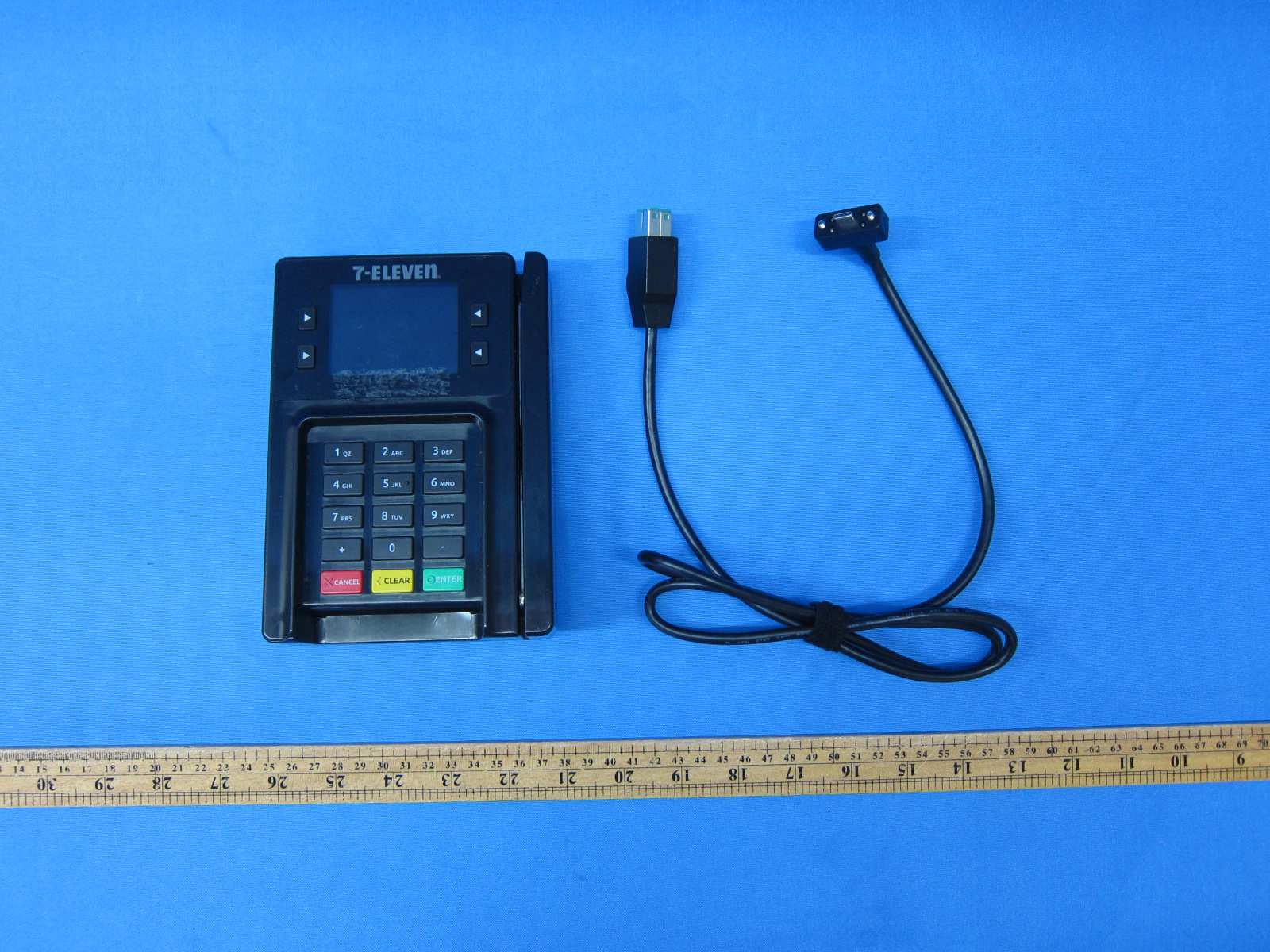

INTERTEK TESTING SERVICE Report No.: HK20121072 Equipment Photographs (External) INTERTEK TESTING SERVICE Report No.: HK20121072 Equipment Photographs (External)

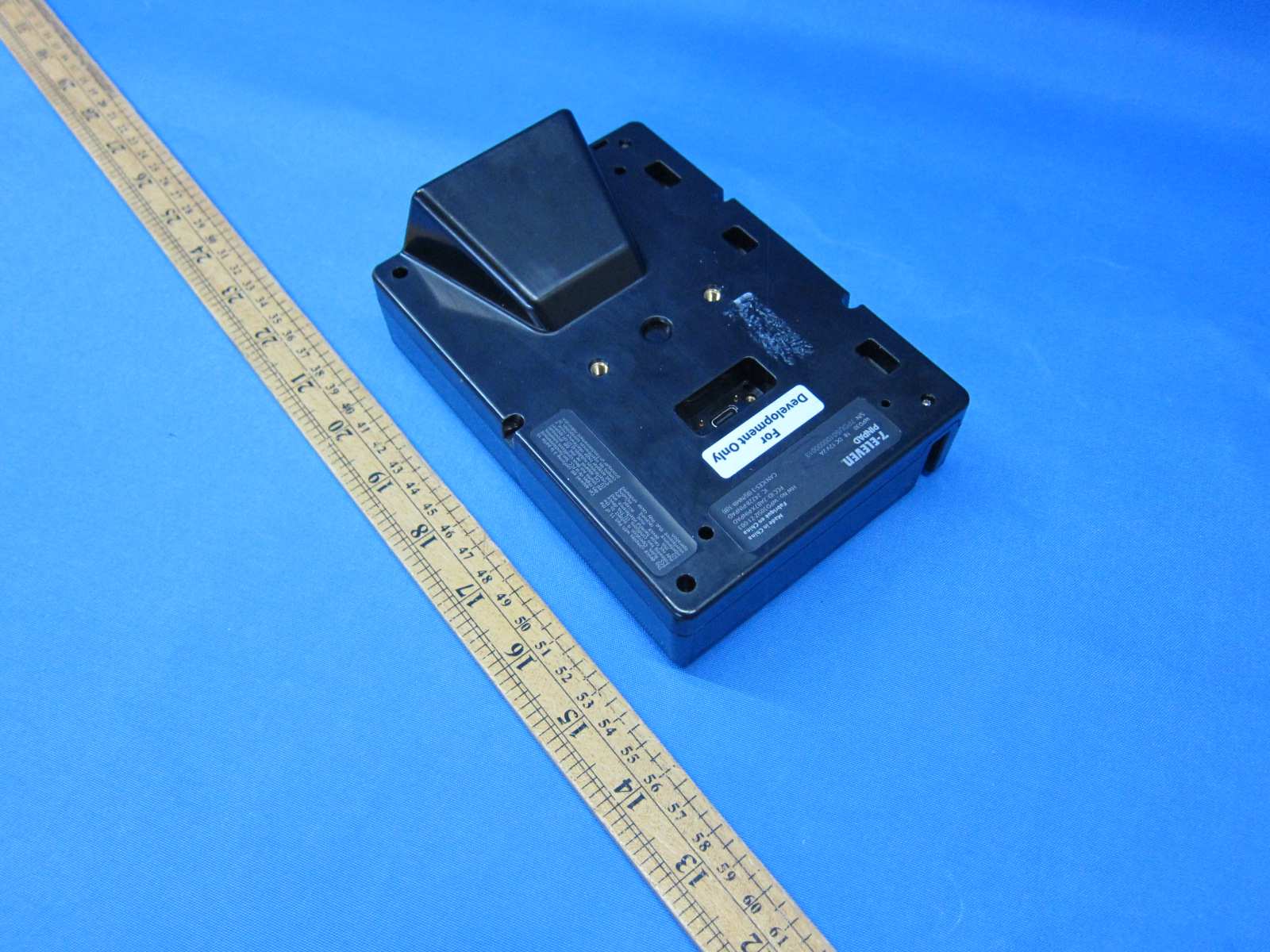

INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs NFC antenna (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs NFC antenna (Internal) INTERTEK TESTING SERVICE Report No.: HK20101072 Equipment Photographs (Internal)

INTERTEK TESTING SERVICE FCC ID: 2AB7X-PINPAD MPE Analysis Report The Equipment Under Test (EUT) is a Pinpad which is a mobile POS device. It supports reading Barcode, Tape, EMV smart credit card and NFC credit card. The 13.56MHz NFC reader is for reading NFC credit card. The EUT is powered by USB port. NFC Portion (13.56MHz single channel) Antenna Type: Internal, Integral Antenna Gain: 0dBi Maximum conducted RF power: 0dBm Maximum allowed production tolerance: +0dB / -40dB . For Maximum Permissible Exposure (MPE) evaluation of the unit, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the NFC portion of the EUT, the measured powers among all the measured channels were within its production tolerance. The antenna gain is 0 dBi = 1 (num gain) and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP radiated power = conducted power (with maximum tolerance) + antenna gain = 0 dBm + 0 dBi = 0 dBm (1 mW) The radiated (EIRP) source-based time-averaging output power = (1 * 1) mW = 1 mW The power density at 20 cm from the antenna = EIRP / 4 πR^2 = 0.0002 mW cm-2
