2AB7X-WISEPAD3WisePad 3S,WisePad 3

FCC Supplier’s Declaration of Confirmity BBPOS / Wisepad 3(WPC32) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. BBPOS Corp. 2033 Gateway Place, 5th FLR, San Jose, CA 95110 www.bbpos.com Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. BBPOS Corp. 2033 Gateway Place, 5th FLR, San Jose, CA 95110 www.bbpos.com Need Help? E: [email protected] | T: +852 3158 2585 Room 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, Hong Kong www.bbpos.com ©2017 BBPOS Limited. All rights reserved. BBPOS and WisePad™ are either trademark or registered trademarks of BBPOS Limited. iOS is the trademark of Apple Inc. Android™ is a trademark of Google Inc. Windows® is registered trademark of Microsoft Corporation in the United States and/or other countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BBPOS Limited is under license. Other trademarks and trade names are those of their respective owners. All details are subject to change without prior notice. Revise v.1 / 20190416 ProblemsRecommendations Troubleshooting Device cannot read your card successfully Device has no response • Please check to see if the WisePad 3 has power and make sure that it is connected to your phone/tablet • Please make sure that there is no obstacle in the card slots. • Please make sure that the chip of the card is facing the right direction when inserting card. • Please ensure your phone/tablet is a supported model for this device’s operation. • Please insert card with a more constant speed. • Please use a paper clip to press the reset button near USB-C connector for reboot. CAUTION & IMPORTANT NOTES • Be sure to turn on the Bluetooth® function of your smartphone or tablet before use. • Please fully charge your WisePad™ 3 before use. • Please ensure EMV chip of the card is facing the right direction when inserting card. • Don’t drop, disassemble, tear, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign object into the device. Any of these actions will void the Warranty. • Don’t immerse the device into water and place near any wet locations. Don’t spill any food or liquid onto the device. Don’t attempt to dry the device with external heat sources such as microwave or hair dryer. • Don’t use any corrosive solvent or water to clean the device. It is recommended that you use a dry cloth to clean the surface only. • Don’t insert any sharp tools to into the internal components or connectors. Any of these actions may lead to malfunction and will void the Warranty. • Don’t try to disassemble the device to repair. Please contact your dealer for repair and maintenance. Display 2.4” (320 x 240) Backlit color display Features & Functions • EMV/PBOC Chip card reader (ISO 7816 Compliant Class A, B, C card) • NFC Reader (EMV contactless, ISO 14443A/B) • Secure PIN pad Status Indicator On-Screen indicator Communication Interface mPOS mode - Bluetooth® BLE 4.2, USB-C Power & Battery Charging Supported OS Operating Temperature Operating Humidity Storage Temperature Storage Humidity Dimensions Weight Li-polymer battery, 3.7V, 800mAh Via USB-C Android 4.2 or above, iOS 6.0 or above, Windows 8 or above 0°C - 45°C (32°F – 113°F) Maximum 95% -20°C - 55°C (-4°F – 131°F) Maximum 95% 6 9.7 x 121.7 x 17.7 mm / 2.74 x 4.79 x 0.7 inch (approx.) 105 g / 3.7 oz (approx.) Product Specications Power on / Setting, up and down buttons CLEAR button ENTER button USB-C port for charging & operation Keypad for secure PIN entry and other alpha-numeric input Color LCD display CANCEL button For EMV card reading Index & Accessories (Fig.1) FRONT For NFC card reading Reset button Index & Accessories (Fig.1) USB-C Package Contents Device x 1 USB-C cable x 1 Quick start guide x 1 Mounting nut SIDEBACKSIDE mPOS Solution with EMV Chip & PIN as well as NFC functionality WisePad™ 3 www.bbpos.com Supported Operating System: iOS, Android Troubleshooting Device cannot be paired ProblemsRecommendations Display turned o automatically Device has lost connection with your smartphone or tablet • Please press & hold the power on/o button to restart your device. • Please check to see if you can nd the WisePad 3’s “Serial Number” (shown on the back of device) in the “Scanned Device List” of your smartphone or tablet. • The display may turn o after entering the “SLEEP MODE” to save power. Please press and hold the power on/o button to restart it. • The device battery may h…

Text truncated - open the document above for the full version.

Revise v.1 / 20200102 ProblemsRecommendations Troubleshooting Device cannot read your card successfully Device has no response • Please check to see if the WisePad 3S has power and make sure that it is connected to your phone/tablet • Please make sure that there is no obstacle in the card slots. • Please make sure that the chip of the card is facing the right direction when inserting card. • Please ensure your phone/tablet is a supported model for this device’s operation. • Please insert card with a more constant speed. • Please use a paper clip to press the reset button near USB-C connector for reboot. CAUTION & IMPORTANT NOTES • Be sure to turn on the Bluetooth® function of your smartphone or tablet before use. • Please fully charge your WisePad™ 3S before use. • Please ensure EMV chip of the card is facing the right direction when inserting card. • Don’t drop, disassemble, tear, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign object into the device. Any of these actions will void the Warranty. • Don’t immerse the device into water and place near any wet locations. Don’t spill any food or liquid onto the device. Don’t attempt to dry the device with external heat sources such as microwave or hair dryer. • Don’t use any corrosive solvent or water to clean the device. It is recommended that you use a dry cloth to clean the surface only. • Don’t insert any sharp tools to into the internal components or connectors. Any of these actions may lead to malfunction and will void the Warranty. • Don’t try to disassemble the device to repair. Please contact your dealer for repair and maintenance. Display 2.4” (320 x 240) Backlit color display Features & Functions • EMV/PBOC Chip card reader (ISO 7816 Compliant Class A, B, C card) • NFC Reader (EMV contactless, ISO 14443A/B) • Triple track magnetic stripe card reader • Secure PIN pad Status Indicator On-Screen indicator Communication Interface mPOS mode - Bluetooth® BLE 4.2, USB-C Power & Battery Charging Supported OS Operating Temperature Operating Humidity Storage Temperature Storage Humidity Dimensions Weight Li-polymer battery, 3.7V, 800mAh Via USB-C Android 4.2 or above, iOS 6.0 or above, Windows 8 or above 0°C - 45°C (32°F – 113°F) Maximum 95% -20°C - 55°C (-4°F – 131°F) Maximum 95% 6 9.7 x 121.7 x 17.7 mm / 2.74 x 4.79 x 0.7 inch (approx.) 105 g / 3.7 oz (approx.) Product Specications Power on / Setting, up and down buttons CLEAR button ENTER button USB-C port for charging & operation Keypad for secure PIN entry and other alpha-numeric input Color LCD display CANCEL button For EMV card reading Index & Accessories (Fig.1) FRONT For NFC card reading Reset button Index & Accessories (Fig.1) USB-C Package Contents Device x 1 USB-C cable x 1 Quick start guide x 1 Mounting nut SIDEBACKSIDE MSR Rail mPOS Solution with EMV Chip & PIN as well as NFC functionality WisePad™ 3S www.bbpos.com Supported Operating System: iOS, Android Troubleshooting Device cannot be paired ProblemsRecommendations Display turned o automatically Device has lost connection with your smartphone or tablet • Please press & hold the power on/o button to restart your device. • Please check to see if you can nd the WisePad 3S’s “Serial Number” (shown on the back of device) in the “Scanned Device List” of your smartphone or tablet. • The display may turn o after entering the “SLEEP MODE” to save power. Please press and hold the power on/o button to restart it. • The device battery may have discharged, please use the USB cable to recharge it and then retry. • Please press and hold the power on/o button to turn on the device again. The device will automatically connect with your smartphone or tablet again. • The device may be at lower battery level, please use the USB cable to recharge it and then retry. • Please ensure that the device and the smartphone / tablet are within the Bluetooth reception range. Device cannot read your card successfully through the NFC reading • Please check that your card supports NFC payment. • Please ensure if your card is placed within 4cm range on top of the NFC marking. Device cannot read your card successfully through the NFC reading • Please check if your card supports NFC payment. • Please ensure if your card is placed within 4cm of the NFC symbol on the display. • Please take your NFC payment card from your wallet or purse for payment to avoid any interference. FCC Supplier’s Declaration of Confirmity BBPOS / Wisepad 3S (WPS32) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. BBPOS Corp. 2033 Gateway Place, 5th FLR, San Jose, CA 95110 www.bbpos.com Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is co…

Text truncated - open the document above for the full version.

BBPOS International Limited Suite 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong 香港新界荃灣楊屋道8號如心廣場2期19樓1903-04室 Tel 電話 (852) 3158-2585 Fax 傳真 (852) 3158-2586 www.bbpos.com Date: 2020/Jan/6 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. As our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; BBPOS International Limited Suite 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong 香港新界荃灣楊屋道8號如心廣場2期19樓1903-04室 Tel 電話 (852) 3158-2585 Fax 傳真 (852) 3158-2586 www.bbpos.com f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: BBPOS International Limited Contact Name: Adrian Kwan Title of Person: Product Compliance Manager Address: Suite 1903-04, Tower 2, Nina Tower, 8 Yeung Uk Road, Tsuen Wan, NT, Hong Kong

BBPOS International Limited Suite 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong 香港新界荃灣楊屋道8號如心廣場2期19樓1903-04室 Tel 電話 (852) 3158-2585 Fax 傳真 (852) 3158-2586 www.bbpos.com Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AB7X-WISEPAD3 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. (1) Schematic Diagram (2) Block Diagram (3) Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Company Name: BBPOS International Limited Contact Name: Adrian Kwan Title of Person: Product Compliance Manager Address: Suite 1903-04, Tower 2, Nina Tower, 8 Yeung Uk Road, Tsuen Wan, NT, Hong Kong Date: 2020/Jan/6

Date: December 27 th , 2019 BBPOS International Limited Suite 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong 香港新界荃灣楊屋道8號如心廣場2期19樓1903-04室 Tel 電話 (852) 3158-2585 Fax 傳真 (852) 3158-2586 www.bbpos.com Page 1 or 2 Declaration between WisePad 3 and WisePad 3S for FCC Application To whom who may concern: We, BBPOS International Limited The product name:WisePad 3S,WisePad 3 FCC ID: 2AB7X-WISEPAD3 The BT/BLE and NFC all have the same circuit diagram, PCB layout, components and component layout. WisePad 3S is identical to WisePad 3 except for enclosure and function of card slot. The WisePad3S includes the MSR card slot and MSR circuitry. And there is a mechanical difference in that the enclosure has the card slot in the WisePad 3S that the WisePad 3 does not have. please refer to comparison table on page 2 for more details, thanks Date: December 27 th , 2019 Declaration between WisePad 3 and WisePad 3S for FCC Application BBPOS International Limited Suite 1903-04, 19/F, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, N.T., Hong Kong 香港新界荃灣楊屋道8號如心廣場2期19樓1903-04室 Tel 電話 (852) 3158-2585 Fax 傳真 (852) 3158-2586 www.bbpos.com Page 2 or 2 For and on behalf of BBPOS International Limited

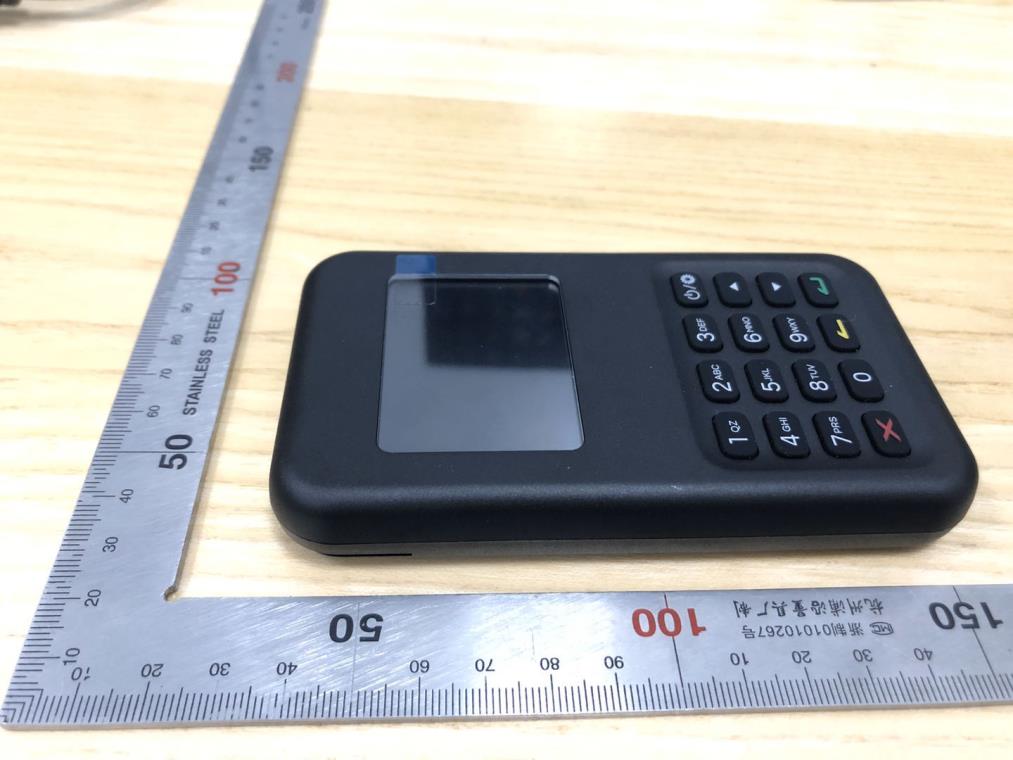

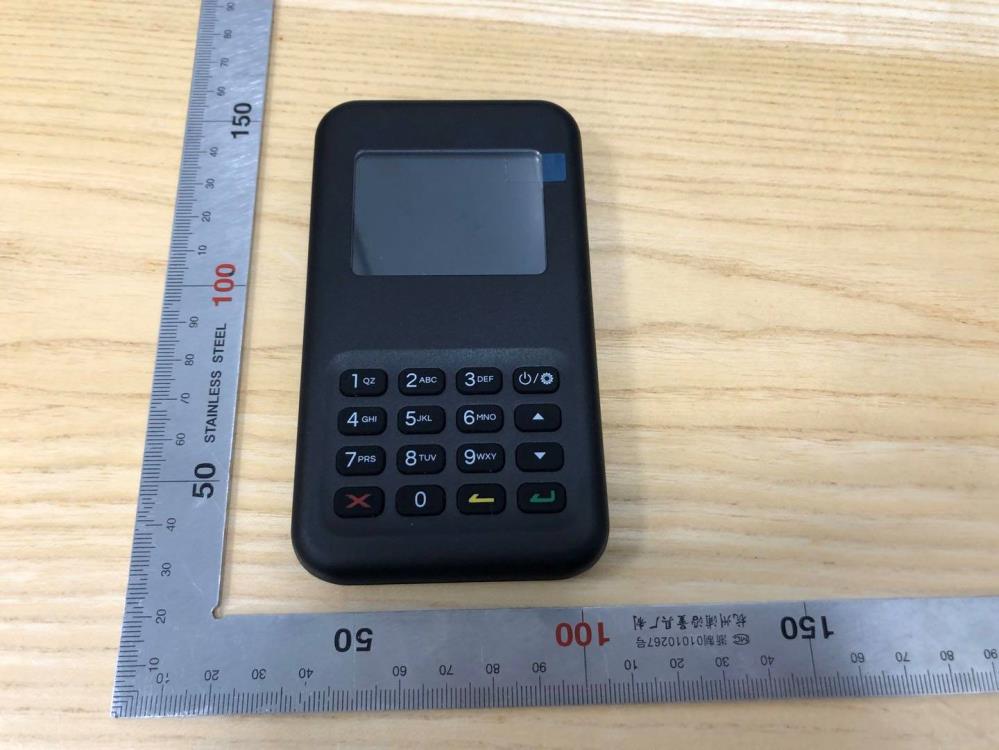

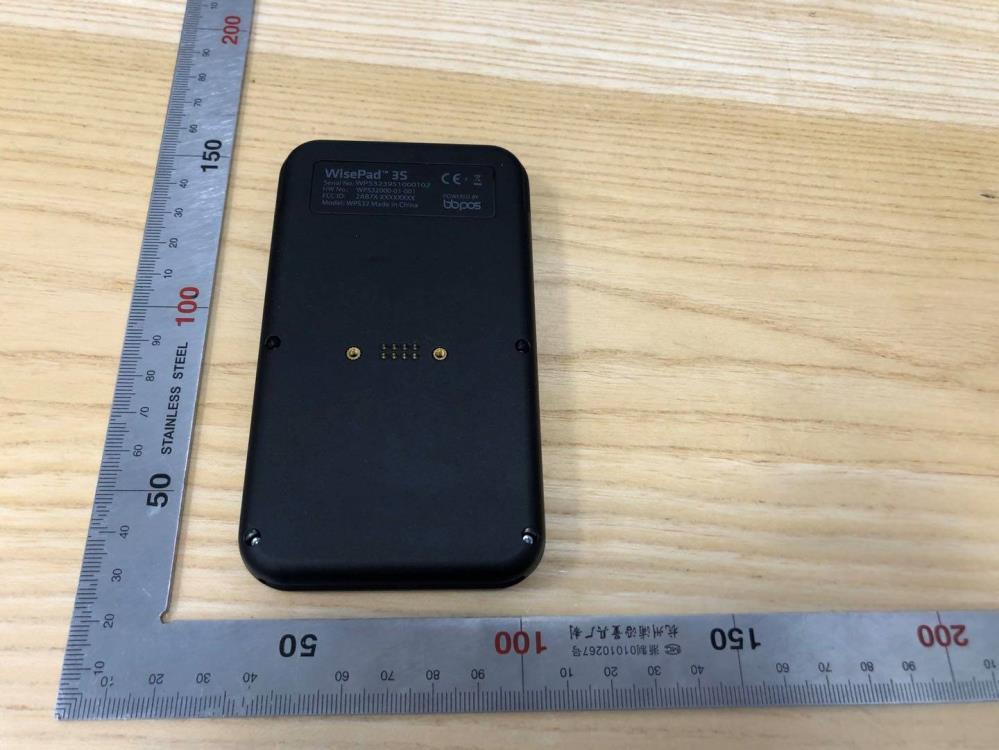

External Photographs Page 2 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Page 3 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4 Page 4 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-5 View of EUT-6 Page 5 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-7 WisePad 3 Difference WisePad 3S

Internal Photographs Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-1 (WisePad 3S) (WisePad 3) Difference Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-2 Internal View of EUT-3 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-4 Internal View of EUT-5 NFC Antenna Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-6 Page 6 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-7 BT ANTENNA

FCC ID: 2AB7X-WISEPAD3 According to KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1 At 100 MHz to 6 GHz and for test separation distances ≤ 50mm, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] x [√f(㎓)] ≤ 3.0 1. SAR test exclusion threshold Frequency: 2 480 MHz (min. separation distances = 5 mm) SAR test exclusion thresholds (5 ㎜) = 3 x 5 / (√ 2.480 ) = 9.525 ㎽ Test mode Max. Tune-up Tolerance (mW) SAR Test Exclusion Thresholds (5mm) (mW) BLE 1.00 9.525 Calculation value : 1.00 (㎽) / 5 (㎜) x √ 2.480 = 0.315 So, Calculation value ≤ 3.0 Remark: -For BT Max. conducted power is 0.794 (㎽), so 1.00 (㎽) was calculated. -When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For WisePad 3S MODEL NUMBER: WPS32 FCC ID: 2AB7X-WISEPAD3 ISED: 24228-WISEPAD3 REPORT NUMBER: 4789358177-2 ISSUE DATE: February 18, 2020 Prepared for BBPOS International Limited Suite 1903-04, Tower 2, Nina Tower, 8 Yeung Uk Road, Tsuen Wan, NT, Hong Kong Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone Dongguan, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789358177-2 Page 2 of 75 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 02/18/2020 Initial Issue REPORT No.: 4789358177-2 Page 3 of 75 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/ISED Rules Test Results 1 20dB Bandwidth and 99% Occupied Bandwidth FCC 15.247 (a) (1) RSS-247 Clause 5.1 (a) RSS-Gen Clause 6.7 Pass 2 Conducted Output Power FCC 15.247 (b) (1) RSS-247 Clause 5.1 (b) Pass 3 Carrier Hopping Channel Separation FCC 15.247 (a) (1) RSS-247 Clause 5.1 (b) Pass 4 Number of Hopping Frequency 15.247 (a) (1) III RSS-247 Clause 5.1 (d) Pass 5 Time of Occupancy (Dwell Time) 15.247 (a) (1) III RSS-247 Clause 5.1 (d) Pass 6 Conducted Bandedge FCC 15.247 (d) RSS-247 Clause 5.5 Pass 7 Radiated Bandedge and Spurious FCC 15.247 (d) FCC 15.209 FCC 15.205 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 RSS-GEN Clause 8.10 Pass 8 Conducted Emission Test For AC Power Port FCC 15.207 RSS-GEN Clause 8.8 Pass 9 Antenna Requirement FCC 15.203 RSS-GEN Clause 6.8 Pass Note: This test report is only published to and used by the applicant, and it is not for evidence purpose in China. REPORT No.: 4789358177-2 Page 4 of 75 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 6 2. TEST METHODOLOGY ..................................................................................................... 7 3. FACILITIES AND ACCREDITATION ................................................................................. 7 4. CALIBRATION AND UNCERTAINTY ................................................................................ 8 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 8 5. EQUIPMENT UNDER TEST ............................................................................................... 9 5.1. DESCRIPTION OF EUT .............................................................................................. 9 5.2. MAXIMUM OUTPUT POWER...................................................................................... 9 5.3. PACKET TYPE CONFIGURATION ............................................................................. 9 5.4. CHANNEL LIST ..........................................................................................................10 5.5. TEST CHANNEL CONFIGURATION ..........................................................................10 5.6. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.7. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................11 5.8. WORST-CASE CONFIGURATIONS...........................................................................11 5.9. DESCRIPTION OF TEST SETUP ...............................................................................12 6. MEASURING INSTRUMENT AND SOFTWARE USED ....................................................13 7. ANTENNA PORT TEST RESULTS ...................................................................................15 7.1. ON TIME AND DUTY CYCLE .....................................................................................15 7.2. 20 dB OCCUPIED BANDWIDTH AND 99% OCCUPIED BANDWIDTH ......................17 7.2.1. GFSK MODE .......................................................................................................18 7.3. CONDUCTED OUTPUT POWER ...............................................................................22 7.3.1. GFSK MODE .......................................................................................................23 7.4. CARRIER HOPPING CHANNEL SEPARATION .........................................................24 7.4.1. GFSK MODE .......................................................................................................25 7.5. NUMBER OF HOPPING FREQUENCY ......................................................................26 7.5.1. GFSK MODE ......................................................................................................…

Text truncated - open the document above for the full version.

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION MEASUREMENT POSITION (X axis) MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) AC POWER LINE CONDUCTED EMISSIONS
