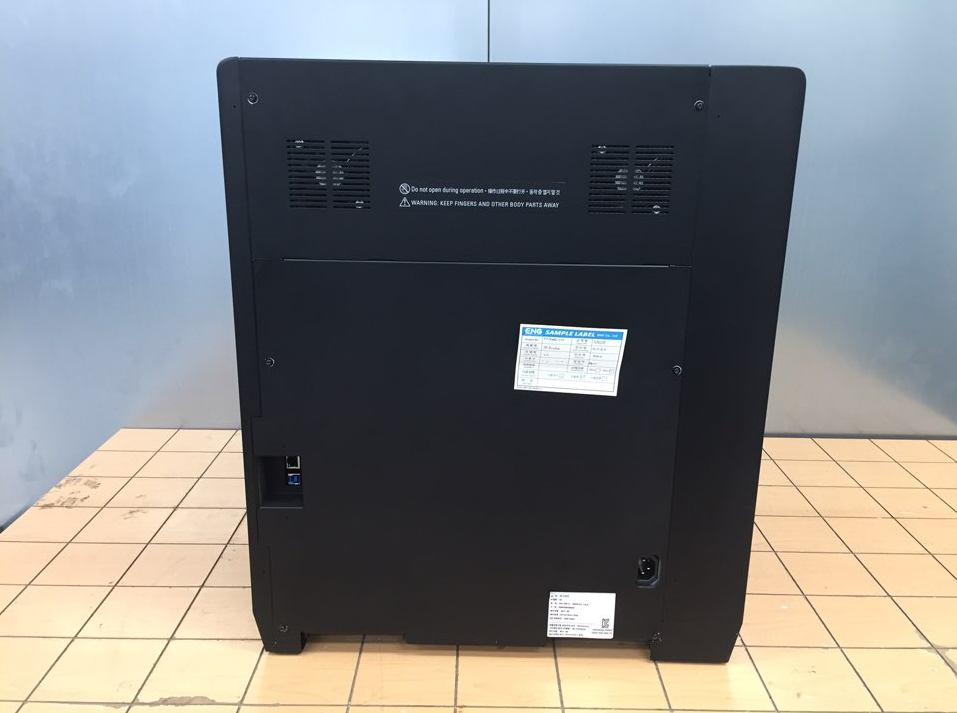

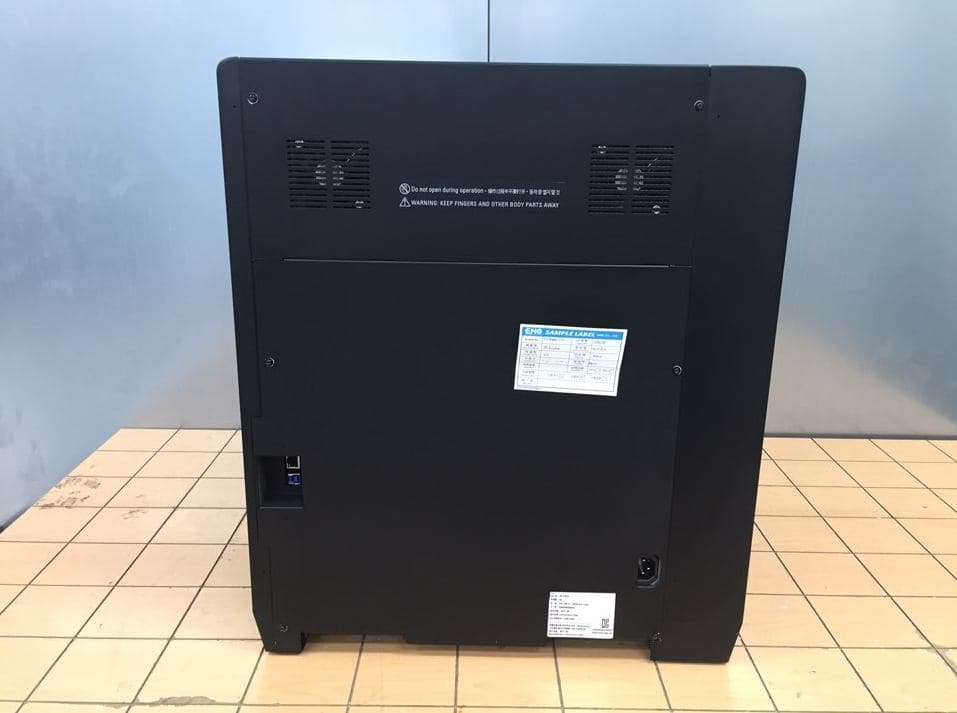

2AB83-2X3D Printer

Read the User Manual before operating the product, and keep the manual at a convenient place near the product. USER MANUAL www.rize3d.com 2X series Directly plug the power cord in the receptacle on the wall. Do not use extension cord. If the power cable or plug is worn or damaged, pull out the power plug. The exposure of the interior of the machine can cause electric shock or burns. Do not remove covers or screws other than specified in this manual. Please be cautious. In the process of printing, the temperature of the nozzle and the heated bed rise higher than 100 degrees Celsius. Do not place the machine in a highly moist environment as it may cause deformation and malfunction. Avoid contact of electrical terminal with metal product such as necklaces, coins, keys, watches, etc. Do not hold the shaft for lifting or moving of the printer. For the following situations turn off power and pull out the power plug - When in contact with liquid - When in need for a service or repair request - When the device cover is damaged For the method of disposal contact local service center or use a proper collection site. Please turn off power when leaving the office after business hours or in circumstances where machine is unoccupied for a lo ng period of time as it may cause abrupt fire accidents. Protect device from humid or w et conditions eg. rain, snow, etc Remove power cord from receptacle on the wall before moving device. Be careful not to damage pow er cord while device is being translocated. When removing the power cord, please pull the plug and not the power cable. Be cautious of clips, staples a nd any other small metal objects from falling inside the device. Please be cautious on safety when touching the interior of the machine, e.g. cleaning the interior. Do not dispose of device or consumables together with household waste. For the method of disposal, please contact local service center or use a proper collection site. Interior of device may be very hot. Please do not touch the part with “Caution: High Temperature” sign or its surrounding areas as it may cause burns. Our product maintains high quality standards and performance. It is recommended to use genuine components only, components can be acquired from any authorized dis tributors. Safety Instructions Warning: Failure to observe the instructions may lead to death or serious injury. Caution: Failure to observe instructions may cause injuries or damages to property. Be sure to observe the followIng instructions when using the device. Thank you for purchasing our product. This user manual contains detailed information about correct use of device and easy maintenance to maintain the optimal state, and to contribute to the rationalization of office work of your company. Carefully read the user manual before using the device and keep close at hand. In order to use device correctly and safely, please carefully note the precautions before use. Before use Prohibition and limitation 1. This User Manual has been created for the convenience of the user, actual product may differ from image and explanations shown. 2. The contents of this user manual is subject to change without notice. We are not responsible for the direct and/or indirect loss or damages caused by results of handling or operating the product in any case and for results occurring from user’s negligence. 3. The copyrigh ted literary works can be duplicated and used for personal use or household use and within the same parameter. In other cases than the aforemention ed, it is prohibited by law. 4. The above d etails present only a part of the applicable laws and regulations. Details on these laws/regulations may not be stated as they are. We do not guarantee its correctness and completeness. Please consult a legal advisor to check if the object you intend to print is legal. 5. User is responsible for all los s derived from modification of the product executed by the user or third party . 6. Font used in the printer GUI and the user manual is the “NAN UM” font provided by NAVER. Before using the Machine 1. Preface ----------------------------------------------------------------------------------------------------------------------1 2. Conventions --------------------------------------------------------------------------------------------------------------2 Symbols ---------------------------------------------------------------------------------------------------------------------2 3. Safety Information -------------------------------------------------------------------------------------------------------3 4. Precautions ---------------------------------------------------------------------------------------------------------------5 4.1 Installation -------------------------------------------------------------------------------------------------------------------5 4.2 Moving the Machine ------------------------------------------------------------------------------------------------------6 5. Consumables Handling -----------------------------------------------------------------------------------------------7 5.1 PLA ----------------------------------------------------------------------------------------------------------------------------7 5.2 ABS ---------------------------------------------------------------------------------------------------------------------------7 5.3 Flexible -----------------------------------------------------------------------------------------------------------------------8 5.4 PV A, PVA+ -----------------------------------------------------------------------------------------------------------------8 6. Instructions for Use ----------------------------------------------------------------------------------------------------9 7. Ventilation ---------------------------------------------------------------------------------------------------------------10 8. Notices -------------------------------------------------------------------------------------------------…

Text truncated - open the document above for the full version.

3 Printing 2X Series USER MANUAL Printing 3-2 3 1. Printing User can print printables via USB flash drive, USB cable, or over the network. The following on the printer means it is ready to start print. 1.1 Printing from USB Flash Drive 1 Connecting USB flash drive to the printer. In order to print using an USB flash drive, insert the flash drive into the USB port. When the USB flash drive is connected while in the home screen, a list of files in the USB appears. When [PRINT] is selected without the USB flash drive connected, a message requesting for USB connection will pop up and once USB flash drive is connected a list of the USB files will emerge. 3-3 Printing 3 2 Printing Files Select a file to print in the USB list. 3 Print Preview Once selected, a preview of the model appears on the screen. Printing 3-4 3 4 Printing Once [ ] is pressed the nozzle starts to be heated. When the specified temperature is reached, the printing starts. 5 Pausing Print Pressing [ ] during a print will pause the progress. Press [ ] again and nozzle is heated again, and the printer will continue printing. 3-5 Printing 3 6 Additional Functions of Pausing Press the [ ] button during printing to pause it, and then press the [Setting] icon to run additional functions. These additional functions include [Bed Height Adjustment] , [Extruder] , and [Cartridge-Load, Unload, and Unlock] . These additional functions are used for any mechanical problem or if the user needs them. ▣ Bed Height Adjustment ① This menu is used to adjust the height of the bed during printing for a high-quality outcome. ② [Save] the adjusted bed height and return to the printing screen to print the adjusted bed height. ③ Press the [Reset] button to return the bed to its previous position. Printing 3-6 3 ▣ Extruder It functions just like the extruder operation in your printer’s settings. ▣ Cartridge The cartridge can be loaded, unloaded, or unlocked during printing. 7 Exchanging Cartridge during print Press [Change] to switch the currently using cartridge into a different cartridge. 3-7 Printing 3 8 Print Cancelation During print pressing [ ] button a message pops up and asks for confirmation on the print canceling. When confirmed, the rest printing job is canceled. Another message requesting the removable of left print will popup press [OK] and screen will return to home screen. 9 Printing Completion After printing has completed, follow the instructions and remove the printed product. Press the [OK] to return to home screen. Reference - Methods of removing printables refer to P. 4-2 “1. Printed Output Check”. Printing 3-8 3 1.2 Printing Via PC 1 Prepare PC connected to the same network where the printer is connected to. 2 Run 3DWOX Slicer program. 3 Press the “Print” button. 4 Following Steps (Same as steps 3~9 of printing via USB) Note - Pause, print cancelation, please refer to P.3-2 Printing from USB Flash Drive section. 1.3 CLOUD Printing To begin using the Cloud Print function, users must register the printer to the server. 1 Select [CLOUD] from the home screen - When the user clicks [CLOUD] on the Home screen, the available CLOUD App is listed. ▶ * Additional CLOUD Apps will be added. * When Open Material is set as “On”, CLOUD print function(‘Sindoh Cloud Slicer’)is disabled and cannot be selected. 3-9 Printing 3 2 When using [CLOUD] for the first time, users must register their printer. * Alexa and Sindoh Cloud Slicer app share Printer registration information. 3 [Generate Code] allows you to connect the device with the account of the user registered in the App. If there is a user registered on the device, [Registered Users] appears, listing the registered users and deleting them by clicking the [ - ] button. Printing 3-10 3 4 When the print job is sent to the printer registered in the app, a menu called [Print Queue] appears, and the names of the sender and the transmitted print job are displayed in the list when the menu is entered. The transferred print job can be deleted with the [ - ] button. 5 When you select the print job you want to print, the preview image of the print job will be displayed, and by clicking the [▶] button, the print job starts immedia tely after downloading the corresponding output. When the output is completed, the print job in [Print Queue] will be deleted from the list. 3-11 Printing 3 6 [Printer Detail] menu lets users check the printer information. 7 [Edit Printer] menu lets users change the [Display name]. Printing 3-12 3 8 [Deregister Printer] menu lets users delete the registered printer in the server. * If users delete the printer information, the [Print queue] list and the registered user list will be initialized. * If users want to use the [CLOUD] function again after deletion, printer must be re-registered in the server. 1.4 Print Job Management You can manage print jobs in queue. 1 Press the [Queue] button on the upper left hand corner while printing. 3-13 Printing 3 2 The print jobs in queue are listed. 3 You may click the list to look at the information of the print job and delete it if necessary. Printing 3-14 3 1.5 Printing with Two Types of Filaments 1 Two nozzles can cross print the same material. - PLA & PLA - ABS & ABS 2 Two nozzles can cross print the same material. - PLA and PVA(PVA+) PLAABSFLEXPVA(PVA+) PLAOXXO ABSXOXX FLEXXXXX PVA(PVA+)OXXX 1.6 Changing Filaments To prevent clogging of the nozzle when switching from the used filament to different material filament, you must perform Nozzle Cleaning. 4 Printed Output Check 2X Series USER MANUAL Printable Verification 4-2 4 1. Printed Output Check 1.1 Detaching Printed Output To safely detach the printed model, first let the bed cool down. Bed top plates must be detached as well. Caution Hot Surface - Without sufficient cooling the bed can be very hot. Please be cautious coming into contact . It may cause burns. 1 Cooling the Bed After the printer has finished printing, check the LCD screen and built-in speaker . Wait until temperature goe…

Text truncated - open the document above for the full version.

5 Maintenance 2X Series USER MANUAL Maintenance 5-2 5 1. Machine Cleaning 1.1 Cleaning Case Maintenance 1 On the LCD, if a message requesting for the cleaning of the cleaning case pops up, detach the cleaning case and clean all the filament residue inside the case. - If in need for further cleaning, on the menu, under settings, select cleaning case. The cleaning case can be detached. 1.2 Printer Interior Cleaning Over time, there will be a build up of filament residue within the printer. If the residue goes into conveyor belt or fan wings, it can cause printer malfunction. Please clean the inside of the printer regularly or right after a print job. 1.3 Periodical Inspection Oil/Grease Inspection During manufacturing grease/oil is applied to the gears. After a period of time, grease and oil can dry and cause printer noises during operation. At least once a month inspect the condition of grease and oil. Especially, If printer begins to make noises during operation, immediately check if oil and grease are applied properly. If necessary contact service center for inspection. 1.4 Flexible bed and Nozzle Cleaning If there are filament residue or foreign matter on the exposed surface of the metal on the bed or on the end of the nozzle tip, Bed leveling may not work properly and the output quality may be affected due to foreign matter. Regularly clean the metal exposed surface of the bed and the tip of nozzle. 5-3 Maintenance 5 1.5 Cleaning the inside of the Nozzle The leftover in the nozzle interferes with filaments transfer. This interference can cause problems with printing and filament loading. The leftover makes the printing filament uneven or clogs the nozzle. Once melted, the filament can have different properties from the original. If the leftover in the nozzle is repeatedly heated / cooled, the properties will be changed. The changed leftover is harder to pull out, and easily stacked in the nozzle. Therefore, it is recommended to clean the nozzle regularly if you want to use nozzle for a long time. Nozzle cleaning is recommended when replacing it to another material of filament. This is because each material has different properties. Especially, be sure to clean the nozzle before and after using PVA or flexible material. Please clean the nozzle as the following instruction. 1 Remove the snap ring from the nozzle. SNAP-RING 2 Remove the tube from the nozzle. TUBE TUBE HOLDER Maintenance 5-4 5 3 Press [Setting] → [Extruder] to enter Extruder mode. 4 After positioning the nozzle in the center, insert the enclosed Tube for Cleaning into the nozzle. Tube for Cleaning 5-5 Maintenance 5 5 After reaching the target temperature of the extruder mode and the UI screen appears as below, insert the PLA filament into the tube and let it out through the nozzle. Note - White PLA filament is recommended for nozzle cleaning. It is easy to see that contaminant come out from the nozzle. The properties of the material are slightly different for each filament color. Using non-white PLA filaments can cause filaments to break when pulling out the filaments. 6 Remove the tube and pull out the PLA filament. Maintenance 5-6 5 7 Inser the tube for cleaning again into the nozzle. Tube for Cleaning 8 After reaching the target temperature of the extruder mode and the UI screen appears as below, insert the nozzle cleaner into the tube so that the inside of the nozzle can come out. 5-7 Maintenance 5 9 After removing the nozzle cleaner, pushe the PLA filament into the tube and let it out through the nozzle. 10 Press the home button in the UI to lower the temperature of the nozzle. Slowly push the PLA filament until the nozzle temperature is 180 °C. 11 If the nozzle temperature is between 80 ~ 90 ° C, remove the tube and pull out the PLA filament. (If the PLA filament is disconnected inside, retry extruder mode and repeat the each procedure from step 5.) Maintenance 5-8 5 12 Repeat from step 3 until the filaments are free of contaminants as shown below. If cleaned filament comes out with no contaminants as shown in the figure on the left below , the nozzle cleaning is complete. Cleaned Filament Contaminated Filament USING NOZZLE CLEAN TOOL If the filament does not come out of the nozzle well in step 5, proceed as follows. Once you have completed the steps below, proceed to step 5 again. A. Using Nozzle Cleaner 1 When the UI shown below is displayed, insert the nozzle cleaner into the nozzle tube. 5-9 Maintenance 5 2 Slowly turn left and right while pushing the nozzle cleaner inside the nozzle so that the inside of the nozzle can come out. Caution - When you pull out the filament, if you can not pull it out well, please heat the nozzle after removing it. B. Using Nozzle Spring Pin If the filament does not come out of the nozzle even though the nozzle cleaner is used, use the nozzle spring pin to drill the nozzle inlet. Maintenance 5-10 5 When the temperature of the nozzle is raised and the UI as shown below is displayed, insert the nozzle spring pin at the nozzle inlet side and turn it to the left and right to drill it. Caution - Be careful. It may cause burns. - The tip of the nozzle may be hot. Please wear it with heat-resistant gloves. 1.6 NOZZLE TIP CLEANING 1 Press [Setting]-[Extruder] to enter the Extruder mode. 5-11 Maintenance 5 2 After reaching the target temperature in the Extruder mode, the UI screen appears as shown below. Please move the nozzles to the center . 3 Wipe the tip of the nozzle with cotton or leather cloth in the direction shown below. Caution - T o prevent burns, wipe the nozzle tip by folding the cloth several times. - Be careful not to damage the silicone adhesive between the nozzle and the silicon cap. Maintenance 5-12 5 2. Error Message and Solutions MessageDescription What To Do Booting Please wait until booting is complete. Message means on the first boot user must wait until the booting is finished. Once the boot up process is over and machine is ready, this message disappears automaticall…
