2AB83-A1SD3D Printer

● This user manual contains the product warranty inside. ● Please read this user manual before using this product and keep the manual nearby. User Manual 3dprinter.sindoh.com Sindoh A1 SD Series Do not plug the power cord into extensions. Plug the cord directly into the wall socket. If the power cable or plug is worn or damaged, pull out the power plug. The exposure of the interior of the machine can cause electric shock or burns. Exposure to inside the machine can cause electric shocks or burns. To prevent this damage, do not remove any cover or screws other than those specified in this manual. Do not place the machine in a highly moist environment as it may cause deformation and malfunction. Avoid contact of electrical terminal with metal product such as necklaces, coins, keys, watches, etc. Do not hold the interior parts to lift or move the machine. Turn off the power and pull out the power plug under the following circumstances; - When in contact with liquid - When in need for a service or repair request - When the device cover is damaged For the method of disposal contact local service center or use a proper collection site. Please turn off the power when leaving the office after business hours or in circumstances when machine is unoccupied f or a long time as it may cause abrupt fire accidents. Protect device from humid or wet conditions eg. rain, snow, etc Remove power cord from receptacle on the wall before moving device. Be careful not to damage power cord while machine is being moved. When removing the power cord, please pull the plug and not the power cable. Be cautious of clips, staples and any other small metal objects from falling inside the machine. Please be cautious on safety when touching the interior of the machine, e.g. cleaning the interior. Do not dispose of device or consumables together with household waste. For the method of disposal, please contact local service center or use a proper collection site. Our product and its components maintain high quality standards and performance. It is recommended to use only the genuine components delivered by authorized distributors if necessary. This equipment is not suitable for use in locations where children are likely to be present. Please make sure to follow the instructions below when using the machine. Safety Instructions Warning: Failure to observe the instructions may lead to death or serious injury. Caution: Failure to observe instructions may cause injuries or damages to property. Thank you for purchasing our product. This user manual contains detailed information about correct use of machine and easy maintenance to maintain the optimal state, and to contribute to the rationalization of office work of your company Please carefully read the user manual before using the machine and keep close at hand. In order to use the machine correctly and safely, please carefully note the precautions before use. Before using the machine Prohibition and limitation 1. This User Manual has been created for the convenience of the user, actual product may differ from image and explanations shown. 2. The contents of this user manual is subject to change without notice. W e are not responsible for the direct and/or indirect loss or damages caused by results of handling or operating the product in any case and for results occurring from user’s negligence. 3. The copyrighted literary work s can be duplicated and used for personal use or household use and within the same parameter. In other cases than the aforementioned, it is prohibite d by law. 4. The above details present on ly a part of the applicable laws and regulations. Details on these laws/regulations may not be stated as they are. We do not guarantee its correctness and completeness. Please consult a legal adv isor to check if the object you intend to print is legal. 5. User is responsible for all loss derived from modification of th e product executed by the user or third party. 6. If you use Open Materials or parts and consumables we don’ t provide, we don’t guarantee the printing quality . 7. Font used in the printer GUI and the user manual is the “NANUM” font provided by NA VER. Before using the machine 1. Preface ------------------------------------------------------------------------------------------------------------------ 1 2. Conventions ---------------------------------------------------------------------------------------------------------- 2 Symblos ----------------------------------------------------------------------------------------------------------------- 2 3. Safety Information --------------------------------------------------------------------------------- ----------------- 3 4. Precautions ----------------------------------------------------------------------------------------------------------- 6 4.1 Installation ------------------------------------------------------------------------------------------------------------- 6 4.2 Leveling Machine ---------------------------------------------------------------------------------------------------- 7 4.3 Moving the Machine ------------------------------------------------------------------------------------------------- 8 5. Handling Consumables -------------------------------------------------------------------------------------------- 9 5.1 SLA Resin (Photo Curable Resin) --------------------------------------------------------------------------------10 5.2 Isopropyl Alcohol, IPA ------------------------------------------------------------------------------------------------11 6. Instructions for Use -------------------------------------------------------------------------------- ------------------12 7. V entilation -------------------------------------------------------------------------------------------------------------14 8. Notices ------------------------------------------------------------------------------------------------------------------15 9. Disposal of Used Battery --------------------------------…

Text truncated - open the document above for the full version.

UI Menu Function 2-30 2 S/W Update This function keeps S/W of the machine up to date. It checks the latest firmware through the network connection. Therefore, it won’t be working if the network is not connected. 1 Press [Slide Menu Bar] from the Home screen. 2 Press [Setting] from the Menu screen. 3 Swipe up the screen, and then select [S/W Update] . 2-31 UI Menu Function 2 4 Confirm to proceed with the software update. Press [Start Update] . 5 If there is a firmware update, the software update will start. After the update is complete, press the [Done] button to reboot the machine. UI Menu Function 2-32 2 General Setting This function allows users to change general settings. 1 Press [Slide Menu Bar] from the Home screen. 2 Press [Setting] from the Menu screen. 3 Swipe the screen upward, and press [General Setting] . 2-33 UI Menu Function 2 4 List of [General Setting] items appears. Select an item to change. ❖ Language The system language of the machine can be chosen. Select a language using [<] and [>]. ❖ Power Saving The time delay before entering the power saving mode can be set. The adjustable range is in the unit of 5 min. Change the value using [+] and [-].  0 min : The power saving mode is not used.  5–120 min : The time delay before entering the power saving mode ❖ Beep You can turn ON or OFF the beep sound of the machine.  Value : Off/Min/Mid/Max Reference - Some models do not support the beep function. [Beep] button becomes deactivated in those models with beep function unsupported, so that you cannot select the function of the button stated above. ❖ Unit The units of temperature can be changed.  Value : Celsius ( ̊C) / Fahrenheit ( ̊F) UI Menu Function 2-34 2 ❖ Voice Guide The voice guide and related functions can be changed.  On/Off : Turn ON or OFF the voice guide.  Volume : Very Low, Low, Medium, High, or Very High can be selected.  Speed : Very Slow, Slow, Medium, Fast, or Very Fast can be selected. Reference - Some models do not support the voice guide function. The Voice Guide setting becomes deactivated in those models with the voice guide function unsupported, so that you can not select the function of the button stated above. ❖ Time Settings The current time and date of the machine can be changed. Once set, press [Save] to save the settings. ❖ Time Zone Settings The current time zone setting of the machine can be changed. Swipe the screen up and down to choose a time zone, and then press [Save] to save the settings. ❖ Security The machine security can be set. ❖ Exposure This function is used to change the exposure time of the model. Adjust and change the exposure time to get the desired print quality. First select the resin type for which the exposure time will be changed. Press the [+] or [-] button to set 2-35 UI Menu Function 2 the exposure time for the selected resin type. Adjustment can be increased or decreased in 0.1 sec increments by pressing the activated [+] or [-] button. When the adjustment is complete, click [Save] to save the settings. 1 If you press [Reset], the exposure time for the selected resin type is changed to the default value of ‘0’. ❖ Resin agitation Set whether or not to move the platform up and down in the resin tank to mix the resin in the resin tank when printing starts. LCD Inspection This function allows you to check if the LCD has failed. 1 Press [Slide Menu Bar] from the Home screen. UI Menu Function 2-36 2 2 Press [Setting] from the Menu screen. 3 Swipe screen upward , and Press [LCD Inspection]. 4. ON 을 눌러 LCD 의 문자가 나타나면 이상이 없음을 알수 있습니다. 4 Press [ON] 5 If the character on the LCD appears, you can see that there is no problem.. 2-37 UI Menu Function 2 1.4 Saved Files 1 Press [Slide Menu Bar] from the Home screen. 2 Press [Saved Files] from the Menu screen. UI Menu Function 2-38 2 3 List of files existing in printer’s internal memory is shown. 3 12 No.Part NameDescription 1InfoDisplay detailed information of file. 2PrintStart printing a selected file. 3EditManage files such as file deleting/editing, in the internal storage memory of printer. ❖ Info It shows details of file such as file name, resin type, estimated resin volume to complete printing, printing time, number of total layers, and z-direction resolution. 2-39 UI Menu Function 2 ❖ Print Check if there are remaining printed output on the platform. If there is no problem, press [Next]. Make sure that the resin tank and platform are firmly fixed, and then press [Next]. In manual resin supply mode, check if enough resin is filled in the resin tank using marks. UI Menu Function 2-40 2 After all the procedures are completed, press [Done] to start printing. Printing gets started. 2-41 UI Menu Function 2 1.5 Info This allows users to check detailed information about the machine, and to set the name of the machine and administrator password. 1 Press [Slide Menu Bar] from the Home screen. 2 Press [Info] from the Menu screen. 3 In Info screen, it is possible to set the name of the device and administrator password, and to see the other detailed information about the device. For history of device usage, press [History]. UI Menu Function 2-42 2 4 Statistical information regarding machine usage is shown. For details, press [>] . ❖ Total Print Time Total running time of the device by now is displayed. ❖ Number of Printed Model Total number of print jobs and number of print jobs which are successfully finished are displayed. 2-43 UI Menu Function 2 ❖ Cumulative Usage - Resin Display total cumulative amount of resin and usage volume per each resin type. ❖ Most Recent Print File List Display the list of most recently print files. UI Menu Function 2-44 2 1.6 Quick Guide It shows a brief description for each feature. 1 Press [Slide Menu Bar] from the Home screen. 2 Press [Quick Guide] from the Menu screen. 3 Select a function that needs to be explained. If there are several pages, press the [Previous] or [Next] button to move to the previous or next page. 2-45 UI Menu Function 2 1.7 Programs…

Text truncated - open the document above for the full version.

3-11 Printing 3 No.NameDescription 1MenuSelect additional features provided in Cloud Monitoring 2Printer Delete ButtonDelete registered printer. 3Printer StatusNames and types are shown. 4Add New PrinterAdd new printer 6 Additional Features Press Printer Status and then information of printer detail is shown. You can find out resin type, number of print completed, total amount of resin usage and resin usage history. Additional features will be shown when you press [Menu] button. ❖ Printer You can go back to the starting screen of Cloud Monitoring. Printing 3-12 3 ❖ Job It shows the job history of the printer. Name of model file, printer, resin type and usage and print time can be checked. ❖ Setting Email address to which printer’s status is sent can be set, and change email notification setting. If you need to use several email addresses, use semi-colon. (i.e [email protected] ; [email protected]) 1.4 Changing Resin When a resin different from the current one needs to be used, clean up the resin tank and platform to ensure the best print quality and to prevent mixing. 1 Cleaning the platform Clean the platform using a cleaning brush, isopropyl alcohol (IPA), and a paper towel. Remove existing resin as much as possible. Reference - Regarding how to clean the platform, refer to “Platform of 5. Maintenance”. 3-13 Printing 3 2 Cleaning the resin tank Clean the release film and walls of the resin tank using isopropyl alcohol (IPA) and a paper towel. clean it using isopropyl alcohol (IPA) or glass cleaner and a microfiber cloth if required. Caution - For details on how to clean the resin tank, refer to “Resin Tank of 5. Maintenance”. 4 Checking Printed Output Sindoh A1 SD Series USER MANUAL Checking Printed Output 4-2 4 1. Checking Printed Output Caution - Wear nitril gloves before getting started. 1.1 Detaching Printed Output 1 Standby Until Platform Returns To Ready Position After printing is finished, wait until platform completely returns to ready position. Do not open the orange cover before platform stops moving. Platform 2 Platform Locking Knobs Removal When platform stops moving, open the orange cover and remove two platform locking knobs by turning them in counterclockwise direction. Important - Be careful not to drop knobs into resin tank when removing them. The release film of the resin tank or LCD protective glass may be damaged. Platform locking knobs 4-3 Checking Printed Output 4 3 Platform Locking Screws Removal If not removing the resin remnant sufficiently , the table, work area or machine exterior may become contaminated by the overflowing resin from the platform when carrying the platform. As shown in the picture below, please place the platform over a resin tank that resins accumulated on the platform drop to the resin tank. Please remove the remaining resin by scraping with the scrapper shipped with the machine. Important - Be careful not to drop or splash resin to other parts but resin tank. Move the metal scrapper slowly so that resin falls into the resin tank at the edges of platform. - Be careful not to damage the output on the platform during the operation. Caution - The blades and edge of the metal scraper are very sharp, so be careful not to injure yourself when scraping the resin. 4 Detaching the printed output from platform Remove the platform and move it to cleaning tray enclosed in finisher kit. Tray Checking Printed Output 4-4 4 Important - As moving the platform away from the machine, be careful not to let the resin splash or spill onto any part of the resin tank. Insert blade of metal scrapper between printed output and platform and detach it by pushing scrapper slowly and carefully. Start detaching from corners of printed output and continue to insert scrapper inward. At every corner, there are specially designed protrusions that let the blade of the metal scrapper easily slide into between the platform and prints. Use these protrusions to remove prints from the platform. Reference - Protrusions for detaching prints are available only with A Desktop S/W. - If it is difficult to remove printouts from the platform, remove the printouts by hammering the metal scraper (Using hammer in finisher kit) Caution - The blades and edge of the metal scraper are very sharp, so be careful not to get injured when removing the output. - Be careful not to damage the metal scraper by touching the output. - When removing the print object from the platform, please be cautious not to damage the platform surface with a scraper.Damage to the platform surface can result in severe damage to the release film or affect printing quality.Therefore, remove the protrusions on the platform surface completely . - For some brittle resins, pay attention to breakage when removing the sculpture from the platform. If necessary, it is recommended to create a support in the output and print it. 4-5 Checking Printed Output 4 - After removing the platform from the unit, be sure to close the orange cover. If the resin contained in the resin tank is exposed to external light for a long time, the resin may harden and cause the printing failure. 1.2 Finishing the Printed Output 1 Removing supports Remove supports using the nipper enclosed in the finisher kit. Nipper Caution - Use the nipper with care because the blade is sharp. - Be careful not to cut the printed output by mistake. 2 Cleaning the printed output with isopropyl alcohol (IPA) Pour isopropyl alcohol (IPA) in the washing tub enclosed in the finisher kit, and put the printed output in IPA to remove remaining resin. Shake it to facilitate removing resin. Cleaning Container Caution - Do not place the IPA close to fire because it is flammable. Checking Printed Output 4-6 4 Remove remaining resin using a brush or toothbrush. Use a sprayer to wipe out the fine gaps or holes in the output with IPA. 3 Drying and post-curing Important - The curing time may vary depending on the printed output’s size and shape. - For quick curing, f…

Text truncated - open the document above for the full version.

FCC ID: 2AB83-A1SD Date: 2021. 01. 20 Model Name: A1 SD , Neo Print 10, Neo Speed 10, A1 SD+ , A1 WD Agent Authorization Letter SUBJECT: FCC Application for 2AB83-A1SD To Whom It May Concern: We, the undersigned, hereby authorize FCC certification at Yong-Gwang, Kwon of ENG Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Yong-Gwang, Kwon of ENG Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti- Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. This authorization is valid until further written notice from the applicant. Sincerely, Name: Jae-Young, Choi Job Title: Manager

Date: January 20, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mils Road Columbia, MD FCC ID: 2AB83-A1SD Declaration Letter To Whom It May Concern: We, Sindoh Co., Ltd. hereby declare following mentioned product that PCB board, circuit, hardware version, software version, structure and internal photos are same, named differently due to marketing purposes. The label shall be affixed on the back side of the product. Product Name: 3D Printer Basic Model Name: A1 SD Additional Model Names: Neo Print 10, Neo Speed 10, A1 SD+, A1 WD Differences : See the followings Model Name Differences A1 SD Basic Model Neo Print 10 Identical to the basic model except for the model designation and optional part Neo Speed 10 A1 SD+ A1 WD Sincerely, Name: Jae-Young, Choi Title: Manager Tel No: +82-2-460-1583

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jan. 15, 2021 Subject; Request for Confidentiality FCC ID: 2AB83-A1SD To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jae-Young, Choi Title: Manager

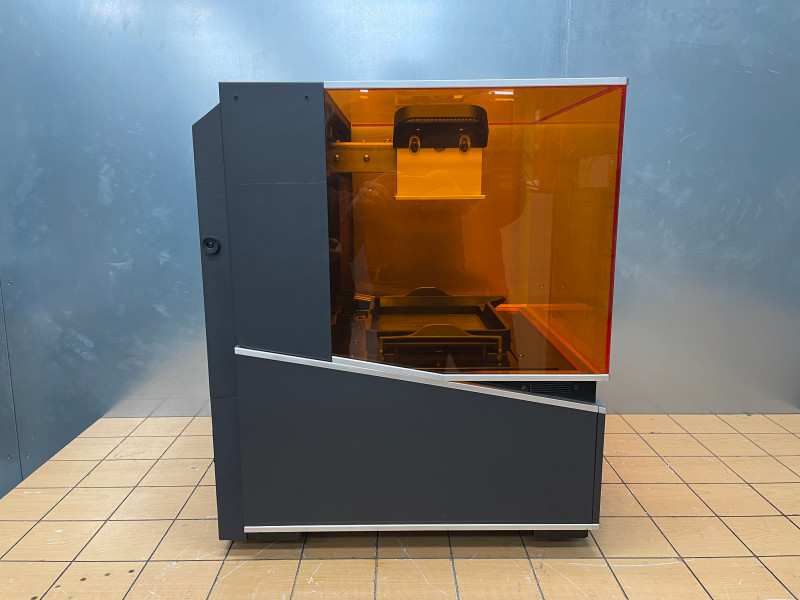

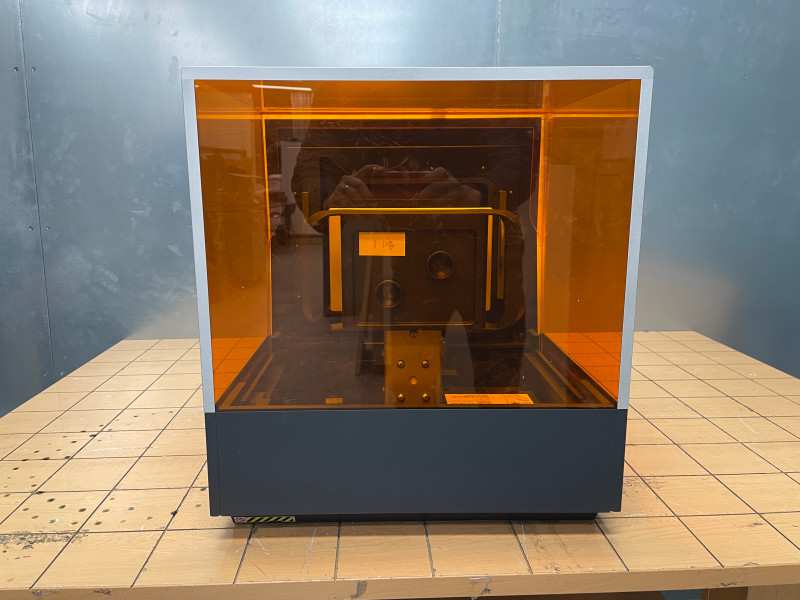

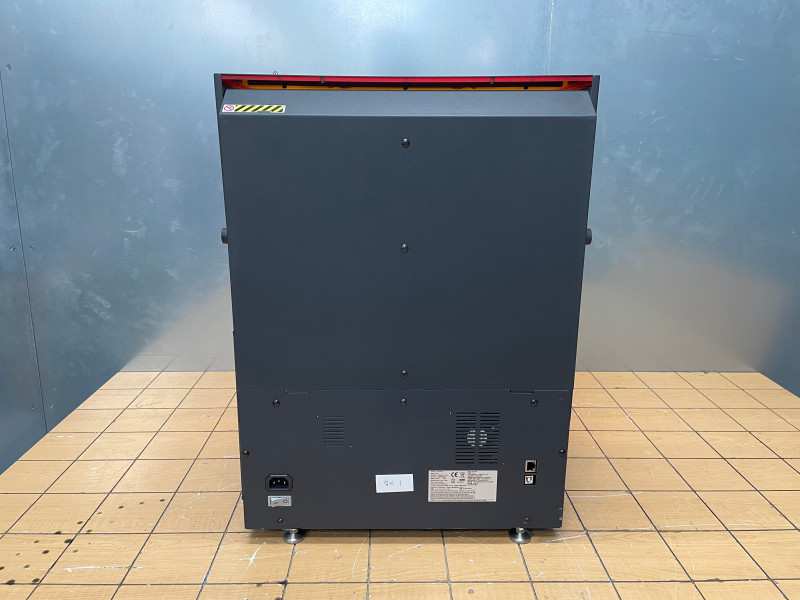

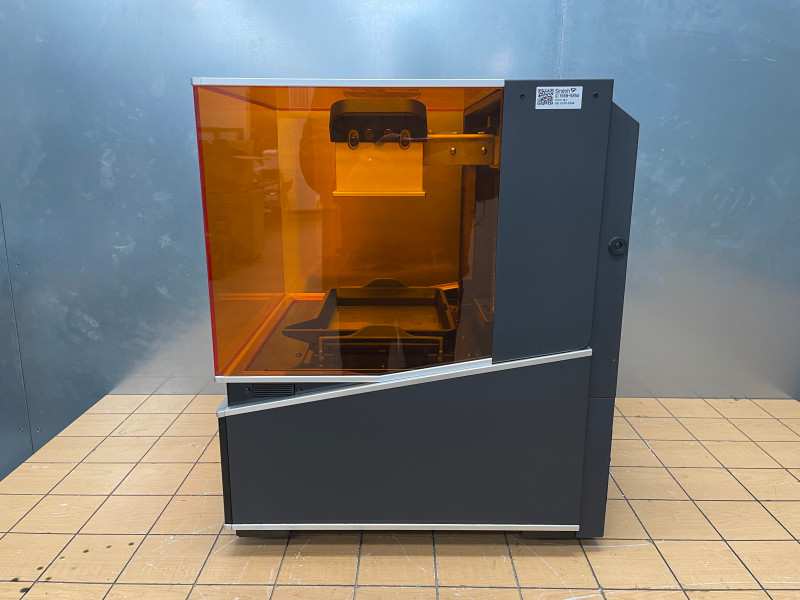

Report No.: TR-W2101-003 Page 53 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr APPENDIX V - PHOTOGRAPHS REPORT Report No.: TR-W2101-003 Page 54 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 55 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr

Report No.: TR-W2101-003 Page 52 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr APPENDIX IV - IDENTIFICATION LABEL PROPOSED FCC LABEL (Part 15 sec. 15.19(a)(3)) Following Label shall be affixed on the back side of the product.

Report No.: TR-W2101-003 Page 56 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 57 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 58 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 59 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 60 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 61 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 62 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 63 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 64 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 65 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 66 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 67 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2101-003 Page 68 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr

Report No.: TR-W2101-003 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_18 (Rev.0) FCC CFR 47 Part 15 Subpart B CERTIFICATION TEST REPORT For the Applicant : Sindoh Co., Ltd. Product : 3D Printer FCC ID : 2AB83-A1SD Model : A1SD Multiple Model : Neo Speed 10, Neo Print 10, A1 SD+ , A1 WD FCC Rule ISED Canada Rule : CFR 47 Part 15 Subpart B : ICES-003 We hereby certify that the above product has been tested by us with the listed rules and found in compliance with the regulation. The test data and results are issued on the test report no. TR-W2101-003 Signature Choi, Young-min / Technical Manager Date: 2021-01-06 Test Laboratory: ENG Co., Ltd. It shall not be reproduced except in full, without the written approval of the ENG Co., Ltd. This document may be altered or revised by the ENG Co., Ltd. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TR-W2101-003 Page 1 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr FCC & ISED Canada TEST REPORT Project Number : EA2012C-018 Test Report Number : TR-W2101-003 Type of Equipment : 3D Printer FCC ID : 2AB83-A1SD Model Name : A1SD Multiple Model Name : Neo Speed 10, Neo Print 10, A1 SD+ , A1 WD Applicant : Sindoh Co., Ltd. Address : 3, Seongsuiro24 (isipsa)-gil, Seongdong-gu,Seoul 04797, Republic of Korea Manufacturer : Sindoh Co., Ltd. Address : 3, Seongsuiro24 (isipsa)-gil, Seongdong-gu,Seoul 04797, Republic of Korea FCC Rule : FCC CFR 47 Part 15 Subpart B §15.101 Class A Device ISED Canada Rule : ICES-003 Issue 6 Total page of Report : 68 pages Date of Receipt : 2020-12-14 Date of Issue : 2021-01-06 Test Result : Pass This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Prepared by Chu, Woo-sik / Senior Engineer 2021-01-06 Signature Date Reviewed by Choi, Young-min / Technical Manager 2021-01-06 Signature Date Report No.: TR-W2101-003 Page 2 of 68 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr CONTENTS Page 1. TEST SUMMARY ............................................................................................................................ 4 1.1 TEST STANDARDS AND RESULTS ............................................................................................ 4 1.2. TEST METHODOLOGY ............................................................................................................... 4 1.3 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ................................................ 4 1.4 PURPOSE OF THE TEST ............................................................................................................. 4 1.5 TEST FACILITY ............................................................................................................................. 5 2. EUT (EQUIPMENT UNDER TEST) DESCRIPTION......................................................................... 6 2.1 ADDITIONAL MODEL ................................................................................................................... 6 3. TEST CONDITION ........................................................................................................................... 7 3.1 EQUIPMENT USED DURING TEST .............................................................................................. 7 3.2 CABLE DESCRIPTION ................................................................................................................. 7 3.3 MODE OF OPERATION DURING THE TEST ............................................................................... 8 3.4 TEST SETUP DRAWING............................................................................................................... 8 4. EUT MODIFICATIONS .................................................................................................................... 9 5. EMISSION TESTS ......................................................................................................................... 10 5.1 AC POWER LINE CONDUCTED EMISSION .............................................................................. 10 5.2 RADIATED EMISSION ..................................................................................................…

Text truncated - open the document above for the full version.
