2AB83-D332AMulti Function Peripherals (copier, printer, facsimile (optional))

D330A Series Quick Start Guide Before using this product, please read the user's manual and keep it well. Directly plug the power cord in the receptacle on the wall. Do not use extension cord. If the power cable or plug is worn or damaged, pull out the power plug. In order to prevent electric shock or exposure to laser radiation (in case of a laser device), do not remove the cover or screw which is not stated in the user manual. Turn off power and pull out the power plug in the following situations; - If something is spilled on the device - When considering the service or repair request on the device - When the device cover is damaged In case of a device using toner, do not burn the spilled toner or the waste toner. If a toner particle is exposed to the screen, it may be ignited. In case of disposal, contact our company’s seller use the proper collection place. In case of not using the product for a long time or when leaving the ofce after business hours, turn off the power. Otherwise, it may cause an abrupt re accident. Protect the device from a humid or wet condition including rain, snow, and so on. Pull the power cord off from the receptacle on the wall before moving the device. Be careful not to damage the power cord while the device is being moved. Be sure not to pull the cable when pulling the power cord off from the wall receptacle. Be sure to pull out with the plug. Be sure not to have a clip, a staple, or another small metal object fell inside the device. Be careful of a safety accident when servicing the inside of the device including the removal of paper jam, cleaning of the inside of the device, and so on. In case of the device using toner, keep the toner and the toner container in the place where cannot be reached by a child. Do not dispose of the device or consumables in the place treating household waste. In case of disposal, contact our company’s seller use the proper collection place. The inside of the device may be very hot. Do not touch the part with the“Careful! Very Hot!” label attached or the spot around the part. Otherwise, it may cause burn. Our company’s product conforms to the quality standards and performance. It is recommended to use only the genuine parts possibly purchased from an authorized distributor. Be sure to observe the following instructions when using the device. Safety Instructions Warning : Failure to observe the instructions may lead to death or serious injury. Caution : Failure to observe the instructions may cause serious and slight injuries or property damages. Before Using the Product Prohibition and limitation Thank you for purchasing our product. This user manual is intended for first-time user of this MFP as well as MFP administrators. This manual explains functions and operation procedures of MFP, user tips and important warnings, maintenance tips, and simple troubleshootings. Read this manual carefully to fully and effectively use the device. For maintenance and troubleshooting, basic technical knowledge for the device will help users. For your maintenance and troubleshooting needs, follow the instructions specified in the manual. If any unexpected errors or troubles occur, make sure to contact one of our service centers for help. 1. The details of the user manual can be changed without a prior notice. Our company is not responsible for the direct and/or indirect loss or damages caused by results of handling or operating the product in any case and for the results occurring from user ’s negligence. 2. The act of duplicating or printing a bill, revenue stamp, bond, share certificate, bank draft, check, passport, and driver ’s license distributed at home and abroad is prohibited according to a law . 3. The copyrighted literary works such as books, cores, figures, maps, drawings, and photos can be duplicated and used for personal use or household use and within the same scope. In other cases, it is prohibited according to a law . 4. The above details present only a part of the applicable laws and regulations. The details of the law are not stated as they are. Our company is not responsible for correctness and completeness. Receive a legal consulting service to check if the duplication or printing of an object is legal. 5. The font used for device GUI and user manual is NANUM font, provided by NA VER. Table of contents Chapter 1. Safety Information 1. Introduction ------------------------------------------------------------------------------------------------------ 1-2 2. Environmental information ---------------------------------------------------------------------------------- 1-3 Environmental benefits of power management ---------------------------------------------------------- 1-3 Recycled paper --------------------------------------------------------------------------------------------------- 1-3 Duplex -------------------------------------------------------------------------------------------------------------- 1-3 3. Safety information --------------------------------------------------------------------------------------------- 1-4 Warning and precaution symbols ---------------------------------------------------------------------------- 1-4 These are some of major exemplary graphical symbols ----------------------------------------------- 1-4 <Power source connection> ---------------------------------------------------------------------------------- 1-5 <Installation> ------------------------------------------------------------------------------------------------------ 1-6 <Using the product> --------------------------------------------------------------------------------------------- 1-8 <Consumables> -------------------------------------------------------------------------------------------------- 1-9 4. Regulation notices ------------------------------------------------------------------------------------------- 1-11 For Brasilia users/ Para usuários de Brasília ----------------------------------------------------------- 1-12 …

Text truncated - open the document above for the full version.

4 About This Machine D330A Series Quick Start Guide 4-2 About This Machine 4 1. Optional components List of optional components No.NameDescriptions 1Main unitScans the original in the scanner section, and prints a scanned ima- ge in the printer section. This unit is referred to as “this machine” or “the main unit” in the manual. 2Original Cover OC- 513 Used to fix the loaded originals. 3Reverse Automatic Document Feeder DF-633 Automatically feeds and scans originals by page. This unit also re- verses and automatically scans 2-sided originals. This unit is refe- rred to as ADF in the manual. 4Fax Kit FK-513Used to operate this machine as a fax machine. When you use this machine as a fax machine, the optional Expanded Memory Unit must also be installed in this machine. 5Clean Unit CU-101Collects small particles (UFP) generated in this machine to prevent them from escaping this machine. The Mount Kit MK-748 is requi- red to install the Clean Unit CU-101. 6Mount Kit MK-748This unit is required to install the Clean Unit CU-101. 4-3 About This Machine 4 No.NameDescriptions 7Authentication Unit AU-102 Performs user authentication by scanning vein patterns in the finger. The Working Table WT-515 is required to install the Authentication Unit AU-102. To install, the Local Interface Kit EK-608 or Local Interface Kit EK- 609 is required. 8Authentication Unit AU-201S Performs user authentication by scanning information recorded on the IC card or NFC-compatible Android terminal. The Mount Kit MK-735 is required to install the Authentication Unit AU-201S. This unit can also be installed on the Working Table WT- 515. To install, the Local Interface Kit EK-608 or Local Interface Kit EK- 609 is required. 9Working Table WT- 515 This is used when the Authentication Unit AU-102 or Authentication Unit AU-201S is installed. 10 Keypad KP-101It is equipped on the side of the Control Panel. Allows you to operate this machine or enter a number by using hard- ware keys. 11Desk DK-518Used to install this machine on the floor. 12Paper Feed Cabinet PC-418 Allows you to load up to 2500 sheets of 8-1/2 e 11 (A4) size. 13Paper Feed Cabinet PC-218 Allows you to load up to 500 sheets respectively in the top and bot- tom trays. 14Paper Feed Cabinet PC-118 Allows you to load up to 500 sheets in the top tray and use the bot- tom tray as a storage box. 15Finisher FS-539Sorts, groups and staples printed paper before outputting it. To install the Finisher FS-539, the Relay Unit RU-514 and Mount Kit MK-603 are required. In addition, the Paper Feed Cabinet PC- 118, PC-218, or PC-418 or Desk DK-518 must be installed on this machine. 16Finisher FS-539 SDSorts, groups, staples, folds, and binds printed paper before outpu- tting it. To install the Finisher FS-539 SD, the Relay Unit RU-514 and Mount Kit MK-603 are required. In addition, the Paper Feed Cabinet PC-118, PC-218, or PC-418 or Desk DK-518 must be ins- talled on this machine. 17Punch Kit PK-524Install this unit onto the Finisher FS-539/FS-539 SD. This unit supports the punching function. 18Relay Unit RU-514This unit is required to install the Finisher FS-539/FS-539 SD on this machine. 19Finisher FS-533Install this unit onto the output tray of this machine. Sorts, groups and staples printed paper before outputting it. The Mount Kit MK-602 and Mount Kit MK-603 are required to ins- tall the Finisher FS-533. 20Mount Kit MK-602This unit is required to install the Finisher FS-533. 4-4 About This Machine 4 No.NameDescriptions 21Punch Kit PK-519Install this unit onto the Finisher FS-533. This unit supports the punching function. 22Job Separator JS- 506 Install this unit onto the output tray of this machine. This unit sorts printed sheets. The Mount Kit MK-603 is required to install the Job Separator JS- 506. 23Mount Kit MK-603This unit is required to install the Finisher FS-539/FS-539 SD/FS- 533 or Job Separator JS-506 on this machine. List of other optional components The following options are built into this machine and are not shown in the figure. No.NameDescriptions 1Local Interface Kit EK-608 Install this unit when using the voice guidance function. The speaker and USB port are added. 2Local Interface Kit EK-609 Install this unit when using the voice guidance function or the con- nection function with a Bluetooth LE-compatible iOS terminal. The speaker, USB port, and receiving device for Bluetooth LE com- munication are added. 3i-Option LK-102Allows you to add the PDF processing function. 4i-Option LK-104Allows you to add the voice guidance function. 5i-Option LK-105Allows you to add the searchable PDF function. 6i-Option LK-106Used to add a bar code font that is one of special fonts. 7i-Option LK-107Used to add a unicode font that is one of special fonts. 8i-Option LK-108Used to add an OCR font that is one of special fonts. In the standard, the OCR-B font (PostScript) is available. Installing this option allows use of the OCR-A font (PCL). 9i-Option LK-110Allows you to convert a file into the DOCX or XLSX type or generate a high functionality and the high-quality data generation function. This option includes the function licenses for i-Option LK-102 and i- Option LK-105. To purchase this option, you do not need to purcha- se i-Option LK-102 and i-Option LK-105. For details on the addable functions, refer to the HTML User’s Gui- de. 10i-Option LK-111Allows you to add the ThinPrint function. 11i-Option LK-114Allows you to add the serverless pull printing function. 12i-Option LK-115Allows you to add TPM (Trusted Platform Module). Security enhan- cement is realized by encrypting confidential information such as certificates and passwords of this machine. 13i-Option LK-116Allows you to add the virus scan function. 4-5 About This Machine 4 No.NameDescriptions 14i-Option LK-117Allows you to add the IP fax (SIP) function. 15Upgrade Kit UK-221Allows you to use this machine in a wireless network environment. 16Heater HT-509Prevents paper in a paper tray from being affected by humidity.…

Text truncated - open the document above for the full version.

8 Registering a Destination D330A Series Quick Start Guide 8-2 Registering a Destination 8 1. How to register a destination Registering a fax address 1 Tap [Utility] - [Utility] - [Store Address] - [Address Book] - [New Registration]. 2 In [Select Destination], select [Fax]. 3 Enter destination information. SettingDescriptions [No.]Destination registration number. Select [Use opening number] to automatically assign the smallest available number. When you want to specify a number, select [Input directly] and then enter a number. [Name]Enter the destination name (using up to 24 characters). [Index]Select an index to search for a destination using the registered name. For a frequently used destination, select the [Main] check box. The destinations are displayed on the destination selection screen, enabling the user to easily select a destination. [Destination]Enter the destination fax number (using up to 38 digits, including symbols #, *, -, and characters T, P, and E). ● [T] or [*]: Enter the fax number when issuing a push signal in dial-up line mode (while [Dialing Method] is set to [10pps] or [20pps]). ● [P]: Enter this when you want to insert a wait time between dials. ● [-]: Enter this to separate a dial number. It does not affect the dialing of the number. ● [E-]: Enter the registered outside line number in PBX environment. Enter this when [PBX Connection Setting] is set to ON. [Confirm Fax Number] Enter the fax number again. This option is displayed when [Function ON/OFF Setting] - [Confirm Address (Register)] is set to ON. [Communica- tion Setting] If necessary, specify how to send a fax to a destination you want to register. You may change the settings you made here before sending a fax. ● [V34 Off]: V.34 is a communication mode used for super G3 fax communica tion. When the remote machine or this machine is connected to a telephone line via PBX, however, you may not establish a communication in the super G3 mode depending on telephone line conditions. In this case, it is recommended that you turn the V.34 mode off to send data. ● [ECM Off]: ECM is an error correction mode defined by ITU-T (International Telecommunication Union - Telecommunication Standardization Sector). Fax machines equipped with the ECM feature communicate with each other, confirming that the sent data is free of errors. This prevents image blurring caused by telephone line noise. The communication time can be reduced by setting ECM to OFF for transmission. However, an image error or communication error may occur depending on the specified communication time value, so change the value to suit conditions. ● [International Communication]: Used to send a fax to areas where communi cation conditions are poor. Faxes are sent at a lower speed. ● [Check Destination]: The fax number specified for fax is checked against the destination fax number (CSI) and the fax is sent only when they match. 8-3 Registering a Destination 8 4 Ta p [OK]. Registering E-mail address 1 Ta p [Utility] - [Utility] - [Store Address] - [Address Book] - [New Registration]. 2 In [Select Destination] , select [E-mail Address] . 3 Enter destination information. SettingDescriptions [No.]Destination registration number. Select [Use opening number] to automatically assign the smallest available number. When you want to specify a number, select [Input directly] and then enter a number. [Name]Enter the destination name (using up to 24 characters). [Index]Select an index to search for a destination using the registered name. For a frequently used destination, select the [Main] check box. The destinations are displayed on the destination selection screen, enabling the user to easily select a destination. [E-mail]Enter the E-mail address of the destination (using up to 320 characters, excluding spaces). 4 Tap [OK] . 9 Read this if You Have a Problem D330A Series Quick Start Guide 9-2 Read this if You Have a Problem 9 1. Main messages and remedies 1.1 Checking a notification message on the Touch Panel The notification icon is displayed on the home screen when there is a machine condition warning or notice notification. You can tap the icon to check the notification contents. 1 Tap the notification icon on the home screen. 1 Tap [ATTENTION List], and check the notification list. 9-3 Read this if You Have a Problem 9 1.2 Screen that appears when a paper/staple jam has occurred If any paper or staple jam occurs on this machine, the paper jam clearing procedure and the paper or staple jam location are displayed on the screen of this machine. Confirm the clear procedure and jam location, and follow the guidance to clear the jam. If a paper jam is not cleared securely, the warning message is not reset. For details on how to take an action when a paper jam message is not reset, refer to the HTML User’s Guide. When a paper jam is cleared, a screen showing how to correctly load paper or the original is displa- yed. 9-4 Read this if You Have a Problem 9 Return the original or paper, and tap [OK] or [Complete]; the system restarts scanning or printing of the original. ItemDescriptions [Start Guidance]Starts the guidance showing how to clear a paper/staple jam. [Display Switch]Changes the screen that shows the paper jam clearing procedure and the screen that shows where the paper jam occurred. Number (indicating the location number for the section with a paper/staple jam) A section chart is displayed with a location number enclosed in a circle for a section where a paper/staple jam has occurred. 1.3 When an error message appears When an error is detected, the following message appears. Take the appropriate action according to the message displayed on the screen. If you cannot resolve the error, write down the [Trouble Code], and contact your service representative with the power plug disconnected from the power outlet. In normal circumstances, the phone number and fax number for your service representative appear in the center of the screen. Notice - If a defective par…

Text truncated - open the document above for the full version.

9-10 Read this if You Have a Problem 9 4. When a message appears to replace consumables or carry out cleaning A message appears indicating the time(s) that expiring consumables used in this machine should be replaced. Also, a message appears when the Slit Scan Glass is dirty. Replace consumables or clean the Slit Scan Glass as instructed in the displayed message. Contact your service representative if the messages continue to appear even after replacement or cleaning has been carried out. 4.1 About Developing Unit When it is time to replace a Developing Unit, a message appears to prompt you to contact your ser- vice representative. If the message appears, contact your service representative. Tips - The settings by the service representative are required to display a message about Developing Unit. By the factory default status, this message is displayed only in some area. For details, contact your service representative. 4.2 About Imaging Unit When it is time to replace an Imaging Unit, a message appears to prompt you to contact your service representative. If the message appears, contact your service representative. Tips - The settings by the service representative are required to display a message about Imaging Unit. By the factory default status, this message is displayed only in some area. For details, contact your service representative. 4.3 About Drum Unit When it is time to replace a Drum Unit, a message appears to prompt you to contact your service representative. If the message appears, contact your service representative. 9-11 Read this if You Have a Problem 9 Tips - The settings by the service representative are required to display a message about Drum Unit. By the factory default status, this message is displayed only in some area. For details, contact your service representative. Replacing a Drum Unit The Drum Unit only for black is targeted for replacement. Tips - Your service representative will collect your used Drum Unit. Put it in a black plastic bag and store it in a box by itself. - A Drum Unit may be damaged due to exposure to light. Do not take it out of a black plastic bag until just before it is to installed. - After replacing a Drum Unit, be sure to clean the Print Head Glass for each color. For details on how to clean the Print Head Glass, refer to page 38. Warning - Do not throw toner or a container that contains toner (e.g., toner cartridge, developing unit and Waste Toner Box) into an open flame. The hot toner may scatter and cause burns or other damage. 1 2 3 4 7 8 6 5 1 23 9-12 Read this if You Have a Problem 9 Caution - Do not leave toner-related parts (e.g., toner cartridge, developing unit and Waste Toner Box) within easy reach of children. Licking any of these parts or ingesting toner could damage your health. - Do not store toner-related parts (e.g., toner cartridge, developing unit and Waste Toner Box) near devices susceptible to magnetism, such as precision equipment and data storage devices, otherwise they may malfunction. They could cause these products to malfunction. - Do not force open the toner-related parts (e.g., toner cartridge, developing unit and Waste Toner Box). If toner tumbles from the toner bottle, take utmost care to avoid inhaling it or even getting skin contact. - If toner lands on your skin or clothing, wash thoroughly with soap and water. - If you inhale toner, move to a place with fresh air and gargle with a lot of water repeatedly. Should you get symptoms such as coughing, seek medical advice. - If you get toner into your eyes, immediately rinse them with running water for over 15 mi nutes. Seek medical advice if irritation persists. - If you swallow toner, rinse out your mouth and drink a few glasses of water. Seek medical advice if necessary. 4.4 About Toner Cartridge When toner is running out in the Toner Cartridge When it is almost time to replace a Toner Cartridge, an advanced warning message appears. Prepare a Toner Cartridge for replacement based on the maintenance contract. When it is time to replace a Toner Cartridge When it is time to replace a Toner Cartridge , a replacement prompt message appears. Replace it based on the maintenance contract. You can display the replacement procedure on the screen and check it. Tips - Do not replace a Toner Cartridge of a color that is not displayed. 9-13 Read this if You Have a Problem 9 Replacing a Toner Cartridge The following example shows how to replace a Yellow Toner Cartridge. 1 2 3 4 Tips - Shake a new Toner Cartridge well, approximately 5 to 10 times, before installing it. - If a toner cartridge other than for black is empty, printing can be continued forcibly using black. Ta p [Continue], and then select a desired print job. - Do not forcedly open or disassemble a Toner Cartridge (toner container). - Do not forcedly remove or dispose of toner that remains in a Toner Cartridge (toner container). Notice - Install a Toner Cartridge for each label color. If you try to forcibly install a Toner Cartridge in the incorrect position, it may result in a failure. Warning - Do not throw toner or a container that contains toner (e.g., toner cartridge, developing unit and Waste Toner Box) into an open flame. The hot toner may scatter and cause burns or other damage. 9-14 Read this if You Have a Problem 9 Caution - Do not force open the toner-related parts (e.g., toner cartridge, developing unit and Waste Toner Box). If toner tumbles from the toner bottle, take utmost care to avoid inhaling it or even getting skin contact. - If toner lands on your skin or clothing, wash thoroughly with soap and water. - If you inhale toner, move to a place with fresh air and gargle with a lot of water repeatedly. Should you get symptoms such as coughing, seek medical advice. - If you get toner into your eyes, immediately rinse them with running water for over 15 min tes. Seek medical advice if irritation persists - If you swallow toner, rinse out your mouth and drink a few glasses of water. Seek medical a…

Text truncated - open the document above for the full version.

FCC ID: 2AB83-D332A Model Name: D332A, D331A, D330A Date: 2020. 08. 20 Agent Authorization Letter SUBJECT: FCC Application for 2AB83-D332A To Whom It May Concern: We, the undersigned, hereby authorize FCC certification at Yong-Gwang, Kwon of ENG Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Yong-Gwang, Kwon of ENG Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti- Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. This authorization is valid until further written notice form the applicant. Sincerely, Name: Jae-Young, Choi Job Title: Manager

Sindoh Co., Ltd. 3, Seongsuiro24(isipsa)-gil, Seongdong-gu, Seoul 04797, REPUBLIC OF KOREA Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 20, 2020 Subject; Request for Confidentiality FCC ID: 2AB83-D332A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jae-Young, Choi Title: Manager

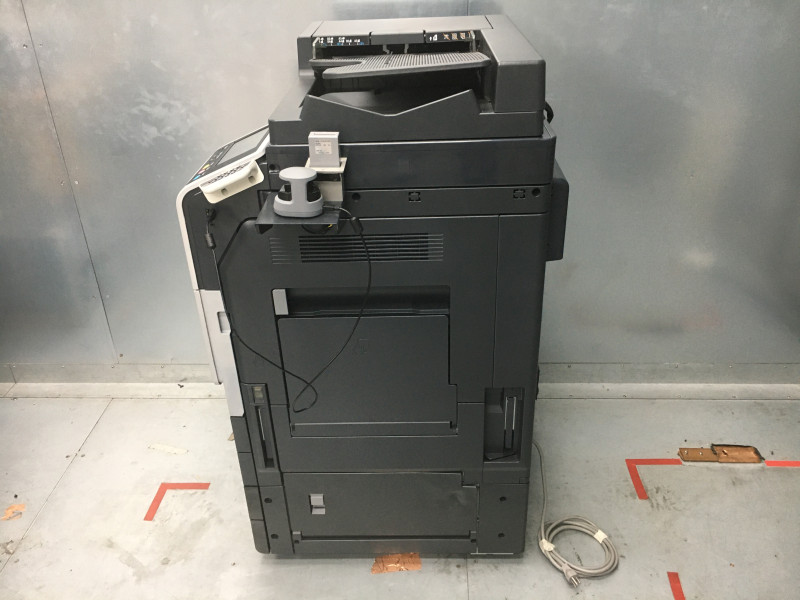

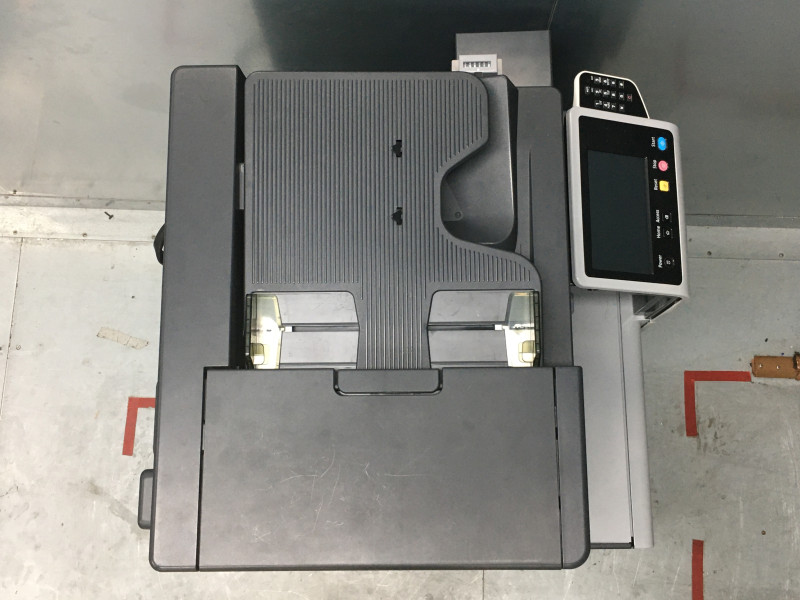

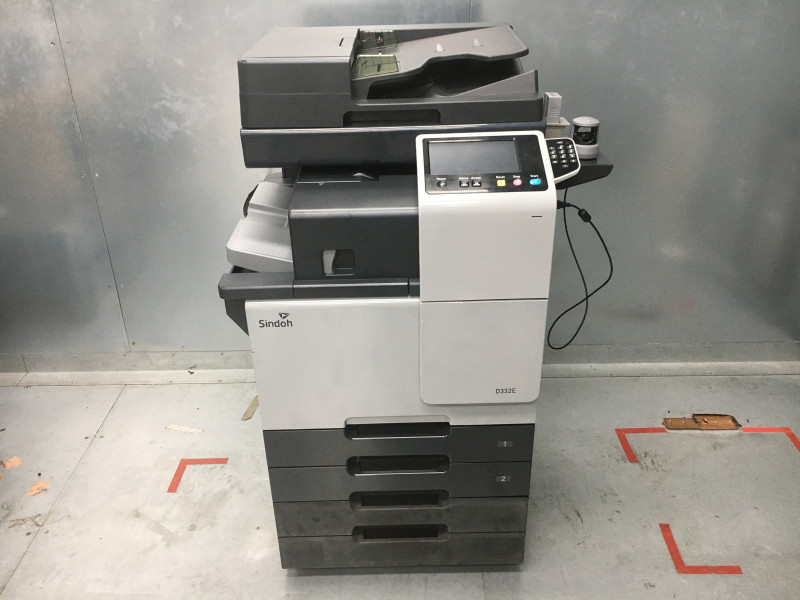

Report No.: TR-W2007-010 Page 93 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr APPENDIX V - PHOTOGRAPHS REPORT (External Photos) EUT 1 Report No.: TR-W2007-010 Page 94 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2007-010 Page 95 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2007-010 Page 96 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2007-010 Page 97 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2007-010 Page 98 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr EUT 2 Report No.: TR-W2007-010 Page 99 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2007-010 Page 100 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2007-010 Page 101 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr EUT 3 Report No.: TR-W2007-010 Page 102 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr Report No.: TR-W2007-010 Page 103 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr

Report No.: TR-W2007-010 Page 92 of 123 ENG Co., Ltd. 135-60 Gyeongchung-daero, Gonjiam-eup, Gwangju-si, Gyeonggi-do, Korea 12813 Report Form_01 (Rev.2) TEL: +82-31-727-8300 FAX: +82-31-764-0800 http://www.the-eng.co.kr APPENDIX IV - IDENTIFICATION LABEL PROPOSED FCC LABEL (Part 15 sec. 15.19(a)(3)) Following label shall be affixed on the back side of the product.

           !"#$%" "&'( %)"&% *'!"' +,-(./0 1  2,   ,-34 2,    ,$ 55))) $ " # 6  3 784 98  :; ;3:< ; /8""=$*1             !"#$%" "&'( %)"&% *'!"' +,-(./0 1  2,   ,-34 2,    ,$ 55))) $ " # 6     …
