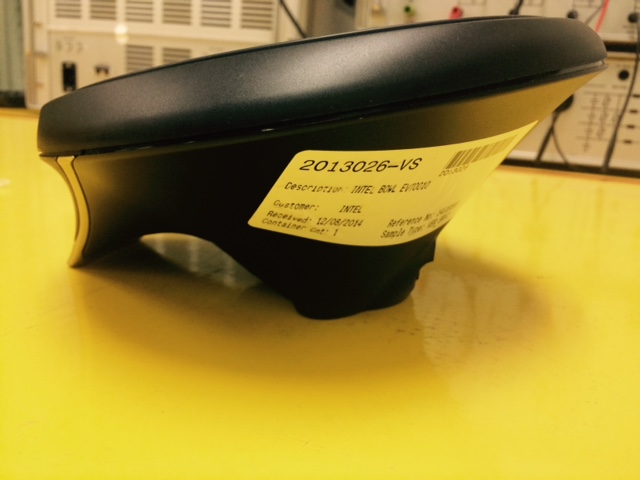

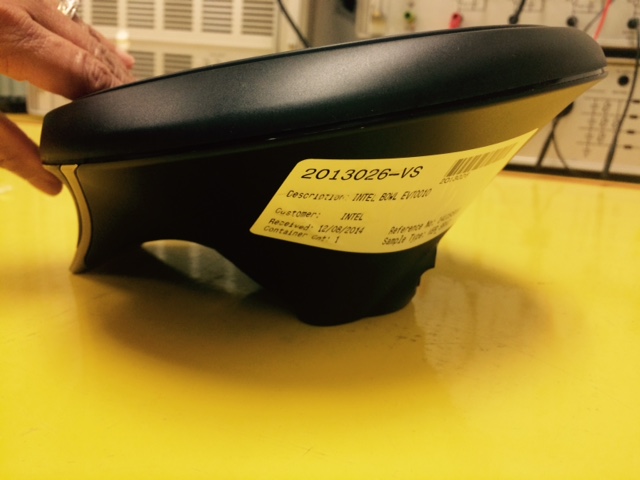

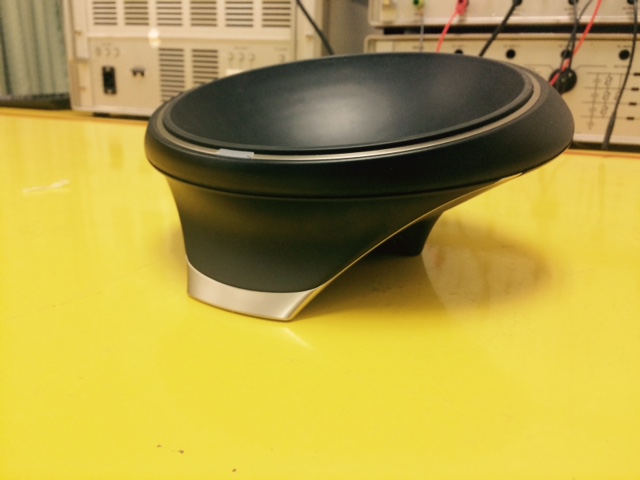

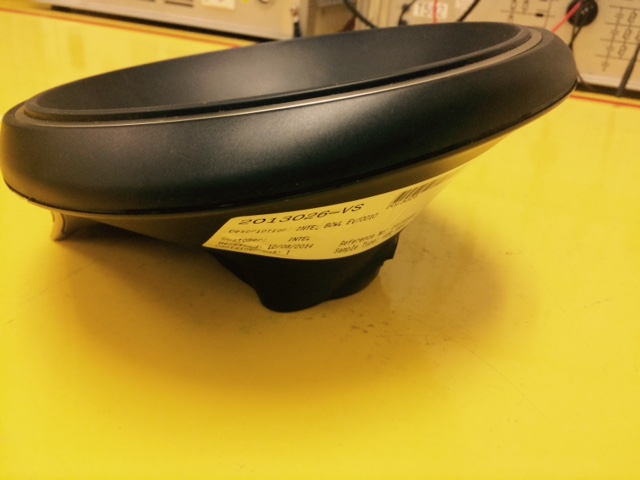

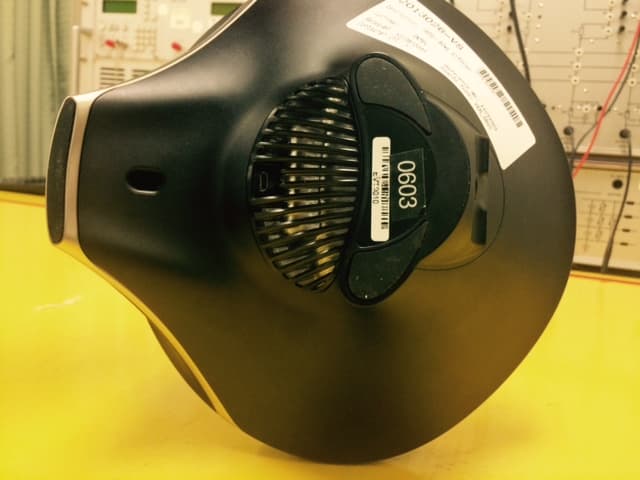

2AB8ZND3Wireless Charging Bowl

Please RecycleH62795-001 Wireless Charging Bowl Designed by Intel Quick Start Guide Congratulations and thank you! ...for purchasing the Wireless Charging Bowl, designed by Intel and built to make charging more conve- nient. Aesthetically designed to match modern home decor, the Wireless Charging Bowl is a bowl-shaped device capable of charging a MICA bracelet from Opening Ceremony wirelessly. The Wireless Charging Bowl works via magnetic resonance technology, a wireless charging standard that Intel is helping to develop. What you get Included in this package: • Wireless Charging Bowl • power adapter • six-foot power cord Using a Wireless Charging Bowl To power up your Wireless Charging Bowl, insert the power cord into the back of the bowl and insert the plug end of the power adapter into a wall receptacle. To start charging your MICA bracelet, place the bracelet into the bowl. The Wireless Charging Bowl also has two USB charging ports on the back, so you can plug in nonwireless devices to recharge via USB. When all wireless devices in the bowl are fully charged, or when the bowl is empty, the Wireless Charging Bowl drops to an energy-efficient power save state. Although the Wireless Charging Bowl will usually detect if there are incom- patible devices in the bowl and shut off automatically, avoid putting metallic objects (like coins, rings, ear- rings, etc.) or noncompliant elec- tronic devices into the bowl. Figure 1 Connecting your Wireless Charging Bowl USB charging ports Status LED Power adapter Power port 6ft. power cord LED indicator patterns The Wireless Charging Bowl uses a multicolored LED to indicate status. Note: For bedroom convenience, normal operation LED patterns time out to standby after two minutes. Alert patterns (yellow and red) do not time out. Pattern * * “Steady” LED stays on; “Blinking” LED alternates on/off once per second; “Flashing” LED alternates on/off four times per second. Eddy Bowl state Blue steady Power is on, but there is no activity (power save mode). Blue blinking Preparing to charge devices detected in the bowl. Green steady Active wireless charging; power is transferring. Alternating yellow/green Too many devices. Remove devices until the LED turns steady green. Yellow blinking A device in the bowl may have overheated. Remove device. Red flashing Nonchargeable, conductive object detected in the bowl. Remove noncompliant devices. Blue flashing Firmware upgrade in progress. LED will turn steady blue if successful. Yellow steady Firmware upgrade error. Unplug the charging bowl (power off) for ten seconds then try again. Red steady Firmware upgrade failed. Unplug the charging bowl (power off) for ten seconds then try again. DarkPower off/standby. Firmware upgrades If you need to upgrade the firmware, turn your Wireless Charging Bowl on its side so you can see the status LED and still access the micro USB port underneath the bowl. Connect a cable from the micro USB port to a USB port on your computer or lap- top. Open a browser on your com- puter and enter this link: • www.intel.com/support/go/bowl The support webpages explain how to download/install new firmware to your Wireless Charging Bowl through a Windows* or Mac OS* computer. Troubleshooting issues • My bowl will not power on. Make sure the power adapter is con- nected, and check the cable con- nections going into and coming out of the power adapter. • My devices aren’t charging. Try the following suggestions: – Make sure the bowl is on. If the LED is dark, unplug the power cord and plug it back in. – Check the LED status. (See LED indicator patterns.) – Make sure the chargeable device is powered on and lying flat in the center of the bowl. – Make sure there are no other objects in the bowl, especially nothing magnetic or metallic. Customer support For product news, firmware updates, release notes, the end-user license agreement (EULA), and support, visit www.intel.com/support/go/bowl. Figure 2 Firmware update via micro USB port Micro USB port Care instructions Clean the plastic on the bowl surface with a warm, damp cloth. Do not immerse the bowl in water, and do not pour water or any other liquid into the bowl. Additional care instructions: • Do not use industrial cleaners. • Do not plug the device in if the surface of the bowl ever cracks. • Do not cook in or eat from the bowl. • Do not put the bowl in a freezer, refrigerator, microwave, or oven. • Do not operate the bowl from on top of a metallic table or surface, as the metal may cause the bowl to malfunction. Ninety-day limited warranty Limited warranty. This ninety-day limited warranty (“Limited Warranty”) is provided for the wireless charging bowl hardware (the “Device”) by Intel Corporation (“Intel,” “we,” or “us”) to the original Device purchaser or recipient (“you”). Subject to the terms of this Limited Warranty, Intel warrants the Device to be free from manufacturing and mate- rial defects under ordinary consumer use for 90 days from the date of original purchase from place of purchase. If you submit a valid claim under this Limited Warranty, Intel will, at Intel’s sole discretion and within a reasonable period of time, refund or replace any Device that fails solely as a result of any manufacturing or material defect. Any such replacement will be made at no charge to you for parts and labor. Any replace- ment Device may be new or refurbished, at Intel’s sole discre- tion. Intel may require you to submit proof of purchase of the Device prior to providing you with service under this Limited Warranty. This Limited Warranty does not apply to any of the following: (a) cosmetic damage to the Device, such as scratches, nicks, stains, and dents; (b) your loss or misplacement of the Device; (c) repair or replacement to consumable parts for the Device, such as batteries; (d) damage to the Device caused by acci- dent, abuse, misuse, neglect, water, flood, fire, or other acts of nature or external causes; (e) normal wear and tear of the Device; or …

Text truncated - open the document above for the full version.

Intel Corporation 2200 Mission College Blvd Santa Clara, CA 95054 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Intel Corporation 2200 Mission College Blvd Santa Clara, CA 95054 g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, , 12/9/2014 Masood Abrishamcar Compliance Manager Intel Corporation

Intel Corporation 2200 Mission College Blvd Santa Clara, CA 95054 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AB8ZND3 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards , 12/9/2014 Masood Abrishamcar Compliance Manager Intel Corporation

UL Verification Services 47173 Benicia St. Fremont CA 94538 Mr. Masood Abrishamcar Intel Corporation, 220 Mission College Boulevard, Santa Clara, CA 95052, USA. February 27, 2015 Re: SAR Bluetooth test exemption justification - FCC Dear Mr. Abrishamcar, The Bluetooth transmitter of the wireless charger, Eddy Bowl (FCC ID 2AB8ZND3), is subject to RF exposure evaluation. The device is used no closer than 10 cm from the user and is exempt from testing based upon the following rationale. FCC KDB 447498 § 4.3.1.2) b sets SAR test exemption criteria based upon output power, frequency and antenna to user separation distances. For antenna to user separation distances >50mm the device output power must be less than the calculated SAR test exclusion threshold. Extremity Exposure Conditions (dBm)(mW) 0.011002.4984 SAR test exclusion threshold (mW) Min. test separation distance (mm) Maximum output Pow er Frequency (GHz) As the output power does not exceed the SAR test exclusion threshold value SAR testing is not required. The RF exposure for the Wireless Power Transfer features was dealt with through a KDB enquiry as part of the Declaration of Conformity under FCC Part 18. Yours Sincerely, Dave Weaver Program Manager Consumer Technology Division UL Verification Services T: 510 771 1116 E: [email protected]

FCC 47 CFR PART 15 SUBPART C BLUETOOTH LOW ENERGY CERTIFICATION TEST REPORT FOR WIRELESS CHARGING BOWL MODEL NUMBER: WIRELESS CHARGING BOWL FCC ID: 2AB8ZND3 REPORT NUMBER: 14U19569-E2, Revision B ISSUE DATE: DECEMBER 23, 2014 Prepared for INTEL CORPORATION 2200 MISSION COLLEGE BOULEVARD SANTA CLARA, CA 95052, U.S.A Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 14U19569-E2B DATE: DECEMBER 23, 2014 FCC ID: 2AB8ZND3 Model: WIRELESS CHARGING BOWL Page 2 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 12/12/2014 Initial Issue T. LEE A 12/22/2014 Adding antenna for measurements from 18 – 25GHz in the test equipment list M. Hua B 12/23/2014 Corrected Test Methodology on Section 10 M. Hua REPORT NO: 14U19569-E2B DATE: DECEMBER 23, 2014 FCC ID: 2AB8ZND3 Model: WIRELESS CHARGING BOWL Page 3 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 6 EQUIPMENT UNDER TEST ...................................................................................................... 7 4.4. DESCRIPTION OF EUT .............................................................................................. 7 4.5. MAXIMUM OUTPUT POWER...................................................................................... 7 4.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 7 4.7. SOFTWARE AND FIRMWARE .................................................................................... 7 4.8. WORST-CASE CONFIGURATION AND MODE .......................................................... 8 4.9. DESCRIPTION OF TEST SETUP ................................................................................ 9 5. TEST AND MEASUREMENT EQUIPMENT ......................................................................11 6. MEASUREMENT METHODS ............................................................................................12 7. ON TIME, DUTY CYCLE AND MEASUREMENT METHODS ...........................................12 7.1. ON TIME AND DUTY CYCLE RESULTS ....................................................................12 8. ANTENNA PORT TEST RESULTS ...................................................................................14 8.1. 6 dB BANDWIDTH ......................................................................................................14 8.2. 99% BANDWIDTH ......................................................................................................18 8.3. OUTPUT POWER.......................................................................................................22 8.4. AVERAGE POWER ....................................................................................................23 8.5. POWER SPECTRAL DENSITY ..................................................................................24 8.6. CONDUCTED SPURIOUS EMISSIONS .....................................................................28 9. RADIATED TEST RESULTS .............................................................................................32 9.1. LIMITS AND PROCEDURE ........................................................................................32 9.2. TRANSMITTER ABOVE 1 GHz ..................................................................................33 10. AC POWER LINE CONDUCTED EMISSIONS ..............................................................46 11. SETUP PHOTOS ...........................................................................................................51 REPORT NO: 14U19569-E2B DATE: DECEMBER 23, 2014 FCC ID: 2AB8ZND3 Model: WIRELESS CHARGING BOWL Page 4 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Intel Corporation 2200 Mission College Boulevard Santa Clara, Ca 95052, U.S.A EUT DESCRIPTION: Wireless Charging Bowl MODEL: Wireless Charging Bowl SERIAL NUMBER: Not Available DATE TESTED: DECEMBER 6 -11, 2014 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demon…

Text truncated - open the document above for the full version.

REPORT NO: 14U19569-E2B DATE: DECEMBER 23, 2014 FCC ID: 2AB8ZND3 Model: WIRELESS CHARGING BOWL Page 51 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 14U19569-E2B DATE: DECEMBER 23, 2014 FCC ID: 2AB8ZND3 Model: WIRELESS CHARGING BOWL Page 52 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (BELOW 1 GHz) RADIATED FRONT PHOTO (BELOW 1 GHz) REPORT NO: 14U19569-E2B DATE: DECEMBER 23, 2014 FCC ID: 2AB8ZND3 Model: WIRELESS CHARGING BOWL Page 53 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED BACK PHOTO (BELOW 1 GHz) REPORT NO: 14U19569-E2B DATE: DECEMBER 23, 2014 FCC ID: 2AB8ZND3 Model: WIRELESS CHARGING BOWL Page 54 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) RADIATED FRONT PHOTO (ABOVE 1 GHz) REPORT NO: 14U19569-E2B DATE: DECEMBER 23, 2014 FCC ID: 2AB8ZND3 Model: WIRELESS CHARGING BOWL Page 55 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED BACK PHOTO (ABOVE 1 GHz) REPORT NO: 14U19569-E2B DATE: DECEMBER 23, 2014 FCC ID: 2AB8ZND3 Model: WIRELESS CHARGING BOWL Page 56 of 56 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT LINE CONDUCTED FRONT PHOTO LINE CONDUCTED BACK PHOTO
